How to Identify the Right Replacement Filter Element

Finding the right replacement filter element is essential for maintaining filtration efficiency and protecting industrial equipment. When an original filter is discontinued, unavailable, or difficult to source, choosing a replacement requires more than simply matching its appearance or dimensions. The filter media, filtration rating, connection, sealing material, and operating conditions should also be considered. This guide explains the key factors to check when identifying a suitable replacement filter element.


Check the Original Filter and Basic Specifications

The original part number is usually the best starting point. Check the label, end cap, packaging, equipment manual, or maintenance records for the original model number and manufacturer. If the part number is unavailable, the filter can still be identified through its dimensions, structure, application, and photos.

For a cylindrical filter cartridge, measure the outer diameter (OD), inner diameter (ID), and overall length. Also check the end-cap design and connection type, such as threaded connections, flanges, gaskets, O-rings, handles, or other special structures. A replacement filter must fit correctly into the existing housing to ensure proper installation and sealing.

The filter media and filtration rating are equally important. Common filter materials include glass fiber, synthetic fiber, cellulose, stainless steel wire mesh, sintered stainless steel, PTFE, and polyester. The required filtration rating may range from coarse filtration to several microns or even finer levels, depending on the application. Choosing a filter with the same dimensions but a different filtration rating or filter media may affect filtration efficiency, pressure drop, and service life.

You should also consider the actual operating conditions. The type of fluid, flow rate, working pressure, temperature, and contamination level can all affect filter selection. For example, hydraulic oil filter elements require suitable pressure resistance and oil compatibility, while stainless steel sintered filter elements can be a good option for applications requiring high strength, temperature resistance, and cleanability.

Don't Choose a Replacement by Size Alone

One common mistake is assuming that two filter elements are interchangeable simply because they have the same dimensions. In reality, filters with the same OD, ID, and length can have completely different filter media, filtration efficiency, sealing systems, pressure ratings, and flow characteristics.

A suitable replacement filter should meet three basic requirements: proper physical fit, appropriate filtration performance, and compatibility with the application. The seal material should also be checked. NBR, EPDM, and FKM/Viton have different temperature and chemical resistance, so selecting the wrong seal can lead to leakage or premature failure.

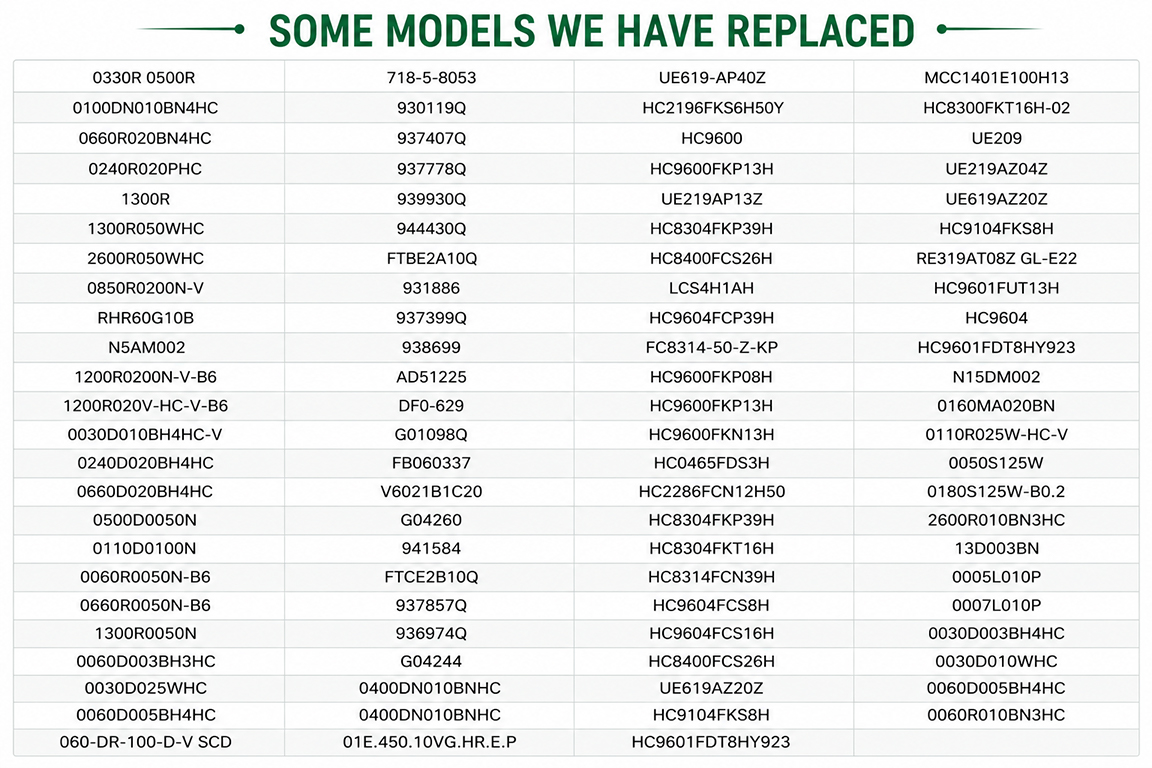

If the original model cannot be identified, providing detailed information can make the replacement process much easier. Useful information includes the original part number, manufacturer, OD, ID, length, filter media, micron rating, connection, seal material, filtered fluid, operating pressure, operating temperature, and clear photos of the filter. A technical drawing or physical sample can provide even more accurate reference information.


Custom Replacement Filter Elements

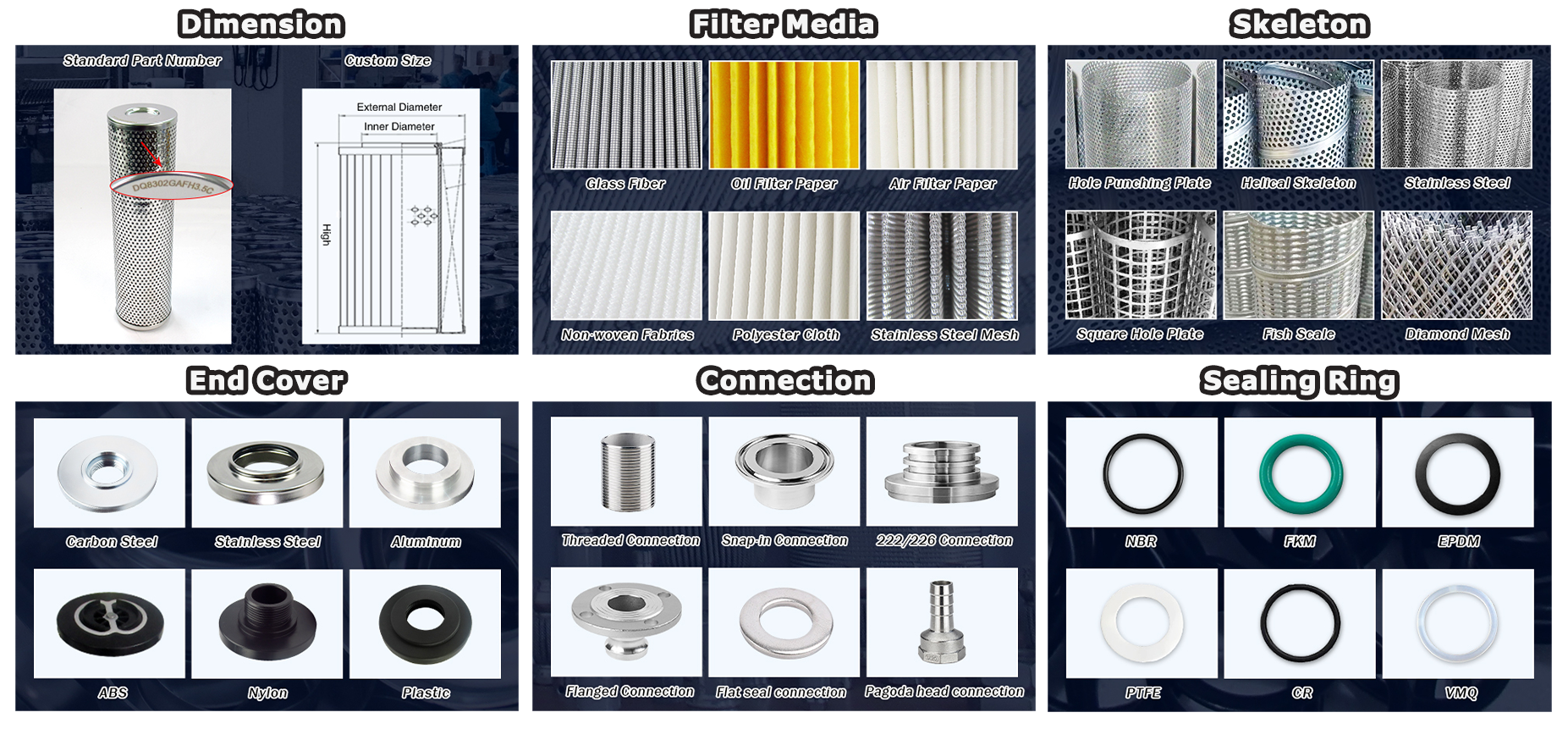

When an original filter is obsolete, discontinued, or difficult to purchase, a custom replacement filter element can often be developed according to a sample, drawing, original part number, or detailed specifications. Depending on the application, dimensions, filter media, filtration rating, end-cap configuration, connection type, and sealing material can be customized.

This is particularly useful for industrial equipment using special-size or non-standard filter elements. Replacement solutions can be developed for applications including hydraulic filtration, oil filtration, air filtration, gas filtration, dust collection, and industrial process filtration.
