3 Micron Stainless Steel Sintered Mesh Filter Cartridge

Product Description

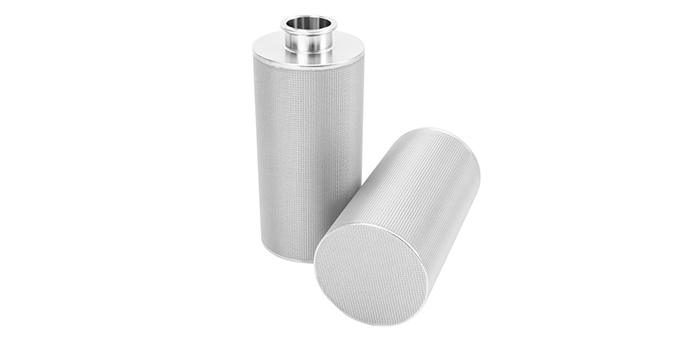

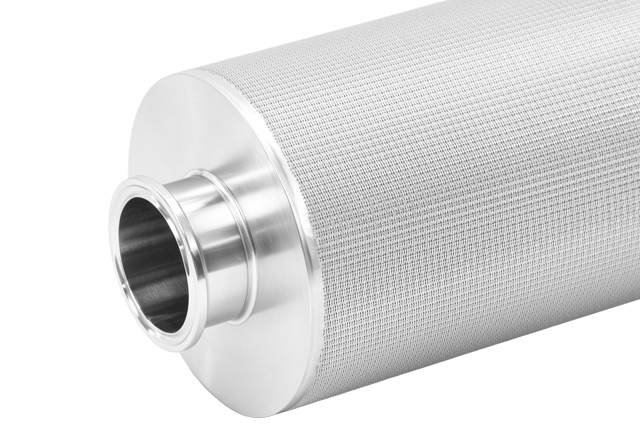

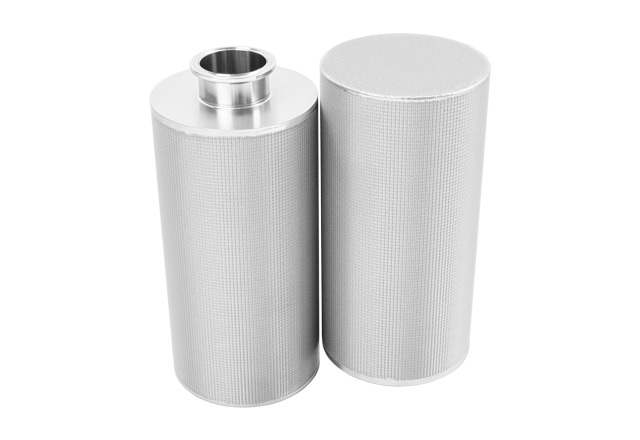

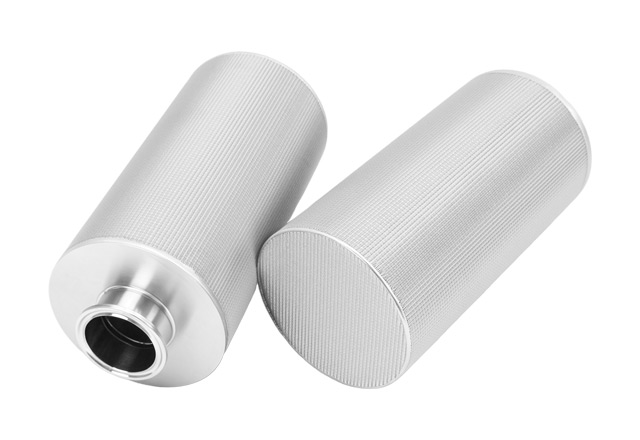

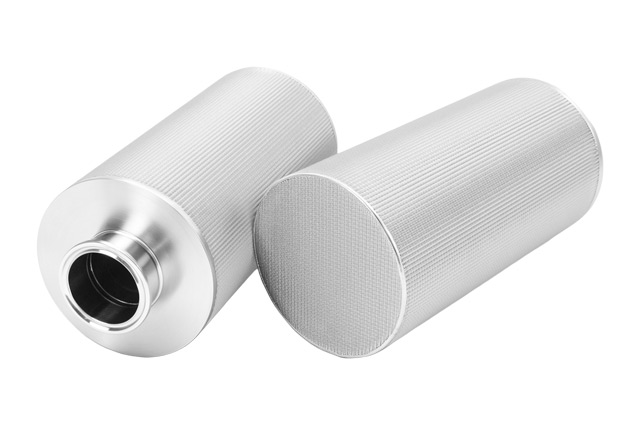

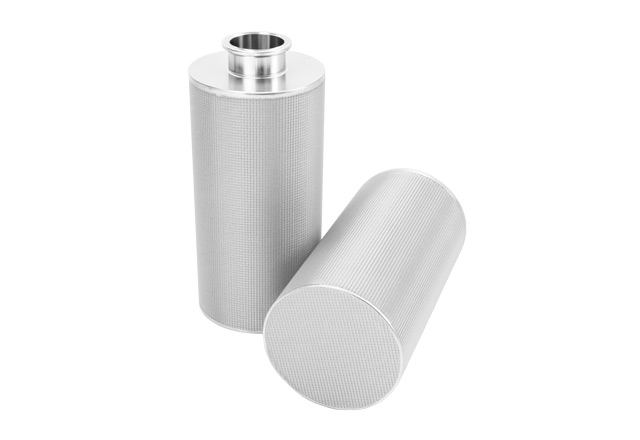

TOPEP stainless steel sintered mesh filter cartridge is designed for precision filtration applications requiring high strength, corrosion resistance, and long service life. This filter element is manufactured from high-quality SS304 stainless steel multi-layer wire mesh through a high-temperature sintering process, creating a stable porous filtration structure.

With a diameter of 100mm, height of 200mm, and 3 micron filtration accuracy, this sintered mesh filter cartridge provides efficient removal of solid particles, impurities, and contaminants from liquids and gases. The uniform pore structure ensures reliable filtration performance while maintaining good flow capacity and low pressure drop.

The 48/50.5mm tri clamp connection design allows quick installation and easy replacement, making it suitable for sanitary and industrial filtration systems where frequent maintenance is required.

Compared with traditional disposable filter elements, stainless steel sintered mesh filters offer excellent temperature resistance, pressure resistance, and chemical compatibility. The rigid metal structure allows repeated cleaning methods such as backwashing, ultrasonic cleaning, and high-temperature regeneration, significantly extending service life and reducing operating costs.

Specifications

Item	Specification
Product Name	Stainless Steel Sintered Mesh Filter Cartridge
Material	SS304 Stainless Steel
Diameter	100 mm
Height	200 mm
Filtration Rating	3 μm
Filter Media	Sintered Wire Mesh
Connection Type	Tri Clamp
Clamp Size	48 / 50. 5 mm
Structure	Multi-layer Sintered Mesh
Cleaning Method	Backwashing / Ultrasonic Cleaning
Customization	Available

Filter Structure

Stainless Steel Sintered Mesh Filter, also called Metal Mesh Sintered Filter, Alloy Mesh Filter, Sintered Layer Filter, along with porous powder sintered filter element, fiberglass sintered filter element, and PP/PE sintered filter element, all belong to the broad category of sintered filter elements.

The sintering mesh filter usually has five layers of stainless steel woven wire mesh, including one protective layer, one filter layer, one separating layer, and two supporting layers. Can also add a skeleton layer according to the using conditions sometimes.

Here are the functions of each layer.

Protective Layer--80~100μm

With a high mesh density, its main function is to intercept large particulate impurities, preventing them from entering the next filter structure, serve as the preliminary filtration and protection.

Separating Layer--40~60μm

Pre-filtering the medium-sized particles, separating the fluid, prevents localized clogging. It can adjust the flow rate of the filter media to reduce the filter pressure on the main filter layer, and extend the sintered mesh filter's service life.

Filter Layer--2~20μm

With a uniform pore size distribution, it is used to control the filtration precision, ensuring stable filtration from 1 to 300 microns, serve as the main filtration function.

Supporting Layer--200~300μm

High-strength coarse metal wire mesh, provides mechanical strength, increases the pressure corrosion and stability of the sintered mesh filter element. To prevent the deforming or cracking of the main filter layer under high pressure.

Skeleton Layer--thickness 1~2mm

High thickness metal plate, espacially suitable for the high pressure working condition. Withstand the system pressure shocks, to prevent interlayer misalignment and
ensure the sinter filter' shape stability, serve as a whole supporting function in the sintered mesh filter cartridge.

Special Features of Sintered Mesh Filter

The stainless steel sintered mesh filter cartridge as an advanced filter element, has many advantages compared to ordinary filter elements like fiberglass, paper and normal metal mesh material.

High Precision

The precision of the sintered metal mesh filter can be up to 1 micron, can intercept impurities such as particles and colloids effectively. Sintering mesh filter elements can filter the viscous liquid, and keep the mesh holes stable, has a uniform filtration performance.

High-Pressure Resistance

The compressive strength of sintered mesh filter elements reaches 30MPa, has an excellent mechanical strength. It can withstand the pressure impact, and the structure is not easy to deform, metal sinter filter has a great performance in high-pressure working conditions.

High Temperature Resistance

The seams and the end cover of the sintered mesh filter are used with a metal welding process, rather than adhesive bonding. The using temperature of stainless steel material can up to 600℃, and some other alloy materials can be much higher.

High Corrosion Resistance

Stainless steel has higher corrosion resistance compared with fiberglass or paper, and has a longer service life in strong acid and alkali environments.

Washed and Reused

The sintered mesh filter elements can be washed, like backwashing, ultrasonic cleaning or high-temperature roasting. And can keep a good filter performance after washing, thereby can be reused and have a long service life, and cost saving.
Selection Guide of Sintered Mesh Filter Cartridge

Cleaning Methods of Sintered Mesh Filter

The stainless steel sintered filter elements require standardized cleaning and proper daily maintenance during regular use to extend their service life.

Physical Methods

► Backwashing--Use clean water or compressed air to flush out impurities from the pores and surface of the filter element by introducing it from the outlet end in the opposite direction. Suitable for removing surface particles, sediment, and dust-like impurities. The pressure is at a range of 0.3 - 0.6MPa, the flow rate should be large enough to produce a strong flushing effect, but not so large as to damage the filter element.

► Ultrasonic Cleaning--Place the filter element into an ultrasonic cleaning tank filled with cleaning solution. The high-frequency vibrations of the ultrasound will dislodge impurities from the surface and interior of the filter element. The ultrasonic frequency is typically between 20 and 80 kHz, and the cleaning time is generally 15 to 30 minutes. This method is suitable for cleaning fine particles, oil sludge, and gelatinous impurities from micropores.

► Mechanical Brushing--For filter elements with stubborn stains or large particulate impurities on their surface, you can gently brush the surface of the filter element with a soft brush after backwashing or ultrasonic cleaning. However, be careful not to apply too much force when brushing, as this may damage the filter element's mesh structure.

Chemical Methods

► Acid Cleaning--When the filter element surface contains metal oxides or scale-like impurities such as calcium and magnesium, acid cleaning can be used. Commonly used acid cleaning agents include hydrochloric acid, nitric acid, and citric acid. The acid is prepared into a solution of a certain concentration, and the filter element is immersed in the acid cleaning solution for a period of time, and then rinsed thoroughly with clean water.

► Alkaline cleaning--When the filter element is contaminated with oil or organic matter, alkaline cleaning is an effective cleaning method. Alkaline solutions such as sodium hydroxide or sodium carbonate can be used, typically at a concentration of 5% to 15%. The filter element is immersed in the alkaline solution and heated appropriately for 1 to 3 hours, and then rinsed with clean water until neutral.

► Surfactant cleaning--For organic contamination, cleaning can be combined with the use of surfactants or enzymes (high concentrations of citric acid can be used in the food and beverage industry).

High-temperature Roasting

When organic matter is severely carbonized, the residue can be removed by high-temperature baking. This method is suitable for high-temperature operating conditions and high-temperature resistant filter elements. The baking temperature is generally ≤450℃, followed by a period of heat preservation and then natural cooling. It should be noted that not all sintered mesh filter elements are suitable for this method; the suitability depends on the material.

Sintered Mesh Filter vs Traditional Filter Cartridge

Stainless steel sintered mesh filter cartridges provide better durability and reusability compared with conventional disposable filter elements.

Feature	Sintered Mesh Filter	PP / Fiberglass / Paper Filter
Material	Stainless Steel	Plastic / Fiber Material
Service Life	Long service life	Shorter replacement cycle
Cleaning	Washable and reusable	Usually disposable
Temperature Resistance	Up to 600℃ for stainless steel	Limited temperature resistance
Pressure Resistance	Excellent mechanical strength	Lower pressure resistance
Chemical Resistance	Excellent	Limited compatibility

The stainless steel sintered mesh structure makes it suitable for demanding applications where filtration stability, durability, and cost efficiency are important.

Our Advantages

Our company operates a real, fully equipped factory covering over 26,000 square meters. As a direct manufacturer, we specialize in producing filters and have accumulated many years of hands-on experience. Every step—from selecting raw materials to final assembly—is carried out under strict quality control. With complete production lines and skilled technicians, we can manage routine orders as well as urgent or custom requirements with confidence and efficiency.

Our engineering team is made up of professionals who have been deeply involved in the filtration field for many years. They understand the properties of different filter media, the requirements for various filtration accuracies, and the operating conditions across a wide range of industries. Whether your project calls for unusual dimensions, higher performance, or a solution that can withstand tough working environments, our engineers can offer tailored designs and practical guidance to help you get the results you need.

Our factory has passed internationally recognized ISO and CE certifications, which further demonstrates the reliability of our product quality. Each filter element is carefully inspected before shipment — from raw material verification to performance testing and visual checks. With these strict quality controls in place, customers can count on our filters to deliver stable and consistent performance even in demanding industrial conditions.

We have years of experience in international trade and a dedicated export team that understands the purchasing habits, logistics procedures, and documentation requirements of different markets. Our export process is well-established, allowing us to provide clear communication and timely updates from the initial inquiry to the final shipment. From arranging transportation to customizing packaging and handling after-sales service, we aim to make every step smooth and reliable for our customers.

Company Description

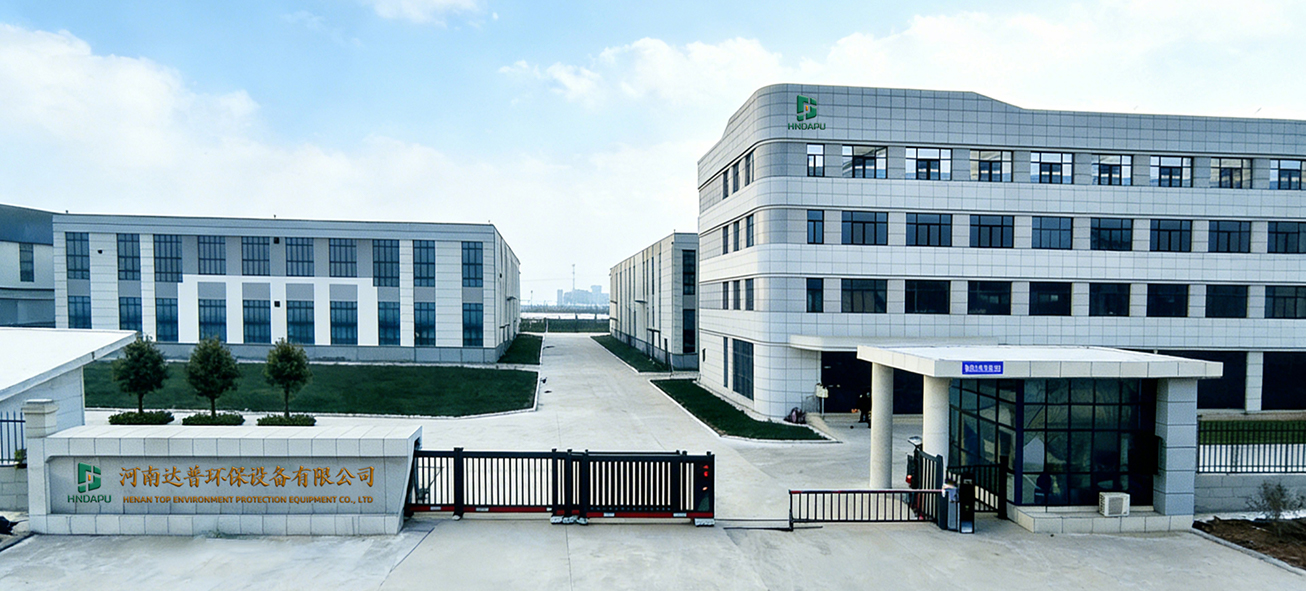

Henan Top Environmental Protection Equipment is a manufacturing company located in Henan, China, focusing on a wide range of filter cartridges and filter housings. Our facility is equipped with advanced production equipment, including rolling, slitting, and welding machines, as well as several automated lines that allow us to deliver consistent, high-quality products in large volumes.
