304 Stainless Steel Sintered Mesh Filter Cartridge 100x201mm

Product Description

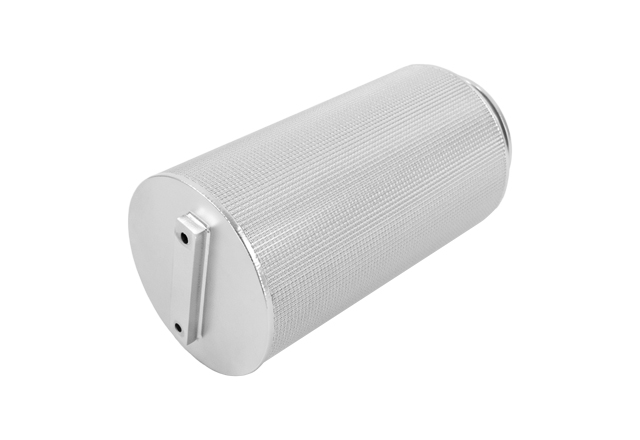

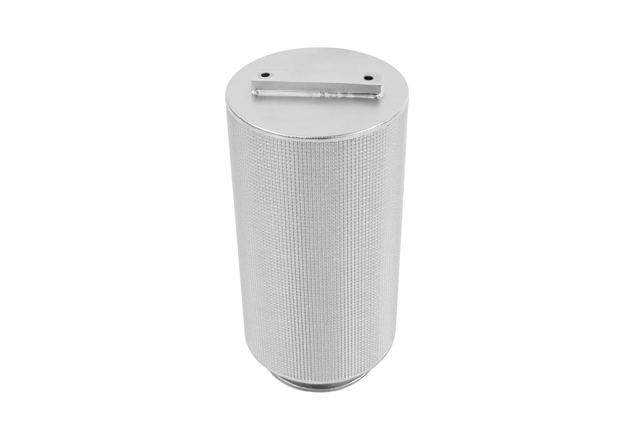

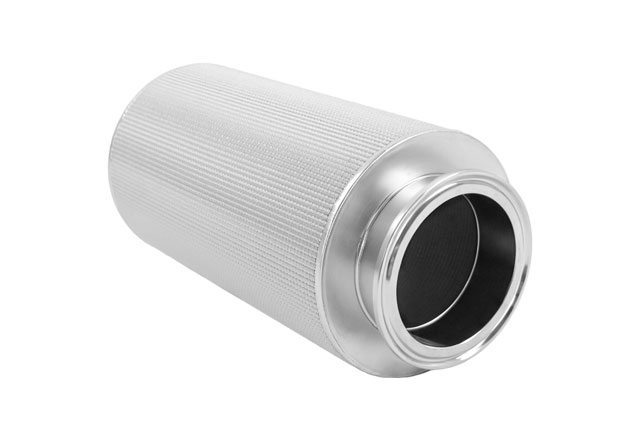

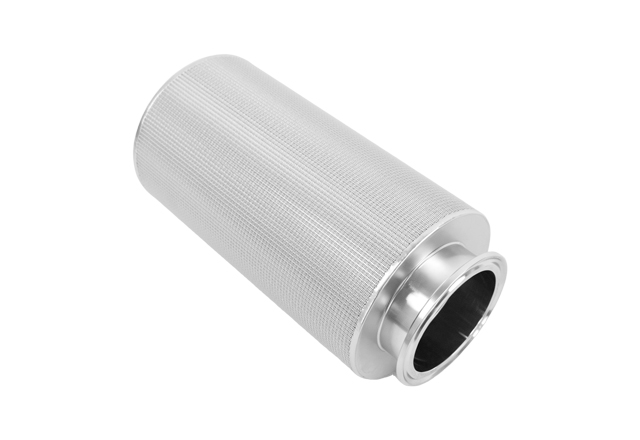

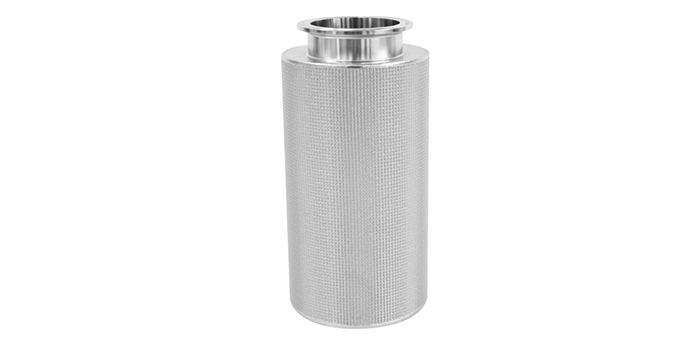

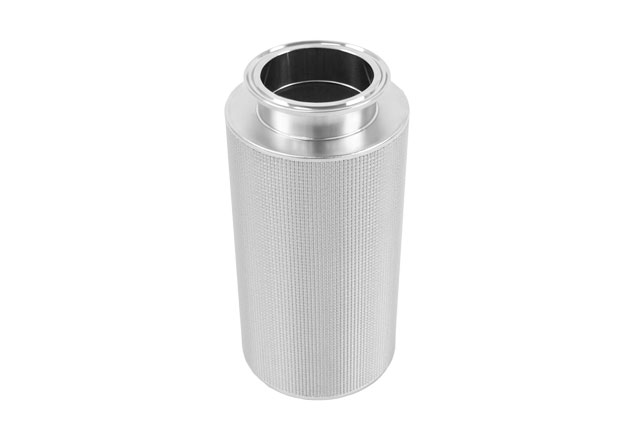

This 304 stainless steel sintered mesh filter cartridge is designed for industrial liquid and gas filtration applications requiring durable construction, stable filtration and convenient maintenance. The filter has an inner diameter of 59mm, outer diameter of 100mm and height of 201mm, with a quick clamp connection for fast installation and replacement.

The filter media is made from stainless steel sintered mesh, providing a rigid and stable filtration structure compared with conventional flexible filter materials. The sintered mesh structure offers good mechanical strength and can be selected with different filtration ratings according to the requirements of the filtration system.

TOPEP supports customized production of sintered mesh filter cartridges according to equipment requirements. Filtration rating, dimensions, connection type, filter structure and other specifications can be customized for different industrial filtration applications.

Specifications

Product Name	Stainless Steel Sintered Mesh Filter / Sintered Metal Mesh Filter
Material	Stainless Steel 304/316/316L
Filter Precision	1 -- 300μm
Working Temperature	-200 -- 650℃
Porosity	35% -- 50%
Pressure Resistance	Up to 30 MPa
Corrosion Resistance	PH 0-14
Working Media	Air / Water / Oil / Viscous Liquid / Chemical Liquid
Connection	Standard Thread / Flange / Quick Connection / Tie Rod Connection / Custom

Filter Structure

Stainless Steel Sintered Mesh Filter, also called Metal Mesh Sintered Filter, Alloy Mesh Filter, Sintered Layer Filter, along with porous powder sintered filter element, fiberglass sintered filter element, and PP/PE sintered filter element, all belong to the broad category of sintered filter elements.

The sintering mesh filter usually has five layers of stainless steel woven wire mesh, including one protective layer, one filter layer, one separating layer, and two supporting layers. Can also add a skeleton layer according to the using conditions sometimes.

Special Features of Sintered Mesh Filter

The stainless steel sintered mesh filter cartridge as an advanced filter element, has many advantages compared to ordinary filter elements like fiberglass, paper and normal metal mesh material.

1. High Precision

The precision of the sintered metal mesh filter can be up to 1 micron, can intercept impurities such as particles and colloids effectively. Sintering mesh filter elements can filter the viscous liquid, and keep the mesh holes stable, has a uniform filtration performance.

2. High-Pressure Resistance

The compressive strength of sintered mesh filter elements reaches 30MPa, has an excellent mechanical strength. It can withstand the pressure impact, and the structure is not easy to deform, metal sinter filter has a great performance in high-pressure working conditions.

3. High Temperature Resistance

The seams and the end cover of the sintered mesh filter are used with a metal welding process, rather than adhesive bonding. The using temperature of stainless steel material can up to 600℃, and some other alloy materials can be much higher.

4. High Corrosion Resistance

Stainless steel has higher corrosion resistance compared with fiberglass or paper, and has a longer service life in strong acid and alkali environments.

5. Washed and Reused

The sintered mesh filter elements can be washed, like backwashing, ultrasonic cleaning or high-temperature roasting. And can keep a good filter performance after washing, thereby can be reused and have a long service life, and cost saving.

Different Kinds Of Connection Can Be Custom

Cleaning Methods of Sintered Mesh Filter

The stainless steel sintered filter elements require standardized cleaning and proper daily maintenance during regular use to extend their service life.

Physical Methods

► Backwashing--Use clean water or compressed air to flush out impurities from the pores and surface of the filter element by introducing it from the outlet end in the opposite direction. Suitable for removing surface particles, sediment, and dust-like impurities. The pressure is at a range of 0.3 - 0.6MPa, the flow rate should be large enough to produce a strong flushing effect, but not so large as to damage the filter element.

► Ultrasonic Cleaning--Place the filter element into an ultrasonic cleaning tank filled with cleaning solution. The high-frequency vibrations of the ultrasound will dislodge impurities from the surface and interior of the filter element. The ultrasonic frequency is typically between 20 and 80 kHz, and the cleaning time is generally 15 to 30 minutes. This method is suitable for cleaning fine particles, oil sludge, and gelatinous impurities from micropores.

► Mechanical Brushing--For filter elements with stubborn stains or large particulate impurities on their surface, you can gently brush the surface of the filter element with a soft brush after backwashing or ultrasonic cleaning. However, be careful not to apply too much force when brushing, as this may damage the filter element's mesh structure.

Chemical Methods

► Acid Cleaning--When the filter element surface contains metal oxides or scale-like impurities such as calcium and magnesium, acid cleaning can be used. Commonly used acid cleaning agents include hydrochloric acid, nitric acid, and citric acid. The acid is prepared into a solution of a certain concentration, and the filter element is immersed in the acid cleaning solution for a period of time, and then rinsed thoroughly with clean water.

► Alkaline cleaning--When the filter element is contaminated with oil or organic matter, alkaline cleaning is an effective cleaning method. Alkaline solutions such as sodium hydroxide or sodium carbonate can be used, typically at a concentration of 5% to 15%. The filter element is immersed in the alkaline solution and heated appropriately for 1 to 3 hours, and then rinsed with clean water until neutral.

► Surfactant cleaning--For organic contamination, cleaning can be combined with the use of surfactants or enzymes (high concentrations of citric acid can be used in the food and beverage industry).

High-temperature Roasting

When organic matter is severely carbonized, the residue can be removed by high-temperature baking. This method is suitable for high-temperature operating conditions and high-temperature resistant filter elements. The baking temperature is generally ≤450℃, followed by a period of heat preservation and then natural cooling. It should be noted that not all sintered mesh filter elements are suitable for this method; the suitability depends on the material.

FAQ

Q1: What is the advantage of using 304 stainless steel?
304 stainless steel provides good mechanical strength, durability and general corrosion resistance, making it suitable for many industrial filtration applications.

Q2: Is the quick clamp connection easy to replace?
Yes. The quick clamp design allows the filter cartridge to be installed and removed conveniently, which is particularly useful for equipment requiring regular maintenance.

Q3: Can the filtration rating be customized?
Yes. The filtration rating can be customized according to the required particle removal performance and application conditions.

Q4: Can you manufacture a replacement filter based on our original cartridge?
Yes. OEM and replacement production are available. Customers can provide the original filter, dimensions, drawings, photos or samples for specification confirmation.

Q5: Can the connection be customized?
Yes. Besides the current quick clamp connection, other connection configurations can be developed according to the requirements of the filtration housing and equipment.
