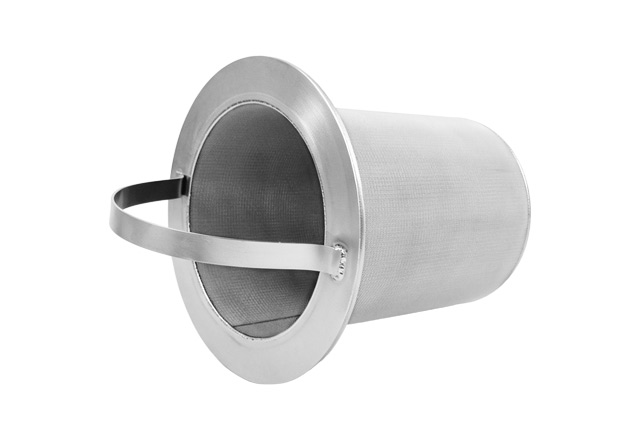

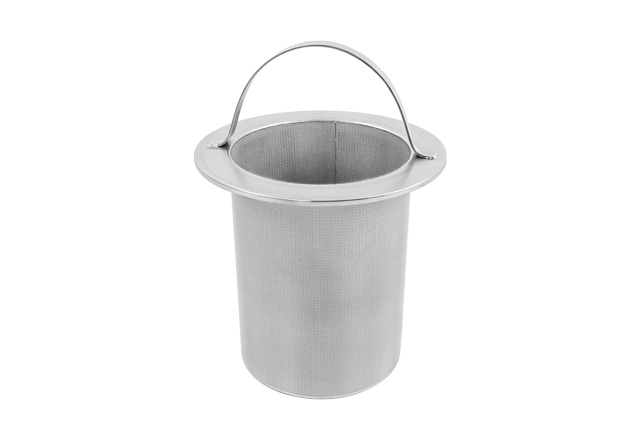

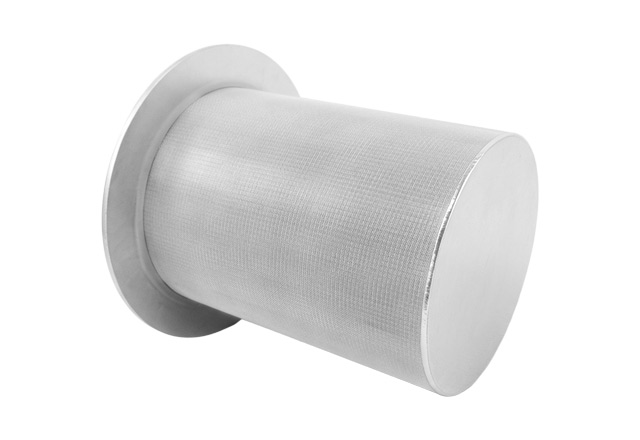

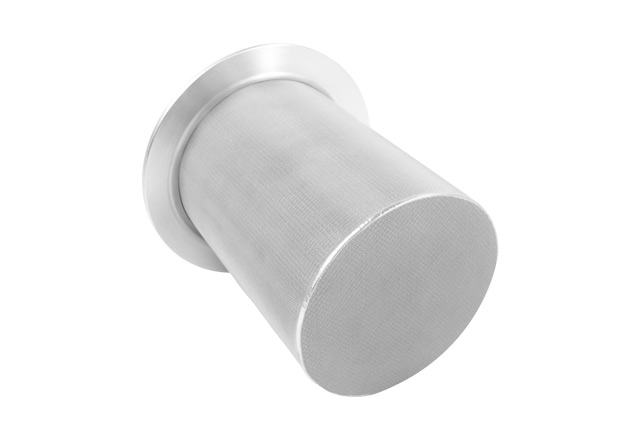

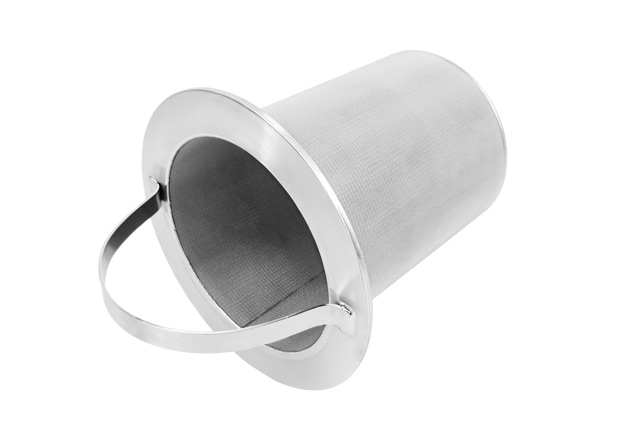

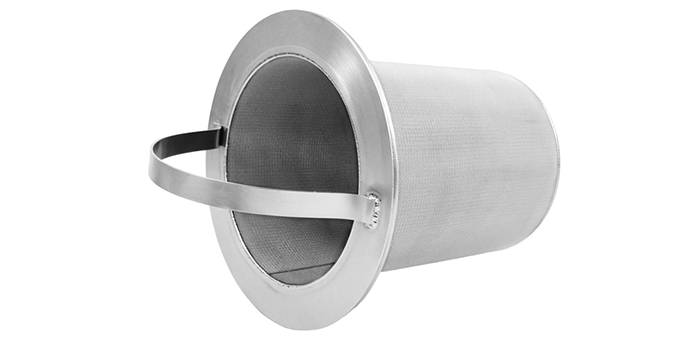

304 Stainless Steel Sintered Mesh Filter Cartridge With Handle

Product Description

Manufactured from multi-layer 304 stainless steel wire mesh, the sintered filter cartridge combines excellent mechanical strength, corrosion resistance, and high temperature performance. The flange connection and lifting handle design make installation, replacement, and maintenance more convenient, especially for industrial filtration systems requiring frequent cleaning and reuse.

This customized filter cartridge is widely used in chemical processing, petroleum, food and beverage, pharmaceutical, water treatment, and high-temperature filtration systems. TOPEP provides customized solutions including filtration rating, dimensions, connection types, materials, and surface treatment according to customer requirements.

Specifications

Product Name	Stainless Steel Sintered Wire Mesh Filter Cartridge
Filter Material	304 Stainless Steel Wire Mesh
Outer Diameter	205 mm
Filter Height	280 mm
Handle Height	80 mm
Connection Type	Flange + Handle
Filtration Rating	Customized (1–200 μm available)
Operating Temperature	Up to 500℃ (depending on application conditions)
Cleaning Method	Backwashing / Ultrasonic Cleaning / Chemical Cleaning
Application	Liquid and Gas Filtration

Filter Structure

1. Stainless Steel Sintered Mesh Filter Layer: The filter media adopts multi-layer stainless steel wire mesh sintered under high temperature and pressure. The stable pore structure ensures accurate filtration performance and excellent dirt-holding capacity.

2. Reinforced Stainless Steel Support Structure: The internal support structure improves pressure resistance and prevents deformation during operation, ensuring long-term filtration stability under high-pressure working conditions.

3. Flange Connection Design: The flange structure allows quick installation and removal, providing better sealing performance and reducing maintenance time.

4. Stainless Steel Handle: The lifting handle makes filter replacement easier and safer, especially for large-size industrial filter elements installed in filter housings.

Special Features of Sintered Fiber Felt Filter

1. High Dirt Holding Capacity

The three-dimensional fiber network provides a large internal filtration area, allowing the filter element to capture more contaminants compared with conventional mesh filters.

2. High Porosity & Low Pressure Drop
The interconnected porous structure ensures excellent permeability and stable flow performance.

3. Excellent Corrosion Resistance
304 stainless steel provides superior resistance against corrosion, chemicals, and harsh operating environments.

4. High Temperature Resistance
The fully metal structure allows operation under high-temperature conditions without degradation like polymer filter materials.

FAQ

Q1: What is the filtration accuracy of this stainless steel sintered filter cartridge?
The filtration rating can be customized according to customer requirements. Common options range from 1μm to 200μm.

Q2: Can this filter cartridge be cleaned and reused?
Yes. The stainless steel sintered mesh structure allows cleaning methods such as backwashing, ultrasonic cleaning, and chemical cleaning.

Q3: Why choose 304 stainless steel material?
304 stainless steel provides good corrosion resistance, mechanical strength, and durability, making it suitable for general industrial filtration applications.

Q4: Can you customize the flange size and handle design?
Yes. TOPEP can customize dimensions, connection methods, flange specifications, and handle designs according to drawings or samples.

Q5: What is the difference between sintered mesh filters and normal wire mesh filters?
Sintered mesh filters have stronger mechanical strength and more stable pore structures because multiple layers of mesh are bonded through high-temperature sintering.

Our Advantages

Our company operates a real, fully equipped factory covering over 26,000 square meters. As a direct manufacturer, we specialize in producing filters and have accumulated many years of hands-on experience. Every step—from selecting raw materials to final assembly—is carried out under strict quality control. With complete production lines and skilled technicians, we can manage routine orders as well as urgent or custom requirements with confidence and efficiency.

Our engineering team is made up of professionals who have been deeply involved in the filtration field for many years. They understand the properties of different filter media, the requirements for various filtration accuracies, and the operating conditions across a wide range of industries. Whether your project calls for unusual dimensions, higher performance, or a solution that can withstand tough working environments, our engineers can offer tailored designs and practical guidance to help you get the results you need.

Our factory has passed internationally recognized ISO and CE certifications, which further demonstrates the reliability of our product quality. Each filter element is carefully inspected before shipment — from raw material verification to performance testing and visual checks. With these strict quality controls in place, customers can count on our filters to deliver stable and consistent performance even in demanding industrial conditions.

We have years of experience in international trade and a dedicated export team that understands the purchasing habits, logistics procedures, and documentation requirements of different markets. Our export process is well-established, allowing us to provide clear communication and timely updates from the initial inquiry to the final shipment. From arranging transportation to customizing packaging and handling after-sales service, we aim to make every step smooth and reliable for our customers.

Company Description

Henan Top Environmental Protection Equipment is a manufacturing company located in Henan, China, focusing on a wide range of filter cartridges and filter housings. Our facility is equipped with advanced production equipment, including rolling, slitting, and welding machines, as well as several automated lines that allow us to deliver consistent, high-quality products in large volumes.

Our R&D team consists of experienced engineers who provide solid technical support, complemented by a knowledgeable sales and after-sales staff dedicated to reliable service. Every product is produced under strict quality control procedures to ensure it meets demanding performance standards.

We specialize in customized filtration solutions. According to customer needs, we can select suitable raw materials for various working conditions and offer custom dimensions, colors, packaging, labels, logos, and graphics. With strong manufacturing capability, we are often able to complete new product development and production within a week.

The company has earned CE and ISO certifications and holds several R&D patents. With more than 15 years of export experience, our products are shipped to over 100 countries and regions, including North America, Eastern Europe, the Middle East, and Southeast Asia. Guided by principles of responsibility, professionalism, and integrity, we have built long-term trust and recognition throughout the industry by consistently delivering dependable products and service.
