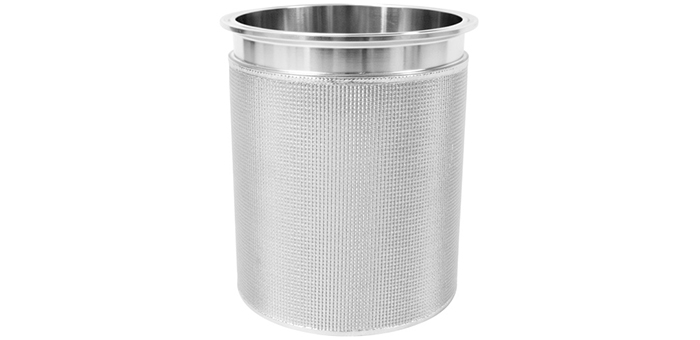

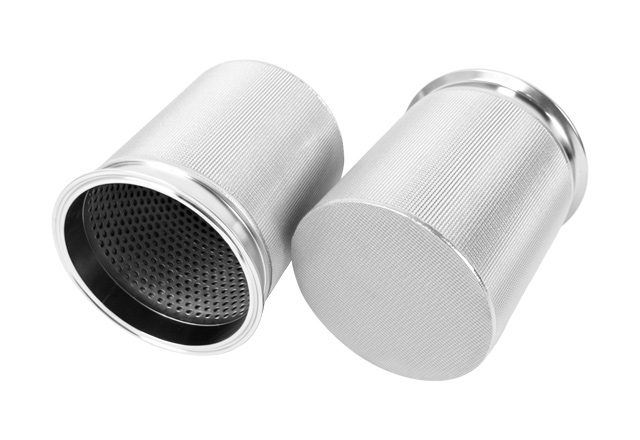

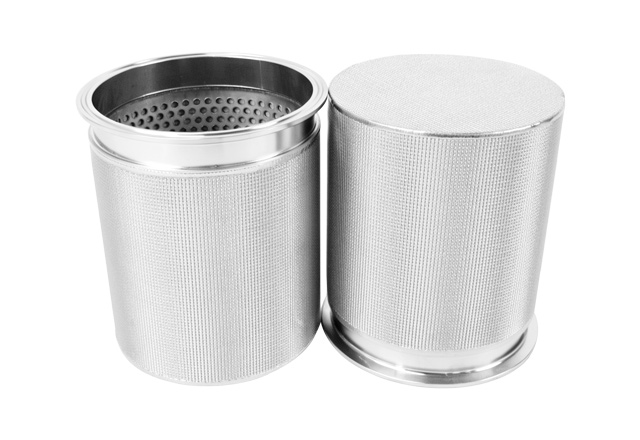

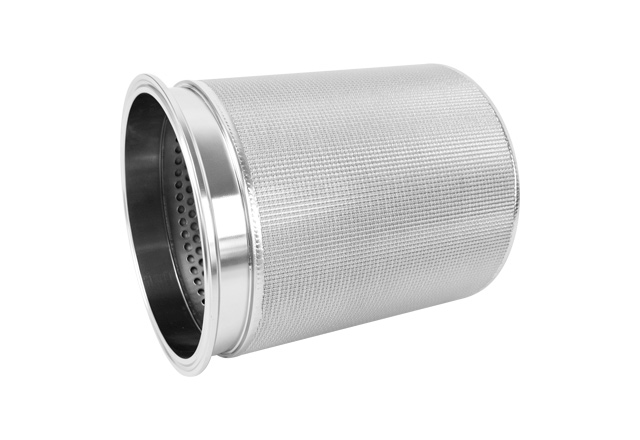

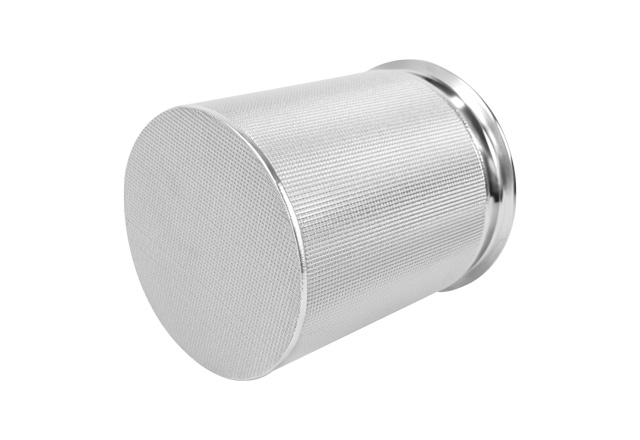

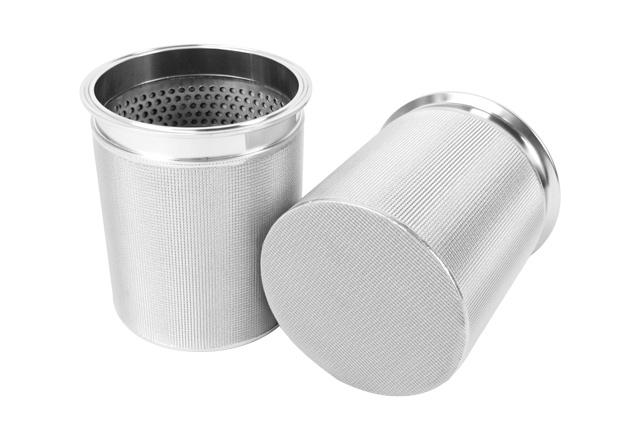

304 Stainless Steel Sintered Mesh Filter Cartridge 10 Micron

Product Description

This 304 stainless steel sintered mesh filter cartridge is designed for industrial filtration applications requiring durable metal construction and fine particle control. It features an outer diameter of 233 mm, a height of 350 mm, a specified filtration rating of 10 microns, and a quick opening connection. The stainless steel structure offers good mechanical strength and corrosion resistance in suitable operating environments. Depending on the filter design and contaminants, the element may be cleaned and reused to help reduce replacement frequency and filter waste. It can be considered for compatible liquid filtration and industrial process systems. Before ordering, confirm the connection dimensions, fluid compatibility, operating temperature, working pressure, flow rate, and filtration rating requirements. TOPEP offers customized filtration solutions based on drawings, samples, and specific application needs.

Specifications

Product Name	Stainless Steel Sintered Mesh Filter Cartridge
Filter Material	304 Stainless Steel
Outer Diameter	233 mm
Overall Height	350 mm
Filtration Rating	10 μm
Connection Type	Quick Opening Connection
Filter Structure	Sintered Mesh Structure, confirm exact layer configuration
Application	Industrial Liquid Filtration and Compatible Process Filtration Systems
Cleaning Method	To be determined according to the filter structure and contaminants
Customization	Dimensions, connection and media options subject to confirmation

Product Features

1. Strong and Durable Metal Construction

The 304 stainless steel construction provides a robust metal filtration option for industrial environments. Compared with some disposable filter media, a suitable metal element can offer better resistance to mechanical handling and may support repeated cleaning. The expected service life depends on the fluid chemistry, operating pressure, temperature, contamination load and maintenance practices.

2. Fine Particle Filtration

The specified 10 micron rating makes this element a potential choice for applications requiring control of relatively fine suspended contaminants. Proper filtration performance depends on the media structure and the relationship between particle size, fluid viscosity, flow rate and differential pressure. Selecting a filter according to actual process requirements helps avoid unnecessary pressure loss and premature blockage.

3. Convenient Installation and Removal

The quick opening connection is useful when maintenance personnel need to access the filter element regularly. When the connection is compatible with the housing, it can simplify cartridge handling and reduce maintenance effort. Buyers should confirm the exact interface dimensions and sealing method to prevent installation problems or leakage.

4. Potential for Cleaning and Reuse

Depending on the construction and type of contamination, stainless steel filter elements may be cleaned and reused instead of being discarded after a single service cycle. A suitable cleaning procedure can help remove retained particles and restore useful flow capacity. Inspection after cleaning is important because damaged media, permanent blockage or structural deformation can affect filtration performance.

5. Flexible Industrial Filtration Solutions

Industrial filtration requirements vary between equipment manufacturers, production lines and process fluids. Filter dimensions, interface designs and media specifications may need to match existing equipment precisely. Providing drawings, a used sample or the original part number allows the supplier to assess dimensions and compatibility before manufacturing a replacement element.

Filter Structure

Stainless Steel Sintered Mesh Filter, also called Metal Mesh Sintered Filter, Alloy Mesh Filter, Sintered Layer Filter, along with porous powder sintered filter element, fiberglass sintered filter element, and PP/PE sintered filter element, all belong to the broad category of sintered filter elements.

The sintering mesh filter usually has five layers of stainless steel woven wire mesh, including one protective layer, one filter layer, one separating layer, and two supporting layers. Can also add a skeleton layer according to the using conditions sometimes.

Different Kinds Of Connection Can Be Custom

Sintered Mesh Filter vs. Sintered Powder Filter

Comparison	Sintered Mesh Filter	Sintered Powder Filter
Basic structure	Bonded woven wire mesh layers	Sintered metal powder particles
Pore formation	Determined by mesh weave and layer arrangement	Determined by powder particles and sintering conditions
Typical design focus	Defined mesh structure and mechanical stability	Porous metal structure with interconnected pores
Cleaning	Depends on mesh structure and contamination	Depends on pore structure and contamination
Selection priority	Mesh configuration, rating and strength	Pore characteristics, permeability and rating

FAQ

Q1: What is the difference between a stainless steel sintered mesh filter and a normal wire mesh filter?

A: Stainless steel sintered mesh filters are manufactured by bonding multiple layers of mesh through a sintering process. This creates a stronger structure with better pressure resistance, more uniform pores and longer service life compared with standard wire mesh filters.

Q2: Can this filter element be cleaned and reused?

A: Yes. Stainless steel sintered mesh filter elements are reusable. Proper cleaning methods such as backwashing, ultrasonic cleaning or chemical cleaning can restore filtration performance and extend service life.

Q3: Can TOPEP manufacture customized sizes?

A: Yes. TOPEP provides OEM and ODM services. Dimensions, filtration accuracy, connection types and special structures can be customized according to customer requirements.

Q4: Which stainless steel material is available?

A: Common materials include 304 and 316L stainless steel. The suitable material can be selected according to corrosion resistance requirements and working conditions.

Q5: How can I choose the correct sintered mesh filter?

A: Customers can provide information including filter size, filtration medium, operating temperature, pressure and filtration accuracy. Our engineers will recommend a suitable solution.
