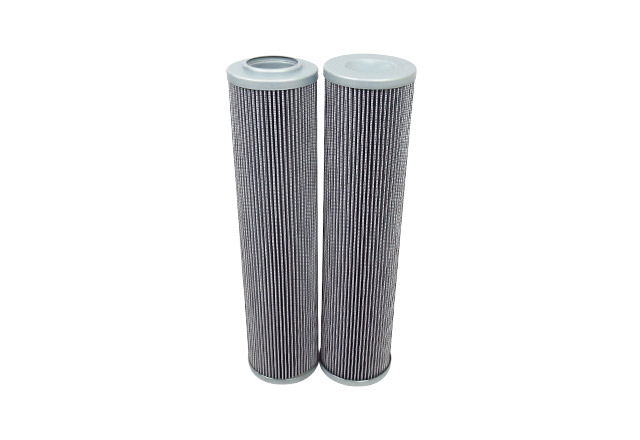

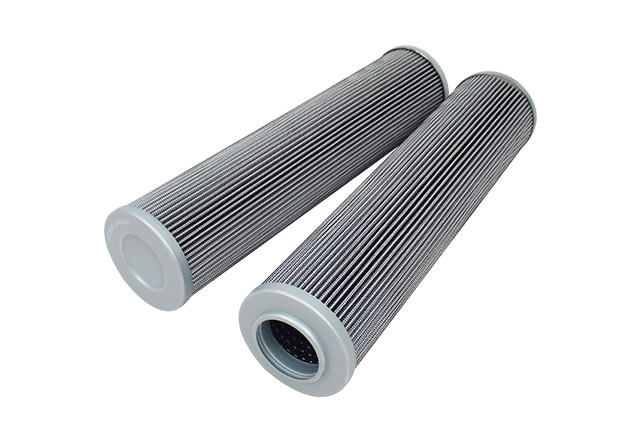

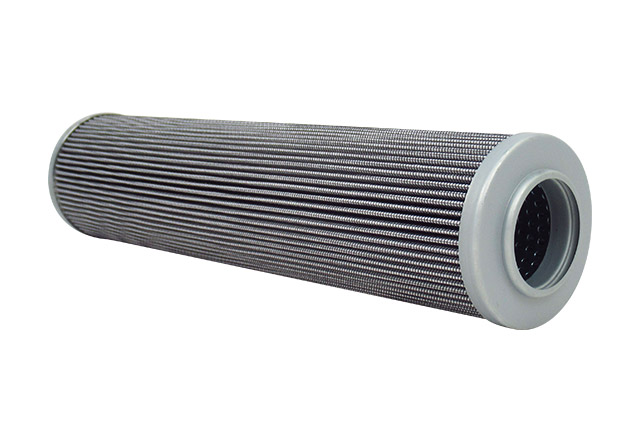

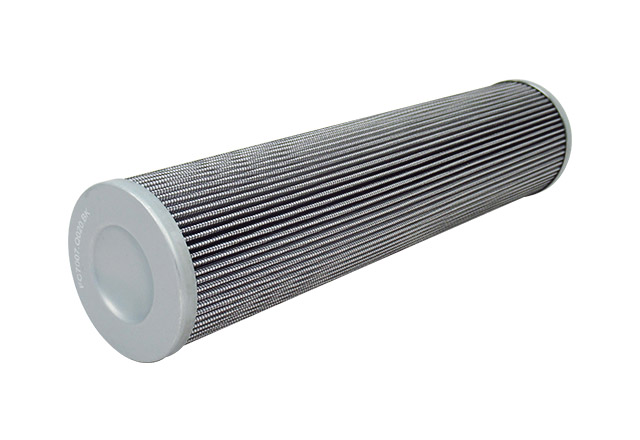

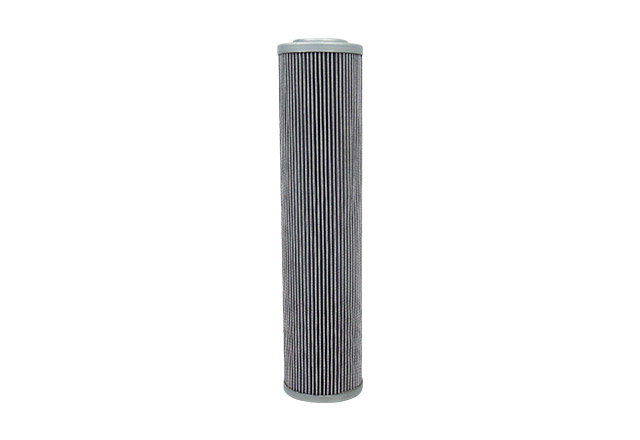

FC7007.Q020.BK Hydraulic Oil Filter Element Equivalent Parker

Product Description

The hydraulic oil filter element FC7007.Q020.BK is designed for Parker high-pressure hydraulic line filtration systems and is mainly used for pressure line filtration in hydraulic circuits. This high-pressure hydraulic oil filter element plays a key role in removing solid particles and contaminants from hydraulic oil, helping to protect pumps, valves, and other critical hydraulic components.
Manufactured with high-quality filter media and precision production processes, the FC7007.Q020.BK hydraulic filter element offers excellent dirt-holding capacity, stable flow rate, and reliable performance under high operating pressure. It effectively maintains oil cleanliness and ensures consistent filtration efficiency in demanding industrial hydraulic applications and harsh working environments.
According to different system requirements, this hydraulic oil filter element can be customized in terms of size, pressure rating, filtration accuracy, and filter material, making it suitable for a wide range of hydraulic oil filtration systems. It is commonly used as a pressure line hydraulic filter element in industrial machinery, power systems, and heavy-duty hydraulic equipment.
TOPEP is a professional manufacturer of hydraulic oil filter elements, with many years of experience in producing standard and customized hydraulic filter cartridges. Based on actual working conditions, we provide tailored hydraulic filtration solutions and reliable Parker equivalent filter elements. All TOPEP hydraulic oil filters are produced under strict quality control processes, offering stable filtration performance, long service life, and effective protection to keep hydraulic oil systems operating smoothly and efficiently.

Product Description

Specifications

Part Number	FC7007.Q020.BK	Product Type	Hydraulic System Oil Filter
Filter Style	High-Pressure Line Oil Filter	Micron Rating	20μm
Filter Media	Fiberglass	Sealing Material	Nitrile
Diameter	78mm	Length	329mm
Working Pressure	(MAX) 21Mpa	Working Temperature	-30℃~110℃
Skeleton	Carbon Steel	End Caps	Carbon Steel

We can custom ODM/OEM products according to your requirement, pls feel free to contact us and get a free quotation !!!

Filter Structure


An hydraulic oil filter element is typically consists of end covers, sealing rings, inner skeleton, outer skeleton, and filter media.
►End Cover--Be used to seal both ends of the filter media and the filter element channels, to prevent the secondary pollution caused by gas or liquid
leakage, and to support the filter media to ensure the normal operation of the oil filter element.
►Sealing Ring--Located at the connection between the filter element and the machine, to prevent the filter element from loosening or oil leakage,
ensuring the oil circulation in the hydraulic system normally.
►Inner Skeleton--Serves as a support frame, with high thickness. It is typically custom-made according to working pressure to reduce the resistance
caused by uneven distribution of the filter media, withstand pressure differentials, and ensure the verticality of the filter media.
►Outer Skeleton--Serves as a protective frame, with a lower thickness and larger pore size. It is used to prevent the filter element deformation caused
by external pressure and impacts, and to provide an additional support for the filter element.
►Filter Media--The core component of a filter cartridge, used to filter impurities, separate substances, and adsorb pollutants. Various materials and
specifications are available according to different filter medium and the operating environment.

Customized Service


Henan Top Environmental Equipment as a industrial filter supplier, has extensive experience in customized filter cartridges. We have professional
technical team to design the most suitable filters depend on your using condition. Here are some filter parts that we can custom.

More Part Number

We can produce various brands of Filters, as long as you have the part number or parameters of filter, we can do it.
Just contact us and share your requirement !!!

936704Q	8833-11	G04276	931881	901328	901661	901747	907088	907230	909293
941584	R937852Q	R937878Q	936710Q	920022	920468	921166	922936	923553	924451
937407Q	928952Q	936705Q	FTCE2A10Q	925788	925811	925828	925946	926476	926696Q
9922-05-BQ	DFO-512PLF2	941043Q	370-Z-223A	927663	927669	927861Q	928085	928152Q	FC1090Q002BS
925774	G1448Q	FTCE2B10Q	937818	FC1090Q020BS	FC1091Q005BS	FC1090Q010BS	FC1905Q002BS	F13938702190S	FC1905Q005BS
HF22H10VQ	FP718-5	933837Q	937853Q	FC1301Q002BS	FC7005Q002BK	FTAE1A05Q	FC1240Q010XS	FTAE1A10Q	G02001
931886	936974Q	941927Q	928952Q	909807	925818	G01066	G00980	G00966	G00389
G04260	G1448Q	R937852Q	R937878Q	925023	G00590	G00799	H00834003	HF4L10VQ	HF4L25VQ
937399Q	937857Q	FBO60337	939930Q	927169Q	H00834007	PR2766	PR875	PR3151	PR3435
SS1C4A1AP	SS1C4B1AP	SS1D8A1AP	SS1D8B1AP	TXW1010B	TXW3E3B	TXW3E10B	TXW8A6B	TXW8C6B	PR2745

Advantages

20+ years of manufacturing experience. We are an established filter manufacturer, has focused on filtration technology for many years. We provide stable and reliable products by our mature production system, and won the trust and praise of customers in different industries.

Professional engineering team for custom solutions. Our experienced engineers can design customized filter elements based on specific equipment requirements and working conditions. Whether you need non-standard dimensions or shapes, special filter media, or higher filtration precision, we can provide a suitable filter solution and product for you.

Strict quality control from start to finish. Every filter of our factory has gone through a strict inspection process, including raw material checks, in-process monitoring, and final performance testing. Before leaving the factory, each filter has tested for filtration accuracy, pressure resistance, flow capacity to make sure the filter can work normally on your equipment.

CE and ISO international quality certificate. Our production processes and product performance have meet the internationally recognized standards. With standardized management and continuous improvements, we ensure that our filters have stable and dependable quality for customers worldwide.
