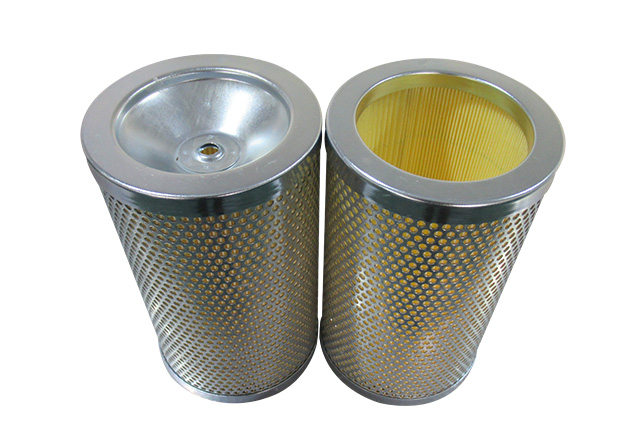

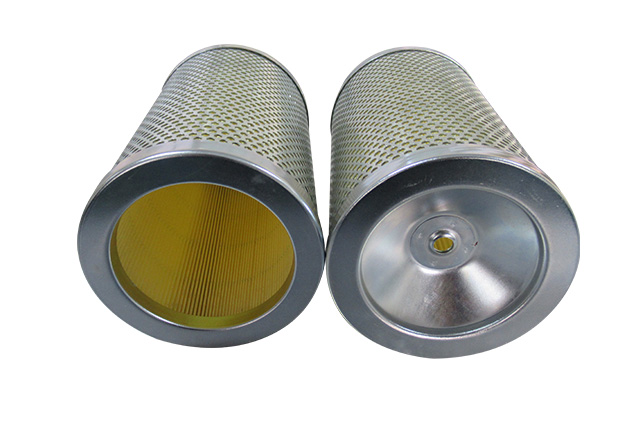

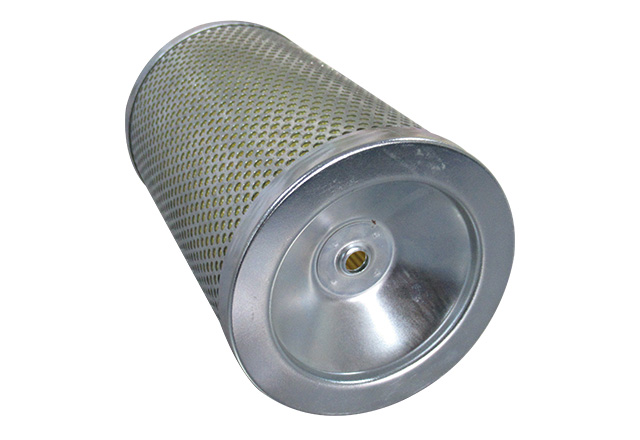

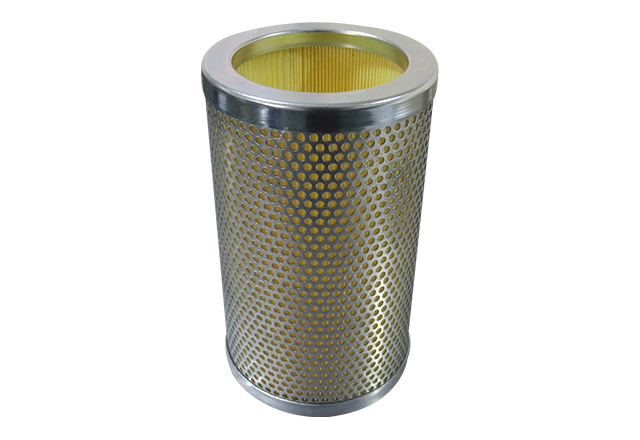

Hydraulic Oil Filter Element Equivalent PARKER 938699 for BGT Series

Specifications

Specifications

Part Number	938699	Hydraulic Filter Housing Series	BGT11A (3-270)
Product Type	Hydraulic Oil FIlter Replacement Part	Micron Rating	10μm
Filter Media	10C Cellulose	Sealing Material	Nitrile
Diameter	126mm	Length	209mm
Working Pressure	(MAX) 21Mpa	Working Temperature	-30℃~110℃



 We can custom ODM/OEM products according to your requirement, pls feel free to contact us and get a free quotation !!!

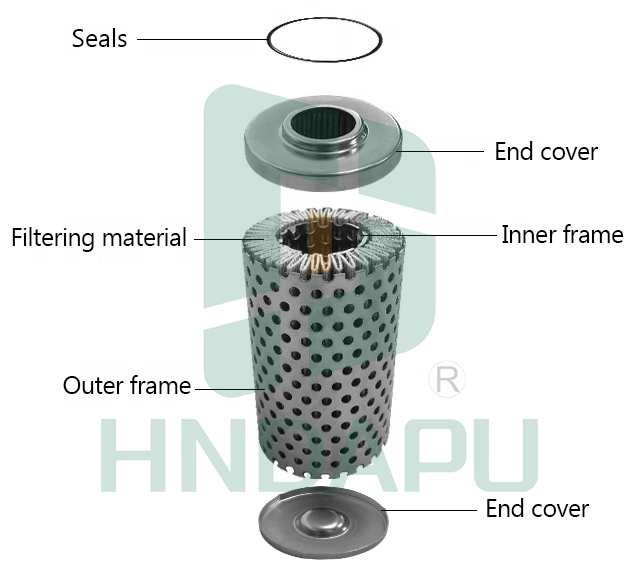

Filter Structure


An hydraulic oil filter element is typically consists of end covers, sealing rings, inner skeleton, outer skeleton, and filter media.

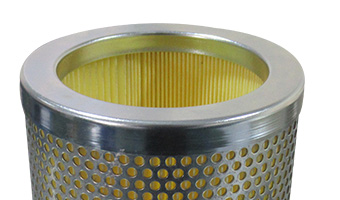

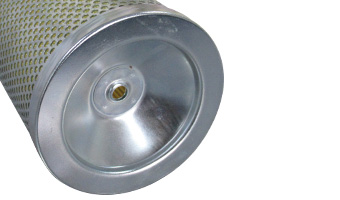

►End Cover--Be used to seal both ends of the filter media and the filter element channels, to prevent the secondary pollution caused by gas or liquid
leakage, and to support the filter media to ensure the normal operation of the oil filter element.
►Sealing Ring--Located at the connection between the filter element and the machine, to prevent the filter element from loosening or oil leakage,
ensuring the oil circulation in the hydraulic system normally.
►Inner Skeleton--Serves as a support frame, with high thickness. It is typically custom-made according to working pressure to reduce the resistance
caused by uneven distribution of the filter media, withstand pressure differentials, and ensure the verticality of the filter media.

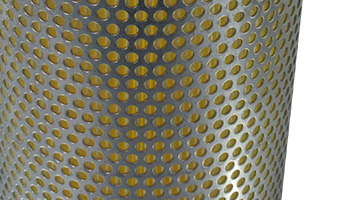

►Outer Skeleton--Serves as a protective frame, with a lower thickness and larger pore size. It is used to prevent the filter element deformation caused
by external pressure and impacts, and to provide an additional support for the filter element.
►Filter Media--The core component of a filter cartridge, used to filter impurities, separate substances, and adsorb pollutants. Various materials and
specifications are available according to different filter medium and the operating environment.

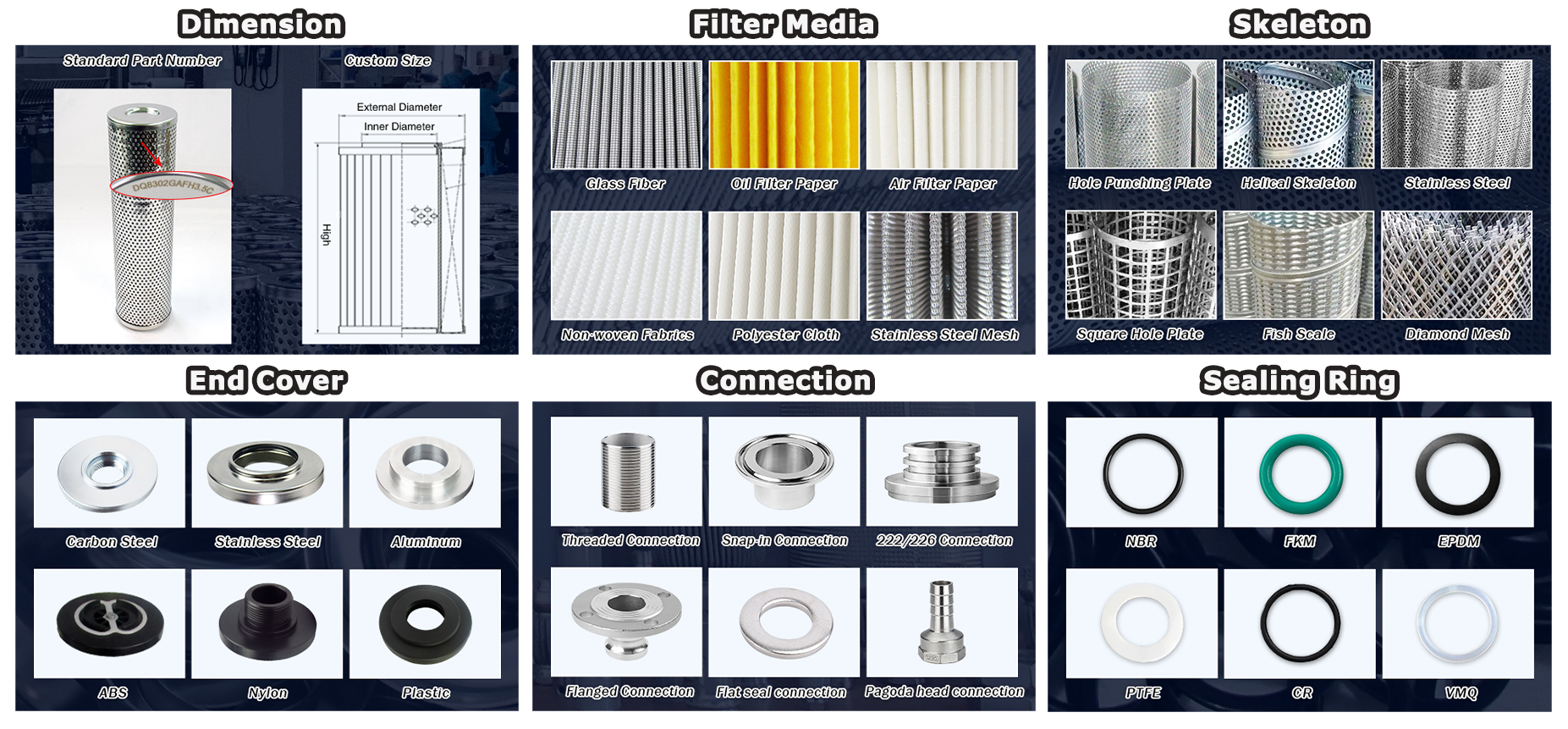

Customized Service

Henan Top Environmental Equipment as a industrial filter supplier, has extensive experience in customized filter cartridges. We have professional
technical team to design the most suitable filters depend on your using condition. Here are some filter parts that we can custom.



More Part Number



We can produce various brands of Filters, as long as you have the part number or parameters of filter, we can do it.
Just contact us and share your requirement !!!

936704Q	8833-11	G04276	931881	901328	901661	901747	907088	907230	909293
941584	R937852Q	R937878Q	936710Q	920022	920468	921166	922936	923553	924451
937407Q	928952Q	936705Q	FTCE2A10Q	925788	925811	925828	925946	926476	926696Q
9922-05-BQ	DFO-512PLF2	941043Q	370-Z-223A	927663	927669	927861Q	928085	928152Q	FC1090Q002BS
925774	G1448Q	FTCE2B10Q	937818	FC1090Q020BS	FC1091Q005BS	FC1090Q010BS	FC1905Q002BS	F13938702190S	FC1905Q005BS
HF22H10VQ	FP718-5	933837Q	937853Q	FC1301Q002BS	FC7005Q002BK	FTAE1A05Q	FC1240Q010XS	FTAE1A10Q	G02001
931886	936974Q	941927Q	928952Q	909807	925818	G01066	G00980	G00966	G00389
G04260	G1448Q	R937852Q	R937878Q	925023	G00590	G00799	H00834003	HF4L10VQ	HF4L25VQ
937399Q	937857Q	FBO60337	939930Q	927169Q	H00834007	PR2766	PR875	PR3151	PR3435
SS1C4A1AP	SS1C4B1AP	SS1D8A1AP	SS1D8B1AP	TXW1010B	TXW3E3B	TXW3E10B	TXW8A6B	TXW8C6B	PR2745

Advantages

01

20+ years of manufacturing experience. We are an established filter manufacturer, has focused on filtration technology for many years. We provide stable and reliable products by our mature production system, and won the trust and praise of customers in different industries.

02

Professional engineering team for custom solutions. Our experienced engineers can design customized filter elements based on specific equipment requirements and working conditions. Whether you need non-standard dimensions or shapes, special filter media, or higher filtration precision, we can provide a suitable filter solution and product for you.

03

Strict quality control from start to finish. Every filter of our factory has gone through a strict inspection process, including raw material checks, in-process monitoring, and final performance testing. Before leaving the factory, each filter has tested for filtration accuracy, pressure resistance, flow capacity to make sure the filter can work normally on your equipment.

04

CE and ISO international quality certificate. Our production processes and product performance have meet the internationally recognized standards. With standardized management and continuous improvements, we ensure that our filters have stable and dependable quality for customers worldwide.

Our Factory

Our Factory

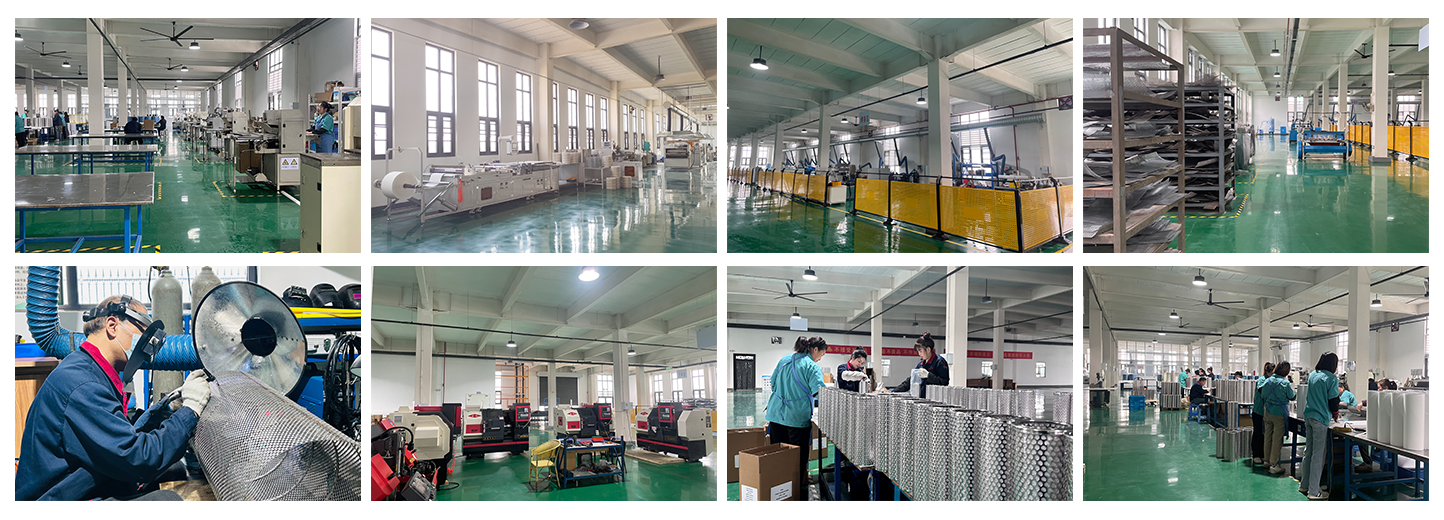

Henan Top Environmental Protection Equipment is a manufacturing enterprise located in Henan, China, mainly engaged in filter cartridges and filter housing of various specifications. The company
has advanced manufacturing equipment, such as rolling machines, slitting machines, and welding machines, as well as multiple fully automated production lines to ensure efficient and high-quality
mass production. We have several highly educated R&D engineers to provide technical support, a strong sales and after-sales team to provide service guarantees for customers, and rigorous
quality control inspectors to maintain strict quality assurance. The company's engineering team is good at providing customized products and filtration solutions according to the needs of different
customers, and can provide a wide range of customized services, such as raw material replacement according to different working conditions, customized size, label, package, color, logo, and
graphics. The strong productivity ensures that new products can be launched within 7 days or less. The company has obtained international quality certifications such as CE and ISO, and has
many R&D patents. With more than 15 years of export experience, our products are exported to North America, Eastern Europe, the Middle East, Southeast Asia, and other markets, and the
transaction countries exceed 100. We always adhere to the concept of responsibility, professionalism, and integrity, and have won wide recognition from the industry and customers with high-quality products and high-standard services.

Show Details

Application

Metallurgy

In steel and metal-processing plants, oil in the system often carries tiny metal fragments produced during continuous operation. Our oil filter elements can keep these particles from circulating through pumps and hydraulic components. By keeping the oil cleaner more longer, equipment runs more steadily, and operators face fewer unexpected shutdowns.

Petrochemical

Refineries and chemical facilities rely heavily on hydraulic and lubrication systems that must stay clean even during long production cycles. The filter elements help trap sludge and process residues that tend to build up in these environments. With cleaner oil, key machinery stays in better condition, and overall maintenance demands are noticeably reduced.

Electronics and Pharmaceutical

Manufacturing lines in the electronics and pharmaceutical fields work under strict cleanliness requirements. Even slight contamination in the oil can affect precision equipment. Our filters help maintain the level of oil purity these industries depend on, allowing machines to operate smoothly and consistently while meeting demanding production standards.

Thermal Power and Nuclear Power

Power stations cannot afford issues caused by oil degradation or particle buildup. Our filter elements help remove the fine debris that forms during long-term operation of turbines and control units. With the oil kept in better condition, the equipment runs more reliably and operators gain confidence in long-term, stable performance.

Textile

Textile machines run fast, often for long stretches, and any contamination in the oil can quickly affect their performance. The filters we produce help keep the oil clear of lint, wear particles, and other debris. As a result, the machinery operates more smoothly and remains in better working order over time.
