Types of Hydraulic Oil Filter Element
Dec 18, 2025

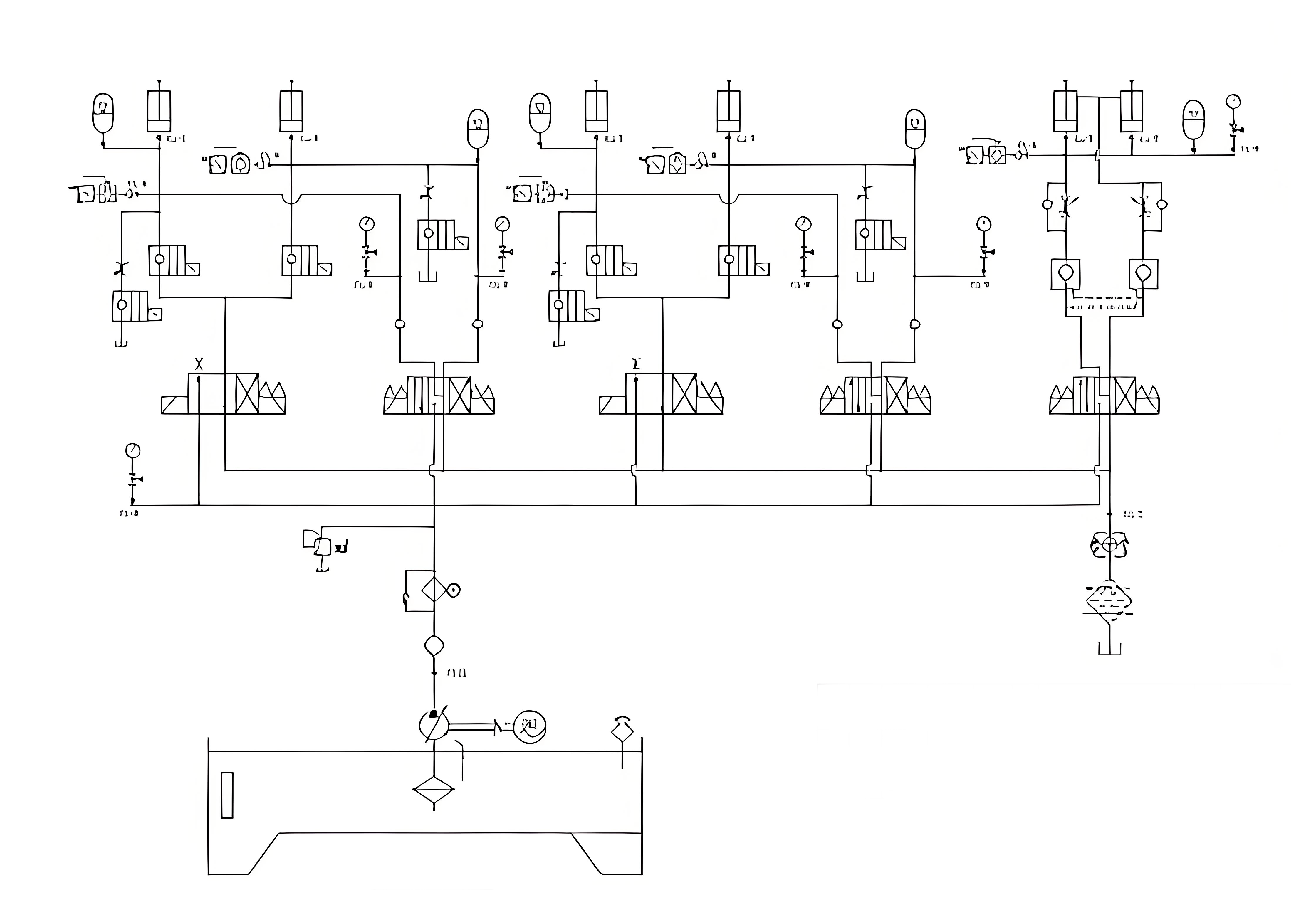

Hydraulic filtration systems are primarily used to remove pollutants from hydraulic oil, including solid particles, water, and gases, ensuring the hydraulic system operates with high efficiency and stability. It's an important component of hydraulic systems.
Approximately 80% of hydraulic system failures are caused by oil contamination, therefore, a good and effective filtration system is very important for extending the equipment service life and reducing the maintenance costs.
The hydraulic oil filter element is the main component of the hydraulic oil filtration system, which is used to filter the particulate impurities. It can be divided into high-pressure section, medium-pressure section, suction oil section, and return oil section according to the operating pressure range. The filter accuracy could at a range of 2μm~25μm, and some models can withstand a pressure difference of 42 MPa and a high temperature of 135°C. Widely used in engineering machinery, metallurgical steel rolling, petrochemicals, aerospace lubrication systems, power equipment, shipbuilding industry, and other industries.
The oil filter elements in the hydraulic filtration system are mainly divided into three types.
The hydraulic oil filter element and the oil filter element are two different types of filter cartridges.

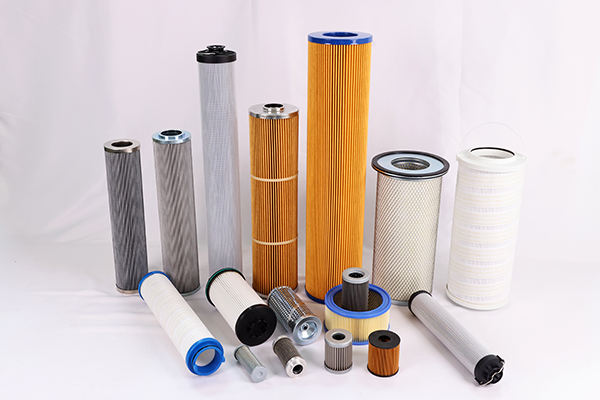

The hydraulic oil filter cartridge usually represents the filter elements in hydraulic filtration system, including press oil filter, suction oil filter and return oil filter. Used to clean the solid particles to protect the pumps and valves in the hydraulic system. Mostly, hydraulic oil filter cartridges are made of fiberglass media or stainless steel mesh media, to ensure they can operate normally at high-pressure and high-temperature working conditions, and have a higher filter accuracy to ensure the cleanliness of the hydraulic system. Hydraulic oil filter elements have a long replacement cycle, and the price is higher than engine oil filter due to the raw material.

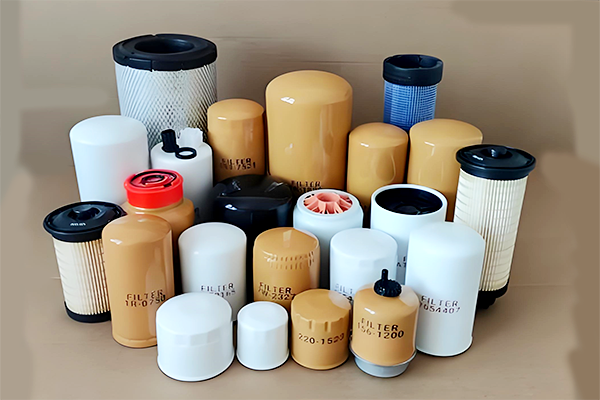

The oil filter cartridge usually represents the engine filter for engines of cars, trucks, or excavators. The engine oil filter element is used to filter carbon deposits and metal shavings from engine oil to ensure the cleanliness of the lubrication system. It is usually made of paper media and sometimes has a metal housing, and the filter accuracy is not much higher. This type of oil filter works in low pressure environment, but needs to withstand the high temperature of the engines. Oil filters are usually replaced at the same time as engine oil, and usually have a cheap price.
Approximately 80% of hydraulic system failures are caused by oil contamination, therefore, a good and effective filtration system is very important for extending the equipment service life and reducing the maintenance costs.
The hydraulic oil filter element is the main component of the hydraulic oil filtration system, which is used to filter the particulate impurities. It can be divided into high-pressure section, medium-pressure section, suction oil section, and return oil section according to the operating pressure range. The filter accuracy could at a range of 2μm~25μm, and some models can withstand a pressure difference of 42 MPa and a high temperature of 135°C. Widely used in engineering machinery, metallurgical steel rolling, petrochemicals, aerospace lubrication systems, power equipment, shipbuilding industry, and other industries.
Types of Hydraulic Oil Filter Element
The oil filter elements in the hydraulic filtration system are mainly divided into three types.
Suction Oil Filter Element
The suction oil filter usually located at the suction port of the oil pump. To ensure low resistance in the filter element, it normally has lower filter accuracy(10~200μm), and is made of metal wire mesh. The function of the suction filter element is to filter the solid particle pollutant and protect the oil pump. The suction oil filter cartridge mostly has standard model, and also could be custom-made.High-Pressure Lube Oil Filter Element
Also named Press Oil Filter Element. Located on the high-pressure lube line of the filtration system, it is used to filter the high-pressure oil output from the oil pump and maintain the cleanliness of the hydraulic system. The pressurized oil filter must be a high-precision filter(2~10μm), it needs to have a great filter accuracy to ensure that sensitive hydraulic components, such as spool valves and servo valves, are protected from contamination. The press lube oil filter usually needs to withstand high-pressure pulsation and pressure shock, so it also should have high mechanical strength. The press oil filter cartridge has standard model and customized type filter can be chosen.Return Oil Filter Element
The return oil filter is installed at the return lube of the hydraulic system, which is the most effective location for controlling the pollution level of the system. It has medium filter accuracy(10~25μm), the main purpose is to remove dirt newly generated due to machine operation or that has entered from the outside, to prevent it from flowing back into the oil tank. Although the return oil filter cartridge is located in a low-pressure pipeline, pulsations or pressure shocks also may occur depending on the operating conditions of the transmission device, thus it also requires a high mechanical strength.What is the Difference between Hydraulic Oil Filter and Oil Filter?
The hydraulic oil filter element and the oil filter element are two different types of filter cartridges.
The hydraulic oil filter cartridge usually represents the filter elements in hydraulic filtration system, including press oil filter, suction oil filter and return oil filter. Used to clean the solid particles to protect the pumps and valves in the hydraulic system. Mostly, hydraulic oil filter cartridges are made of fiberglass media or stainless steel mesh media, to ensure they can operate normally at high-pressure and high-temperature working conditions, and have a higher filter accuracy to ensure the cleanliness of the hydraulic system. Hydraulic oil filter elements have a long replacement cycle, and the price is higher than engine oil filter due to the raw material.
The oil filter cartridge usually represents the engine filter for engines of cars, trucks, or excavators. The engine oil filter element is used to filter carbon deposits and metal shavings from engine oil to ensure the cleanliness of the lubrication system. It is usually made of paper media and sometimes has a metal housing, and the filter accuracy is not much higher. This type of oil filter works in low pressure environment, but needs to withstand the high temperature of the engines. Oil filters are usually replaced at the same time as engine oil, and usually have a cheap price.
Each types of filter element have different usage and function, it's very important to choose a suitable filter according to the actual working conditions whether standard model filters or customized filters.
TOPEP Filter has a professional technical team to help you select the most suitable filter. Contact us to get a solution to your filtration problem.
TOPEP Filter has a professional technical team to help you select the most suitable filter. Contact us to get a solution to your filtration problem.
