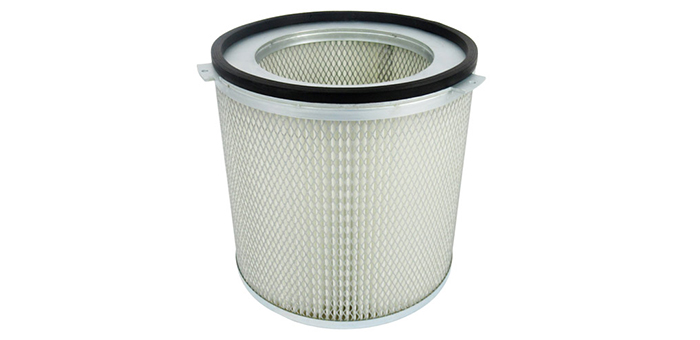

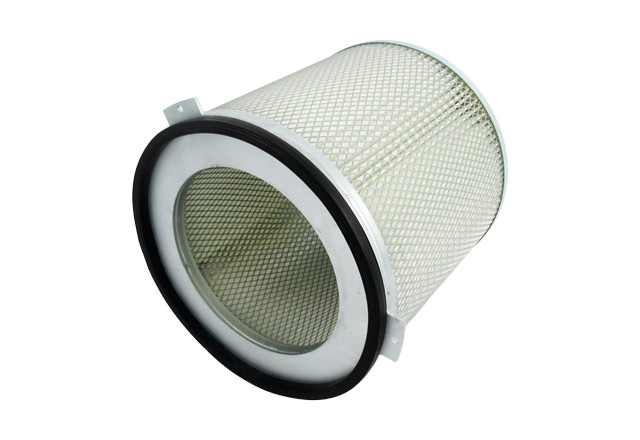

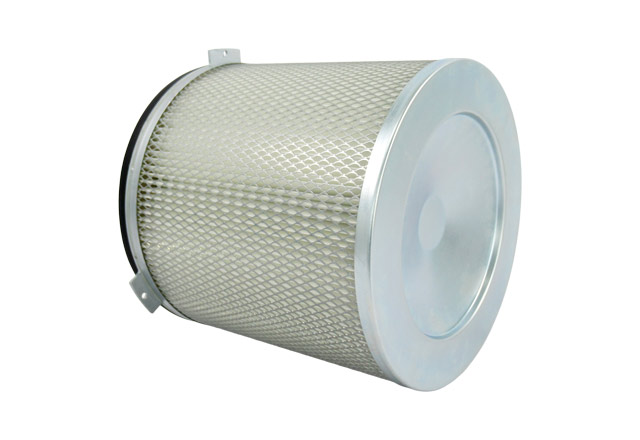

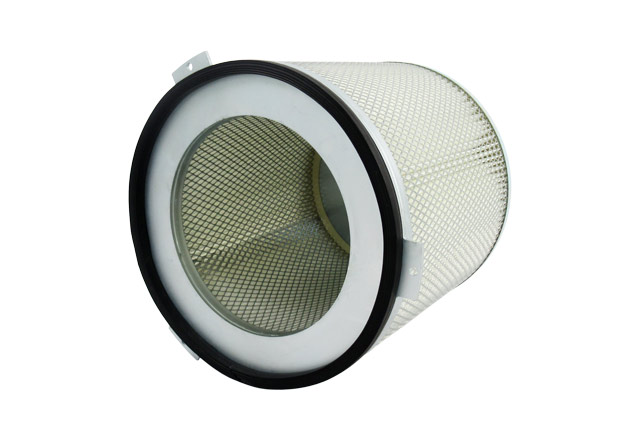

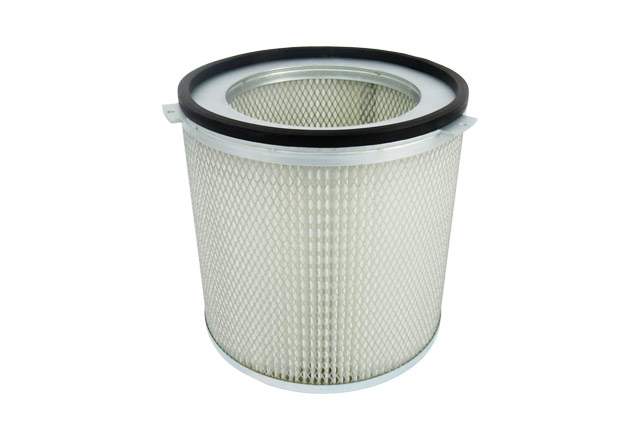

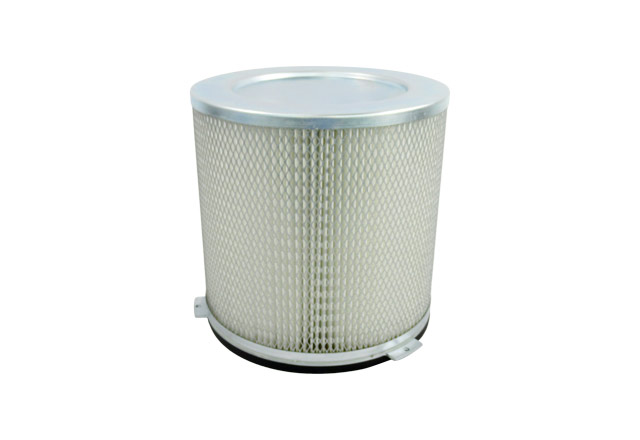

Industrial Air Filter Cartridge 315x314mm

Technical Parameters



Filter Type	Industrial Air Filter Element
Outer Diameter	315 mm
Height	314 mm
Connection	Three Ear Flange
Filter Media	Customized
Filtration Rating	Customized
Sealing Material	Customized
Support Structure	Customized
Application Media	Air /  Gas

Product structure

1. Stainless Steel End Caps.
High-quality stainless steel end caps provide excellent corrosion resistance and reliable connection strength.

2. 304 Perforated Plate Inner Support
The inner perforated tube enhances structural stability and prevents the filter media from collapsing under airflow pressure.

3. Three Ear Flange
The three ear flange provides a secure connection between the filter element and the filtration equipment. Its practical design allows convenient installation, removal and routine filter replacement.

4. Filter Media
The main filtration layer is selected according to the application requirements. It captures dust, particles and other airborne impurities while providing stable filtration performance and suitable airflow.

5. Sealing Part
The sealing component helps create a proper seal between the filter element and housing, reducing the risk of unfiltered air bypassing the filtration media and supporting reliable filtration performance.


Key Features

1. Customized Filter Media. Different filter media can be selected according to filtration efficiency, airflow, dust concentration and working conditions.

2. Three Ear Flange Connection. The three ear flange design allows convenient installation and replacement on compatible filtration equipment.

3. Stable Air Filtration. The filter is designed to capture dust, particles and other impurities while maintaining suitable airflow for the filtration system.

4. OEM Replacement Capability. Dimensions, filter media, filtration rating, sealing material and connection details can be customized based on an existing filter or equipment requirements.

5. Suitable for Industrial Applications. It can be used in industrial air filtration, equipment protection, ventilation systems and other applications requiring clean air or gas.


Air Filter Cartridge

According to different working conditions, there are a variety of styles and specifications for you to choose: polyester fiber, wood pulp fiber, nano fiber, etc.,
 can be done after treatment: flame retardant, anti-static, film, oil and waterproof.





FAQ



Q1: How should I choose the correct filtration rating?
The required filtration rating depends on the particle size, required filtration efficiency, airflow and operating conditions. We can recommend a suitable specification based on your application.


Q2: Can the filter media be customized?
Yes. Polyester fiber, fiberglass, composite media and other suitable filter materials can be selected according to the application requirements.


Q3: Will the filter affect the airflow of my equipment?
Filter media, filtration rating and effective filtration area all influence airflow and pressure drop. We can select the filter structure according to the required airflow and equipment conditions.


Q4: How often should the air filter be replaced?
Service life depends on dust concentration, operating hours, airflow and pressure drop. In practice, replacement is generally recommended when pressure drop becomes excessive or filtration performance decreases.


Q5: Can you produce a sample before bulk production?
Yes. Samples can be produced for dimensional and installation verification before mass production.


Q6: What if I do not know the complete specifications of my original filter?
You can provide the original filter, product photos, dimensions, equipment model or connection details. We can help identify the main specifications and develop a suitable replacement.

Our Advantages

01

At Henan Top Environmental Protection Equipment, we do more than just manufacture filter elements and housings; we achieve large-scale production through consistent, precision craftsmanship. Our integrated facility combines rolling, slitting, welding, and fully automated assembly lines, enabling high-volume output while maintaining exceptional product consistency. This translates to faster delivery times, lower overall costs, and a reliable supply chain—ensuring your business operations run smoothly, wherever you are located.

02

Our expert R&D team works side-by-side with you to design bespoke solutions—from material selection and dimensional specs to extreme-condition performance. Thanks to our agile development workflow, we can move from concept to working prototype in days. That means less downtime, quicker project turnarounds, and a filtration system that fits your process like a glove.

03

Backed by CE and ISO certifications, every batch undergoes strict traceability and rigorous inspection by seasoned professionals, ensuring each filter delivers consistent, high-stakes performance you can trust. Our growing portfolio of R&D patents isn’t just a badge of honor—it’s proof of our relentless drive to push metallic filtration technology forward, giving you a competitive edge through innovation that matters.

04

From North America to Europe and the Middle East, we’ve spent over fifteen years building lasting partnerships across the globe. Our dedicated sales and after-sales teams don’t just respond—they anticipate, offering proactive technical guidance, clear communication, and responsive support at every stage. When you choose us, you’re not just buying a filter; you’re gaining a strategic partner committed to delivering sustainable, cost-effective, and cutting-edge solutions that elevate your entire operation.

Company Description







Henan Top Environmental Protection Equipment specializes in advanced filter cartridges and housings, serving over 100 global industrial markets. Our integrated factory features rolling, slitting, welding, and automated assembly lines, enabling high-efficiency production and consistent product quality at scale.

Rigorous quality assurance is upheld through CE and ISO certifications, batch traceability, and experienced inspectors, ensuring reliable, high-performance filters. Our intellectual property portfolio, including multiple R&D patents, demonstrates technological leadership and ongoing innovation in metallic filtration solutions. Our professional R&D team develops fully customized filtration solutions tailored to client specifications—including materials, dimensions, and operating environments.

Dedicated sales and after-sales teams provide technical guidance, timely communication, and seamless global support to ensure customer satisfaction. With over fifteen years of export experience, we deliver competitive, innovative, and sustainable filtration solutions to markets across North America, Europe, and the Middle East

Workshop Show

Application field

Steel Mill

This pleated filter cartridge, installed in steelworks dust control systems, effectively captures dust particles and maintains a clean environment for uninterrupted production.

Food industry

Customizable filter cartridges, integrated into the industrial dust collection systems of food processing plants, capture flour and airborne particulates, thereby maintaining air quality and safeguarding production safety in the facility.

Cement Plant

Continuously remove production dust, maintain a clean workshop environment, adapt to high-temperature and high-dust operating conditions, preserve air quality, and safeguard both equipment and operator health.

Pharmaceutical industry

Specialized Dust Collector Cartridges for Pharmaceutical Plants: Efficiently filter pharmaceutical powder particles, maintain air purity, extend equipment lifespan, and ensure production safety and product quality.

Chemical industry

High-efficiency dust filter cartridge in a chemical plant, high-temperature resistant, efficiently captures process dust for cleaner air. Designed for chemical dust collection, for long-term stable operation.
