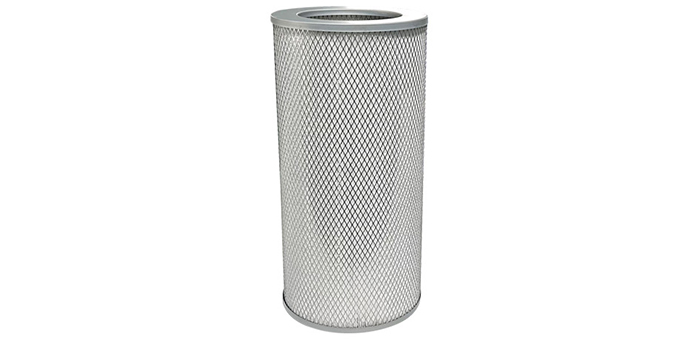

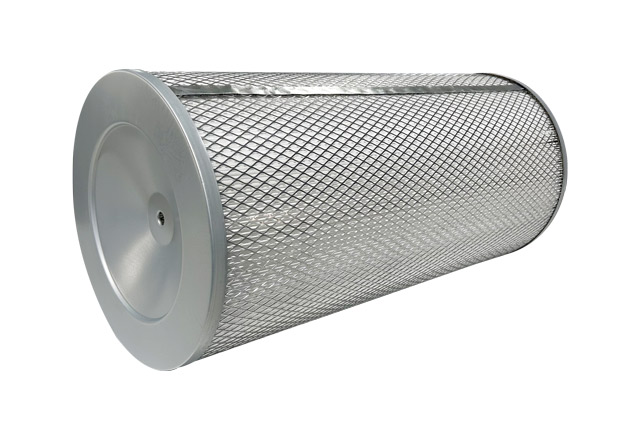

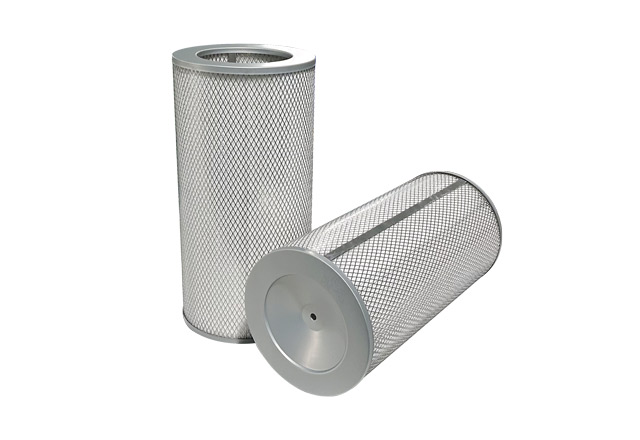

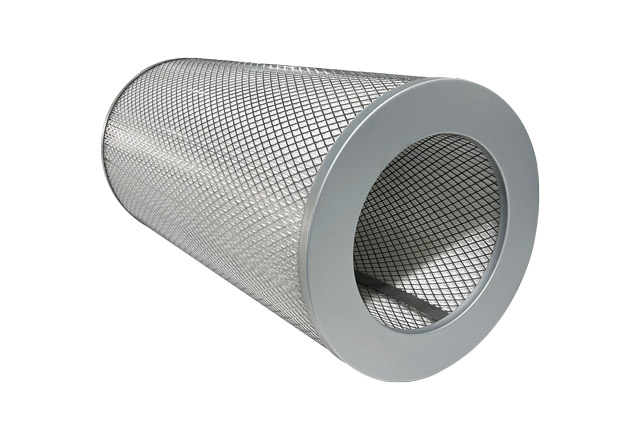

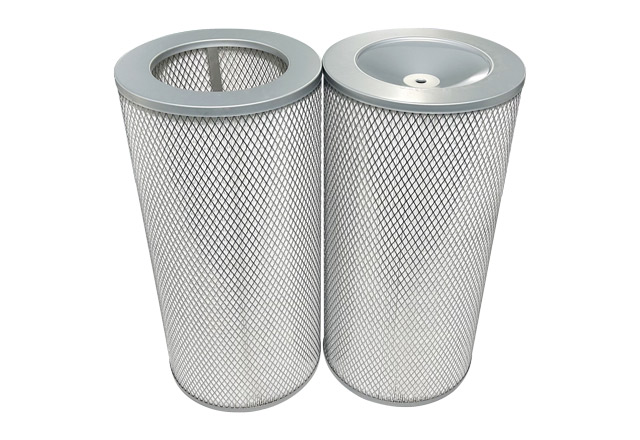

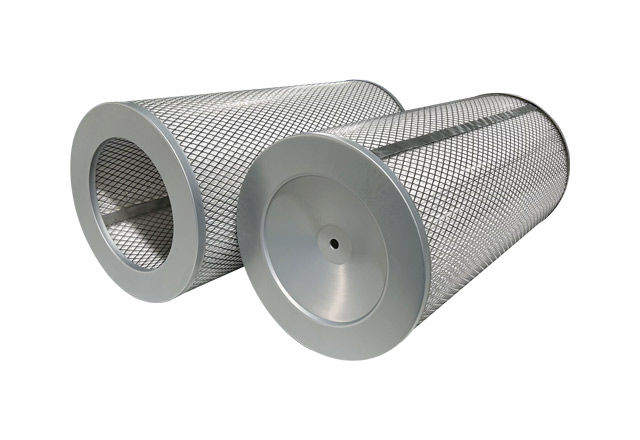

Industrial Dust Collector Filter Cartridge 215x324x660mm with Nonwoven Filter Media

Product Description

This industrial dust collector filter cartridge is designed for efficient dust removal and air filtration in various industrial applications. With a cylindrical structure and high-strength support design, it provides reliable filtration performance for dust collection systems, helping protect equipment and maintain a cleaner working environment.

The filter cartridge uses high-quality nonwoven filter media, which effectively captures dust, powder and airborne particles while maintaining good air permeability and stable airflow. The inner and outer galvanized diamond mesh cages provide strong support for the filter material, preventing deformation during operation.

The carbon steel end caps ensure excellent mechanical strength, while the black polyurethane sealing gasket provides reliable sealing performance and prevents air leakage. This combination of durable materials makes the filter suitable for continuous operation in demanding industrial environments.

We provide OEM replacement dust collector filter cartridges according to customer drawings, samples or specifications. Custom options include dimensions, filter media, sealing materials, end cap design and packaging solutions.

Technical Parameters

Product Type	Dust Collector Filter Cartridge
Outer Diameter	324 mm
Height	660 mm
Filter Media	Nonwoven Fabric
End Cap Material	Carbon Steel
Inner & Outer Support	Galvanized Diamond Mesh
Seal Material	Black Polyurethane (PU)
Application	Industrial Dust Filtration

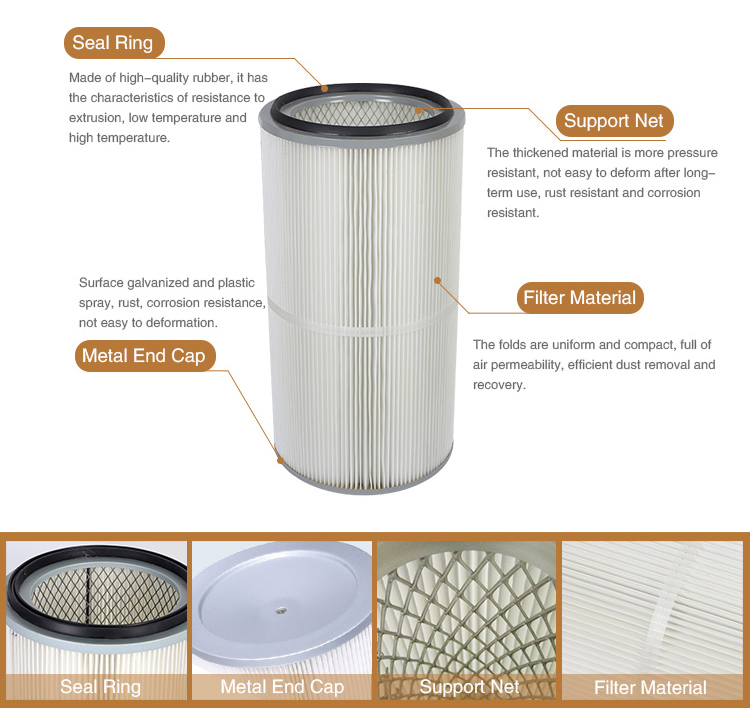

Product structure

1. Reinforced Metal End Cap Assembly
The carbon steel end caps provide a solid connection interface and maintain the overall rigidity of the cartridge. The robust design helps the filter withstand mechanical stress during installation, operation, and replacement.

2. Dual Support Protection System
The inner and outer galvanized diamond mesh layers create a protective framework around the filter media. This structure prevents deformation, supports uniform airflow distribution, and improves resistance against vibration and pressure fluctuations.

3. High-Performance Nonwoven Filtration Layer
The nonwoven filter material serves as the main dust capture medium. Its fibrous structure allows dust particles to be trapped effectively while maintaining sufficient air permeability, making it suitable for dry dust collection applications.

4. Polyurethane Sealing Component
The black polyurethane sealing gasket ensures a tight fit between the cartridge and filter housing. It helps minimize bypass leakage and improves the overall filtration reliability of the system.

5. Optimized Cartridge Configuration
The cylindrical cartridge design maximizes available filtration area while keeping the installation size compact, providing a balance between filtration capacity and equipment space utilization.

Key Features

1. Efficient Particle Capture
Designed for industrial dust removal, this filter cartridge effectively collects airborne particles generated during manufacturing processes, helping maintain cleaner working environments.

2. Stable Airflow Performance
The combination of nonwoven media and supporting mesh structure helps maintain consistent airflow with controlled pressure loss during long-term operation.

3. Enhanced Mechanical Strength
The reinforced support layers protect the filter element from collapse or damage caused by continuous airflow impact and frequent cleaning cycles.

4. Long Service Life Design
Durable materials and a strong structural design reduce wear during operation, helping extend replacement intervals and lower maintenance costs.

5. Wide Industrial Compatibility
Suitable for various dust collection equipment used in powder processing, metal fabrication, welding, woodworking, and other industrial applications.

6. OEM Replacement Capability
Dimensions, filtration materials, sealing types, and connection designs can be customized to match different dust collector brands and working conditions.

FAQ

1. What is a dust collector filter cartridge used for?
A dust collector filter cartridge is used to remove dust, powder and fine particles from industrial air streams, helping improve air quality and protect equipment.

2. What filter media does this cartridge use?
This model uses nonwoven filter media. Polyester, PTFE coated media and other materials can also be customized according to application requirements.

3. Can you manufacture replacement cartridges according to samples?
Yes. We support OEM production based on samples, drawings, dimensions or original filter models.

4. How often should the dust filter cartridge be replaced?
The replacement cycle depends on dust concentration, operating conditions, cleaning method and pressure drop requirements.
