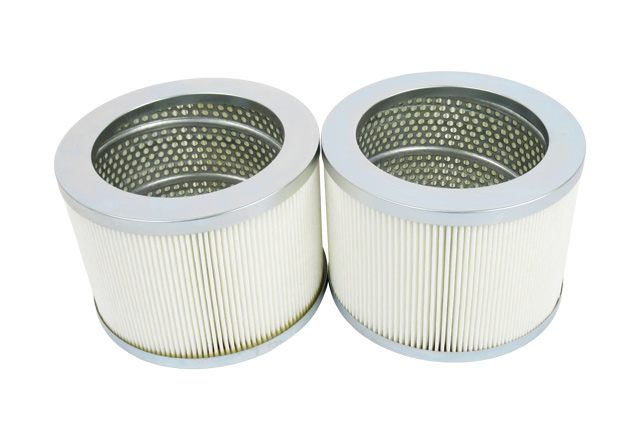

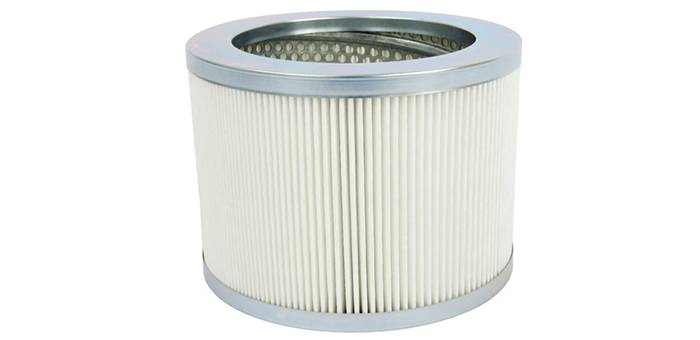

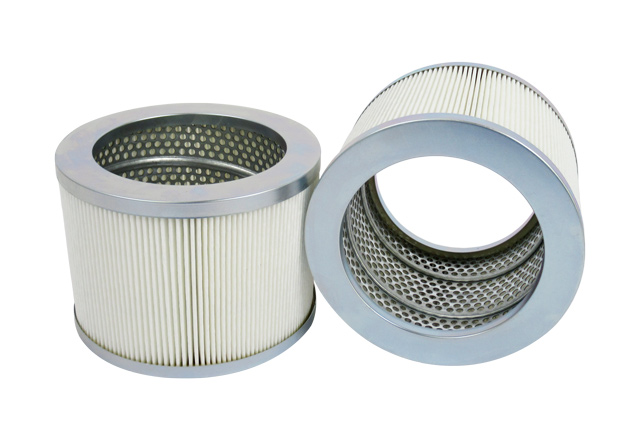

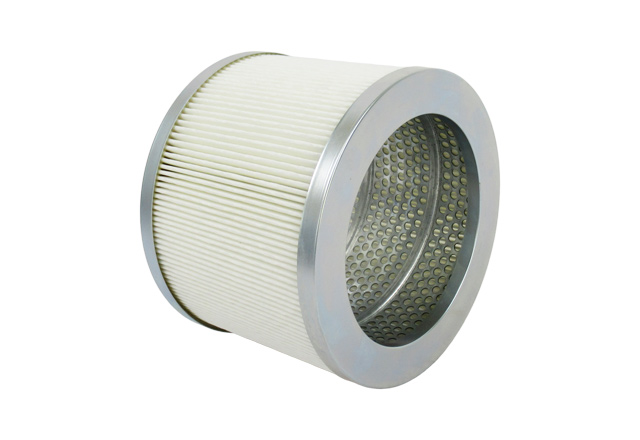

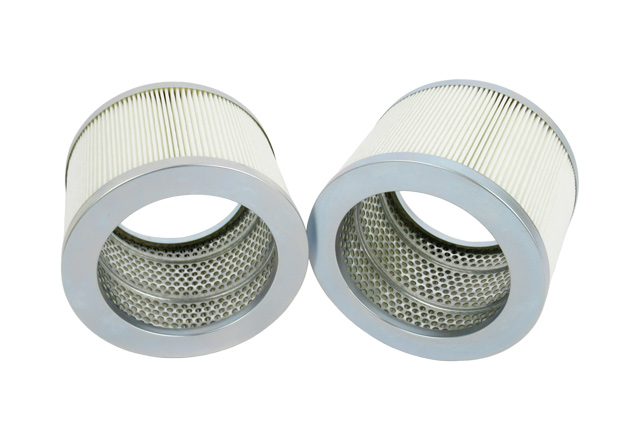

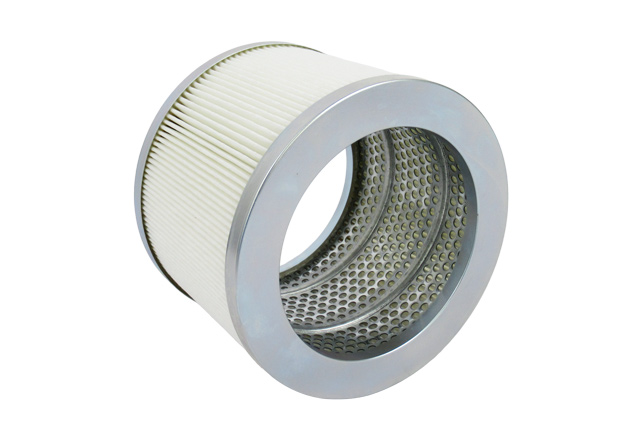

Customized Industrial Air Filter Cartridge 120x165x132mm

Technical Parameters



Product Type	Industrial Air Filter Cartridge
Outer Diameter	165 mm
Height	132 mm
Filter Media	White Air Filter Paper
End Cap Material	Carbon Steel
Inner Support Cage	Galvanized Support Cage
Seal Material	EPDM Rubber
Filtration Type	Air / Dust Filtration
Customization	Available

Product structure

1. Filter Media: White Air Filter Paper
The filter element uses high-quality air filter paper as the main filtration layer. The pleated filter media provides a larger filtration area, effectively capturing dust, dirt and airborne particles while maintaining good air permeability and stable airflow.

2. Inner Support Cage: Galvanized Hooked Support Frame
The galvanized internal support cage provides strong structural support for the filter media. It helps prevent deformation during operation and ensures the filter maintains its original shape under airflow pressure.

3. End Caps: Carbon Steel End Caps
The carbon steel end caps offer excellent mechanical strength and reliable connection. They ensure the filter element remains stable during installation and continuous operation.

4. Sealing Ring: EPDM Rubber Seal
The EPDM sealing ring provides excellent elasticity and sealing performance, preventing air leakage and ensuring efficient filtration. It also offers good resistance to temperature, weather and various operating environments.

5. Cylindrical Filter Design
The cylindrical structure provides a compact design, easy installation and efficient dust holding capacity. It is suitable for industrial air intake systems, compressors, dust collectors and other equipment requiring clean air filtration.



Key Features

1. High Efficiency Air Filter Paper Media
The filter uses high-quality air filter paper to capture airborne dust, dirt and particulate contaminants while maintaining good airflow performance.

2. Durable Carbon Steel End Caps
The carbon steel end caps provide strong mechanical support and ensure reliable connection during installation and operation.

3. Galvanized Internal Support Structure
The galvanized support cage improves the structural strength of the filter element and prevents deformation under airflow pressure.

4. Excellent Sealing Performance
The EPDM rubber sealing ring provides good elasticity and resistance to temperature, weather and chemical environments, helping prevent air leakage.

5. OEM Replacement and Customization
We can manufacture replacement air filter elements according to customer drawings, samples or specifications.

FAQ


Q1: Can you manufacture air filter cartridges according to customer drawings?
Yes. We provide customized production based on drawings, samples or technical requirements, including size, structure and filtration performance.

Q2: What sizes of air filter cartridges can you produce?
We can customize different diameters, heights, shapes and structures according to customer equipment requirements.

Q3: What applications are suitable for this air filter element?
It can be used in industrial dust collection, air purification, machinery protection and other industrial filtration systems.

Q4: Do you provide OEM service for international customers?
Yes. We provide OEM/ODM services including customized products, labels, packaging and technical support.

Our Advantages

01

At Henan Top Environmental Protection Equipment, we do more than just manufacture filter elements and housings; we achieve large-scale production through consistent, precision craftsmanship. Our integrated facility combines rolling, slitting, welding, and fully automated assembly lines, enabling high-volume output while maintaining exceptional product consistency. This translates to faster delivery times, lower overall costs, and a reliable supply chain—ensuring your business operations run smoothly, wherever you are located.

02

Our expert R&D team works side-by-side with you to design bespoke solutions—from material selection and dimensional specs to extreme-condition performance. Thanks to our agile development workflow, we can move from concept to working prototype in days. That means less downtime, quicker project turnarounds, and a filtration system that fits your process like a glove.

03

Backed by CE and ISO certifications, every batch undergoes strict traceability and rigorous inspection by seasoned professionals, ensuring each filter delivers consistent, high-stakes performance you can trust. Our growing portfolio of R&D patents isn’t just a badge of honor—it’s proof of our relentless drive to push metallic filtration technology forward, giving you a competitive edge through innovation that matters.

04

From North America to Europe and the Middle East, we’ve spent over fifteen years building lasting partnerships across the globe. Our dedicated sales and after-sales teams don’t just respond—they anticipate, offering proactive technical guidance, clear communication, and responsive support at every stage. When you choose us, you’re not just buying a filter; you’re gaining a strategic partner committed to delivering sustainable, cost-effective, and cutting-edge solutions that elevate your entire operation.

Company Description







Henan Top Environmental Protection Equipment specializes in advanced filter cartridges and housings, serving over 100 global industrial markets. Our integrated factory features rolling, slitting, welding, and automated assembly lines, enabling high-efficiency production and consistent product quality at scale.

Rigorous quality assurance is upheld through CE and ISO certifications, batch traceability, and experienced inspectors, ensuring reliable, high-performance filters. Our intellectual property portfolio, including multiple R&D patents, demonstrates technological leadership and ongoing innovation in metallic filtration solutions. Our professional R&D team develops fully customized filtration solutions tailored to client specifications—including materials, dimensions, and operating environments.

Dedicated sales and after-sales teams provide technical guidance, timely communication, and seamless global support to ensure customer satisfaction. With over fifteen years of export experience, we deliver competitive, innovative, and sustainable filtration solutions to markets across North America, Europe, and the Middle East

Workshop Show

Application field

Steel Mill

This pleated filter cartridge, installed in steelworks dust control systems, effectively captures dust particles and maintains a clean environment for uninterrupted production.

Food industry

Customizable filter cartridges, integrated into the industrial dust collection systems of food processing plants, capture flour and airborne particulates, thereby maintaining air quality and safeguarding production safety in the facility.

Cement Plant

Continuously remove production dust, maintain a clean workshop environment, adapt to high-temperature and high-dust operating conditions, preserve air quality, and safeguard both equipment and operator health.

Pharmaceutical industry

Specialized Dust Collector Cartridges for Pharmaceutical Plants: Efficiently filter pharmaceutical powder particles, maintain air purity, extend equipment lifespan, and ensure production safety and product quality.

Chemical industry

High-efficiency dust filter cartridge in a chemical plant, high-temperature resistant, efficiently captures process dust for cleaner air. Designed for chemical dust collection, for long-term stable operation.
