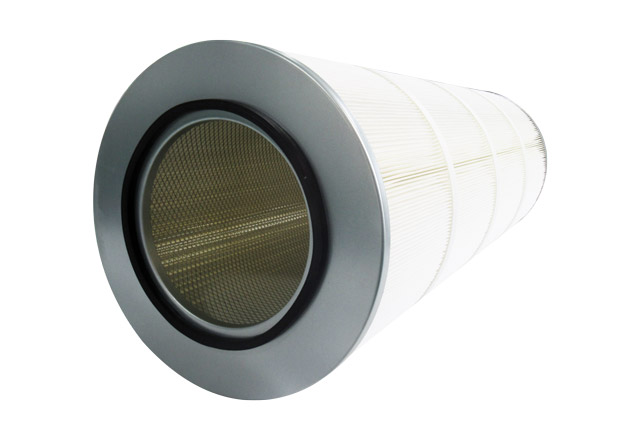

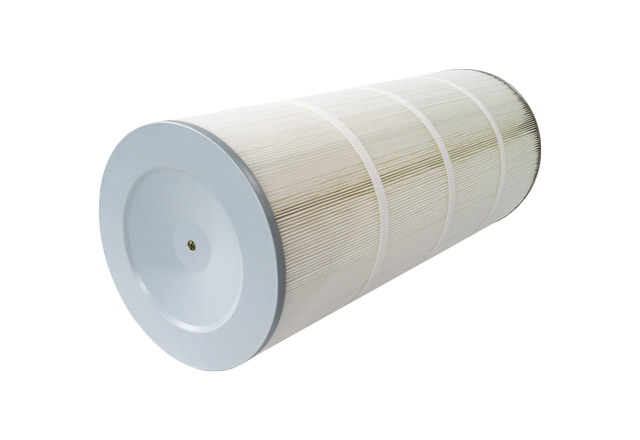

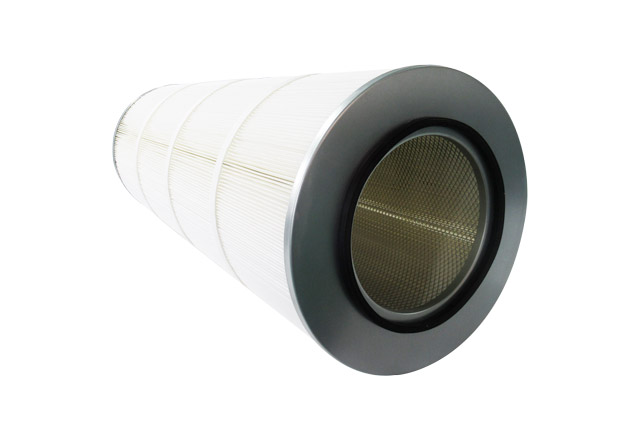

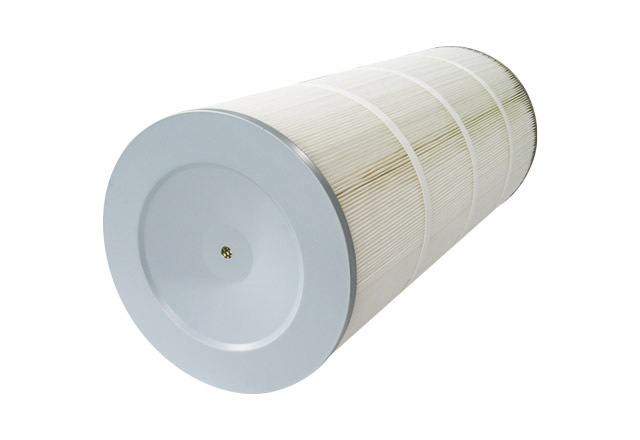

Customized 380*900 Dust Collection Filter

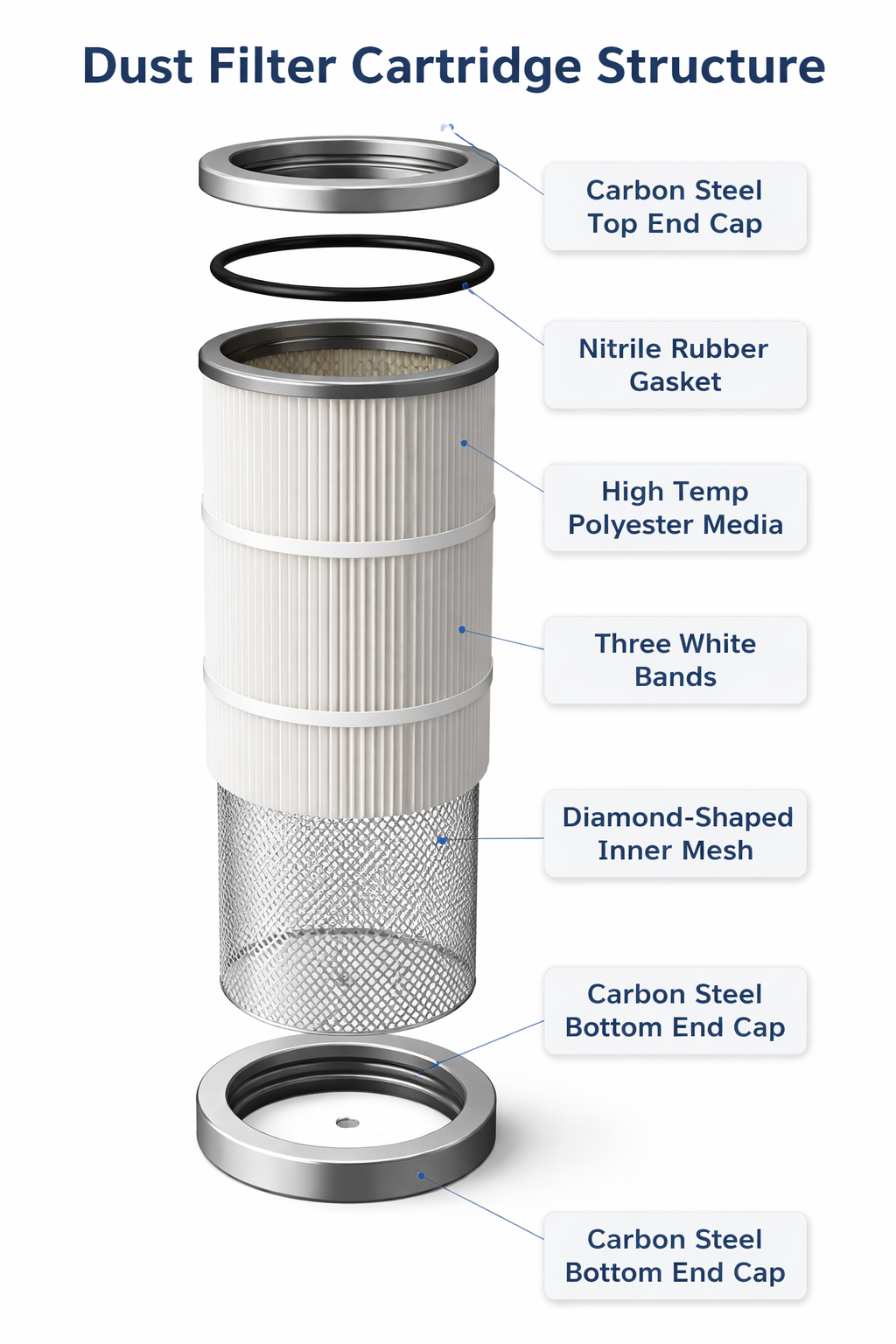

Filter element product structure                                          Key Features&Benefits:


Premium Industrial Dust Filter Cartridge for High-Efficiency Air Filtration. Upgrade your industrial dust collection system with the Topep high-efficiency polyester dust filter cartridge, engineered for maximum airflow, superior dust retention, and long-lasting durability. Designed for demanding industrial environments, this cartridge combines advanced materials with a reinforced pleated structure to deliver exceptional filtration performance.

• High-Efficiency Polyester Media: Micro-fine polyester fibers achieve>99.5%filtration efficiency for particles, ensuring cleaner air and reduced equipment wear.

• Optimized Pleated Structure: maximizing airflow and dust holding capacity.

• Reinforced Core&End Caps: Metal mesh inner core and high-temperature resistant polymer end caps provide structural integrity under differential pressure≤1.2 bar.

• Durable&Reusable: Withstands multiple cleaning cycles without efficiency loss, reducing operational cost.

• Wide Temperature Tolerance: Effective performance from-20°C to 120°C, suitable for harsh industrial conditions.

• Versatile Industrial Applications: Ideal for cement plants, steel factories, chemical processing, pharmaceutical production, and HVAC systems.

Working Principle

The primary function of a dust filter is to separate solid particles from a gas, and it does so through a combination of several physical mechanisms:

• Sieving (or Screening): This is the most basic principle, where filter media acts like a sieve, blocking and trapping any dust particle larger than the pores of the filter material.

• Inertial Impaction & Interception: As the air flows around the fibers of the filter media, larger or high-velocity dust particles cannot follow the airstream's path through the filter. Due to their inertia, they collide directly with a fiber and are trapped. Medium-sized particles may also be intercepted when they come into close proximity with a fiber and stick to it.

• Diffusion: The smallest dust particles (typically sub-micron in size) are in constant, random motion (Brownian motion). This random movement increases the chance that they will come into contact with and be captured by the filter fibers. This principle is particularly effective for capturing the most harmful, ultra-fine particulates.
• Electrostatic Attraction: Many filter elements are designed with or have materials that create electrostatic charges. These static forces can attract oppositely charged dust particles, enhancing the capture of fine dust without hindering airflow.

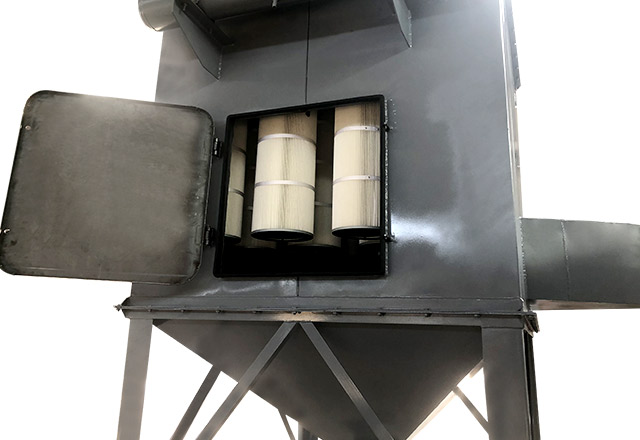

Factory Display

Customized to your needs, we can do many related products. Mainly engaged in producing import-substitution products, we also offer special custom services.
