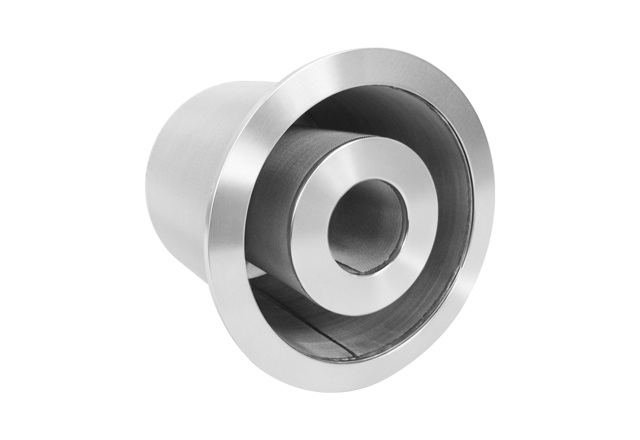

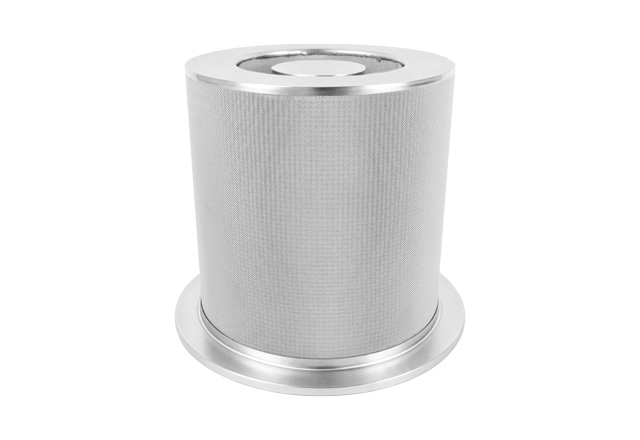

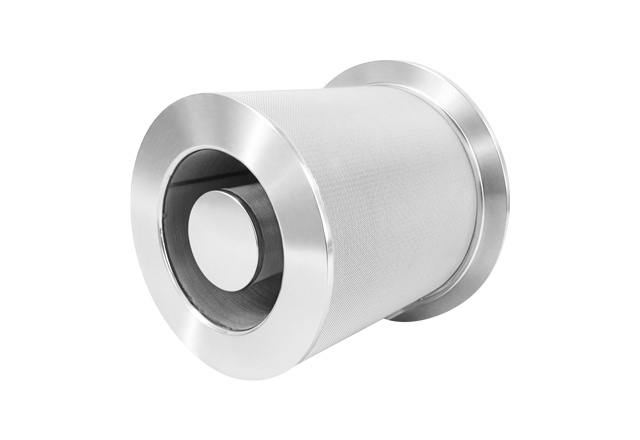

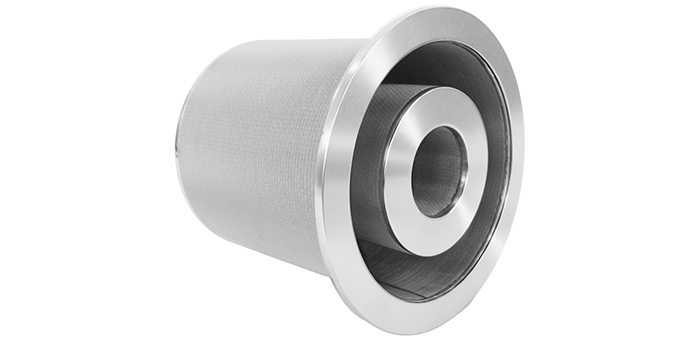

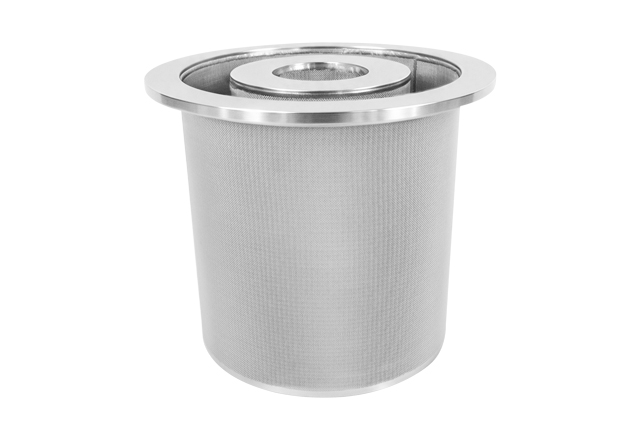

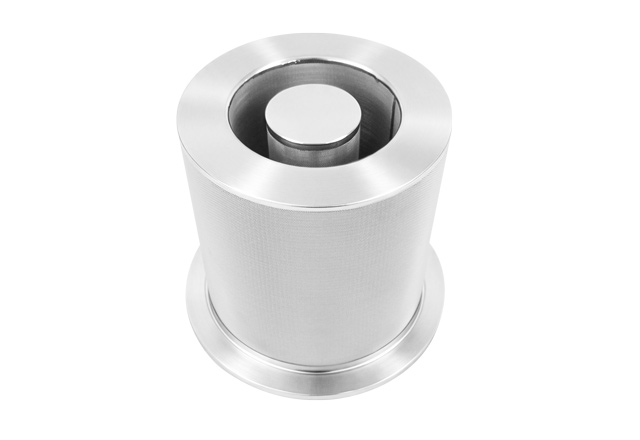

316 SS Sintered Mesh Filter Cartridge

Product Description

Upgrade your industrial filtration system with our premium 316 Stainless Steel Sintered Mesh Filter Element. Measuring 199mm OD x 170mm H, this heavy-duty cartridge features a robust flanged connection for secure, leak-proof installation in high-pressure environments.

Constructed from high-grade 316 SS, the multi-layer sintered mesh offers exceptional mechanical strength, superior corrosion resistance, and high-temperature tolerance. It delivers precise filtration with excellent dirt-holding capacity and is highly reusable—easily cleaned via backwashing or ultrasonic methods to reduce long-term costs.

Ideal for demanding petrochemical, pharmaceutical, water treatment, and hydraulic oil applications. Micron ratings are fully customizable (1-100μm) to meet your exact specs. Contact us today for factory-direct pricing, OEM services, or to request a sample!

Specifications

Product Name	316 Stainless Steel Sintered Mesh Filter Element
Material	316 Stainless Steel (316L available upon request)
Outer Diameter (OD)	199 mm
Height	170 mm
Connection Type	Flanged Connection
Filter Media	Multi-layer Sintered Stainless Steel Mesh
Filtration Rating	Customizable (1 μm to 300 μm)
Operating Temperature	-200°C to 650°C (depends on specific application)
Max. Operating Pressure	Up to 30 MPa (Customizable)
Structure	Cylindrical with inner support layer and outer protective layer
Cleaning Method	Backwashing, Ultrasonic Cleaning, Solvent Cleaning
Application	Liquid & Gas Filtration, Petrochemical, Hydraulic Oil, Water Treatment

Product Features

1. Premium 316 Stainless Steel Construction: Manufactured from high-grade 316 stainless steel, this filter element offers exceptional resistance to corrosion, oxidation, and chemical attack, ensuring long-lasting performance in the most demanding environments.

2. Advanced Sintered Mesh Technology: The multi-layer sintered mesh structure provides a stable and uniform pore size. This design ensures high porosity and an outstanding dirt-holding capacity, maximizing filtration efficiency and extending service life.

3. Robust Flanged Connection: Designed with a sturdy and precise flanged end, it allows for secure, leak-proof, and easy installation. This makes it highly suitable for high-pressure and high-temperature applications.

4. High Mechanical Strength & Durability: Unlike traditional filter media, the sintered metal mesh offers superior mechanical strength and structural integrity. It will not deform or tear under high differential pressure.

5. Reusable & Cost-Effective: This filter cartridge is highly durable and can be easily cleaned and reused multiple times through backwashing, ultrasonic cleaning, or chemical solvents, significantly reducing your long-term replacement costs.

6. Customizable Filtration Ratings: We offer flexible customization for micron ratings (typically from 1μm to 300μm) to precisely meet your specific liquid or gas filtration requirements.

Filter Structure

Stainless Steel Sintered Mesh Filter, also called Metal Mesh Sintered Filter, Alloy Mesh Filter, Sintered Layer Filter, along with porous powder sintered filter element, fiberglass sintered filter element, and PP/PE sintered filter element, all belong to the broad category of sintered filter elements.

The sintering mesh filter usually has five layers of stainless steel woven wire mesh, including one protective layer, one filter layer, one separating layer, and two supporting layers. Can also add a skeleton layer according to the using conditions sometimes.

Different Kinds Of Connection Can Be Custom

Sintered Mesh Filter vs. Sintered Powder Filter

Comparison	Sintered Mesh Filter	Sintered Powder Filter
Basic structure	Bonded woven wire mesh layers	Sintered metal powder particles
Pore formation	Determined by mesh weave and layer arrangement	Determined by powder particles and sintering conditions
Typical design focus	Defined mesh structure and mechanical stability	Porous metal structure with interconnected pores
Cleaning	Depends on mesh structure and contamination	Depends on pore structure and contamination
Selection priority	Mesh configuration, rating and strength	Pore characteristics, permeability and rating

FAQ

1. How do I determine the optimal micron rating for my specific system?
Selecting the right rating depends on your target particle size and fluid viscosity. If you are unsure, our engineers can assist you. Simply provide your fluid type, flow rate, and the size of the particles you need to intercept, and we will recommend the most efficient specification.

2. What is the pressure drop (differential pressure) of this filter element?
Pressure drop varies based on flow rate, fluid viscosity, and the chosen micron rating. Our multi-layer sintered design offers high porosity, ensuring a low initial pressure drop while maintaining high dirt-holding capacity. We can provide specific flow-pressure curves upon request.

3. How do you guarantee the structural integrity and welding quality of the filter?
Every filter undergoes strict quality control. We perform 100% integrity testing (including bubble point tests) and pressure resistance tests before shipment. The flanged connection is securely welded to prevent any bypass or leakage under high-pressure conditions.

4. What is your standard lead time for standard sizes and custom OEM orders?
For standard models (like the 56x199x170mm), our lead time is typically 7-10 working days. For custom OEM/ODM orders requiring specific dimensions or materials (like 316L), the lead time is approximately 15-25 working days, depending on the order quantity.

5. Can I request a sample to test before placing a bulk order?
Yes, we highly encourage sample testing to ensure our product perfectly matches your application. We can provide samples for evaluation. Please contact our sales team to discuss the sample cost and shipping arrangements.

6. What are your standard shipping methods and terms?
For urgent or small orders, we use international express couriers (DHL, FedEx, UPS, TNT). For bulk orders, we offer air freight and sea freight. We support EXW, FOB, and CIF terms, and our team will recommend the most cost-effective shipping method for you.

7. Is there a warranty or after-sales support for this product?
We stand behind the quality of our products. We offer a quality guarantee against manufacturing defects. If you encounter any issues with the filter's structural integrity or filtration performance under normal operating conditions, our technical support team is ready to assist you immediately.
