FO-614PLF5 Replacement Filter Cartridge

Product Description

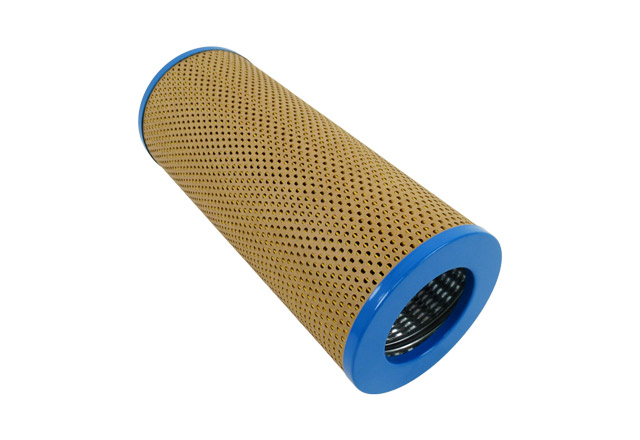

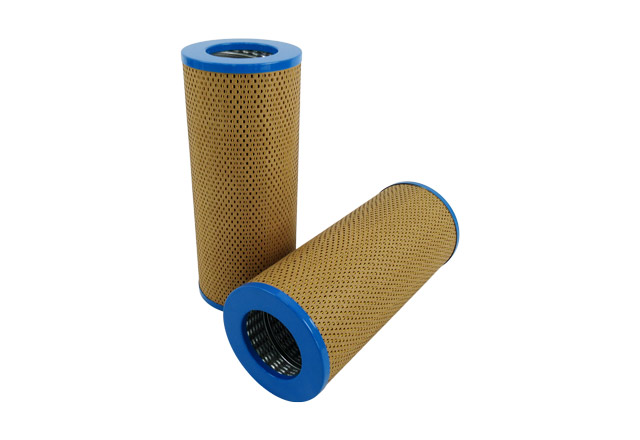

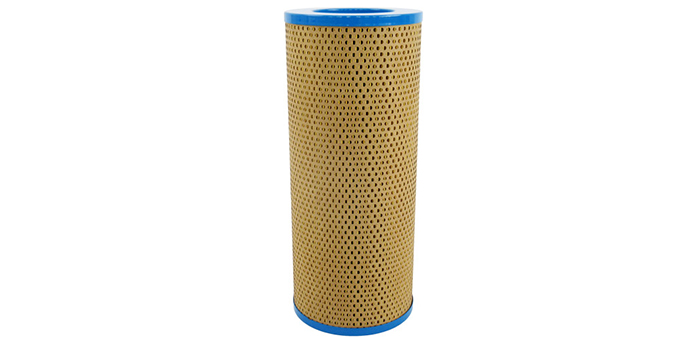

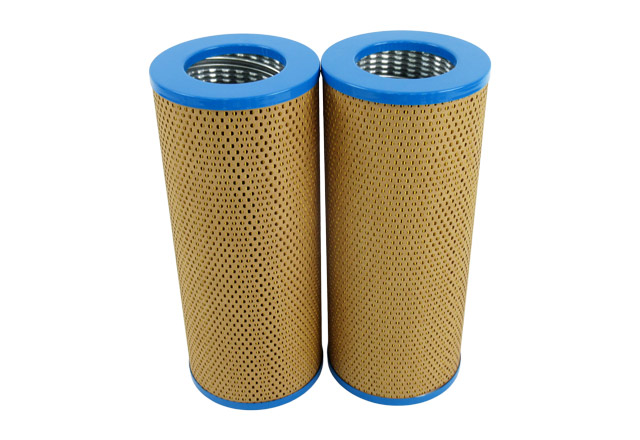

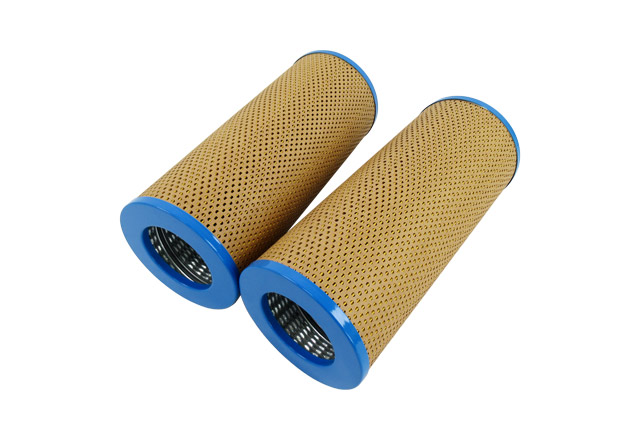

The TOPEP FO-614PLF5 replacement filter cartridge is designed for industrial liquid filtration systems that require reliable particulate removal and consistent filtration performance. Developed as a replacement option for the Parker Velcon FO-614PLF5 filter element, this cartridge features filter paper media, a galvanized fish-scale support cage, blue powder-coated carbon steel end caps and NBR sealing components.

The filter element is designed to help remove solid contaminants from compatible liquids and maintain the cleanliness required by downstream equipment. By retaining particulate matter within the filtration media, it can help reduce contamination-related wear, protect sensitive components and support the stable operation of industrial filtration systems.

Specifications

Product Name	FO-614PLF5 Replacement Filter Cartridge
Replacement Part Number	FO-614PLF5
Product Type	Industrial Liquid Filter Cartridge
Filter Media	Filter Paper
End Cap Material	Carbon Steel
End Cap Surface Treatment	Blue Powder Coating
Inner Support Cage	Galvanized Fish-Scale Perforated Support Cage
Sealing Material	NBR (Nitrile Butadiene Rubber)
Reference Filtration Rating	5 μm, nominal
Reference Outer Diameter	6 in / 152.4 mm
Reference Overall Length	14.5 in / 368.3 mm
Reference Inner Diameter	3.5 in / 88.9 mm
Reference Operating Temperature	Up to 121°C for the listed original model
Reference Collapse Strength	75 psi / approximately 5.17 bar for the listed original model
Reference Recommended Changeout Differential Pressure	25 psid for the listed original model
Application	Liquid Filtration and Fuel Filtration
Customization	Available

Product Features

1. Filter Paper Media for Particulate Removal

The filter paper media is the primary filtration component of the cartridge. It is intended to capture suspended solid contaminants as liquid passes through the filter. Its filtration performance depends on the selected media grade, construction and operating conditions.

For systems requiring fine particulate control, selecting an appropriate filtration rating is essential. The nominal 5-micron rating associated with the original FO-614PLF5 provides a useful reference when evaluating a replacement. Actual efficiency and compatibility should be verified for the replacement product.

2. Galvanized Fish-Scale Support Cage

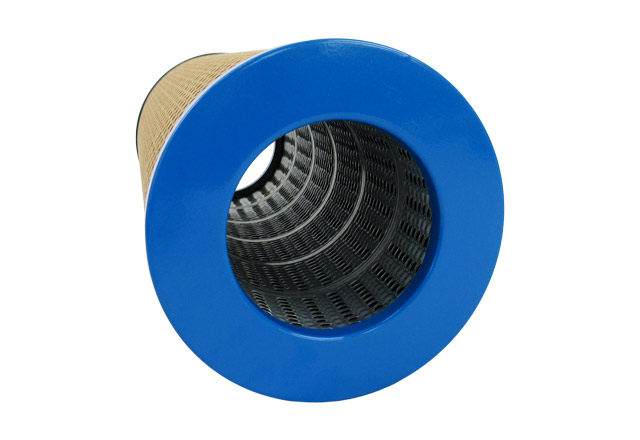

The galvanized fish-scale support cage provides structural support to the filtration assembly. Its perforated construction helps support the media while allowing liquid to pass through the designed flow path.

The support structure helps the cartridge maintain its shape during normal operation. The galvanized surface also provides a protective finish for the cage, although suitability for a particular fluid depends on its chemical composition, temperature and operating environment.

3. Blue Powder-Coated Carbon Steel End Caps

The cartridge uses carbon steel end caps with a blue powder-coated finish. The end caps provide structural support and help secure the filter assembly.

The coating helps protect the external metal surface against handling damage and environmental exposure. The suitability of the end-cap material and coating should be evaluated according to the fluid, temperature and installation conditions.

4. NBR Sealing Components

Nitrile butadiene rubber, commonly known as NBR or Buna-N, is used as the sealing material. A suitable seal helps prevent fluid bypass around the cartridge and directs the liquid through the intended filtration path.

NBR is widely used in many oil and hydrocarbon-related applications, but compatibility varies with the specific fluid formulation, temperature and exposure conditions. Customers should confirm seal compatibility before ordering.

5. Replacement Supply and Specification Matching

A replacement filter should match the original element in more than its part number. Overall length, outer diameter, inner diameter, end-cap configuration, sealing arrangement and filtration performance all influence installation and operation.

TOPEP can evaluate replacement requirements using the original model number, technical drawing, photographs or physical sample. Material options and dimensions can be reviewed according to the intended application and equipment requirements.

Customized Service


Henan Top Environmental Equipment as a industrial filter supplier, has extensive experience in customized filter cartridges. We have professional
technical team to design the most suitable filters depend on your using condition. Here are some filter parts that we can custom.

More Part Number

We can produce various brands of Filters, as long as you have the part number or parameters of filter, we can do it.
Just contact us and share your requirement !!!

936704Q	8833-11	G04276	931881	901328	901661	901747	907088	907230	909293
941584	R937852Q	R937878Q	936710Q	920022	920468	921166	922936	923553	924451
937407Q	928952Q	936705Q	FTCE2A10Q	925788	925811	925828	925946	926476	926696Q
9922-05-BQ	DFO-512PLF2	941043Q	370-Z-223A	927663	927669	927861Q	928085	928152Q	FC1090Q002BS
925774	G1448Q	FTCE2B10Q	937818	FC1090Q020BS	FC1091Q005BS	FC1090Q010BS	FC1905Q002BS	F13938702190S	FC1905Q005BS
HF22H10VQ	FP718-5	933837Q	937853Q	FC1301Q002BS	FC7005Q002BK	FTAE1A05Q	FC1240Q010XS	FTAE1A10Q	G02001
931886	936974Q	941927Q	928952Q	909807	925818	G01066	G00980	G00966	G00389
G04260	G1448Q	R937852Q	R937878Q	925023	G00590	G00799	H00834003	HF4L10VQ	HF4L25VQ
937399Q	937857Q	FBO60337	939930Q	927169Q	H00834007	PR2766	PR875	PR3151	PR3435
SS1C4A1AP	SS1C4B1AP	SS1D8A1AP	SS1D8B1AP	TXW1010B	TXW3E3B	TXW3E10B	TXW8A6B	TXW8C6B	PR2745

Some Questions

►How Long Is the Service Life of Hydraulic Filter Elements?
-- The service life of a hydraulic filter element depends on operating conditions, oil cleanliness, contamination level and maintenance frequency.
Regular replacement of hydraulic filter elements helps prevent excessive contamination, reduce component wear and maintain stable hydraulic system performance.

►What Is the Difference Between Original and Replacement Filter Elements?
-- A high-quality replacement filter element focuses on matching the original filter's key performance requirements, including filtration efficiency, dimensions and compatibility.
TOPEP replacement hydraulic filter elements are manufactured with strict quality control to provide reliable performance for industrial applications.
