Custom Industrial Oil Filter Element

Product Description

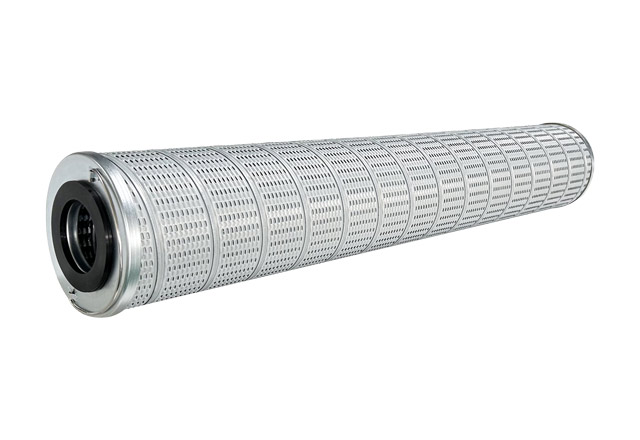

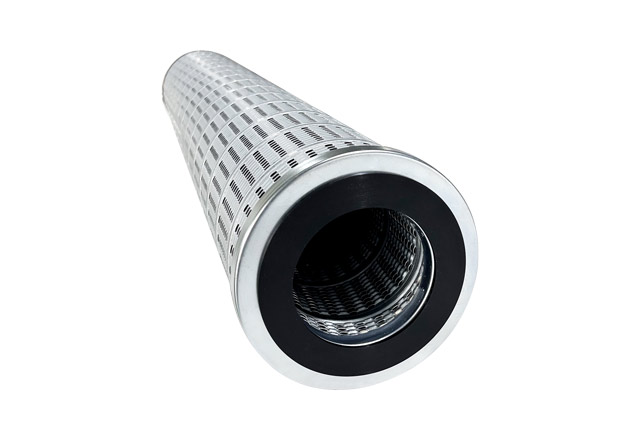

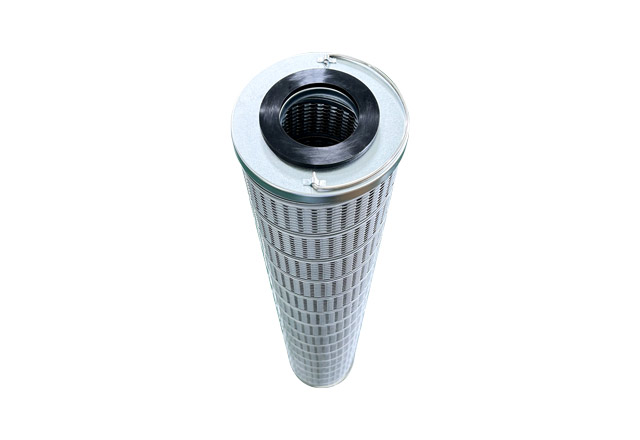

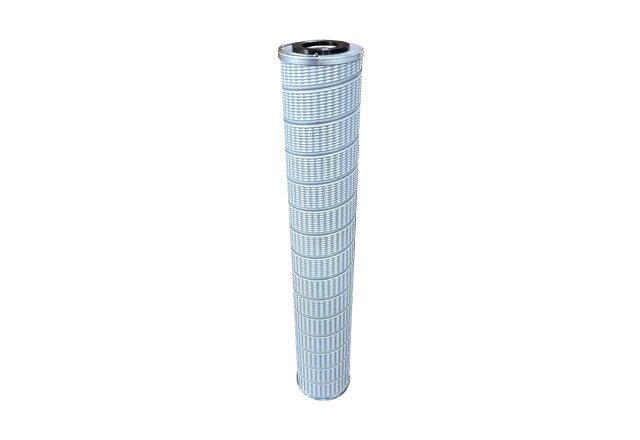

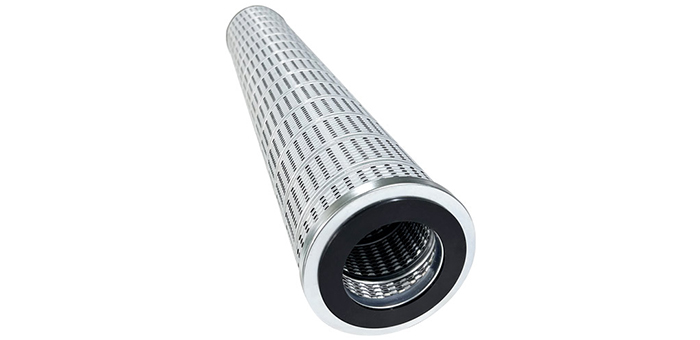

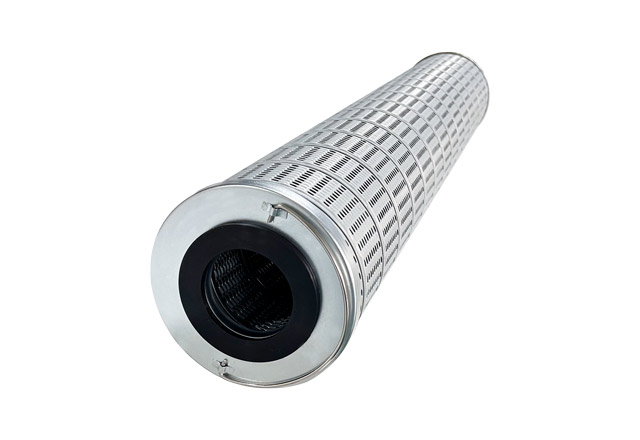

This industrial oil filter element is designed for oil filtration systems that require reliable contaminant removal and stable filtration performance. With an inner diameter of 68 mm, an outer diameter of 154 mm, and a height of 914 mm, this long cylindrical filter cartridge features a fiberglass filter layer supported by inner and outer carbon steel perforated metal structures.

The fiberglass filter media provides an effective filtration barrier for capturing solid particles and contaminants suspended in oil. The perforated support cages help maintain the structural integrity of the filter element under operating conditions, while the spray-coated protective mesh offers additional support for the filter media. Carbon steel end caps and nitrile butadiene rubber (NBR) seals provide a practical construction for industrial oil filtration applications.

Technical Parameters

Product Name	Industrial Oil Filter Element
Inner Diameter	68 mm
Outer Diameter	154 mm
Height	914 mm
End Cap Material	Carbon Steel
Inner Support Cage	Carbon Steel Perforated Sheet
Outer Support Cage	Carbon Steel Perforated Sheet
Filter Media	Fiberglass with Spray-Coated Protective Mesh
Gasket Material	Nitrile Butadiene Rubber (NBR)
Product Structure	Cylindrical Filter Cartridge
Customization	Available
OEM Replacement	Available upon specification confirmation

Note: Filtration rating, operating pressure, temperature range, flow rate, and connection dimensions can be confirmed according to your application requirements and original filter specifications.

Product Features

1. Efficient Oil Contaminant Filtration: Fiberglass filter media helps capture solid contaminants suspended in oil, supporting oil cleanliness and protecting downstream components from particulate contamination.

2. Reinforced Filter Structure: Inner and outer perforated support cages provide structural support for the filter media, helping the cartridge maintain its shape during operation.

3. Protective Mesh Design: The spray-coated protective mesh helps protect the fiberglass media against mechanical damage while supporting stable filter construction.

4. Reliable Sealing: The NBR gasket helps reduce the risk of oil bypass around the filter element when properly matched to the housing and operating conditions.

5. Stable Cylindrical Construction: The long cylindrical design provides a defined filtration structure for compatible industrial oil filtration systems, with the installation dimensions matched to the intended housing.

6. Oil Application Compatibility: The fiberglass media and sealing configuration can be evaluated for different industrial oil applications, subject to oil compatibility, temperature, pressure, and filtration requirements.

Custom Oil Filter Element

Not every filtration system uses the same filter dimensions or internal construction. For this reason, we provide custom oil filter element manufacturing according to customer requirements.

Customers can provide an existing sample, technical drawing, dimensions, photographs or equipment specifications. Based on the available information, the filter element can be produced with different dimensions, filter media, filtration ratings, end-cap configurations, support structures and sealing materials.

Customization is particularly useful when the required filter element has a non-standard size or when a filtration system requires a specific combination of filter media and mechanical support.

Not what you're looking for? Let us know! We can help you find the exact filter you need ASAP.

Advantages

Our company operates a real, fully equipped factory covering over 26,000 square meters. As a direct manufacturer, we specialize in producing filters and have accumulated many years of hands-on experience. Every step—from selecting raw materials to final assembly—is carried out under strict quality control. With complete production lines and skilled technicians, we can manage routine orders as well as urgent or custom requirements with confidence and efficiency.

Our engineering team is made up of professionals who have been deeply involved in the filtration field for many years. They understand the properties of different filter media, the requirements for various filtration accuracies, and the operating conditions across a wide range of industries. Whether your project calls for unusual dimensions, higher performance, or a solution that can withstand tough working environments, our engineers can offer tailored designs and practical guidance to help you get the results you need.

Our factory has passed internationally recognized ISO and CE certifications, which further demonstrates the reliability of our product quality. Each filter element is carefully inspected before shipment — from raw material verification to performance testing and visual checks. With these strict quality controls in place, customers can count on our filters to deliver stable and consistent performance even in demanding industrial conditions.

We have years of experience in international trade and a dedicated export team that understands the purchasing habits, logistics procedures, and documentation requirements of different markets. Our export process is well-established, allowing us to provide clear communication and timely updates from the initial inquiry to the final shipment. From arranging transportation to customizing packaging and handling after-sales service, we aim to make every step smooth and reliable for our customers.

Company Description

Henan Top Environmental Protection Equipment is a manufacturing company located in Henan, China, focusing on a wide range of filter cartridges and filter housings. Our facility is equipped with advanced production equipment, including rolling, slitting, and welding machines, as well as several automated lines that allow us to deliver consistent, high-quality products in large volumes.

Our R&D team consists of experienced engineers who provide solid technical support, complemented by a knowledgeable sales and after-sales staff dedicated to reliable service. Every product is produced under strict quality control procedures to ensure it meets demanding performance standards.

We specialize in customized filtration solutions. According to customer needs, we can select suitable raw materials for various working conditions and offer custom dimensions, colors, packaging, labels, logos, and graphics. With strong manufacturing capability, we are often able to complete new product development and production within a week.

The company has earned CE and ISO certifications and holds several R&D patents. With more than 15 years of export experience, our products are shipped to over 100 countries and regions, including North America, Eastern Europe, the Middle East, and Southeast Asia. Guided by principles of responsibility, professionalism, and integrity, we have built long-term trust and recognition throughout the industry by consistently delivering dependable products and service.

FAQ


Q1: Can you provide replacement hydraulic filter elements for original brands?

Yes. We provide replacement hydraulic filter elements compatible with many international brands. Customers can send the original filter model, drawings, dimensions, or application information, and our engineering team can develop a suitable replacement solution.

Q2: Do you manufacture filter housings as well as filter elements?
Yes. In addition to filter cartridges, we also manufacture filter housings, including sanitary filter housings, stainless steel filter housings, and industrial filtration equipment. We can provide complete filtration solutions according to different applications.

Q3: What industries use your filter products?
Our filtration products are widely used in:
►Hydraulic equipment
►Oil and gas systems
►Compressed air treatment
►Chemical processing
►Food and beverage production
►Water treatment
►Industrial manufacturing

Q4: Do you support OEM and customized filtration projects?
Yes. We support OEM/ODM projects including customized filter structures, materials, sizes, connection methods, and packaging. Our R&D team can help develop new filter products according to specific working conditions.
