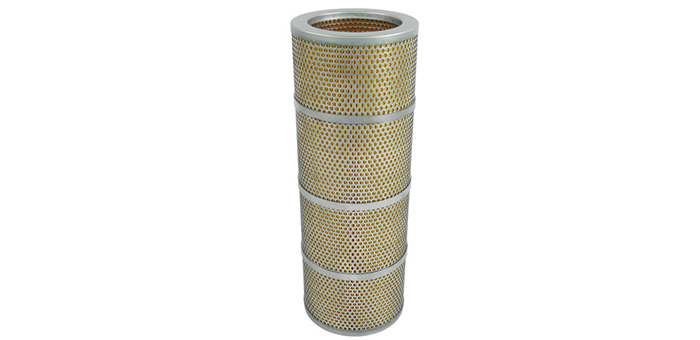

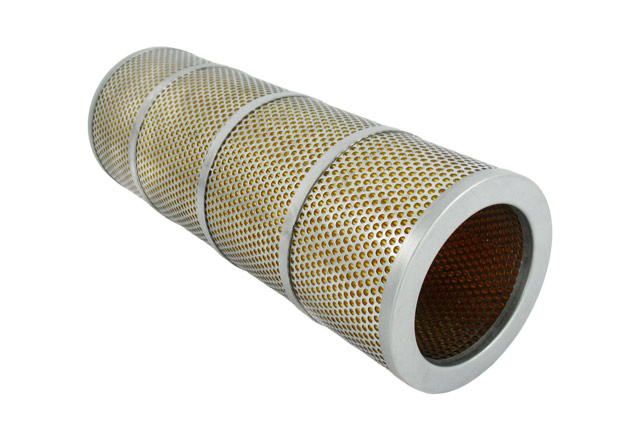

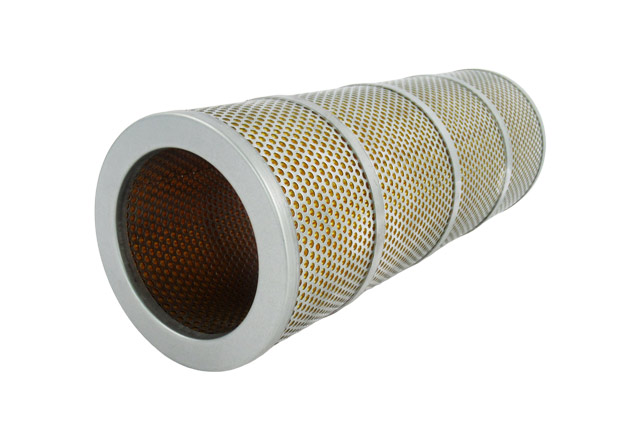

Industrial Replacement Oil Filter Element 144 × 400 mm with Yellow Filter Paper

Technical Parameters





Product Type	Industrial Oil Filter Element
Inner Diameter	105 mm
Outer Diameter	144 mm
Height	400 mm
Filter Media	Yellow Filter Paper
End Cap Material	Carbon Steel
Inner Support	Carbon Steel Perforated Plate
Outer Support	Carbon Steel Perforated Plate
Reinforcement	Reinforcing Ribs
Filter Structure	Pleated Filter Element

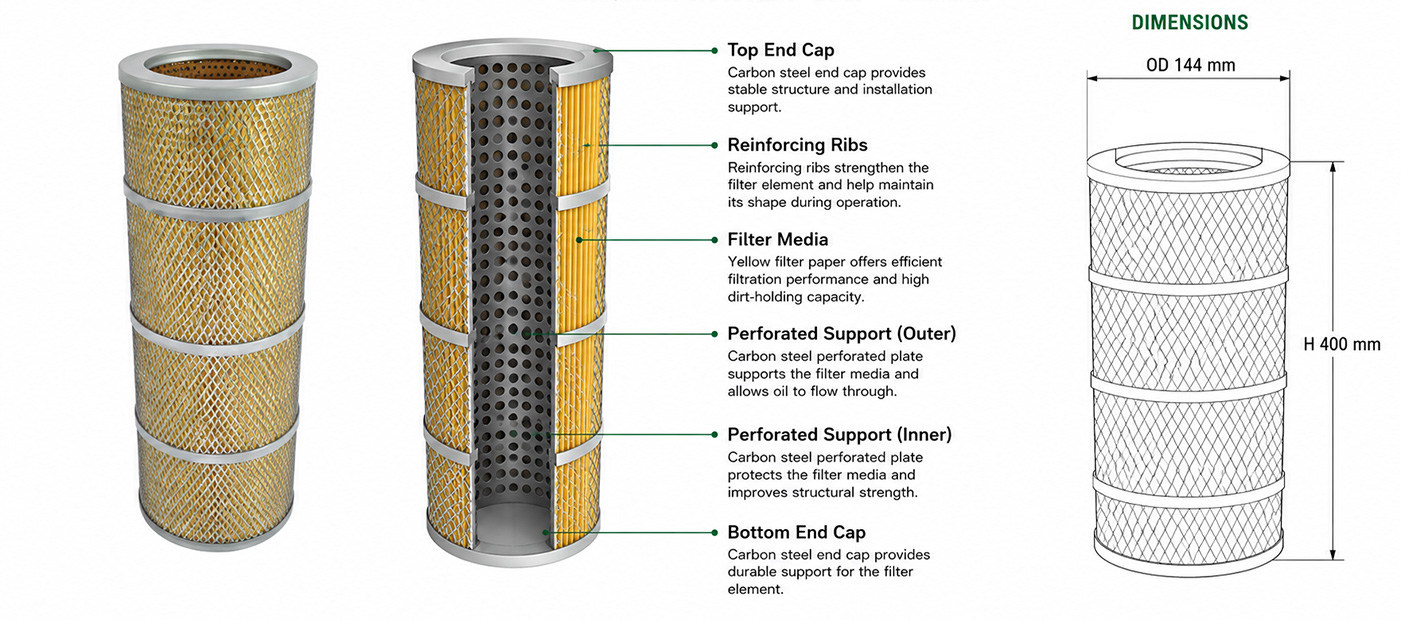

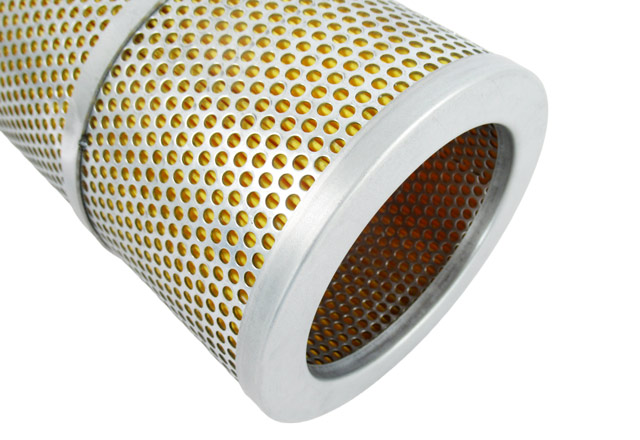

Oil Filter Element Structure

A properly designed oil filter element requires both effective filtration media and reliable mechanical support. This filter element uses yellow filter paper as the main filtration layer. The pleated design increases the available filtration area within the cylindrical housing, allowing the filter element to maintain a relatively compact size while providing sufficient contact area between the oil and filter media.

The inner and outer carbon steel perforated plates provide mechanical support for the filter paper. Their perforated construction allows oil to pass through while helping protect the filter media from excessive deformation. Reinforcing ribs provide additional structural strength, particularly when the filter element is exposed to pressure differences during operation.

The carbon steel end caps complete the filter assembly and provide a rigid structure for installation. The actual structure can be adjusted according to different equipment requirements.



Yellow Filter Paper for Oil Filtration

The filter media is an important component of an industrial oil filter because it directly affects particle removal, dirt-holding capacity and service life. This model uses yellow filter paper as the primary filtration material.

During filtration, contaminated oil passes through the filter media while unwanted solid particles are retained by the filter paper. The pleated configuration provides a larger effective filtration area than a simple flat layer, helping the element accommodate a greater amount of filter media within its cylindrical structure.

Oil filtration performance is influenced by many factors, including filter paper grade, filtration rating, oil viscosity, contamination concentration, flow rate, operating pressure and temperature. For this reason, the filter media should be selected according to the actual working conditions rather than relying only on the appearance of the filter element.


Reinforced Carbon Steel Filter Construction

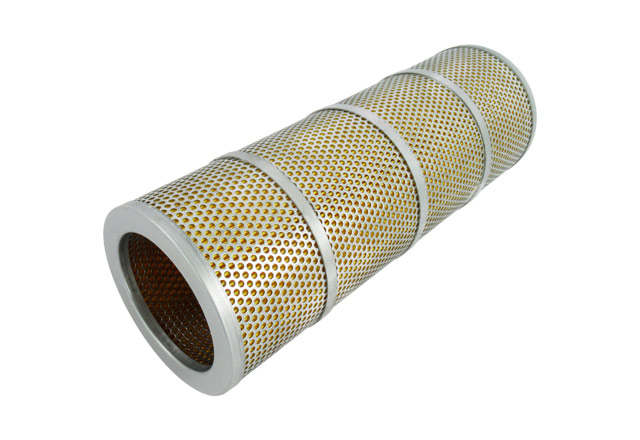

For industrial filtration applications, the mechanical structure of a filter element is as important as the filtration media. This oil filter cartridge uses carbon steel end caps together with carbon steel perforated plates and reinforcing ribs to create a reinforced filter construction.

The perforated support plates help maintain the position of the filter media and provide structural support during oil flow. The reinforcing ribs further improve the rigidity of the element and help reduce deformation under operating conditions.

This construction is suitable when customers require an oil filter element with a stronger support structure. The specific material and construction can also be adjusted according to the customer's equipment, pressure conditions and filtration requirements.

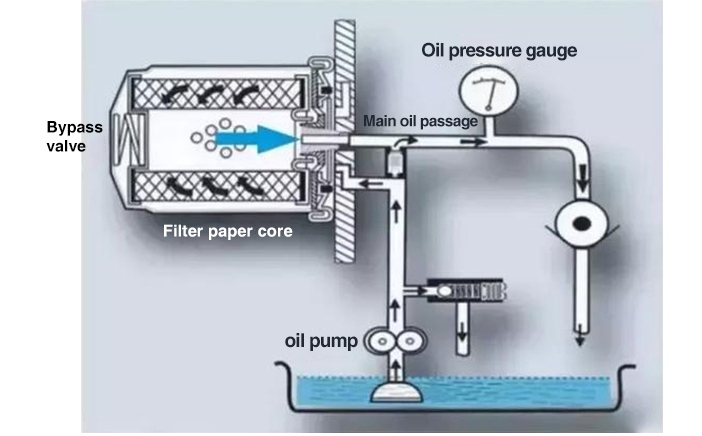

How Oil Filtration Works

An oil filter element separates unwanted solid contaminants from oil as the fluid passes through the filter media. Contaminated oil enters the filtration area and flows through the yellow filter paper. Particles and impurities are retained by the filter media, while filtered oil continues through the supporting structure.

The performance of an oil filtration system depends on the complete filtration system rather than the filter element alone. Filter media selection, filtration rating, flow direction, oil viscosity, pressure difference and operating temperature can all affect filtration results.

Regular inspection of the filter element can also help identify excessive contamination or pressure increase. When the filter becomes heavily loaded with contaminants, filtration efficiency and oil flow conditions may be affected.

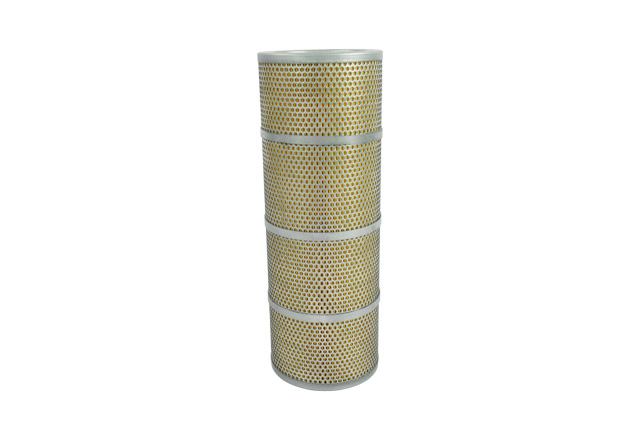

Custom Oil Filter Element

Not every filtration system uses the same filter dimensions or internal construction. For this reason, we provide custom oil filter element manufacturing according to customer requirements.

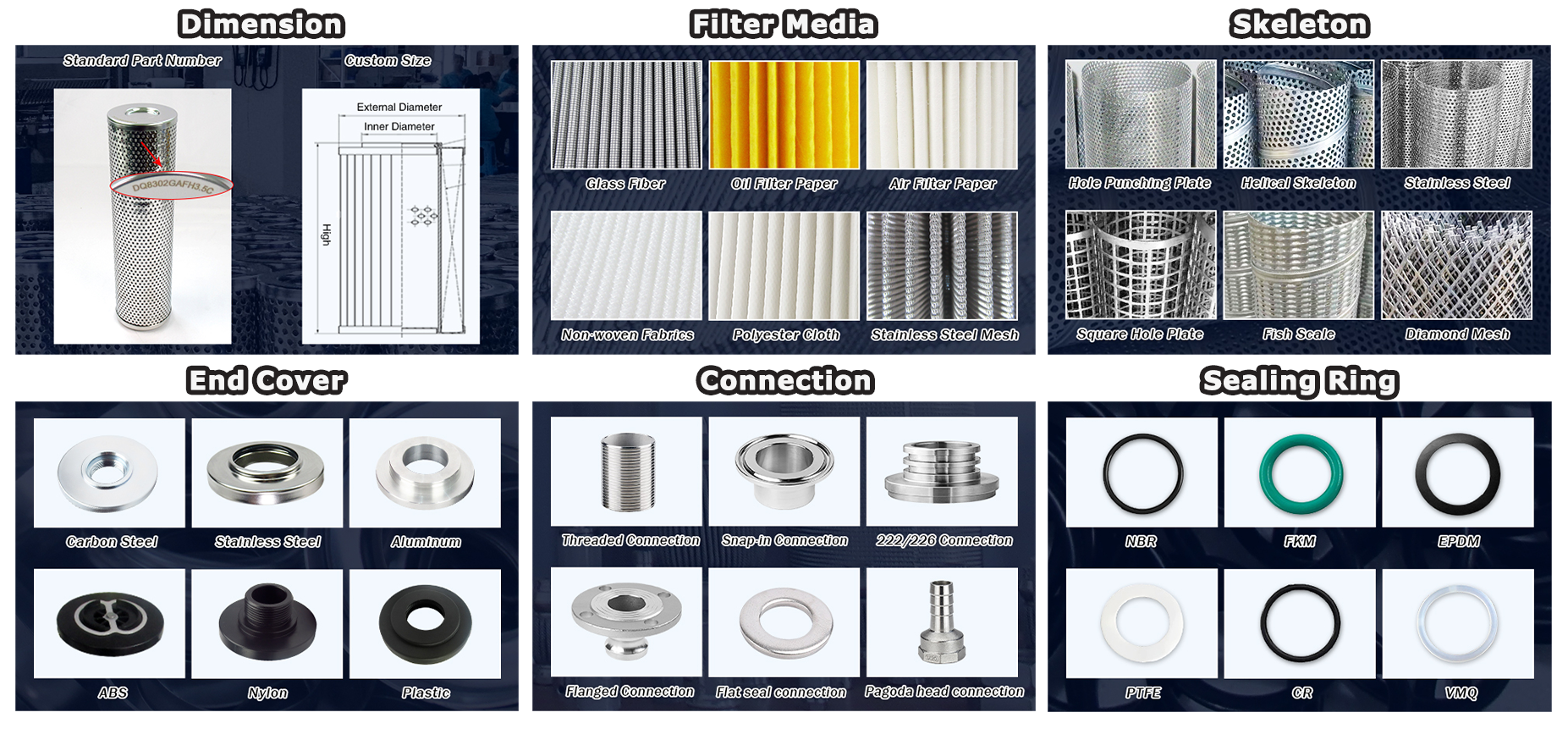

Customers can provide an existing sample, technical drawing, dimensions, photographs or equipment specifications. Based on the available information, the filter element can be produced with different dimensions, filter media, filtration ratings, end-cap configurations, support structures and sealing materials.

Customization is particularly useful when the required filter element has a non-standard size or when a filtration system requires a specific combination of filter media and mechanical support.

Not what you're looking for? Let us know! We can help you find the exact filter you need ASAP.

Advantages

01

Our company operates a real, fully equipped factory covering over 26,000 square meters. As a direct manufacturer, we specialize in producing filters and have accumulated many years of hands-on experience. Every step—from selecting raw materials to final assembly—is carried out under strict quality control. With complete production lines and skilled technicians, we can manage routine orders as well as urgent or custom requirements with confidence and efficiency.

02

Our engineering team is made up of professionals who have been deeply involved in the filtration field for many years. They understand the properties of different filter media, the requirements for various filtration accuracies, and the operating conditions across a wide range of industries. Whether your project calls for unusual dimensions, higher performance, or a solution that can withstand tough working environments, our engineers can offer tailored designs and practical guidance to help you get the results you need.

03

Our factory has passed internationally recognized ISO and CE certifications, which further demonstrates the reliability of our product quality. Each filter element is carefully inspected before shipment — from raw material verification to performance testing and visual checks. With these strict quality controls in place, customers can count on our filters to deliver stable and consistent performance even in demanding industrial conditions.

04

We have years of experience in international trade and a dedicated export team that understands the purchasing habits, logistics procedures, and documentation requirements of different markets. Our export process is well-established, allowing us to provide clear communication and timely updates from the initial inquiry to the final shipment. From arranging transportation to customizing packaging and handling after-sales service, we aim to make every step smooth and reliable for our customers.

Q1: Can you provide replacement hydraulic filter elements for original brands?

Workshop Show

Application field

Metallurgy

Used for rolling mill, continuous casting machine hydraulic system filtration and filtration of various lubrication equipment.

Petrochemical

Oil refining, chemical production process of products and intermediate products separation and recovery, liquid purification,oil field injection well water and natural gas in addition to particle filtration.

Textile

Polyester melt in the process of drawing purification and uniform filtration, air compressor protection filtration, and oil and water removal of compressed gas.

Electronics and pharmaceuticals

Reverse osmosis water, deionized water pretreatment filtration, cleaning solution and glucose pretreatment filtration.

Thermal power and nuclear power

Gas turbine, boiler lubrication system, speed control system, bypass control system oil purification, water pump, fan and dust removal system purification.
