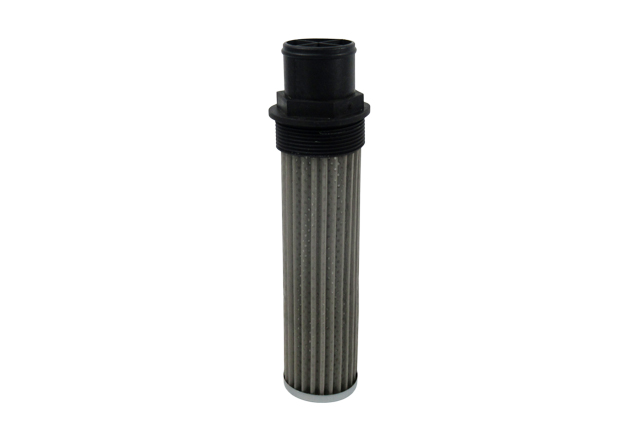

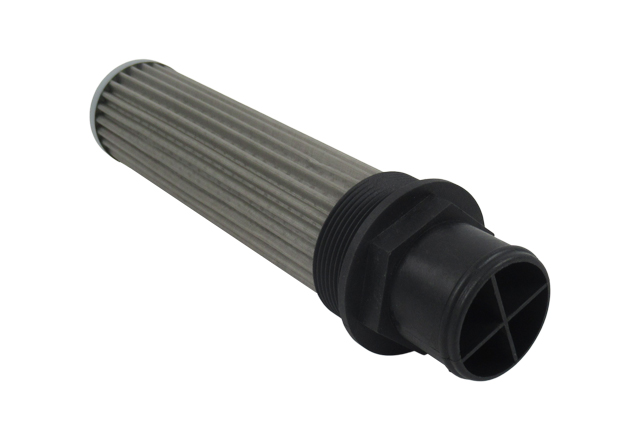

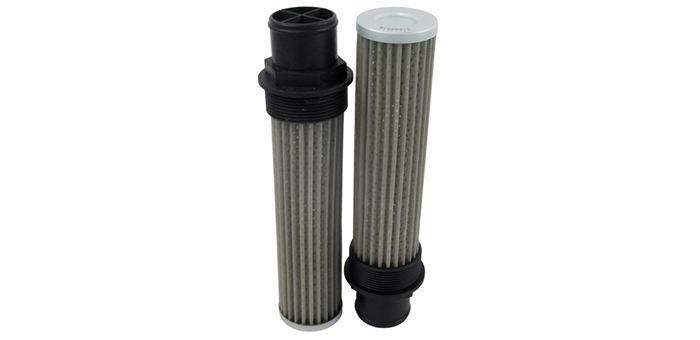

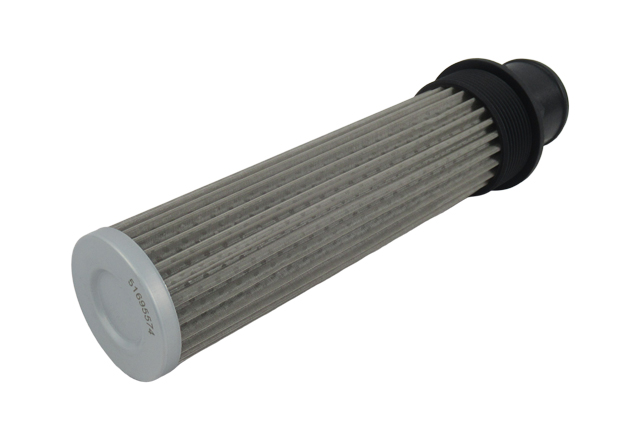

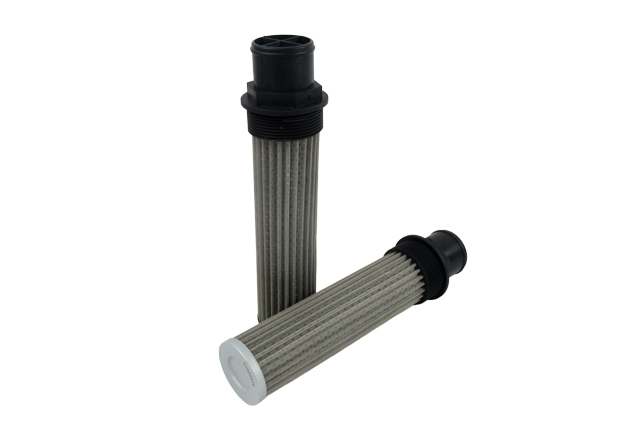

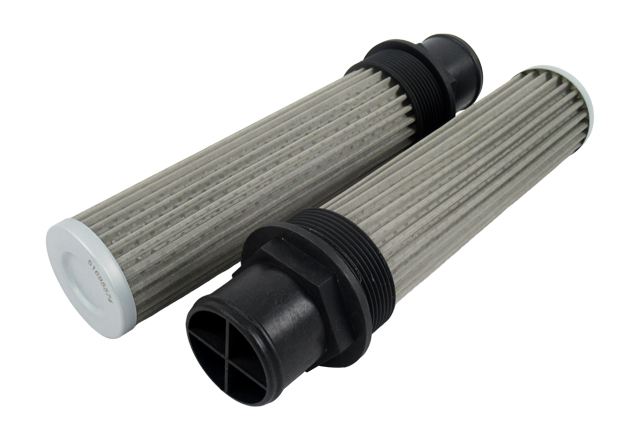

51695574 Hydraulic Oil Filter Element Replacement High Efficiency Industrial Oil Filter Cartridge

Product Description

The 51695574 hydraulic oil filter element is a high-performance filtration component designed for removing contaminants from hydraulic oil, lubricating oil and industrial fluids. It helps protect hydraulic components, reduce equipment wear and maintain stable system operation.

Manufactured with high-quality filter media and durable support structures, this replacement oil filter element provides excellent dirt holding capacity, reliable filtration efficiency and long service life. TOPEP supplies customized filter solutions according to customers’ requirements, including dimensions, filtration ratings, connection types and materials.

Technical Parameters

Product Name	Hydraulic Suction Filter Element
Part Number	51695574
Filter Type	Suction Oil Filter / Hydraulic Strainer
Application	Hydraulic System Oil Filtration
Filter Media	Stainless Steel Wire Mesh
End Cap Material	Stainless Steel / Carbon Steel / Customized
Seal Material	NBR / FKM Optional
Operating Temperature	-30℃ ~ +110℃ (Reference)
Customization	Available

Product Features

1. High Efficiency Oil Filtration
The pleated filter media provides a large filtration area, effectively capturing metal particles, dust, impurities and other contaminants from hydraulic oil.

2. Strong Dirt Holding Capacity
The optimized pleated structure allows more contaminants to be retained while maintaining stable oil flow and extending filter replacement cycles.

3. Durable Construction
High-quality end caps, support layers and filter materials ensure good pressure resistance and reliable performance in demanding industrial environments.

4. OEM Replacement Solution
TOPEP can manufacture replacement filter elements according to original part numbers, drawings or samples, supporting customized filtration solutions for different equipment.

How Oil Filtration Works

An oil filter element separates unwanted solid contaminants from oil as the fluid passes through the filter media. Contaminated oil enters the filtration area and flows through the yellow filter paper. Particles and impurities are retained by the filter media, while filtered oil continues through the supporting structure.

The performance of an oil filtration system depends on the complete filtration system rather than the filter element alone. Filter media selection, filtration rating, flow direction, oil viscosity, pressure difference and operating temperature can all affect filtration results.

Regular inspection of the filter element can also help identify excessive contamination or pressure increase. When the filter becomes heavily loaded with contaminants, filtration efficiency and oil flow conditions may be affected.

Custom Oil Filter Element

Not every filtration system uses the same filter dimensions or internal construction. For this reason, we provide custom oil filter element manufacturing according to customer requirements.

Customers can provide an existing sample, technical drawing, dimensions, photographs or equipment specifications. Based on the available information, the filter element can be produced with different dimensions, filter media, filtration ratings, end-cap configurations, support structures and sealing materials.

Customization is particularly useful when the required filter element has a non-standard size or when a filtration system requires a specific combination of filter media and mechanical support.

Not what you're looking for? Let us know! We can help you find the exact filter you need ASAP.

Advantages

Our company operates a real, fully equipped factory covering over 26,000 square meters. As a direct manufacturer, we specialize in producing filters and have accumulated many years of hands-on experience. Every step—from selecting raw materials to final assembly—is carried out under strict quality control. With complete production lines and skilled technicians, we can manage routine orders as well as urgent or custom requirements with confidence and efficiency.

Our engineering team is made up of professionals who have been deeply involved in the filtration field for many years. They understand the properties of different filter media, the requirements for various filtration accuracies, and the operating conditions across a wide range of industries. Whether your project calls for unusual dimensions, higher performance, or a solution that can withstand tough working environments, our engineers can offer tailored designs and practical guidance to help you get the results you need.

Our factory has passed internationally recognized ISO and CE certifications, which further demonstrates the reliability of our product quality. Each filter element is carefully inspected before shipment — from raw material verification to performance testing and visual checks. With these strict quality controls in place, customers can count on our filters to deliver stable and consistent performance even in demanding industrial conditions.

We have years of experience in international trade and a dedicated export team that understands the purchasing habits, logistics procedures, and documentation requirements of different markets. Our export process is well-established, allowing us to provide clear communication and timely updates from the initial inquiry to the final shipment. From arranging transportation to customizing packaging and handling after-sales service, we aim to make every step smooth and reliable for our customers.

Company Description

Henan Top Environmental Protection Equipment is a manufacturing company located in Henan, China, focusing on a wide range of filter cartridges and filter housings. Our facility is equipped with advanced production equipment, including rolling, slitting, and welding machines, as well as several automated lines that allow us to deliver consistent, high-quality products in large volumes.

Our R&D team consists of experienced engineers who provide solid technical support, complemented by a knowledgeable sales and after-sales staff dedicated to reliable service. Every product is produced under strict quality control procedures to ensure it meets demanding performance standards.

We specialize in customized filtration solutions. According to customer needs, we can select suitable raw materials for various working conditions and offer custom dimensions, colors, packaging, labels, logos, and graphics. With strong manufacturing capability, we are often able to complete new product development and production within a week.

The company has earned CE and ISO certifications and holds several R&D patents. With more than 15 years of export experience, our products are shipped to over 100 countries and regions, including North America, Eastern Europe, the Middle East, and Southeast Asia. Guided by principles of responsibility, professionalism, and integrity, we have built long-term trust and recognition throughout the industry by consistently delivering dependable products and service.

FAQ

Q1: Can you provide replacement hydraulic filter elements for original brands?

Yes. We provide replacement hydraulic filter elements compatible with many international brands. Customers can send the original filter model, drawings, dimensions, or application information, and our engineering team can develop a suitable replacement solution.

Q2: Do you manufacture filter housings as well as filter elements?
Yes. In addition to filter cartridges, we also manufacture filter housings, including sanitary filter housings, stainless steel filter housings, and industrial filtration equipment. We can provide complete filtration solutions according to different applications.

Q3: What industries use your filter products?
Our filtration products are widely used in:
►Hydraulic equipment
►Oil and gas systems
►Compressed air treatment
►Chemical processing
►Food and beverage production
►Water treatment
►Industrial manufacturing

Q4: Do you support OEM and customized filtration projects?
Yes. We support OEM/ODM projects including customized filter structures, materials, sizes, connection methods, and packaging. Our R&D team can help develop new filter products according to specific working conditions.
