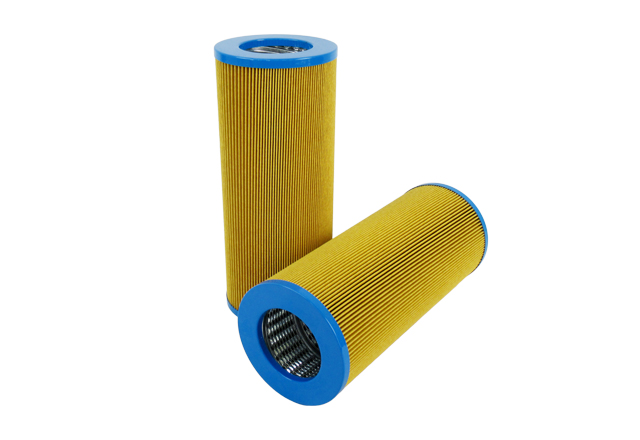

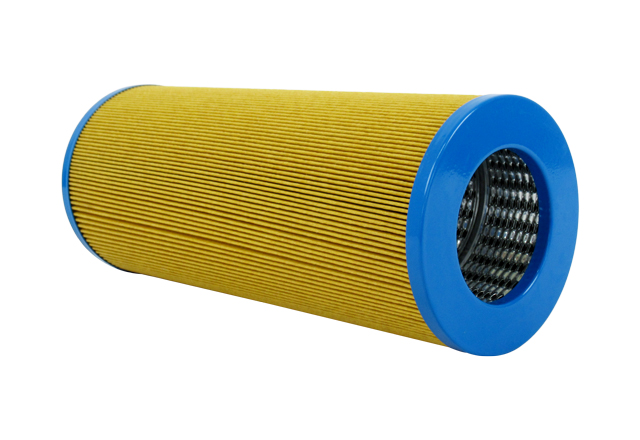

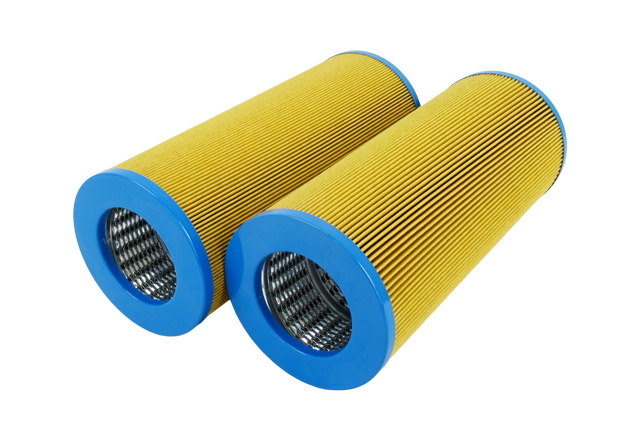

Customized Industrial Hydraulic Oil Filter Cartridge 152*368

Technical Parameters



Name	Oil filter
Style	Hydraulic Oil Filter
Outer Diameter	152mm
Length	368mm
Media Type	Paper,  etc
Flow Direction	OUT-IN, IN-OUT
Collapse Pressure	210 BAR
Temperature Range	-30 - +100°C



Working Principle Overview



This oil filter element operates on a depth and surface filtration principle to effectively remove contaminants from hydraulic or lubricating oil systems.

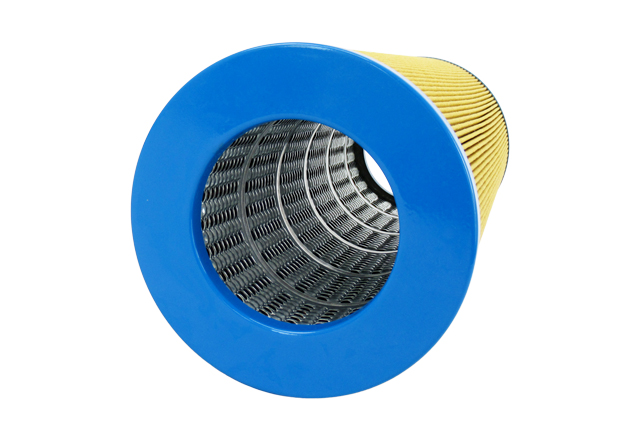

As contaminated oil flows through the filter element, it first passes through the outer filter media, which is made of high-quality filter paper. The porous structure of the media captures solid particles such as metal debris, dust, and sludge while allowing clean oil to pass through smoothly. The filtered oil then flows inward toward the center support structure. The galvanized fish-scale inner skeleton provides strong mechanical support, preventing deformation under pressure and ensuring stable flow channels during continuous operation. The carbon steel end caps with blue powder coating secure the filter element within the housing, while the nitrile rubber (NBR) gaskets ensure a tight seal to prevent bypass leakage and maintain filtration integrity.



Through this process, the filter maintains consistent oil cleanliness, reduces system wear, and extends the service life of hydraulic components.

Customizable options


To meet the diverse requirements of different industrial applications, our filter elements are designed with full customization flexibility. From structural components to filtration media and sealing systems, every part can be selected and combined according to specific working conditions such as pressure, temperature, chemical compatibility, and filtration precision. The following sections outline the available material and structural options for each key part of the filter element, helping you build the most suitable filtration solution for your system.

Filter Element Structure & Material Options

1. End Cover Materials

• Carbon Steel

• Stainless Steel

• Aluminum


• ABS

• Nylon

• Plastic



2. Skeleton (Inner Support) Materials

• Hole Punching Plate (Perforated Metal Plate)

• Helical Skeleton (Spiral Support Structure)

• Stainless Steel

• Square Hole Plate

• Fish Scale Type Mesh Structure

• Diamond Mesh



3. Filter Media (Filtration Materials)

• Glass Fiber

• Oil Filter Paper

• Stainless Steel Mesh



4. Sealing Materials (Gaskets & O-rings)

• NBR (Nitrile Rubber)

• FKM (Fluororubber / Viton)

• EPDM

• CR (Chloroprene Rubber / Neoprene)

• VMQ (Silicone Rubber)



5. Labeling & Customization Options

• Custom Logo Printing Available

• Customized Label Design

• Customized Packaging Solutions



6. Packaging Options

• Carton Packaging

• Outer Box Reinforced Packaging

• Pallet Packaging (for bulk shipment)

Wooden Case Packaging (for heavy-duty or export protection)

More Products Play

Below are customized oil filter elements manufactured in our factory, showcasing different structures, materials, and specifications tailored for various industrial applications.




Not what you're looking for? Let us know! We can help you find the exact filter you need ASAP.

Advantages

01

Henan Top Environmental Protection Equipment specializes in R&D, production, and sales of high-quality filter cartridges and filtration solutions. With a production facility spanning 26,000 square meters and over 20 years of industry experience, we have established ourselves as a reliable leader in the filtration field.

02

Our company has extensive experience participating in international exhibitions and has built strong, long-term export partnerships with clients worldwide. Supported by multiple patents, CE certification, and ISO 9001 quality management accreditation, we are committed to delivering products that consistently meet strict global standards for performance, reliability, and safety.

03

Our robust production system, combined with advanced manufacturing equipment, ensures stable product quality and reliable on-time delivery. Supported by efficient workflows and responsive service, we provide full-process support from inquiry to after-sales. Every detail is carefully executed to guarantee consistency and performance, positioning us as a trusted long-term partner in the global filtration industry.

04

A professional R&D team develops innovative, fully customized filtration solutions tailored to client requirements, including materials, dimensions, and operating environments. With rapid development capabilities, we can launch new products, helping clients reduce project lead times and improve operational efficiency.

Factory Show





Our company is a professional manufacturer specializing in industrial filtration products with strong production capacity and extensive industry experience. Covering an area of 26,000 square meters, we are equipped with modern production facilities and an efficient manufacturing system, enabling us to meet large-scale production demands and provide stable supply support for customers worldwide.

We are committed to technological innovation and product quality improvement. The company has obtained ISO 9001 Quality Management System Certification and CE Certification, ensuring our products comply with international quality and safety standards. With advanced production technology and a skilled technical team, we continuously develop high-performance filtration solutions for different industrial applications.



With more than 20 years of export experience, we have established long-term business cooperation with customers from many countries and regions around the world. Our rich international trade experience allows us to provide professional services, efficient communication, and reliable delivery solutions for global customers.



To guarantee consistent product performance and reliability, we have built a complete quality inspection and control system. From raw material selection to finished product testing, every production process is strictly monitored to ensure that each filter product delivered to customers meets high-quality standards and industry requirements.






FAQ




Q1: What are the key advantages of your replacement oil filter elements?

A1: The main advantages include:

• Significant cost reduction
• Short lead time and stable supply capability
• Custom engineering for specific industrial applications
• High compatibility with multiple OEM systems

Q2: Do you support custom oil filter design?

A2: Yes, full customization is available, including:

• Dimensions (diameter, length, pleat density)

• End cap and interface types (threaded, flange, cartridge)

• Filtration rating (1μm–100μm)

• Reinforced or high-load structural designs



Q3: How quickly can I get a quotation for an OEM Replacement Hydraulic Oil Filter?

A3: We provide fast-response quotation service:

• Standard models: within 2–6 hours

• Custom High Pressure Filter: within 12–24 hours


Workshop Show

Application field

Metallurgy

Used for rolling mill, continuous casting machine hydraulic system filtration and filtration of various lubrication equipment.

Petrochemical

Oil refining, chemical production process of products and intermediate products separation and recovery, liquid purification,oil field injection well water and natural gas in addition to particle filtration.

Textile

Polyester melt in the process of drawing purification and uniform filtration, air compressor protection filtration, and oil and water removal of compressed gas.

Electronics and pharmaceuticals

Reverse osmosis water, deionized water pretreatment filtration, cleaning solution and glucose pretreatment filtration.

Thermal power and nuclear power

Gas turbine, boiler lubrication system, speed control system, bypass control system oil purification, water pump, fan and dust removal system purification.
