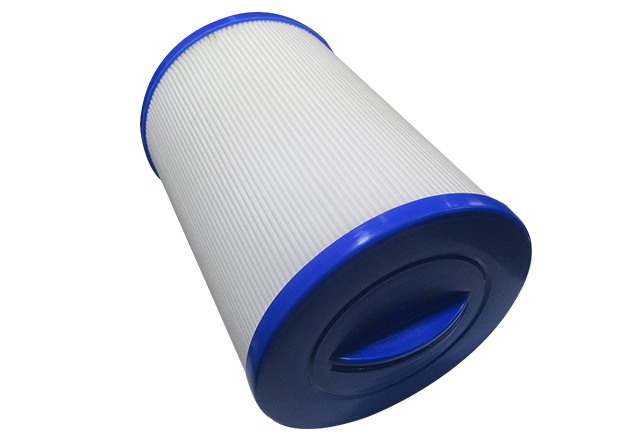

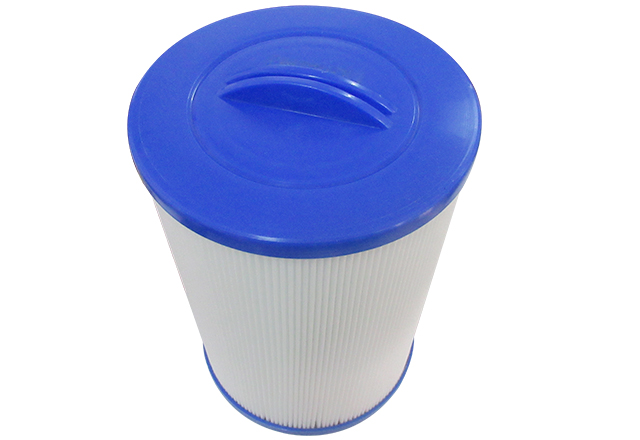

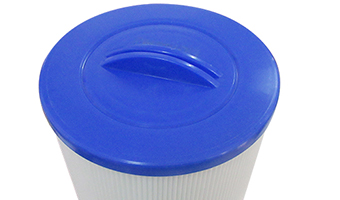

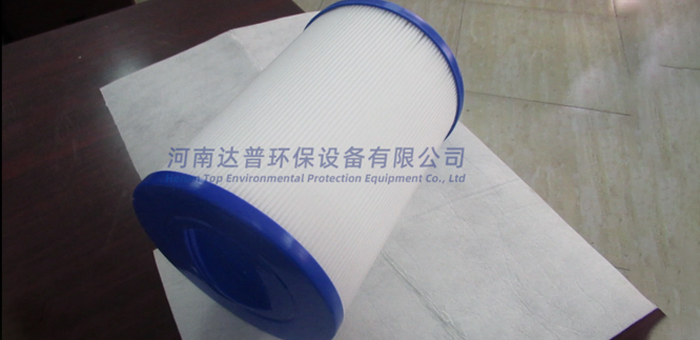

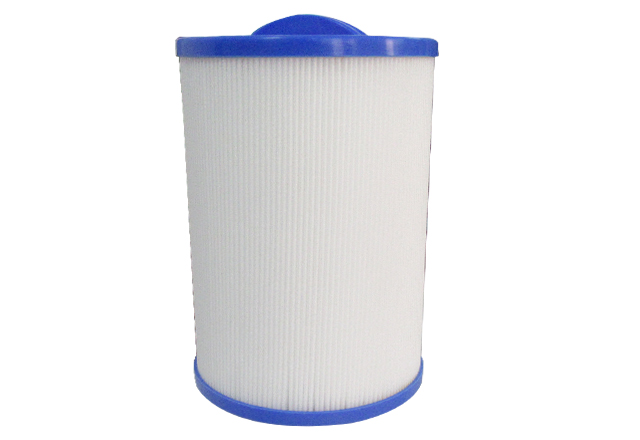

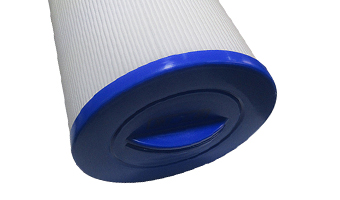

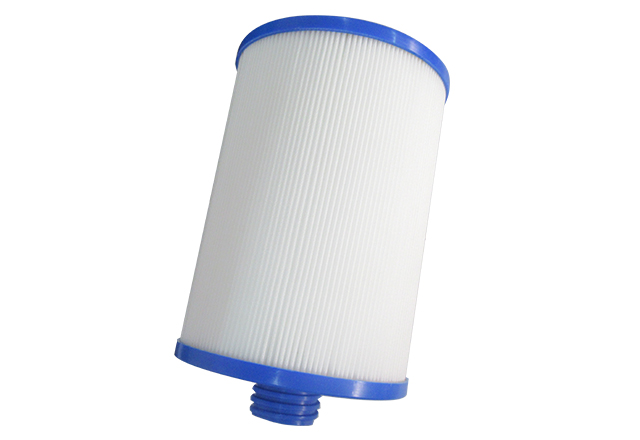

150x243 Swimming Pool Spa Water Filter from China Manufacturer

40 micron Spa filter with thread size 46.5mm

Length:

5-40″ (Various sizes can be customized)

Filter medium:

polyester,non-woven fabrics

Adjustable flange:

Polypropylene (PP)

Product Description

Swimming pool & fountain filter is also called multi-fold filter, which can be used for family swimming pools, large acrylic swimming pools, and can also be used for swimming pools in baby swimming pools, kindergartens, SPA hydrotherapy institutions, etc. It can filter out various impurities, colloids, rust, sand, insects and eggs, moss, algae, etc., keep the swimming pool and fountain clean and effectively protect your health.

Customized size is available,welcome to inuquiry.

Technical Parameters

Outside Diameter	150mm
Length	243mm(Various sizes can be customized)

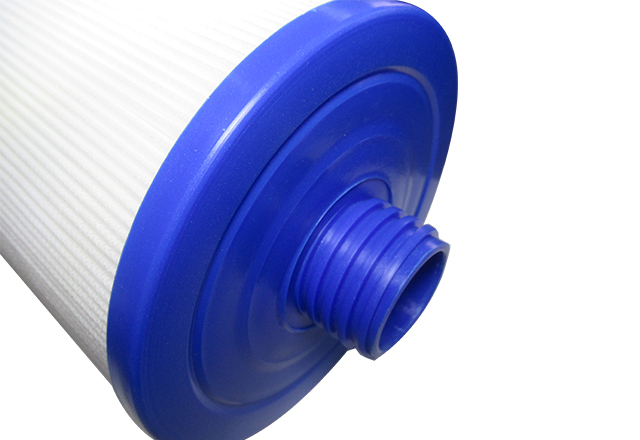

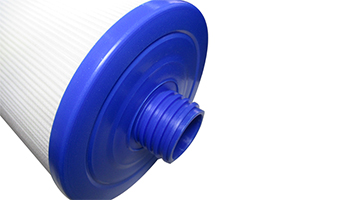

Thread	46.5mm
Removal Rating	40 micron
Filter medium	Pleated PP, Polyester fiber cloth,nonwovens
Support/Drainage and End caps	PP,PU
Seal Material	Silicone rubber, nitrile rubber, EPDM, fluorine rubber
Maximum Operating Temperature	80°C
Maximum Differential Pressure	4.0Bar

Advantages

Pleated design maximizes dirt-holding filtration area

Low pressure differ,high flow and long service life

Washable and reusable,save cost

Filter media,center core,end caps are glued together as a whole part to ensure the end cover sealing better

Features

1. The swimming pool and fountain filter elements are made of polyester fiber cloth filter material, which is durable, has good mechanical properties, high temperature resistance, and is not affected by strong acids and alkalis;
2. Filter impurities, reduce residual chlorine and reduce harm;
3. Folding design, enlarged filter area, the end cap is injection molding, high strength, thickened filter membrane, stronger dirt absorption capacity;
4. The filter material, center rod and end cover are glued together as a whole to ensure better sealing of the end cover.
5. Low pressure difference, large flux, prolong service life, can be cleaned and used repeatedly, reducing cost.
6. There is also a healthy antibacterial version of the swimming pool filter element, which contains antibacterial particles, which can effectively control the reproduction of bacteria in the swimming pool.
