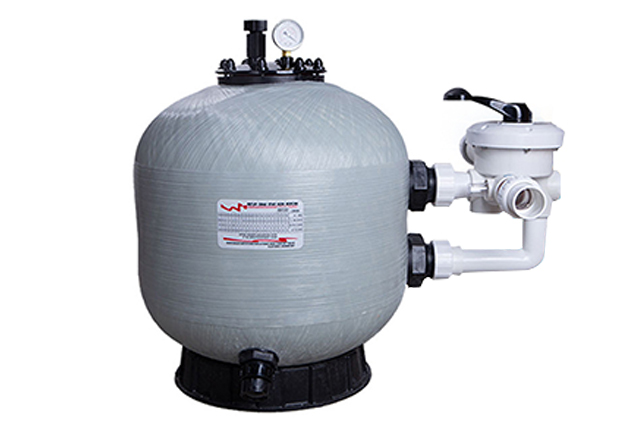

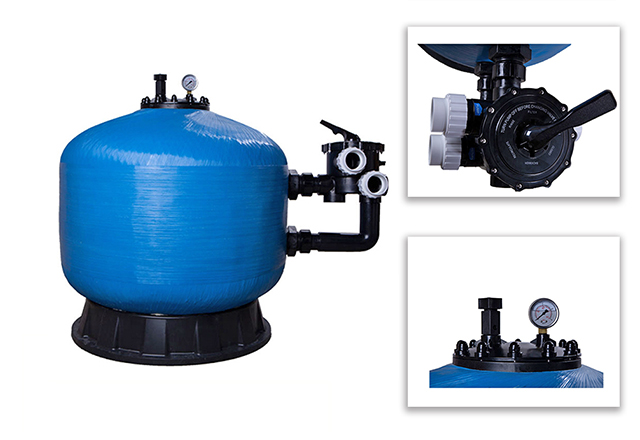

Side-mount sand filter for swimming pool

Height：

650-1030mm

Filtration area:

0.13-1.13㎡

Inlet/Outlet

1.5/2.0

Share:

Product Description

Technical Parameters

Application field

Product Description

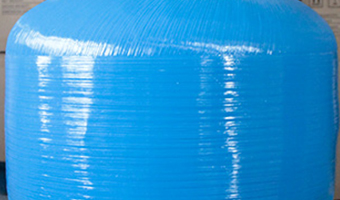

Tank:voluble molding of fiber glassreinforced plastics,corrosion resis-tant,good abrasion resistance,deforming-proof. Uniquely designeddistribution make a stable and evenwaterflow to improve drainagesystem. Easy to install,maintainfree.

Contact us for free quotes or more information.

Technical Parameters

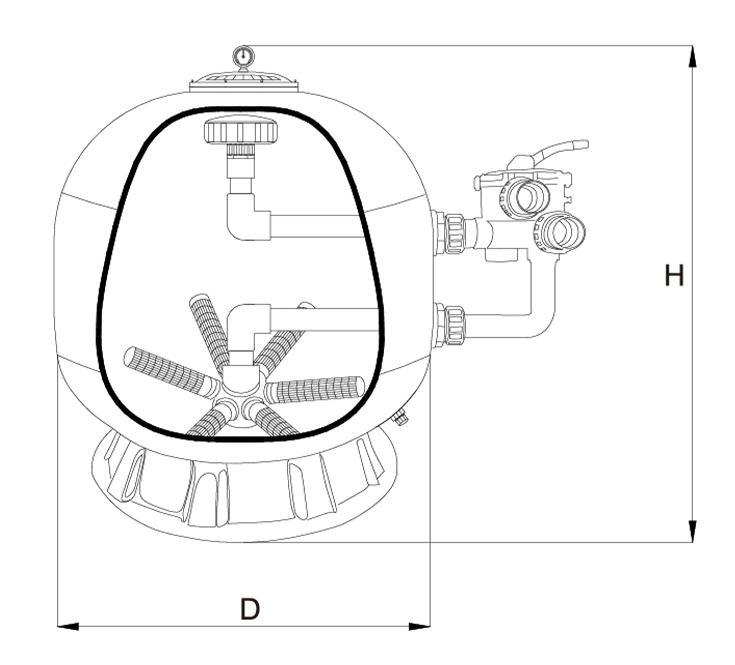

no	Diameter--D(mm)	Inlet/Outlet (inch)	Flow (m³/h)	Filtration area(㎡）	H(mm)	WS(mm)	NW(kg)
1	1400	3	56	1.25	650	1460	142.0
2	1600	3	100	2.01	650	2180	131.2
3	1800	4	125	2.54	750	3100	253.5
4	2000	6	153	3.14	890	4250	354.5
5	2350	8	186	4.12	930	6325	507.5
6	2500	8	238	4.88	1030	7645	684

Any special specifications please cotact su for customzation.

Advantages

01

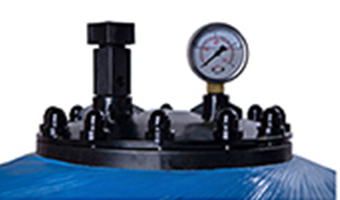

Be used to pool filtration to do water treatment,Equipped with pressure gauge,safety to use

02

Unique distribution design,make a stable and even water flow to improve drainage system

03

Easy to install,with detailed instruction

04

It's incredibly simple to operate and maintain

Features

Suggested Installation: Domestic In-ground and above ground pool / hot spa tub
Max operating pressure 36 psi / 2.5 bar
Max temperature of 43°C (109°F)
Universal standard of union connection provided
Suggested size of media : 0.5-0.8mm
