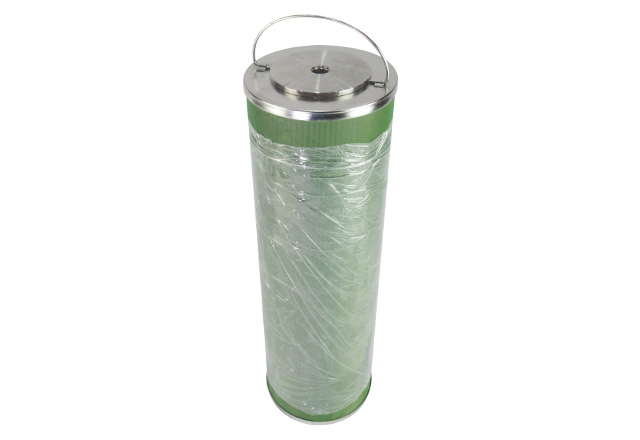

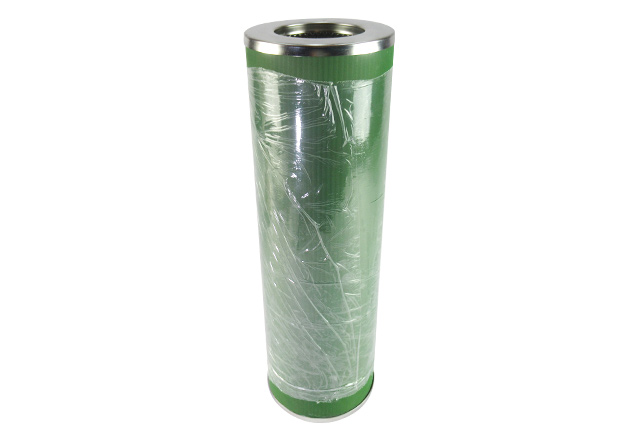

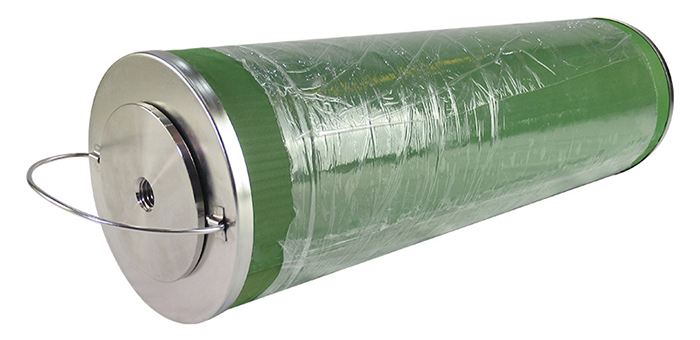

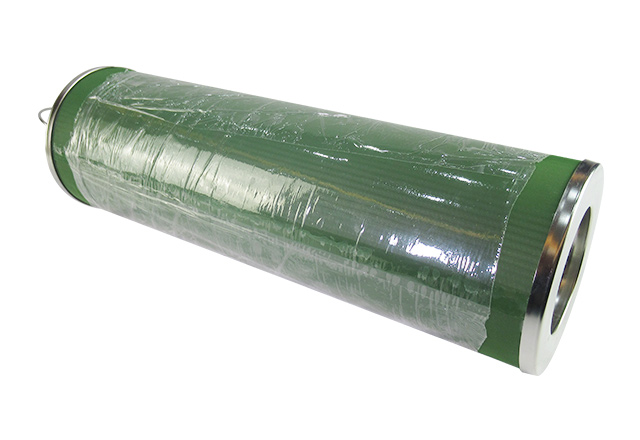

PTFE Separation Filter Cartridge Industrial Separator Filter

Product Description

The PTFE Separation Filter Cartridge is designed for efficient liquid separation and contaminant removal in industrial filtration systems. With a size of 152×495mm, it features carbon steel end caps and perforated support layers for excellent strength and durability. The PTFE (Teflon) filter media provides high chemical resistance and stable filtration performance, while the NBR sealing gasket ensures reliable sealing. This separator filter element is widely used in oil separation, hydraulic systems, and industrial purification applications. It can be customized in size, filtration rating, and materials. For more filtration solutions, explore our Hydraulic Filter Elements and Stainless Steel Sintered Mesh Filters.

Technical Parameters

Product Name	PTFE Separation Filter Cartridge
Filter Type	Separation Filter Element

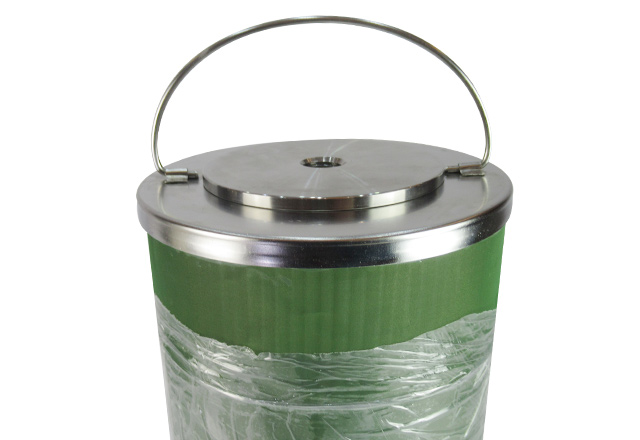

End Cap Material	Stainless Steel 304
Inner Filter Layer	Composite Filter Assembly
Outer Filter Layer	PTFE (Teflon)

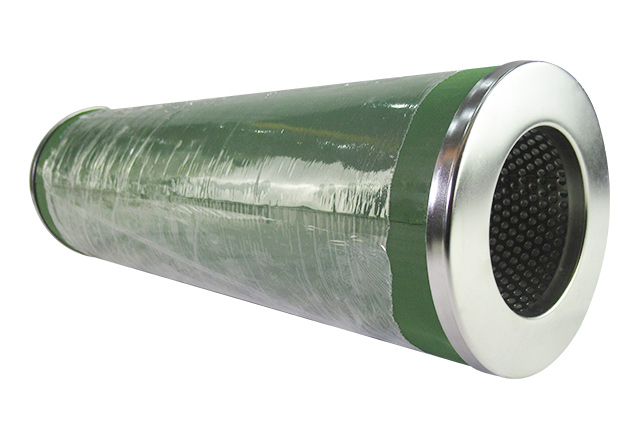

Inner Support Material	Stainless Steel 304 Perforated Plate
Seal Material	NBR (Nitrile Rubber)
Structure	Multi-layer Filter Cartridge
Customization	Available

Filter Principle

The coalescing separation filter works through a multi-stage filtration process:

Step 1: Particle Capture
The inner composite filter layer captures solid particles and impurities from the fluid.

Step 2: Droplet Coalescence
Small oil droplets pass through the coalescing media and gradually combine into larger droplets.

Step 3: Separation & Drainage
The separated liquid accumulates and is discharged from the system, while cleaner gas or fluid continues downstream.

Key Features & Benefits

1. Efficient Coalescing Separation Performance
The specially designed filter structure promotes the collision and aggregation of fine liquid droplets, allowing them to combine into larger droplets for efficient removal.

2. Durable Stainless Steel Construction
304 stainless steel components provide excellent corrosion resistance and mechanical stability, suitable for long-term industrial operation.

3. PTFE Media with Chemical Resistance
PTFE material maintains stable filtration performance when exposed to oils, chemicals and demanding process conditions.

4. Stable Pressure Resistance
The perforated plate support structure improves structural strength and helps the filter element maintain performance under pressure changes.

5. Custom Replacement Solution
TOPEP provides customized filter elements according to:
►Equipment model
►Dimensions
►Connection type
►Filtration accuracy
►Filter media requirements
