Customized Separation Filter 01030 from China Manufacturer

Product Description

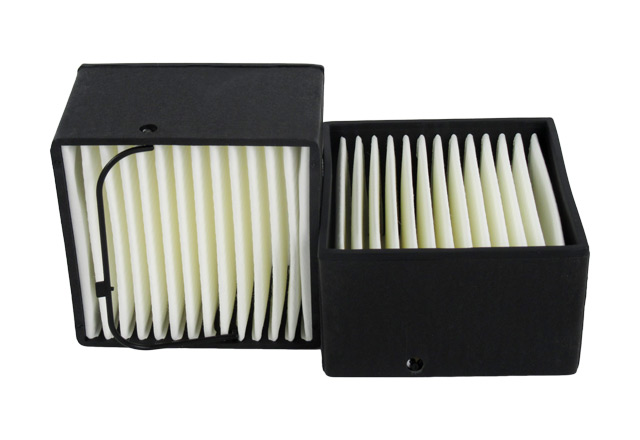

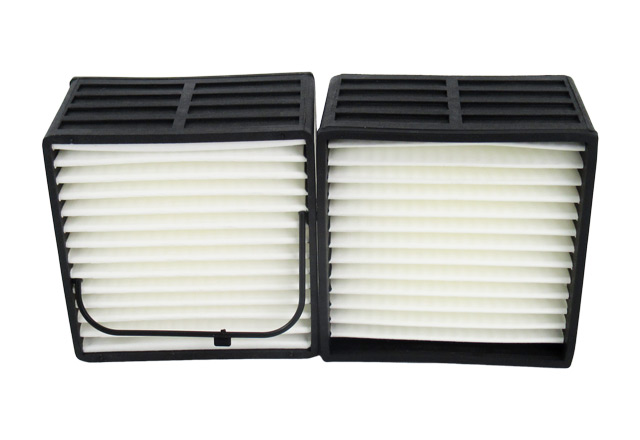

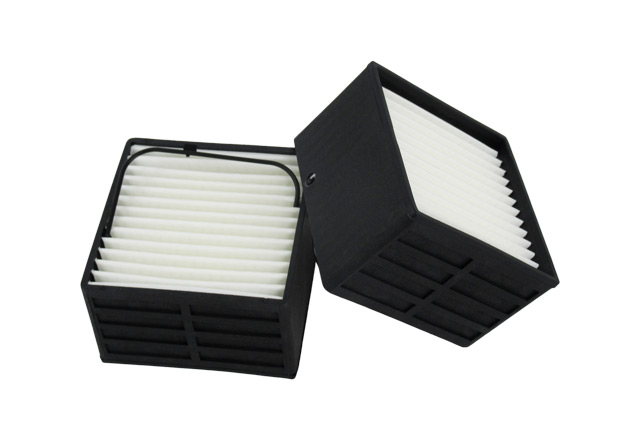

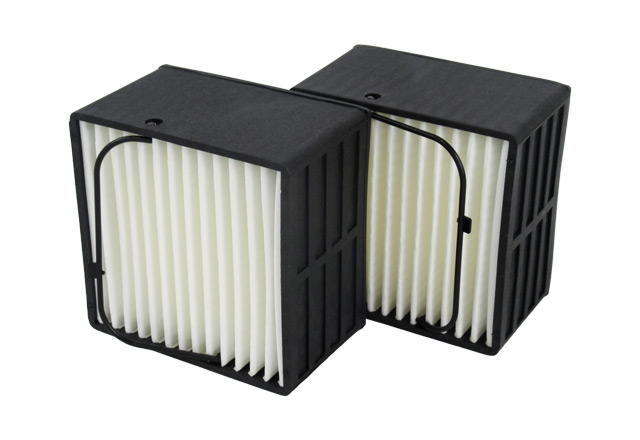

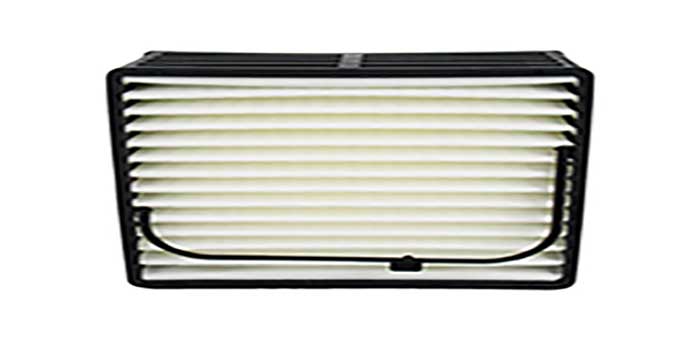

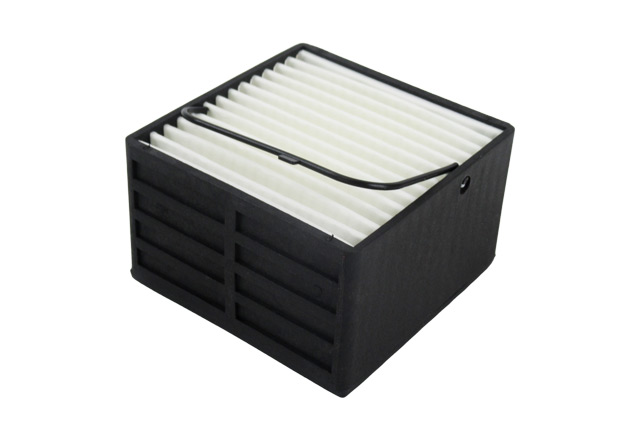

The 01030 Fuel Water Separator Filter Element is a high-efficiency coalescing filtration cartridge designed for diesel fuel purification and water separation in marine and industrial fuel systems. It is widely used in SEPAR SWK 2000/10 and EVO-10 fuel treatment systems as a final-stage filtration element.

This filter element combines coalescing and separation technology to effectively remove free water, emulsified moisture, and fine particulate contaminants from diesel fuel. Through a multi-layer filtration structure, water droplets are first coalesced into larger droplets and then separated by gravity, ensuring clean, dry fuel output and protecting downstream fuel injection components.

The 01030 filter is engineered with high-quality composite filter media, offering excellent dirt-holding capacity, stable flow performance, and long service life even under demanding operating conditions such as marine engines, generator sets, and heavy-duty industrial equipment.

With high separation efficiency and low-pressure drop design, the 01030 element helps improve engine performance, reduce fuel system wear, and extend equipment service life.

Technical Parameters

Item	Specification
Product Name	Fuel Water Separator Filter Element
Model Number	01030 / 58-01030
Filter Type	Coalescing & Separation Filter Element
Application	Diesel Fuel Water Separation / Fuel Polishing
Filtration Rating	30 micron (Nominal)
Flow Capacity	Approx. 160 GPH (≈ 600 L/h)
Efficiency	Up to 99.9% water removal efficiency
Operating Pressure	≤ 10 bar (145 psi)
Operating Temperature	-20°C to +100°C
Installation Position	Final stage fuel water separator housing

Filter Principle

Applications

Henan Top Environmental Protection Equipment is a manufacturing company located in Henan, China, focusing on a wide range of filter cartridges and filter housings. Our facility is equipped with advanced production equipment, including rolling, slitting, and welding machines, as well as several automated lines that allow us to deliver consistent, high-quality products in large volumes.

Our R&D team consists of experienced engineers who provide solid technical support, complemented by a knowledgeable sales and after-sales staff dedicated to reliable service. Every product is produced under strict quality control procedures to ensure it meets demanding performance standards.

We specialize in customized filtration solutions. According to customer needs, we can select suitable raw materials for various working conditions and offer custom dimensions, colors, packaging, labels, logos, and graphics. With strong manufacturing capability, we are often able to complete new product development and production.

The company has earned CE and ISO certifications and holds several R&D patents. With more than 20 years of export experience, our products are shipped to over 100 countries and regions. Guided by principles of responsibility, professionalism, and integrity, we have built long-term trust and recognition throughout the industry by consistently delivering dependable products and services.
