China manufacturer sintered fiberglass gas coalescing filter element

Fiberglass coalescing fiter element

Product Description

The glass fiber sintered tube filter element is made of glass fiber as the main filter material, supplemented by other raw materials for scientific proportioning, and then sintered at high temperature. The surface of the glass fiber tube is coated with silicone resin and silicone rubber, which has insulation and heat resistance. Glass fiber has the characteristics of high strength, high elasticity, electrical insulation, acid and alkali resistance.

Features

The glass fiber sintered filter element is a high-precision glass fiber sintered filter tube.It is suitable for high temperature, high humidity, high viscosity dust industry or industrial dust purification with acid and alkaline, corrosive chemical gas and other occasions of bad working conditions.

Operating temperature	200℃
Filtration precision	0.01-100μm
Efficiency	99.999%
Size range	Φ10-800mm, H10-2000mm
Application	gas-liquid
Performance	acid resistance, alkali resistance, high temperature resistance, waterproof

Advantages

High temperature and low temperature resistance, can withstand temperatures of -60℃-220℃

Corrosion resistance, glass fiber has corrosion resistance characteristics

High strength, high mechanical properties, strong compression resistance, good elasticity and flexibility

High filtration accuracy, up to 0.01μm~100μm

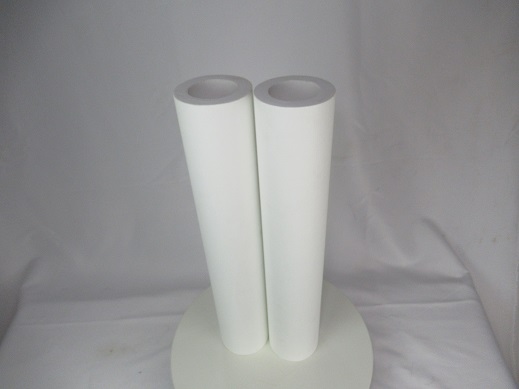

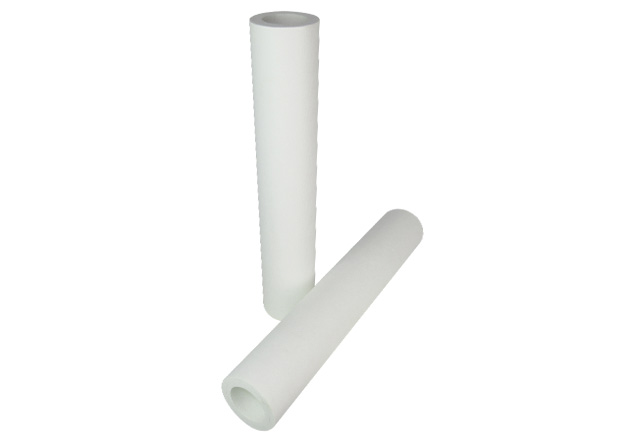

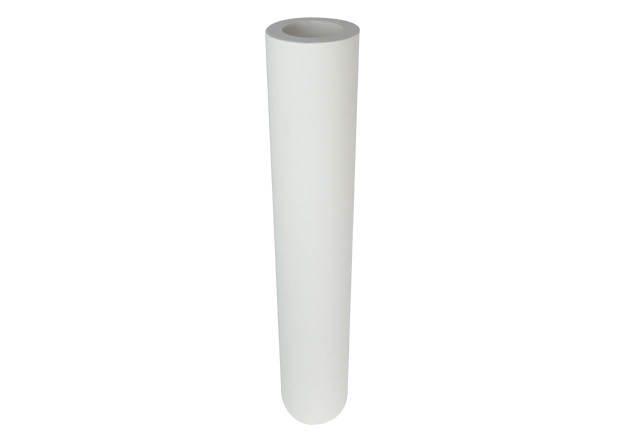

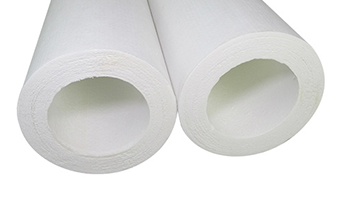

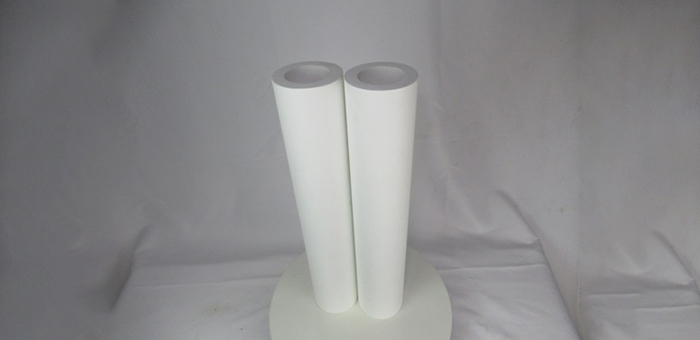

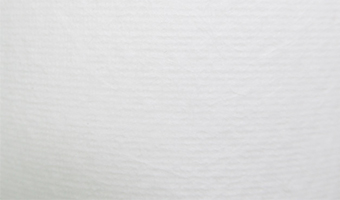

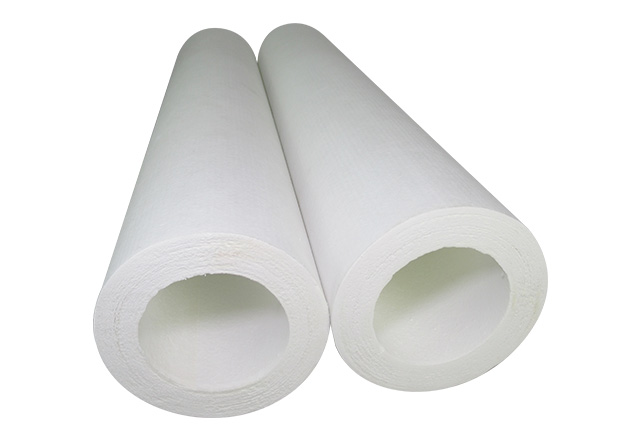

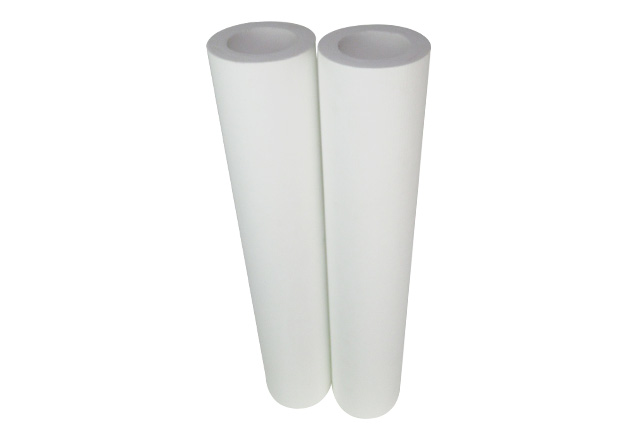

Product Photograph

The glass fiber sintered filter element has a complete range of diameters from 10mm to 800mm and height from 10mm to 2000mm, which can be adjusted in any specification and can be customized according to customer needs. Product filtering precision range: 0.01um-100um.
