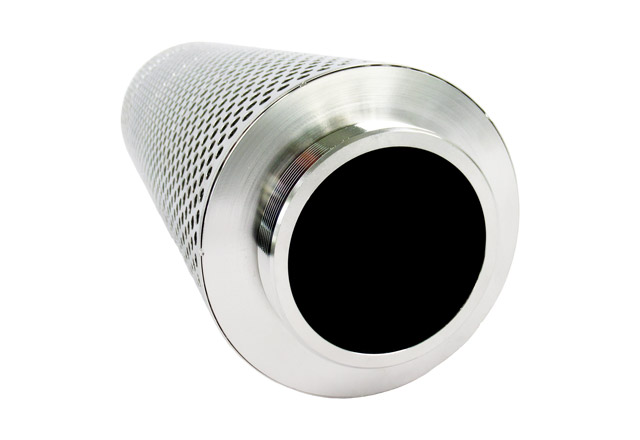

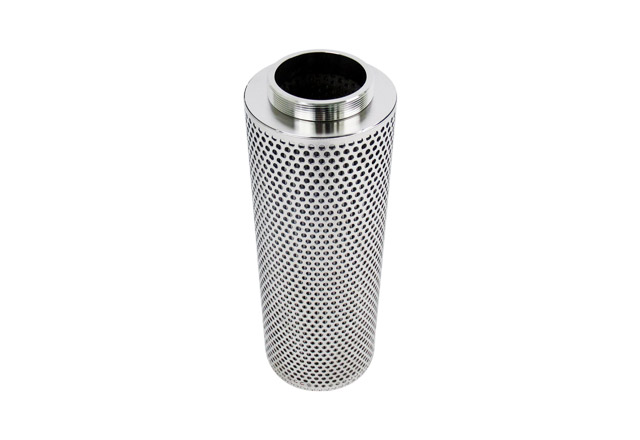

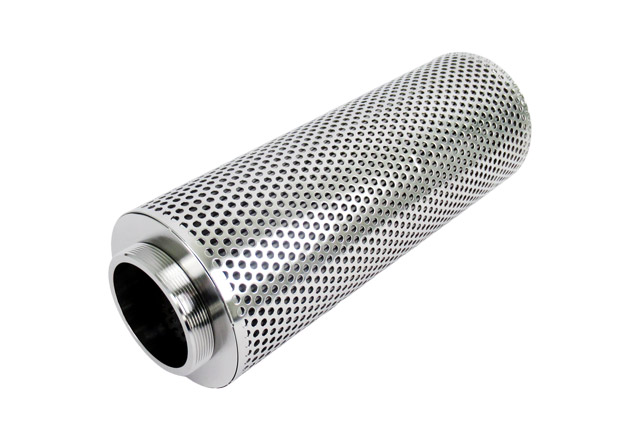

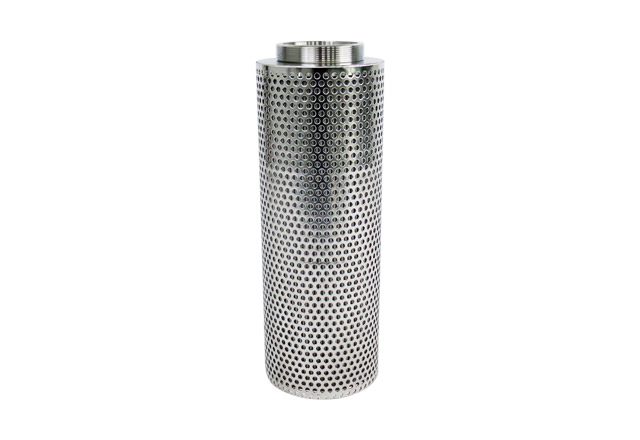

Customized SS316 Oil Water Separate Coalescing Filter Cartridge 130*485.5

Technical Parameters

Our Advantages

01

Henan Top Environmental Protection Equipment is a manufacturing company located in Henan, China, focusing on a wide range of filter cartridges and filter housings. Our facility is equipped with advanced production equipment, including rolling, slitting, and welding machines, as well as several automated lines that allow us to deliver consistent, high-quality products in large volumes.

02

Our R&D team consists of experienced engineers who provide solid technical support, complemented by a knowledgeable sales and after-sales staff dedicated to reliable service. Every product is produced under strict quality control procedures to ensure it meets demanding performance standards.

03

The company has earned CE and ISO certifications and holds several R&D patents. With more than 20 years of export experience, our products are shipped to over 100 countries and regions. Guided by principles of responsibility, professionalism, and integrity, we have built long-term trust and recognition throughout the industry by consistently delivering dependable products and services.

04

We specialize in customized filtration solutions. According to customer needs, we can select suitable raw materials for various working conditions and offer custom dimensions, colors, packaging, labels, logos, and graphics. With strong manufacturing capability, we are often able to complete new product development and production.

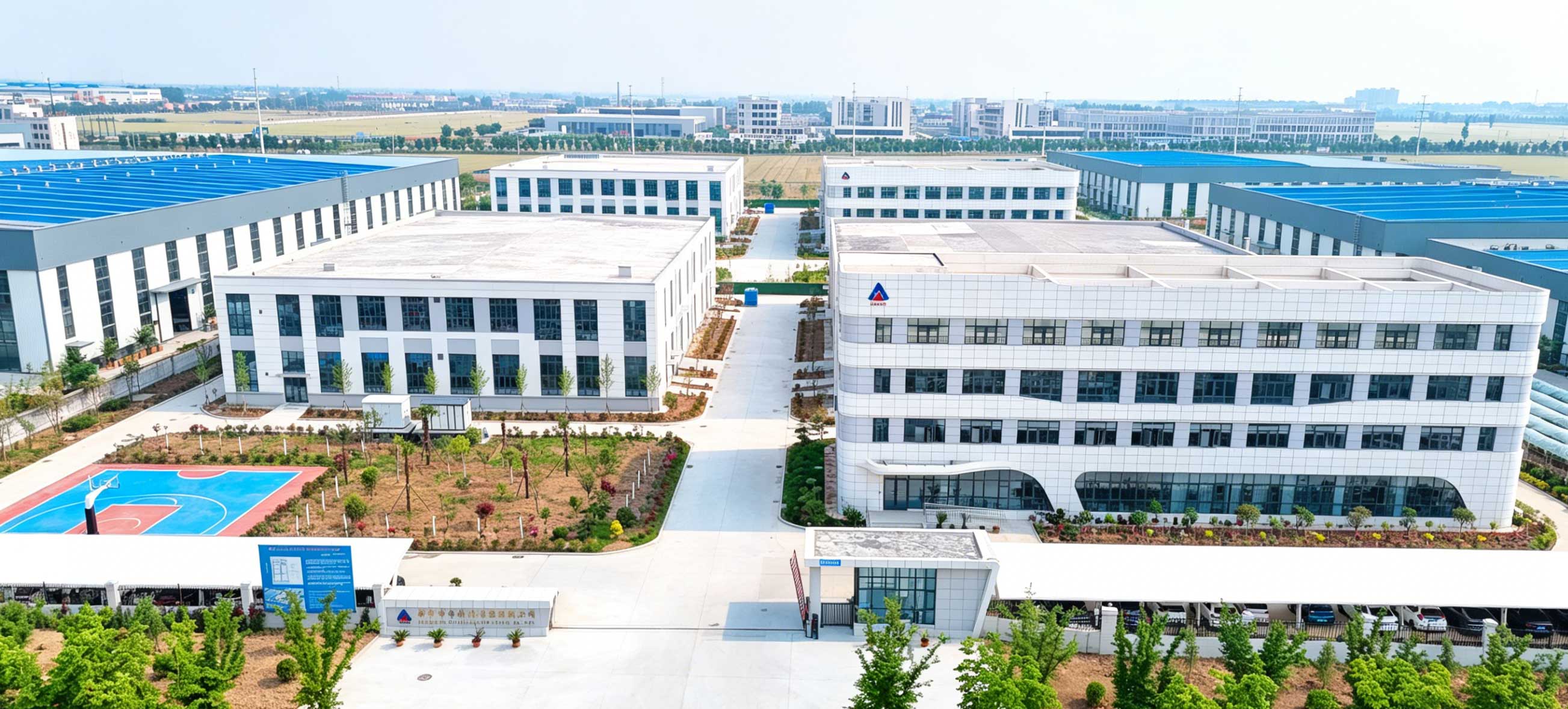

Our Factory









Our company is a professional manufacturer specializing in industrial filtration products with strong production capacity and extensive industry experience. With a 26,000-square-meter facility, we are equipped with modern production facilities and an efficient manufacturing system, enabling us to meet large-scale production demands and provide stable supply support for customers worldwide.

We are committed to technological innovation and product quality improvement. The company has obtained ISO9001 Quality Management System Certification and CE Certification, ensuring that our products comply with international quality and safety standards. With advanced production technology and a skilled technical team, we continuously develop high-performance filtration solutions for different industrial applications.

With more than 20 years of export experience, we have established long-term business cooperation with customers from many countries and regions around the world. Our rich international trade experience allows us to provide professional services, efficient communication, and reliable delivery solutions for global customers.

To guarantee consistent product performance and reliability, we have built a complete quality inspection and control system. From raw material selection to finished product testing, every production process is strictly monitored to ensure that each filter product delivered to customers meets high-quality standards and industry requirements.

FAQ



Q1: How do I choose the right coalescing filter element for my fluid?



A1: Consider the following:

• ► Fluid type and goal – For water removal from fuel/oil, choose a hydrophilic coalescer. For oil removal from water, choose an oleophilic coalescer.

• ► Viscosity – High‑viscosity fluids require larger pore sizes to avoid excessive ΔP.

• ► Temperature and chemical compatibility – High‑temperature or corrosive fluids need stainless steel fiber or PTFE media.

• ► Flow rating – The element’s rated flow must be ≥ the system’s maximum flow, with margin (e.g., 20%).

• ► Pre‑filtration – Install a 3–5 µm absolute pre‑filter upstream to protect the coalescer from solids.


Q2: What materials are coalescing elements made from, and when to use each?


A2: Common materials and their typical applications:

• ♦ Glass fiber – High efficiency (0.1 µm), excellent hydrophilic performance. Suitable for most fuel and light oil dehydration. Standard choice.

• ♦ Polyester fiber – Good chemical compatibility with many solvents and wastewater streams.

• ♦ Stainless steel fiber – For high temperature (>100 °C / 212 °F), high pressure, or corrosive environments. Requires special surface treatment for hydrophilicity (more costly).


Q3: How often should coalescing filter elements be replaced?



A3: Replacement depends on three indicators:

1. • Differential pressure – Replace when ΔP reaches the manufacturer’s maximum (typically 0.15 MPa / 22 psi).

2. • Water removal performance – Replace when downstream water content consistently exceeds the target (e.g., >15 ppm for jet fuel).

3. • Calendar time – Even without high ΔP, replace coalescing elements every 6–12 months. Separating elements can last longer, but replace them together if the system is critical.


Q4: What is the correct procedure for replacing coalescing filter elements?

A4: Follow these steps:

1. ⇒ Depressurise – Close upstream/downstream valves and vent the housing to zero pressure.

2. ⇒ Remove old element – Carefully remove the spent coalescing element. Inspect seals and housing interior.

3. ⇒ Install new element – Ensure the new coalescing element is installed in the correct orientation (usually inside-out flow). Check that all O‑rings are undamaged and properly seated.

4. ⇒ Flush system – Before returning to service, flush briefly to remove any installation debris.

5. ⇒ Monitor – Restart slowly and verify ΔP and water removal performance.

Workshop Show

Application

Metallurgical-industry

Coalescing filter elements are widely used in the metallurgical industry for compressed air purification, gas-liquid separation, and process gas filtration. They effectively remove oil aerosols, moisture, condensate, and fine particles, helping protect equipment, improve system stability, and ensure reliable operation in steelmaking, metal processing, and industrial gas systems.

Petrochemical

Coalescing filter elements are widely used in the petroleum industry for oil-water separation, gas-liquid separation, and process media purification. They effectively remove water, oil aerosols, condensate, and solid contaminants from crude oil, natural gas, fuel, and compressed air systems, helping protect equipment, improve product quality, and ensure stable oil and gas processing operations.

Food and beverage industry

Coalescing filter elements are widely used in the food and beverage industry to remove oil aerosols, moisture, condensate, and fine particles from compressed air and liquid processing systems. They help improve hygiene standards, protect production equipment, ensure product quality, and maintain clean and safe food processing environments.

Electron-industry

Coalescing filter elements are widely used in the electronics industry to remove oil aerosols, moisture, condensate, and fine particles from compressed air and process gas systems. They help maintain clean air quality, protect precision equipment, improve product yield, and ensure stable operation in semiconductor, PCB, lithium battery, and electronic manufacturing applications.

Pharmaceutical industry

Coalescing filter elements are widely used in pharmaceutical pre-filtration systems to remove fine particles, emulsified oil, moisture, and suspended contaminants from liquid media. They help protect downstream sterile filters, improve liquid cleanliness, extend filter service life, and ensure stable pharmaceutical production processes.

Chemical industry

Coalescing filter elements are widely used in the chemical industry for gas-liquid separation, oil-water separation, and process media purification. They effectively remove oil aerosols, moisture, condensate, and fine particles from compressed air, gas, and liquid systems, helping protect equipment, improve product purity, and ensure stable chemical processing operations.
