Coalescing filter
peco coalescing filter
Coalescence-separation filter
coalescence filter 152x406
oil-water separation filter
Coalescing filter
peco coalescing filter
Coalescence-separation filter
coalescence filter 152x406
oil-water separation filter

Peco Replace Coalescing Filter 152x406mm

Media material:
Fiber glass, oil absorbent cotton, filter paper, and multiple composite materials.
Accuracy:
0.1 micron, 0.3 micron, 0.5 micron, 1, 5 micron, 10 micron
End caps:
Flat or customized
Share:
Product Description
The coalescence and separation process is divided into two stages. When the liquid/liquid mixture enters the coalescing filter element, small continuous droplets continue to combine, coalesce and settle. The contaminant-free liquid and the dispersed large droplets flow to the separation filter element, which is made of hydrophobic material. Separation of fluid and particles, continuous improvement of fluid quality. It saves a lot of fluid processing costs and prolongs the service life of production equipment. The separation cost of fluid and solid is low, and the fluid is treated in one-time collectively, saving production cost. Increase productivity. The use of the pre-filter unit can effectively extend the service life of the coalescence and separation unit.
The coalescence separation filter element is used in the oil-water separation system, mainly separating oil-water mixture, suspension solution, emulsion solution, etc. The use process of the coalescence separation filter element in the system is divided into: solid-liquid separation ---demulsification --- coalescence ---separation---adsorption.
Technical Parameters
Media material Fiber glass, oil absorbent cotton, filter paper, and multiple composite materials.
Frame material Stainless steel (carbon steel is optional)
End caps material 304 Stainless steel(carbon steel, PU, etc.)
Accuracy 0.1 micron, 0.3 micron, 0.5 micron, 1, 5 micron, 10 micron
Sealing material Buna-N
Flow direction From outside to inside
Size 152*406mm (customized)

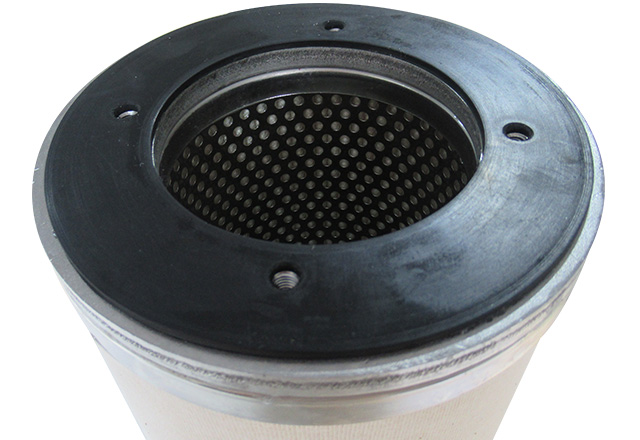

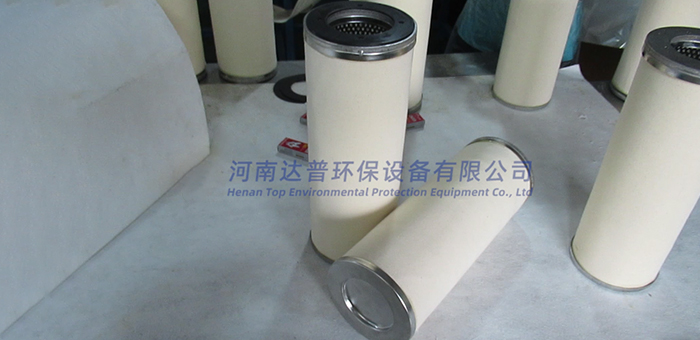

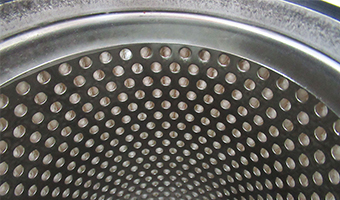

Product Photograph
