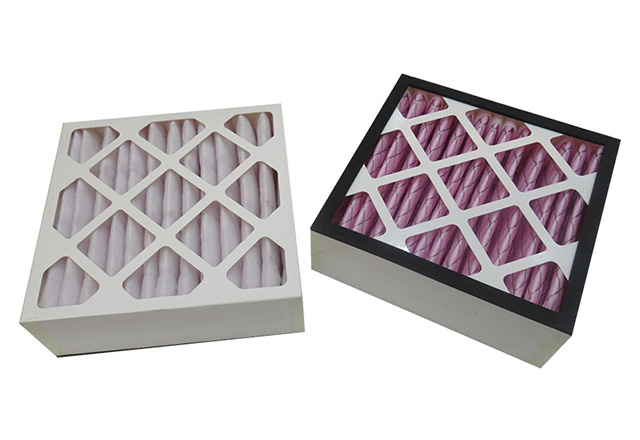

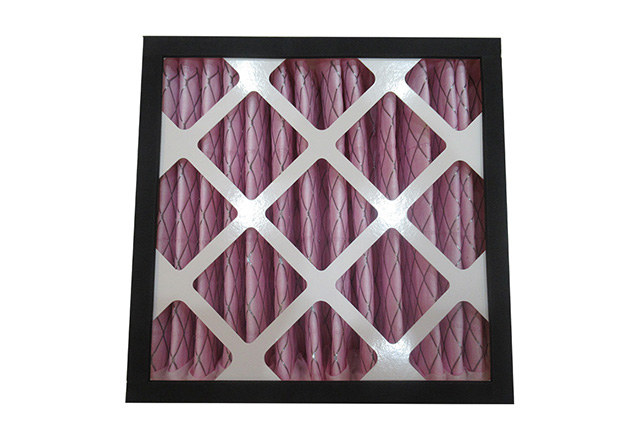

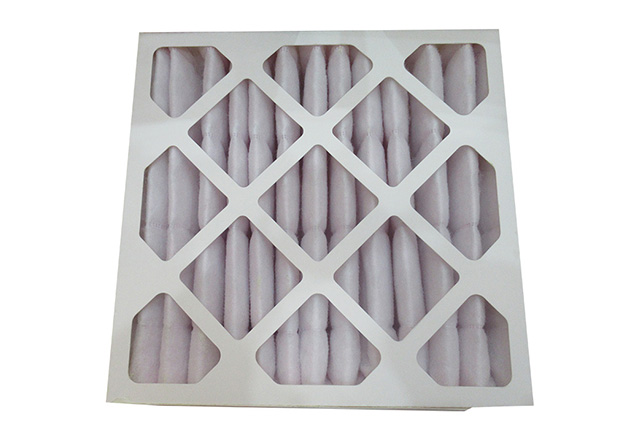

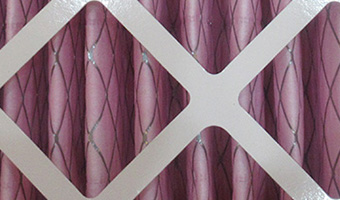

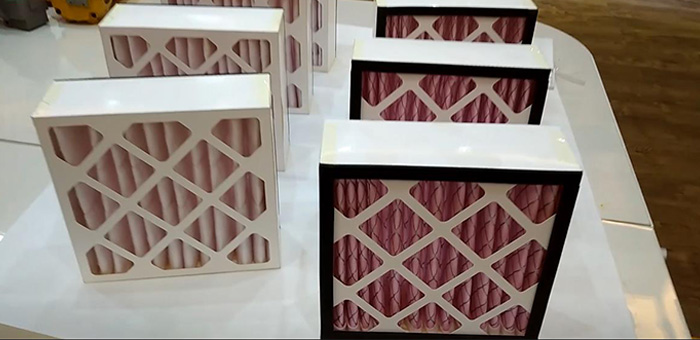

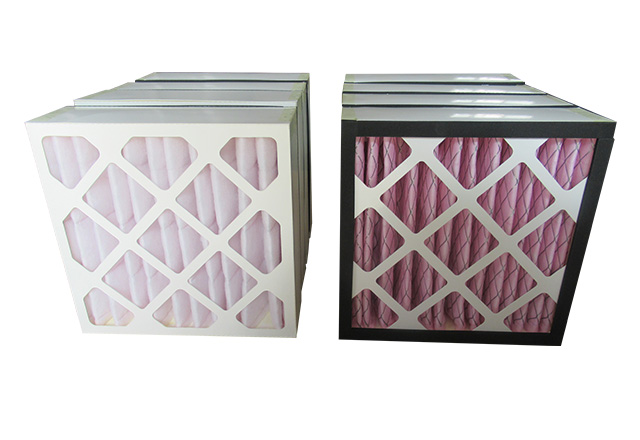

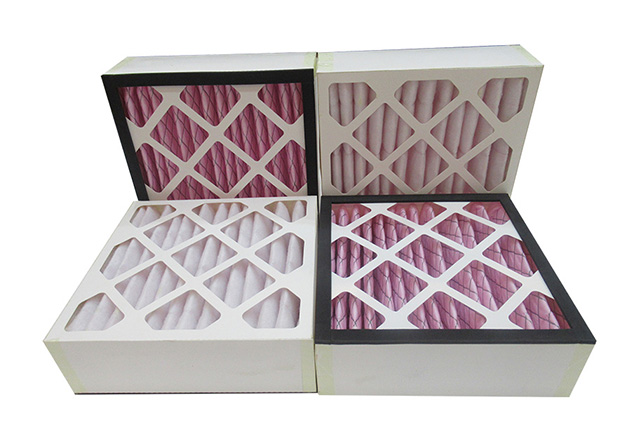

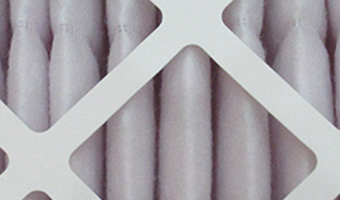

G4/MERV8 primary efficiency air filter

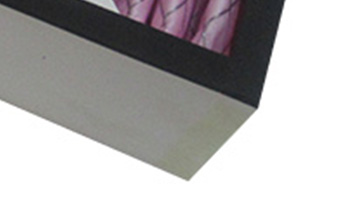

Frame:

Aluminum alloy,stainless steel,galvanized steel sheet,card paper etc.

Filter media:

fiberglass, polypropylene,activated carbon, etc.

Sealant:

Polyurethane,high remperature silicone,Thermosol

Share:

Product Description

Product Description

The board filters produced by TOPEP have the following features:cheap,light, good compatibility and compact structure.
Customers can change filtering media conveniently. Customers can save cost of spare parts and get rid of the trouble of transportation and storage.

Features

Filters with these efficiencies are commonly used in the first-stage filtering of air-conditioning and ventilation systems, as well as in air-conditioning and ventilation systems that have only one-stage filtering.

We can customize the filter as customer's requirements, please tell us the size,material,filtering efficiency of the filter you need.

Class	Dimensons(mm)	Net media(㎡）	Rated ir flow(m³/h)
G3	595×595×46	0.6	3600
G3	290×595×46	0.3	1800
G3	595×595×96	1.37	3600
G3	290×595×96	0.63	1800
G4	595×595×46	0.6	3600
G4	290×595×46	0.3	1800
G4	595×595×96	1.37	3600
G4	290×595×96	0.63	1800
customized
