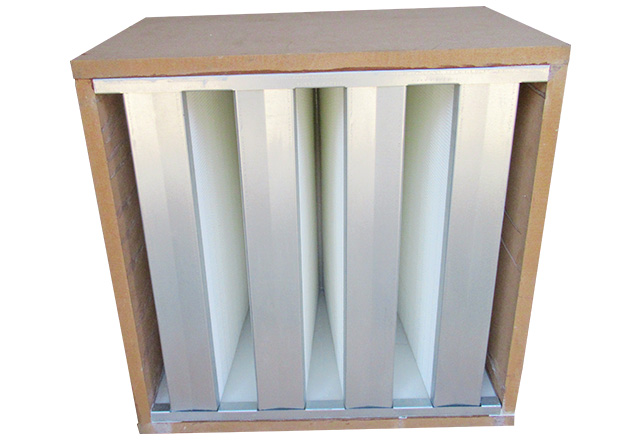

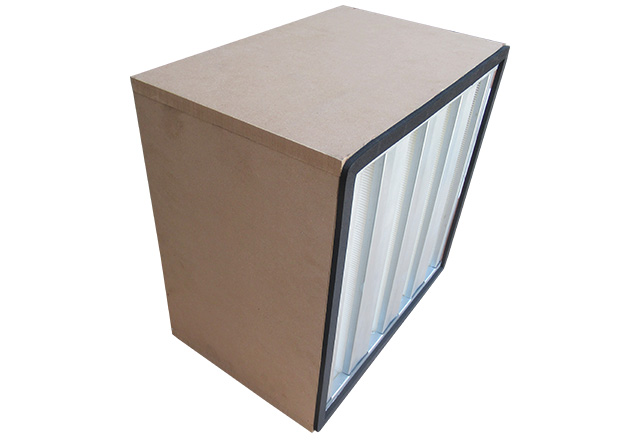

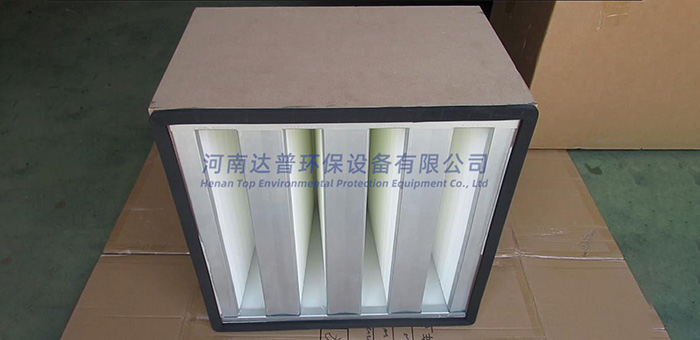

Large air flow V type hepa filter

Frame:
Card paper, galvanized sheet, aluminium, medium density fiberboard, stainless steel etc.
Filter media:
Import filter paper, fiberglass, activated carbon composite material, Ultrafine polypropylene material, etc.
Sealant:
Polyurethane
Send Email
Chat Now
Share:
Product Description
Technical Parameters
Advantages
Show Details
Product Description
Main usage: Electronics,semiconductor,hospital,pharmacy,food,precision machinery and other industries,civil orindustrial clean room with higher requirements for cleanliness.
Performance specification:
Frame: Stainless steel,galvanized steel sheet.
Filter material: Glass fiber filter paper
Separator: Hot melt adhesive
Sealing: Polyurethane adhesive
Filter efficiency: > 99. 999%
Wet fastness: 100%
Technical Parameters
Overall Diamension Filter area(㎡） Efficiency Initial resistance Air flow(m³/h)
610x610x292mm 40 H14 ≤250pa 4000
595x595x292mm 38 H14 ≤250pa 3800
305x610x292mm 14 H14 ≤250pa 1900
Customized sizes are available,please contact us for details.



Advantages
01
Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance.
02
Good corrosion resistance, heat resistance, pressure resistance and wear resistance;
03
Malle filter hole uniform, accurate filtration accuracy;
04
Malle filter is suitable for all kinds of hydraulic environment;Can be used after cleaning, no replacement.



Application
Apply for the prefiltration of air conditioning and ventilatilation system, general the second stage of air purification system is air filtration and the air purification of clean room, high temperature environment, specially for the needs high efficiency air filters coverage of the purification plant.

Used in electron, metallurgy, instrument and meter, chemical industry, spinning industry,  food, tobacco, light industrial and other fields.
