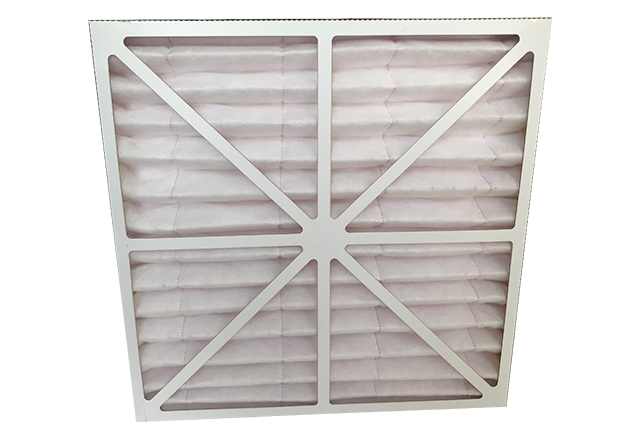

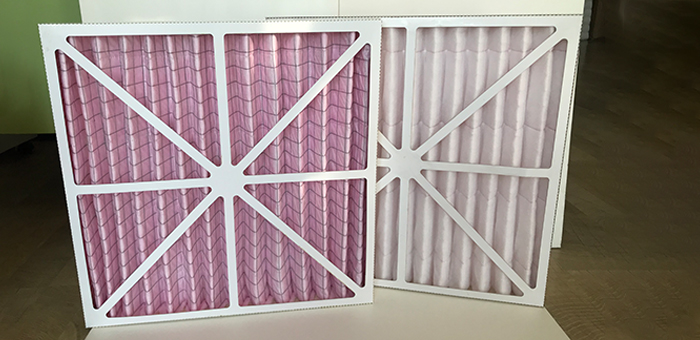

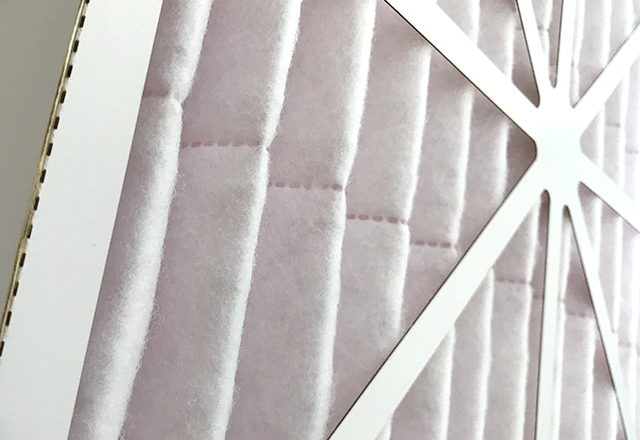

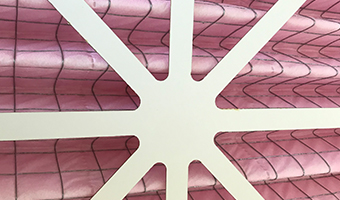

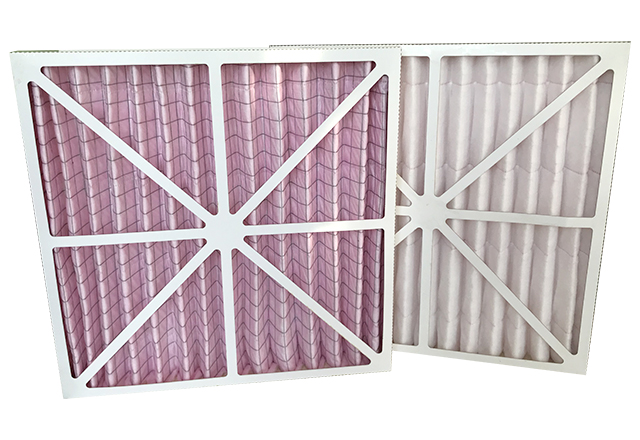

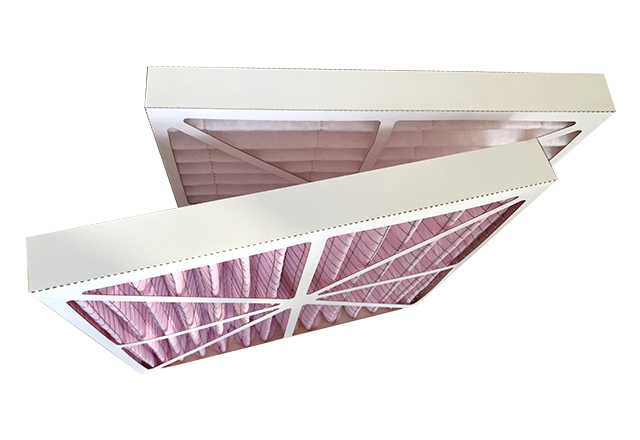

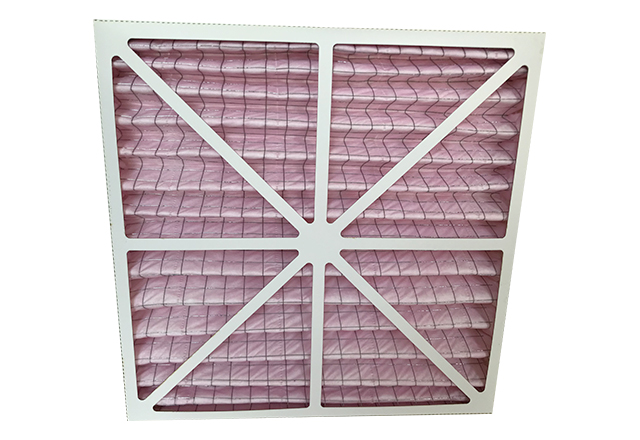

20x20x2IN F7 MERV13 air filter for Furnace

Frame:
Card paper(galvanized sheet, aluminium,stainless steel is optional)
Filter efficiency:
F7 ( equivalent to MerV13)
Size:
508x508x51mm(20x20x2inch)
Share:
Product Description

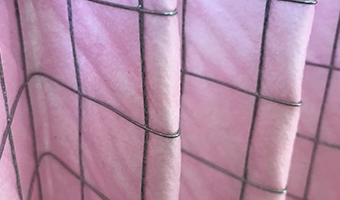

The medium-efficiency filter material is divided into filter cotton plus melt-blown filter paper plus surface non-woven fabric; compounded by ultrasonic machines; material is polypropylene fiber; the detection standard is 5 mm particles. Efficiency from 45%-95%.

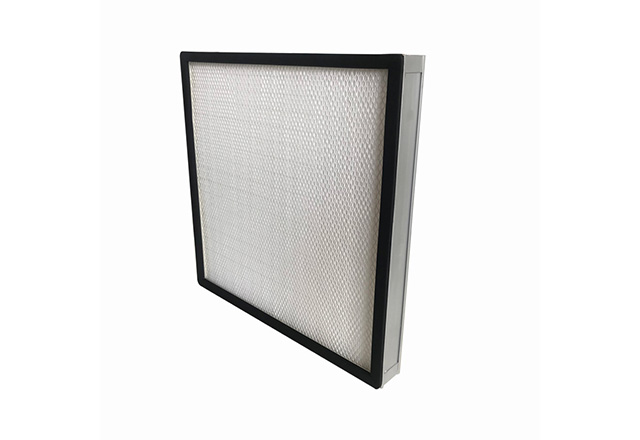

High efficiency filters most of are made by glass fiber filter paper,  with separators or without separators. This kind of filter needs to be filled with sealant all around; it is installed on the top of the clean room; it belongs to the place where the air exits at the end of the air conditioner; the requirement level is relatively high; generally it is H13 efficiency; the filtration accuracy is 99.995%
Its detection standard is based on 0.3-0.5 micron particles as the standard detection. All the high efficiency filter should be test before delivery to customer.


Technical Parameters
Dimension(mm) Media Area Rated Air Flow(m³/h) Initial Pressure Drop(Pa)
F5 F6 F7 F8
289x594x292 2.49 1700 37 68 115 158
594x594x292 4.98 3400 37 68 115 158
289x594x140 1.04 1020 52 73 140 178
594x594x140 2.09 2040 52 73 140 178
289x594x292 2.03 1700 42 83 120 170
549x594x292 4.35 3400 42 83 120 170
289x594x140 0.85 1020 60 88 145 182
594x594x140 1.83 2040 60 88 145 182
Advantages
01
Large filtration area
02
Low resistance
03
Long service life



Application
1. Large air volume ventilation system, pharmaceutical, food, hospital, clean room and other filtration system
2. The end of the medium and high efficiency filtration system or the front end of the ultra-high efficiency filtration system is filtered and prefiltered
