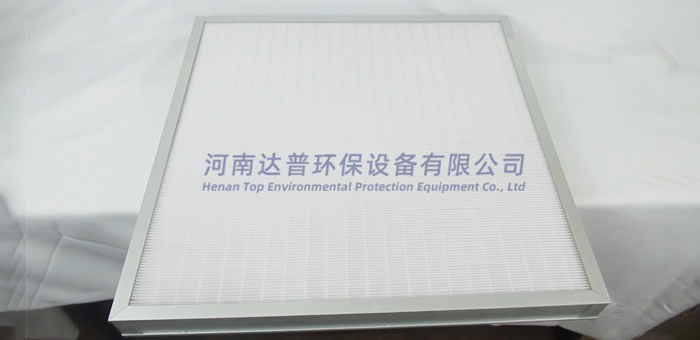

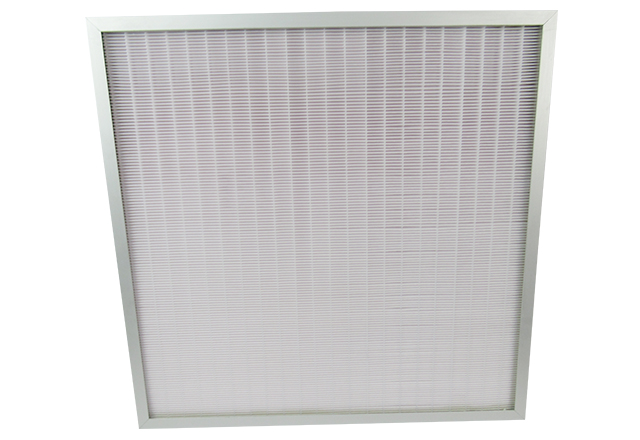

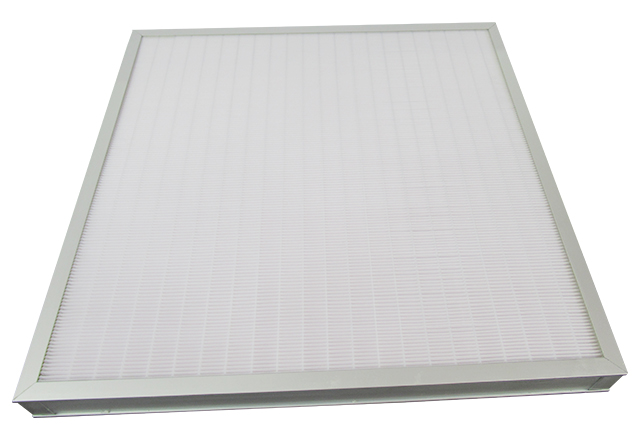

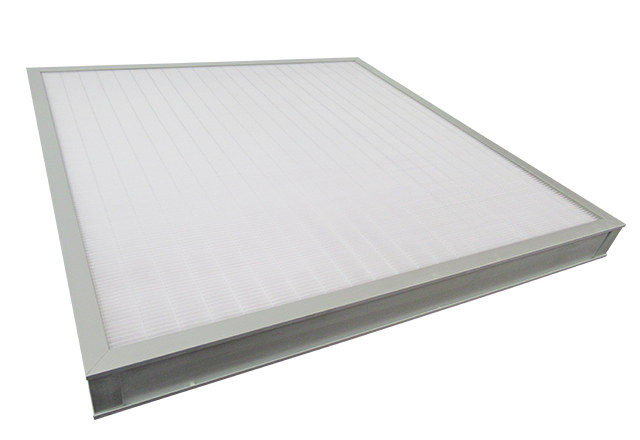

595*595*50mm MERV13/F7 pleated paper air filter

Frame:
Metal
Filter media:
Filter paper
Filter efficiency:
F7/merv13
Send Email
Chat Now
Share:
Product Description
Technical Parameters
Advantages
Show Details
Product Description
Name: Panel medium efficiency air filter
Filter material: Filter paper
Frame: Galvanized, aluminum alloy, stainless steel etc.
Filtration efficiency: F7(MERV13)
Application：As pre filetrs for hepa filetrs.
                     Suitable for the electronics,biopharmaceutical.machinery,instrumentation,petrochemical and light industry general airpurification systems.


Technical Parameters

Dimensions（mm） Filter area（㎡） Rated Air Flow (m3/h)  Initial pressure drop（Pa）
F5 F6 F7 F8
289x594x292 2.49 1700 37 68 115 158
594x594x292 4.98 3400 37 68 115 158
289x594x140 1.04 1020 52 73 140 178
594x594x140 2.09 2040 52 73 140 178
289x594x292 2.03 1700 42 83 120 170
594x594x292 4.35 3400 42 83 120 170
289x594x140 0.85 1020 60 88 145 182
594x594x140 1.83 2040 60 88 145 182

  If you can't find the filter you want, we can also customize it according to your requirements
Advantages
01
Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance.
02
Good corrosion resistance, heat resistance, pressure resistance and wear resistance;
03
Malle filter hole uniform, accurate filtration accuracy;
04
Malle filter is suitable for all kinds of hydraulic environment;Can be used after cleaning, no replacement.



Efficiency comparison table
