Large air flow Saddle shaped filter element from China Manufacturer

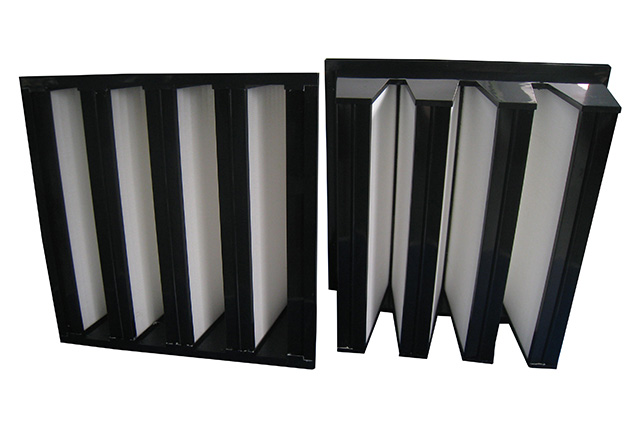

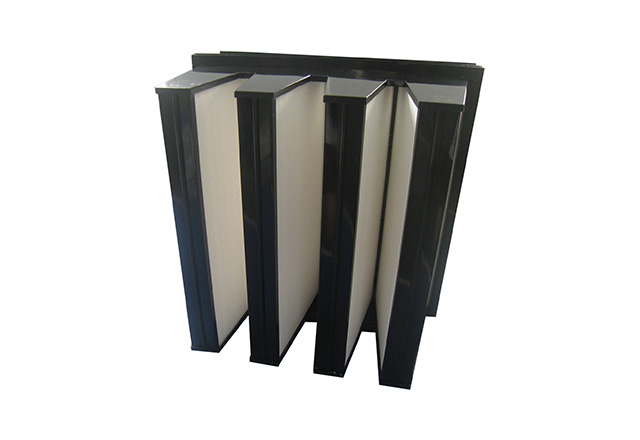

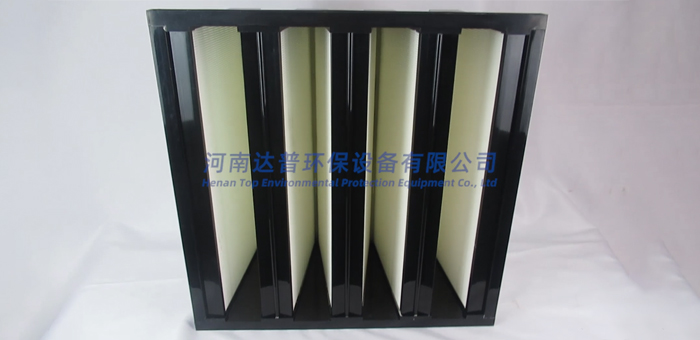

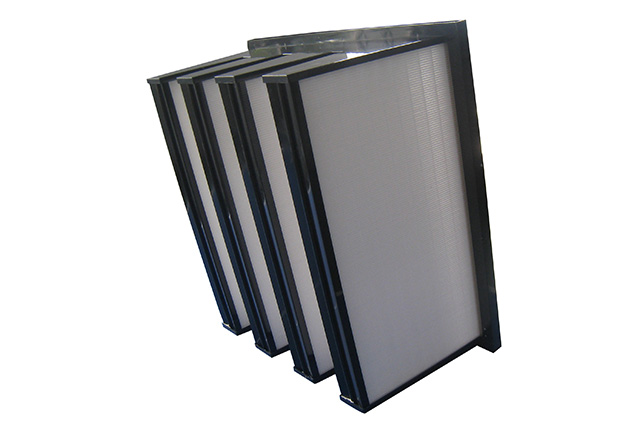

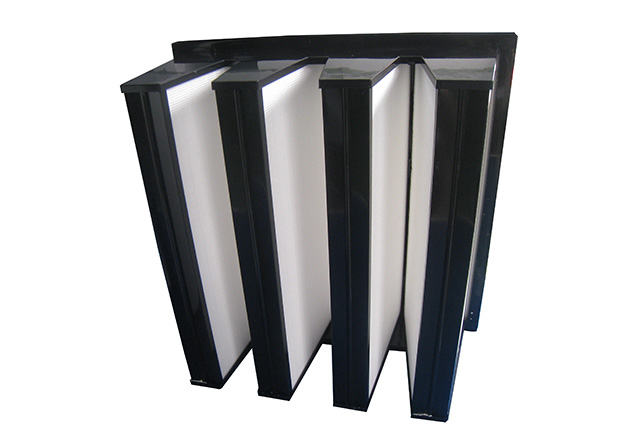

AZL V type filter

Frame:

ABS,Galvanized sheet etc.

Filter efficiency:

M6,F7,F8,H10

Filter material:

PP,Fiberglass

Product Description

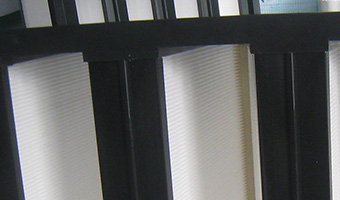

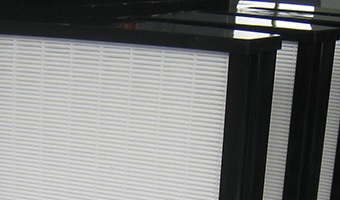

The filter media is constructed by superfine glass fifibers. The continuous hotmelt glues can ensure the consistency of the pleat distance so as to enhance the rigidity, prevent falling off of media pack and ensure the optimal air flow through the filter.

Polyurethane sealing glue is used between media and frames to better prevent the leakage and damage. Benefifit to environmental protection by using excellent ABS frame as no toxic gas is produced when being burned. With good advantages among like products, larger effective fifiltration area, lower resistance and higher dust holding capacity.

Technical Parameters

Efficiency :M6,F7,F8,H10
Media: PP,Fiberglass
Frame: Plastic,Galvanized steel(for gas turbines)
Separators: Hot-melt
Sealant:Plolyurethane
Temperature:-20-80℃
Humidity:≤100%

Model	Class	*Dimensions(WHD)mm*	Net Media(㎡）	Resistance(Pa)	Airflow(m³/h)
AZL/1 66 -F7(Chemical fiber filter material)	F7	592×595×292	18.8	85	3600
AZL/1 36 -F7	F7	287×592×292	8.4	85	1800
AZL/1 56 -F7	F7	490×592×292	15.4	85	2900
AZL/1 66 -F8	F8	592×595×292	18.8	100	3600
AZL/1 36 -F8	F8	287×592×292	8.4	100	1800
AZL/1 56 -F8	F8	490×592×292	15.4	100	2900
AZL/1 66 -F9	F9	592×595×292	18.8	110	3600
AZL/1 36 -F9	F9	287×592×292	8.4	110	1800
AZL/1 56 -F9	F9	490×592×292	15.4	110	2900
AZL/1 66 -H10	H10	592×595×292	18.8	130	3600
AZL/1 36 -H10	H10	287×592×292	8.4	130	1800
AZL/1 56 -H10	H10	490×592×292	15.4	130	2900

AZL/2 66 -F7(Glass fiber filter material)	M6	592×595×292	19.0	65	3600
AZL/2 36 -F7	M6	287×592×292	8.5	65	1800
AZL/2 56 -F7	M6	490×592×292	15.6	65	2900
AZL/2 66 -F8	F7	592×595×292	19.0	90	3600
AZL/2 36 -F8	F7	287×592×292	8.5	90	1800
AZL/2 56 -F8	F7	490×592×292	15.6	90	2900
AZL/2 66 -F9	F8	592×595×292	19.0	100	3600
AZL/2 36 -F9	F8	287×592×292	8.5	100	1800
AZL/2 56 -F9	F8	490×592×292	15.6	100	2900
AZL/2 66 -H10	H10	592×595×292	19.0	215	3600
AZL/2 36 -H10	H10	287×592×292	8.5	215	1800
AZL/2 56 -H10	H10	490×592×292	15.6	215	2900

AZL/3 66 -F7(Metal frame, metal mesh)	F7	592×595×292	18.8	85	3600
AZL/3 36 -F7	F7	287×592×292	8.4	85	1800
AZL/3 66 -F8	F8	592×595×292	18.8	100	3600
AZL/3 36 -F8	F8	287×592×292	8.4	100	1800
Other sizes and efficiencies are available on request

Advantages

Efficiency class: M6(F6), F7, F8, F9 (black frame), H11, H13

Highest dust holding capacity, long filter life time and no fiber discharge.

V-shape mini pleat design and sturdy plastic frame

Fully polyurethane sealed in frame, thus leakage free.

Application

1. Work as the main fifilter in the Gas Turbine Air Intake System.
2. High-humidity ventilation system.
3.Ventilation systems where has large air output and narrow installation space.
