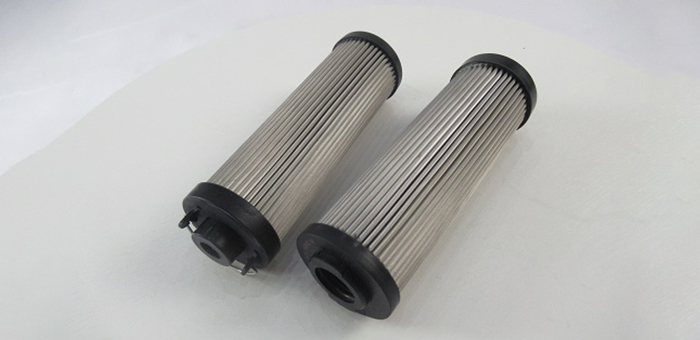

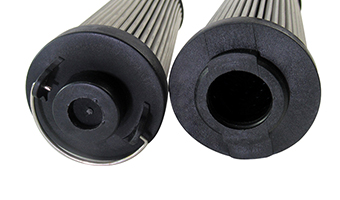

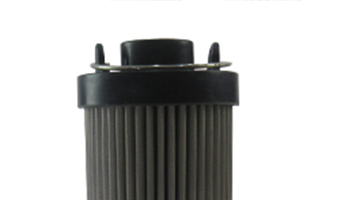

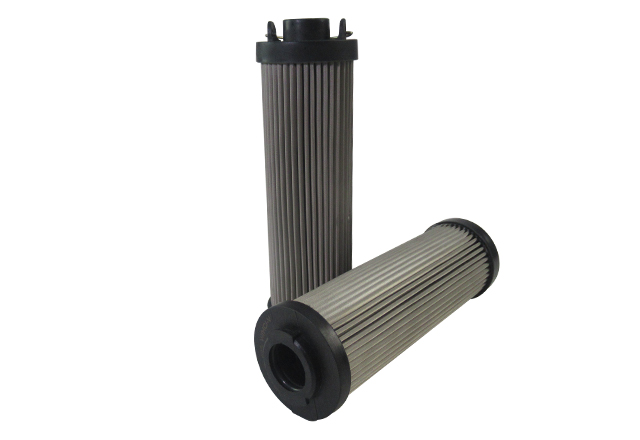

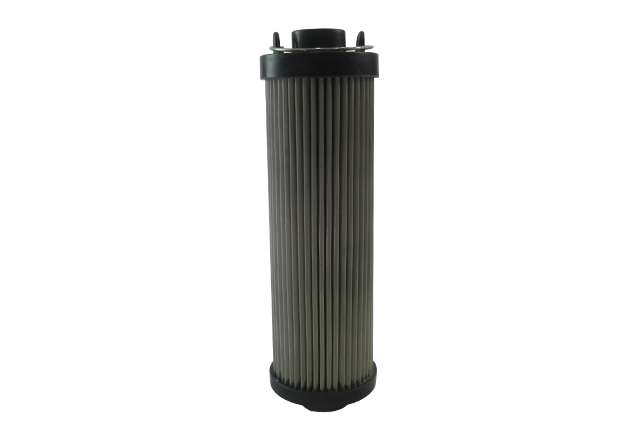

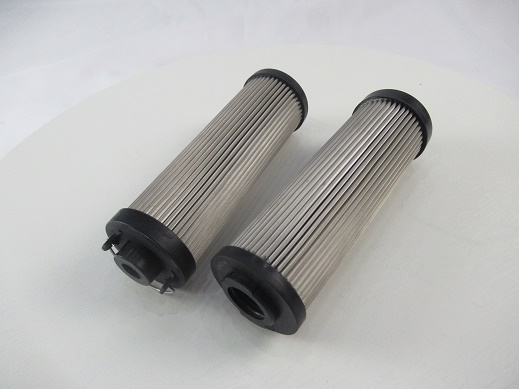

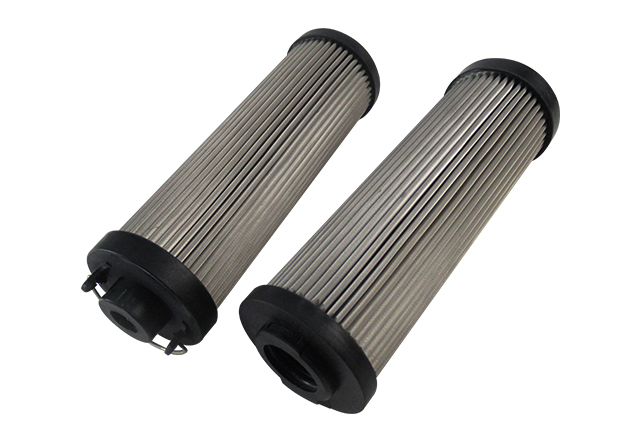

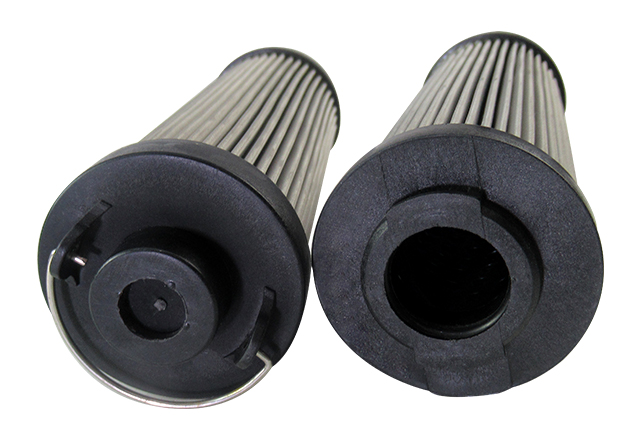

Replacement Hydac Filter
hydac 0110R025W-HC-V
Return Line filter
hydac filter
Stainless steel mesh filter
Replacement Hydac Filter
hydac 0110R025W-HC-V
Return Line filter
hydac filter
Stainless steel mesh filter

hydc filter 0110R025W-HC-V

Efficency:
25μm
Flow direction:
Out-In
Size:
OD51.5mm Length 170.5mm
Share:
Product Description
This series of filter elements is a replacement product of HYDC filter elements, which can completely replace the HYDC filter elements in terms of function and filtering effect.
HYDC filter element test standard:
* Filter burst resistance verification according to ISO 2941
* Filter element structural integrity according to ISO 2943
* Filter element compatibility verification according to ISO 2943
* Filter filter characteristics according to ISO 4572
* Filter pressure difference characteristics according to ISO 3968
* Flow rate-differential pressure characteristic test according to ISO 3968
Technical Parameters

Product name Replacement hydc oil filter 0110R025W-HC-V
Efficiency 25micron
Style Return filter
Media trpe stainless steel mesh
Size 51.5*22.2170.5mm
Collapse pressure 5bar
Working temperature -30°C~+100°C

Advantages
01
Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance.
02
Good corrosion resistance, heat resistance, pressure resistance and wear resistance;
03
Filter hole uniform, accurate filtration accuracy;
04
Filter is suitable for all kinds of hydraulic environment;



MODEL:
0030D003ON 0030D005ON 0030D010ON 0030D020ON0030D020P   0030D020W
0060D003ON 0060D005ON 0060D010ON 0060D020ON 0060D020P  0060D020W
0110D003ON 0110D005ON 0110D010ON 0110D020ON 0110D020P  0110D020W
0140D003ON 0140D005ON 0140D010ON 0140D020ON 0140D020P  0140D020W
0160D003ON 0160D005ON 0160D010ON 0160D020ON  0160D020P  0160D020W



We supply all kinds of replacement filter element, good quality and good price, if you need, please give your filter reference, whatever brand it is, and we will propose you the compatible item of our range.
