304 Stainless Steel Filter Element Custom Size

Product Description

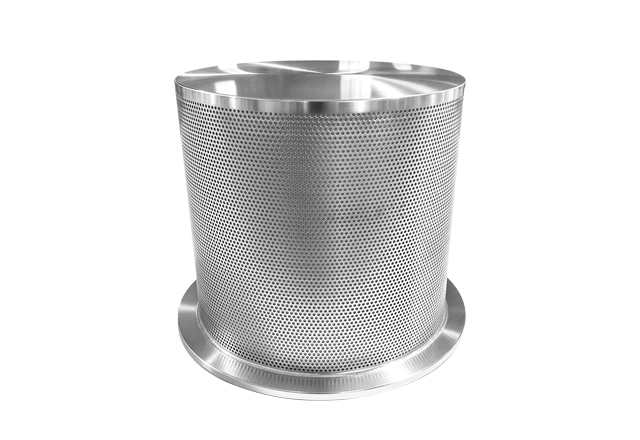

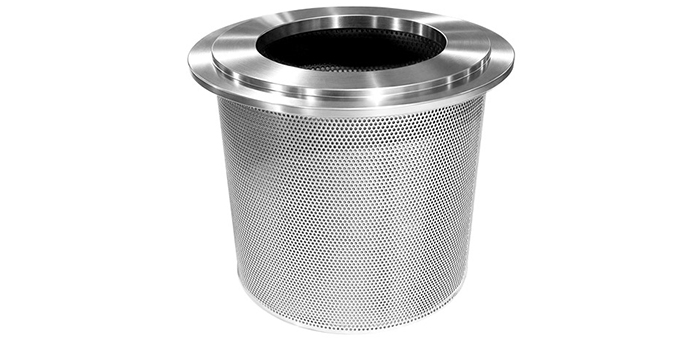

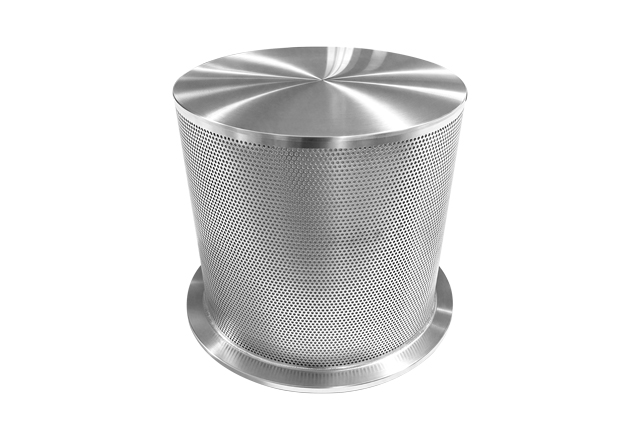

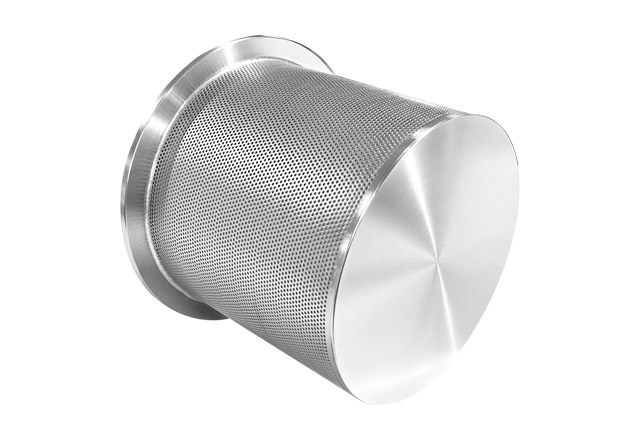

Our 304 stainless steel filter element is designed for industrial filtration systems that require a durable metal structure, reliable mechanical support, and long-term service performance. Manufactured from stainless steel 304, this cylindrical filter component features a perforated metal outer surface and a wide top flange, making it suitable for customized filtration equipment and industrial filter assemblies.

With an outer diameter of 410 mm, and a height of 335 mm, this filter element is suitable for systems requiring a large-diameter cylindrical filtration component. Its robust stainless steel construction provides good corrosion resistance in many industrial environments, while the perforated support structure allows fluid or gas to pass through the designed openings when matched with the appropriate filtration layer and flow configuration.

Technical Parameters

Product Name	Stainless Steel Filter Element
Material	Stainless Steel 304
Outer Diameter (OD)	410 mm
Height	335 mm
Structure	Cylindrical perforated metal support
Top Design	Wide flange
Filtration Rating	To be confirmed
Connection Details	To be confirmed according to drawing
Operating Temperature	Depends on material, filter media, and application
Customization	Available according to drawings and requirements

Product Features and Advantages

1. Stainless Steel 304 Construction

The filter element is made from stainless steel 304, a widely used material for industrial filtration components. It offers a combination of mechanical strength, formability, and corrosion resistance in many water-based and general industrial applications. Material selection should be confirmed against the actual fluid composition, chloride concentration, temperature, and operating environment.

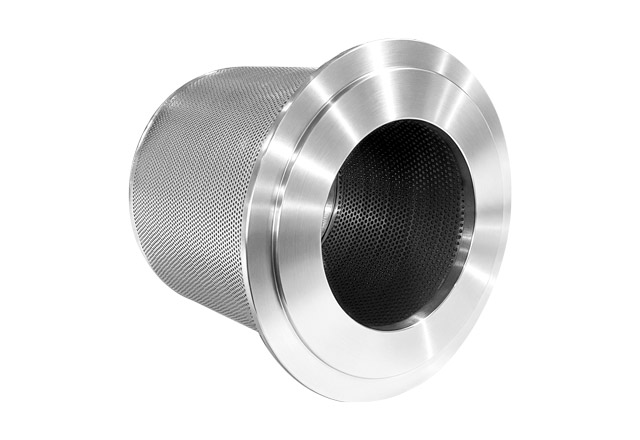

2. Perforated Metal Support Structure

The cylindrical body features a regularly perforated metal surface. This structure can provide mechanical support for the filtration layer, help maintain the filter element's shape, and allow the passage of fluid or gas through the designated openings. The final filtration performance depends on the selected filter media, opening size, effective filtration area, and system design.

3. Large-Diameter Cylindrical Design

With an outer diameter of 410 mm and a height of 335 mm, this filter element offers a large-diameter configuration for equipment designed around these dimensions. The inner diameter of 240 mm is also an important installation parameter when checking compatibility with the filter housing or internal support assembly.

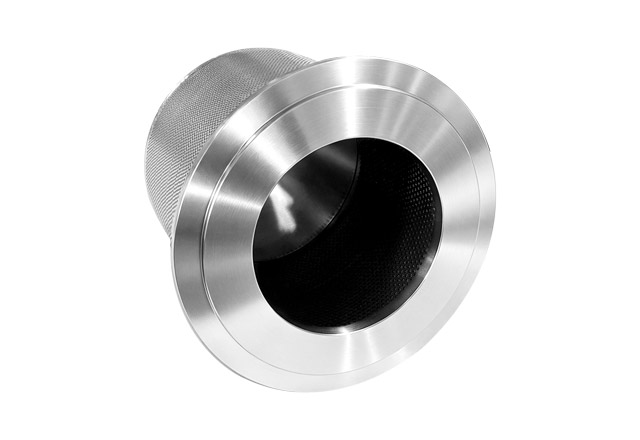

4. Flanged Top Structure

The wide top flange provides a structural interface for installation and positioning. Before ordering, customers should confirm the flange dimensions, thickness, mounting arrangement, sealing requirements, and connection details against the original component or equipment drawing.

5. Custom Manufacturing Available

We support customized stainless steel filter elements based on customer drawings, samples, or technical specifications. Depending on the application, customization may include overall dimensions, flange geometry, perforation patterns, stainless steel grades, filtration media, end-cap construction, and surface finish.

Industrial Applications

► Industrial Liquid Filtration
Stainless steel filter elements can be incorporated into industrial liquid filtration systems to help remove suspended particles when the selected filtration media and rating are suitable for the process. Potential applications include process water, circulating liquids, and selected industrial fluids. Compatibility must be verified for each specific medium.

► Water Treatment and Process Water Systems
Stainless steel filter components may be used in water treatment equipment and process water filtration assemblies where a durable metal structure is required. The appropriate filter media and micron rating should be selected according to water quality, target particle size, flow rate, and system pressure drop.

► Chemical and Process Industries
For selected chemical processing applications, stainless steel 304 can provide suitable corrosion resistance. However, compatibility varies with the chemical, concentration, temperature, and exposure conditions. The complete filter assembly should be reviewed before use in aggressive chemical environments.

► Industrial Equipment and Custom Filtration Systems
This large-diameter cylindrical design may also be considered for custom filtration equipment, replacement filter assemblies, and specialized industrial machinery. Customers can provide the original filter dimensions, equipment model, drawings, or photographs to help confirm structural compatibility.

Why Choose Our Stainless Steel Filter Elements?

We focus on manufacturing industrial filtration components to meet practical equipment requirements. Our customization service helps customers match filter dimensions and structural details to existing housings and filtration systems rather than relying only on standard catalog sizes.

We can evaluate customer requirements for material selection, dimensional tolerances, support structures, filtration media, flange designs, and other construction details. For replacement projects, providing a drawing or a sample of the original filter helps reduce uncertainty and improve dimensional matching.

Before production, we recommend confirming the filtration rating, effective filtration area, fluid or gas medium, operating conditions, sealing method, and installation dimensions. These details help determine whether the proposed filter element is suitable for the intended application.

FAQ

1. What Are the Advantages of 304 Stainless Steel Filter Elements?
Made from 304 stainless steel, this filter element offers good mechanical strength and corrosion resistance in many industrial environments. Its perforated metal structure provides support, while the flange design facilitates installation.

2. What Filtration Ratings Are Available?
The filtration rating depends on the selected filter media and application requirements. Please provide your target micron rating, filtered medium, and required flow rate so we can evaluate a suitable filtration configuration.

3. Can You Customize Stainless Steel Filter Elements?
Yes. We can evaluate custom filter elements based on drawings, samples, or technical specifications. Options may include dimensions, flange structure, perforation design, material, and filtration media, subject to technical confirmation.

4. What Information Is Needed for a Quotation?
Please provide the required quantity, dimensions, filtration rating, connection details, application medium, and operating conditions. Drawings or photos of the original filter can help us verify specifications and prepare an accurate quotation.

Advantages

Our factory spans a production area of 26,000 square meters, reflecting a solid manufacturing foundation and large-scale production capacity. This extensive facility is equipped with multiple automated production lines, allowing us to handle high-volume orders and urgent deliveries without compromising on precision. The scale of our operations also enables us to maintain a comprehensive inventory of raw materials, ensuring a stable supply and competitive pricing.

We hold ISO 9001 certification for quality management and CE certification for our products, demonstrating full compliance with rigorous international standards. These certifications not only prove our technological capability but also give our global customers confidence in the safety and reliability of our filtration solutions. With strong manufacturing capability, we are often able to complete new product development and production.

With over 20 years of export experience, we have established a proven track record of delivering filter elements to markets. This long history means we thoroughly understand international documentation, packaging, and logistics requirements. We have successfully supported customers in many other industries, building long-term partnerships through responsive after-sales service and consistent delivery performance.

We operate a comprehensive quality inspection system that covers every stage of production, from incoming raw material verification to in-process checks and final product testing. Our dedicated quality control team uses advanced optical measurement instruments, slot gauge verification, and pressure resistance testing to ensure each filter has its specified filtration rating and mechanical strength.
