Customized 65*255 Stainless Steel Oil Filter Element

Technical Parameters

A stainless steel filter element is a reusable filtration component manufactured from stainless steel wire mesh, sintered mesh, perforated metal, or powder-sintered materials. It is designed to remove contaminants from liquids, gases, steam, and industrial fluids while providing excellent corrosion resistance, high-temperature stability, and long service life.Depending on the filter media structure, stainless steel filter elements can provide filtration ratings ranging from 0.5μm to 500μm. Sintered mesh filters typically offer precision filtration, while woven mesh filters are ideal for coarse filtration applications.



Parameter	Specification
Material	304 / 316 Stainless Steel
Maximum Temperature	500°F (260°C)
Maximum Pressure	10 bar
Filtration Type	Stainless steel mesh / Pleated
Applications	Food & Beverage, Pharmaceutical, Chemical, Industrial
Reusability	Yes

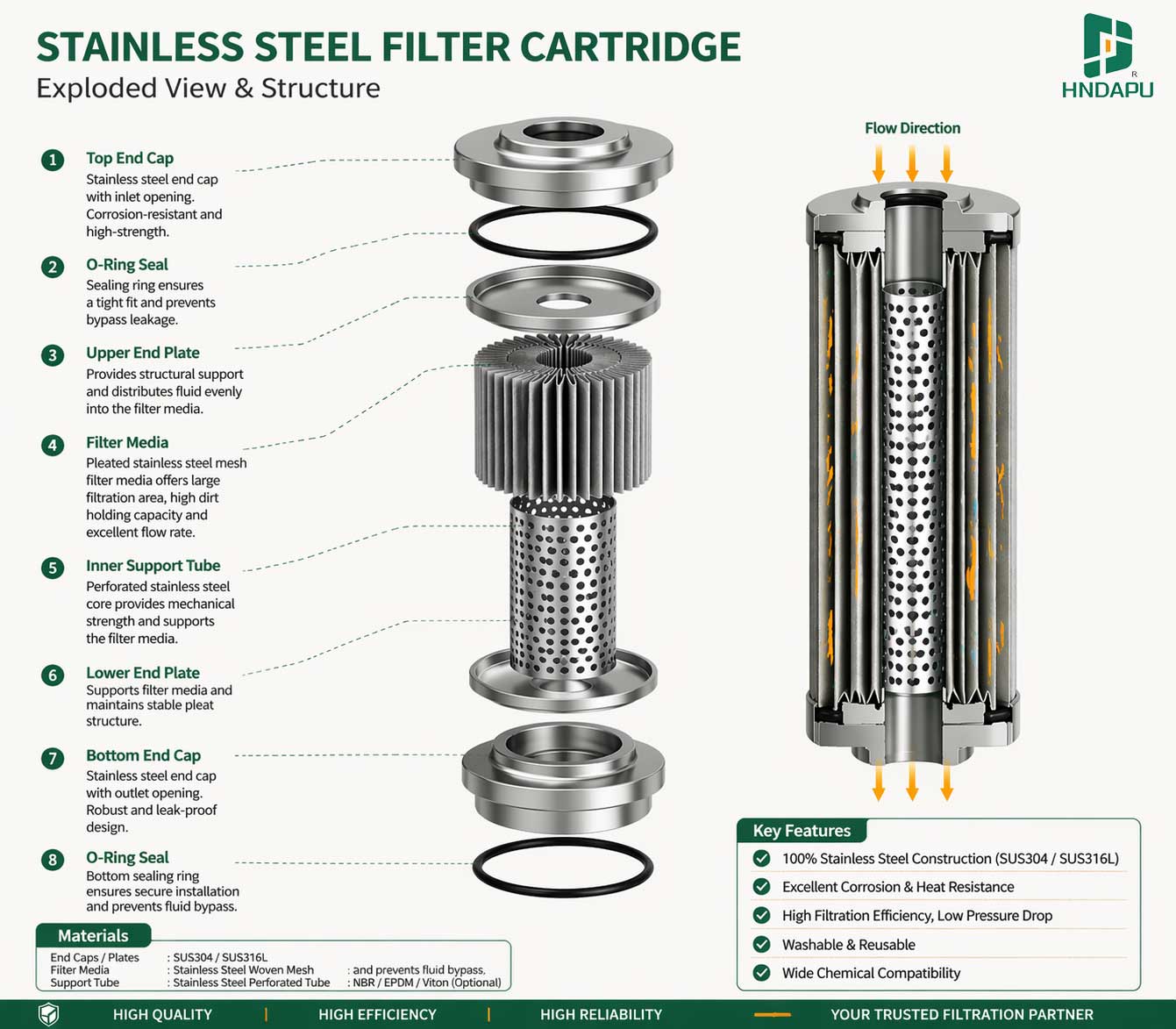

Product Structure



The stainless steel filter element consists of a cylindrical filter body with a perforated inter-frame and woven metal mesh surface, designed for high-strength and corrosion-
resistant filtration. The main components include:

► End Caps – The top and bottom ends of the filter are sealed with stainless steel end caps, providing structural stability and secure sealing during installation. These caps
 are typically welded or mechanically fixed to the filter media.

► Filter Media – The filter media of the element is composed of fine stainless steel mesh. This media is responsible for capturing particulate matter and contaminants while
allowing fluid or gas to pass through.

► Support Core / Skeleton – Inside the mesh is a perforated stainless steel frame that provides mechanical support to prevent collapse under high pressure.

This construction ensures a robust, reusable, and corrosion-resistant filter suitable for liquid or gas filtration in industrial applications.



Customizable options

The end connections can be customized. The available options include:

• ♦ Threaded connections
• ♦ Double open end (DOE)
• ♦ Single open end (SOE)
• ♦ Flange connections
• ♦ Quick-connect fittings
• ♦ Bayonet fittings
• ♦ Customized interfaces





Advantages

01

We are committed to technological innovation and product quality improvement. The company has obtained ISO9001 Quality Management System Certification and CE Certification, ensuring that our products comply with international quality and safety standards. With advanced production technology and a skilled technical team, we continuously develop high-performance filtration solutions for different industrial applications.

02

Our company is a professional manufacturer specializing in industrial filtration products with strong production capacity and extensive industry experience. Covering an area of 26,000 square meters, we are equipped with modern production facilities and an efficient manufacturing system, enabling us to meet large-scale production demands and provide stable supply support for customers worldwide.

03

To guarantee consistent product performance and reliability, we have built a complete quality inspection and control system. From raw material selection to finished product testing, every production process is strictly monitored to ensure that each filter product delivered to customers meets high-quality standards and industry requirements.

04

With more than 20 years of export experience, we have established long-term business cooperation with customers from many countries and regions around the world. Our rich international trade experience allows us to provide professional services, efficient communication, and reliable delivery solutions for global customers.

Our Factory





Henan Top Environmental Protection Equipment specializes in advanced filter cartridges and housings, serving industrial applications across over 100 global markets. Our factory integrates rolling, slitting, welding, and automated assembly lines, ensuring high-efficiency production and consistent product quality at scale. A professional R&D team develops innovative, fully customized filtration solutions tailored to clients’ specifications, materials, dimensions, and operational environments.

Quality assurance is rigorously implemented through CE and ISO certifications, batch traceability, and experienced inspectors for reliable, high-performance filters. Our intellectual property portfolio, including multiple R&D patents, reflects technological leadership and ongoing innovation in metallic filtration solutions.

Dedicated sales and after-sales teams provide technical guidance, timely communication, and seamless global support for customer satisfaction. With fifteen-plus years of export experience, we deliver competitive, innovative, and sustainable filtration solutions to North America, Europe, and the Middle East.




FAQ


Q1: What information is required to choose the correct filter element?


A1: Please provide:

• 1. Filtration medium (liquid or gas)
• 2. Required micron rating
• 3. Operating temperature
• 4. Working pressure
• 5. Flow rate
• 6. Filter dimensions
• 7. Connection type
• 8. Chemical compatibility requirements

Our engineers can recommend the most suitable solution.


Q2: Do you offer customized stainless steel filter elements?

A2: Yes. We can customize dimensions, filtration ratings, connection types, end caps, filter media, support structures, and sealing materials according to customer specifications or drawings.


Q3: Can stainless steel filter elements filter acids and chemicals?

A3: Yes. SS316L and other corrosion-resistant alloys provide excellent resistance to many chemicals, solvents, and corrosive liquids. Material selection should always be verified according to the specific chemical composition.


Q4: Can stainless steel filter elements replace polypropylene or fiberglass cartridges?

A4: In many industrial applications, yes. Stainless steel filters provide higher temperature resistance, superior strength, and reusable performance, making them an ideal alternative for demanding operating conditions


Q5: How do woven mesh and sintered mesh filter elements differ?

A5: Woven mesh filters provide high flow rates and are suitable for coarse filtration. Sintered mesh filters feature multiple bonded layers, offering superior filtration accuracy, pressure resistance, and dirt-holding capacity for critical applications.


Q6: Are stainless steel filter elements suitable for high-pressure systems?

A6: Yes. Stainless steel filters have excellent mechanical strength and can withstand high differential pressures. Sintered stainless steel filter elements are particularly suitable for demanding industrial applications.





Workshop Show

Application field

Food Industry

Widely applied in food, these filters lower maintenance costs, extend equipment life, and deliver consistent performance where fiberglass filters may fail.

Pharmaceutical Industry Sector

Ideal for pharmaceutical applications, these filters protect equipment, reduce maintenance, and offer cost-effective long-term performance over single-use fiberglass alternatives.

Petrochemical

Made with high-grade 304/316 stainless steel, they withstand corrosion, heat, and pressure, providing consistent flow and precise filtration. Reusable and easy to clean, they excel in demanding applications, such as chemical production, offering longer service life, reduced downtime, and superior protection for critical equipment.

Metallurgical-industry

Stainless steel filter cartridges provide superior strength and longevity compared to fiberglass filters. Constructed from premium 304/316 stainless steel, they resist corrosion, high pressure, and extreme temperatures. Precision pleated or sintered mesh ensures consistent flow and high filtration accuracy, while being fully reusable.
