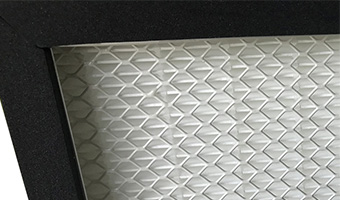

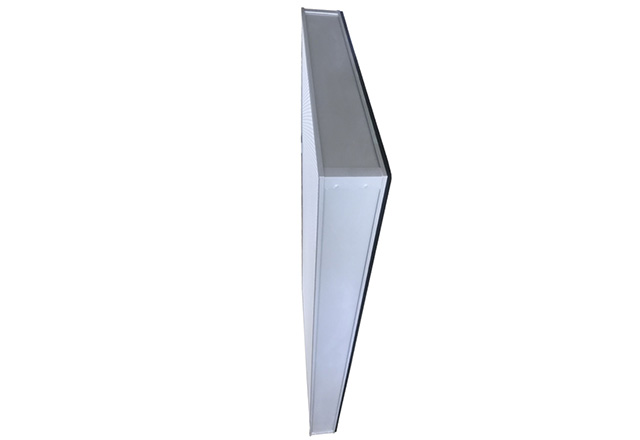

Professional factory h13 h14 merv17 merv18 Deep Pleat box hepa air panel Filter

24''x48'' h13 h14 hepa filter replacment

Frame:

Aluminum alloy,stainless steel,galvanized steel sheet,card paper etc.

Filter media:

fiberglass, polypropylene,activated carbon, etc.

Sealant:

Polyurethane,high remperature silicone,Thermosol

Product Description

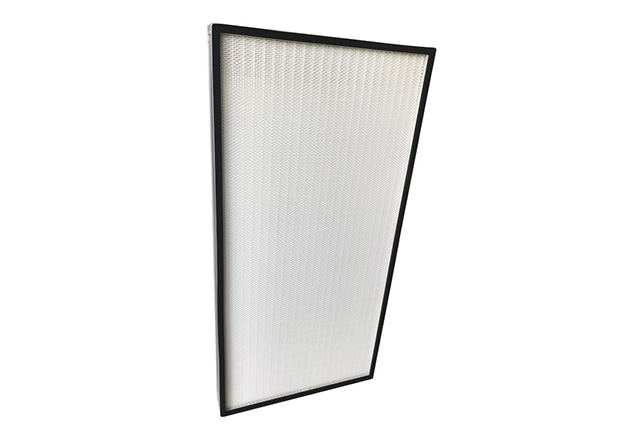

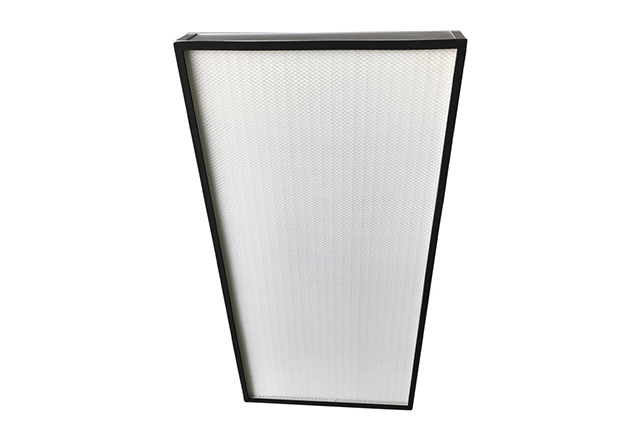

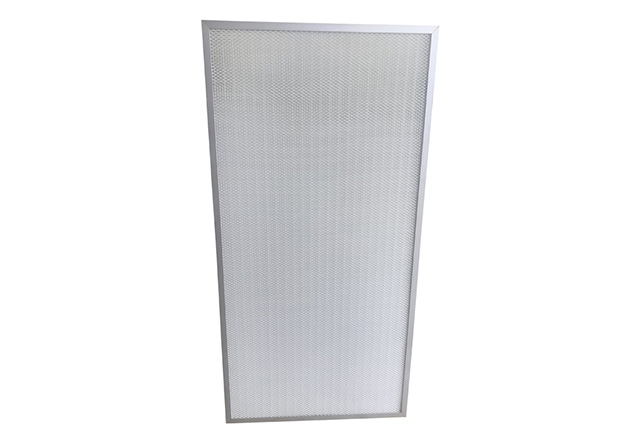

High-efficiency air (HEPA) filters mainly filter dust particles below 0.3um in the air, filtration efficiency is 99.999%~99.99999% (H10-H14),are widely used in the end filtration of clean rooms with higher level requirements, such as the equipment that requires 10,000, 1,000, and 100 levels. It is generally divided into non-partition high efficiency filter and high efficiency filters with partitions. The filter material of the non-partition high efficiency filter is mostly PP, PP+PET, glass fiber, and hot melt adhesive is used as the separator of the filter element, and the frame adopts the aluminum alloy. HEPA filters with partitions mostly use glass fiber as filter material, generally adopt the wooden frame, galvanized frame, aluminum alloy, stainless steel as frame.

Features

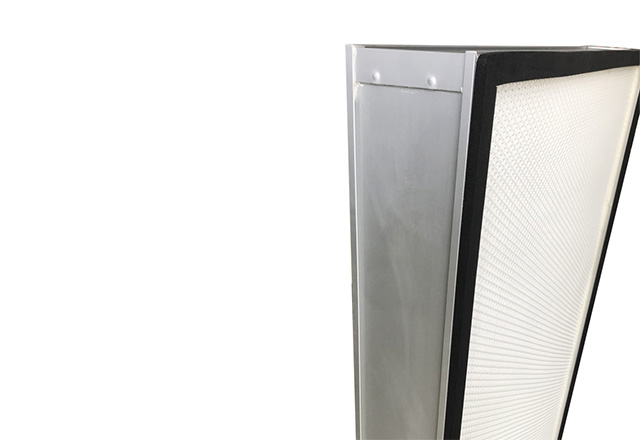

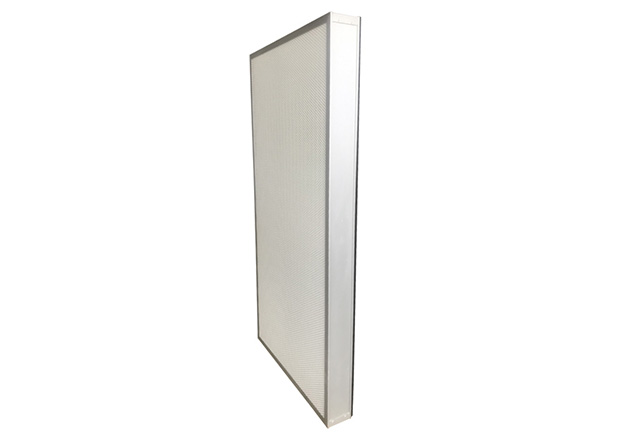

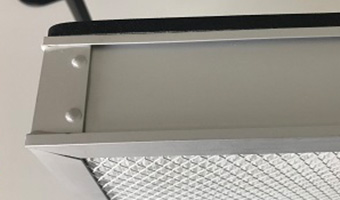

Frame: aluminum alloy frame,high temperature sistance,no rust,no deformation,durable.

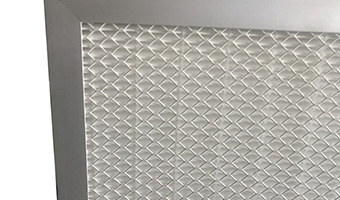

Filter media: Import filter paper, fine protective net,with good filtering effect.

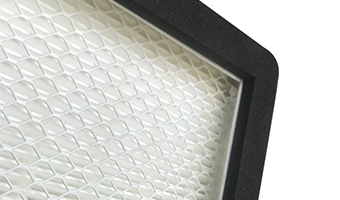

Sealant: Polyurethane,Thermosol,uniform,smooth,no smell.
Application: Apply for the prefiltration of air conditioning and ventilatilation system, general the second stage of air purification system is air filtration and the air purification of clean room, high temperature environment, specially for the needs high efficiency air filters coverage of the purification plant.

We can customize the filter as customer's requirements, please tell us the size,material,filtering efficiency of the filter you need.

Separator-free high-efficiency filter			Separator-free high-efficiency filter
Dimensions（mm）	Filter area（㎡）	Rated Air Flow (m3/h)	Dimensions（mm）	Filter area（㎡）	Rated Air Flow (m3/h)
305x305x70	2.8	100~250	305x305x70	2.8	100~250
305x610x70	5.6	300~500	305x610x70	5.6	300~500
475x475x70	5.2	400~500	475x475x70	5.2	400~500
610x610x70	11.2	600~1000	610x610x70	11.2	600~1000
762x610x70	13.9	750~1250	762x610x70	13.9	750~1250
915x610x70	16.8	900~1500	915x610x70	16.8	900~1500
1219x610x70	22.4	1200~2000	1219x610x70	22.4	1200~2000
305x305x90	3.5	100~250	305x305x90	3.5	100~250
305x610x90	7.0	300~500	305x610x90	7.0	300~500
610x610x90	14.1	600~1000	610x610x90	14.1	600~1000
762x610x90	17.7	750~1250	762x610x90	17.7	750~1250
915x610x90	21.3	900~1500	915x610x90	21.3	900~1500
1219x610x90	28.5	1200~2000	1219x610x90	28.5	1200~2000
