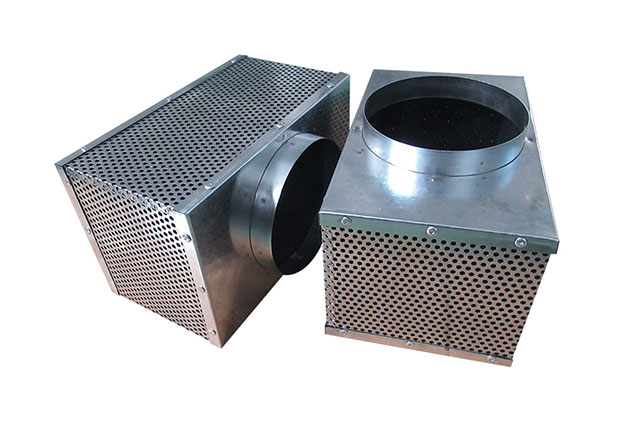

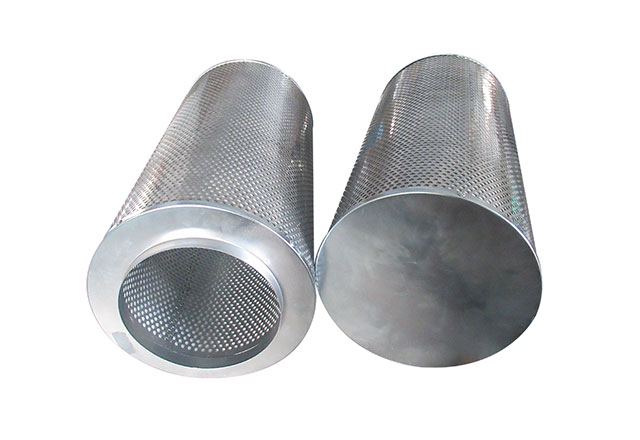

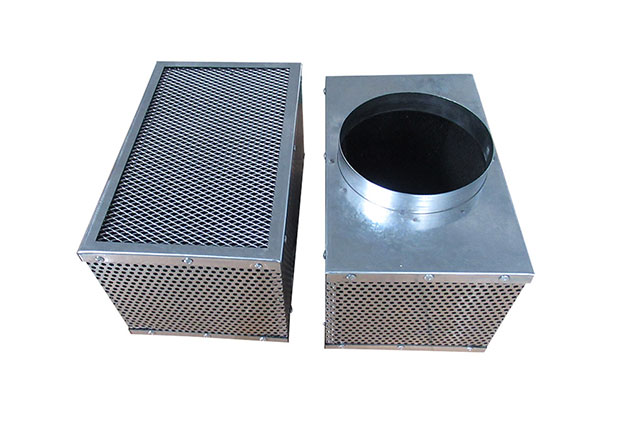

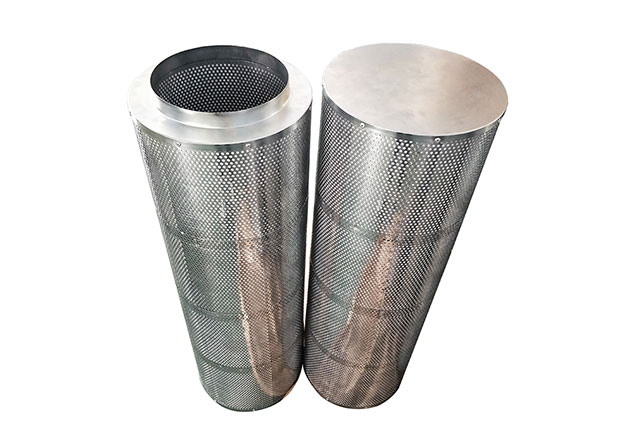

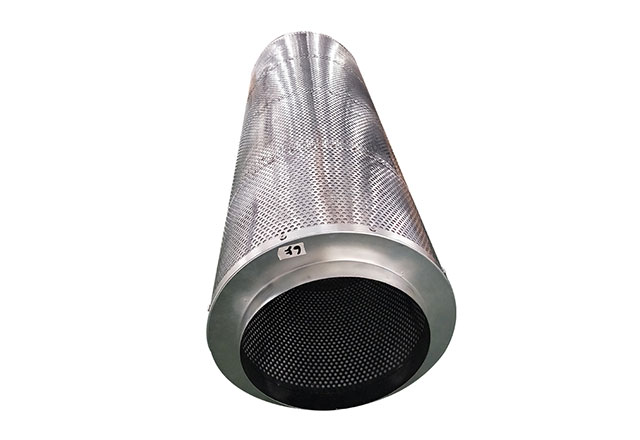

Activated Carbon Filter

Filter material:

Use high-quality glass fiber, oil filter paper, stainless steel, sintered felt filter material, etc.

Filtration accuracy:

From 1, 3, 6, 12, 25...μm

Structural strength:

1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa

Send Email

Chat Now

Product Description

The activated carbon filter has a good adsorption, can effectively remove residual chlorine, odor, color and organic matter.

Designed for commercial or industrial air conditioning and central ventilation system to filter odor and harmful gases in the air
A variety of activated carbon materials can be provided according to actual needs, such as volatile compounds, acid, alkaline gas, formaldehyde, mercury vapor, radioactive gas

Technical Parameters

Product Description
Load Weight(Kg)	Airflow(m/h)	Connection Diameter(mm)	Outer Diameter (mm)	Length(mm)
1.3	200	100	180	150
2.6	350	100	180	300
1.6	225	125	205	150
3.1	430	125	205	300
4.1	470	150	240	300
8.3	900	150	240	600
13.8	1260	150	240	1000
5.2	660	200	290	300
10.4	1125	200	290	600
17.3	1600	200	290	1000
12.5	1320	250	340	600
20.8	1980	250	340	1000
15.3	2440	315	405	600
25.4	3280	315	405	1000
33.5	4320	350	440	1200

Advantages

Granular activated carbon with high iodine value is treated with a chemical formulation.

Performance: Strong adsorption capacity, high filtration efficiency, good performance.

The adsorption medium can be replaced, and the metal shell can be reused

Easy installation and maintenance, low operating cost.
