Industrial Water Filter Cartridge 180x522mm

Product Description

This industrial water filter cartridge is designed for liquid filtration systems requiring a large cylindrical filter element with a stable support structure. The cartridge has an outer diameter of 180 mm and an overall height of 522 mm, providing a substantial filtration surface within a compact cylindrical configuration.

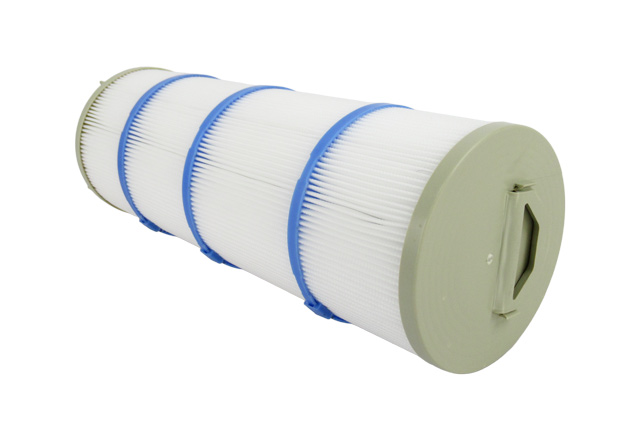

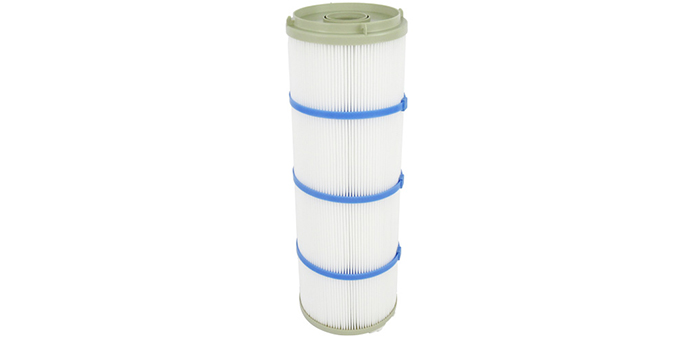

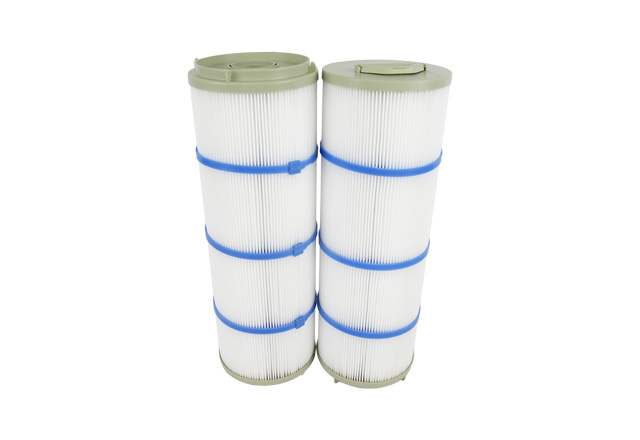

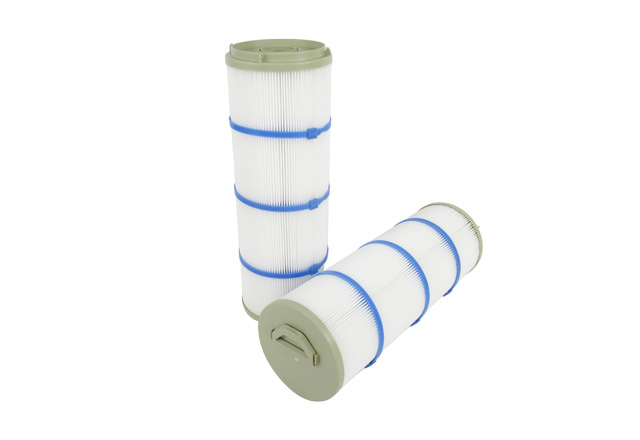

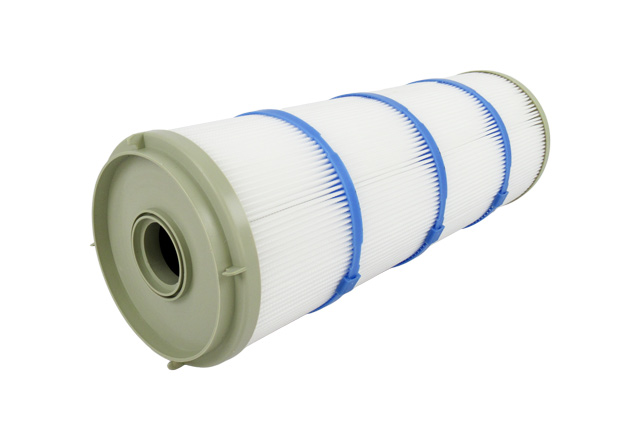

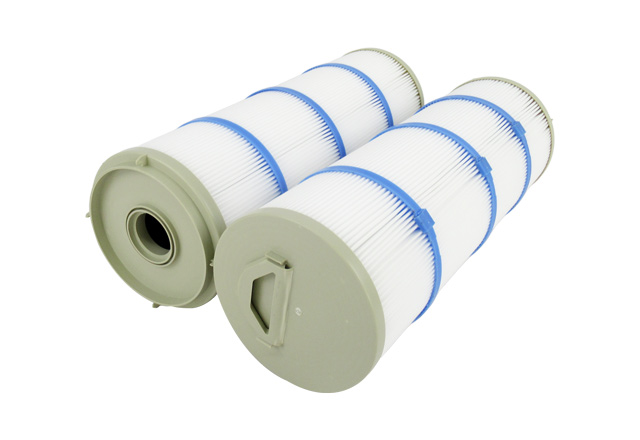

The filter uses filter paper as the primary filtration media, supported by a PP protective mesh and internal PP structure. Multiple blue plastic support rings are installed around the filter body to reinforce the pleated media and help maintain its shape during operation. PP end caps provide structural support at the ends of the cartridge and allow the filter to be configured for compatible filtration equipment.

The pleated filter structure increases the effective filtration area compared with a flat filter surface, making this cartridge suitable for various industrial water and liquid filtration applications. Filtration precision, dimensions, connection configuration, filter media and other specifications can be customized according to the customer's requirements.

Technical Parameters

Product Type	Industrial Water Filter Cartridge
Structure	Pleated Cylindrical
Outer Diameter	180 mm
Height	522 mm
End Cap	PP
Inner Support	PP
Filter Media	Filter Paper
Protective Layer	PP Protective Mesh
External Support	Blue Plastic Support Rings
Application	Water and Liquid Filtration
Customization	Available

Product Features

1. High Flow Filtration Performance

The large diameter structure provides increased filtration area, allowing higher water flow rates while maintaining low pressure drop. It is suitable for applications requiring continuous operation and stable filtration efficiency.

2. Durable Stainless Steel Support Structure

The external stainless steel skeleton provides excellent mechanical strength, corrosion resistance and dimensional stability. It helps protect the filter media under high pressure and demanding working conditions.

3. Advanced Composite Filter Media

The non-metallic composite filtration material delivers efficient particle removal and excellent chemical compatibility. The filter element is available with different filtration ratings to meet various industrial water purification requirements.

4. High Temperature Resistance

Designed for harsh operating environments, this filter cartridge can withstand elevated temperatures and maintain reliable filtration performance, making it suitable for industrial processes with hot water or high-temperature fluids.

5. Easy Installation with O-Ring Sealing

The handle end is equipped with an O-ring sealing structure, providing secure installation, preventing leakage and simplifying filter replacement during maintenance.

FAQ

Q1: What is the filtration accuracy of this large flow water filter cartridge?
A: This model has a filtration accuracy of 5 micron, which can effectively remove suspended particles and contaminants from industrial water systems.

Q2: Can this filter element be customized?
A: Yes. Diameter, length, filtration rating, filter media and sealing design can be customized according to customer requirements.

Q3: Is this filter cartridge suitable for high temperature applications?
A: Yes. The composite filter media and stainless steel support structure provide good temperature resistance for demanding industrial environments.

Q4: What industries use large flow water filter cartridges?
A: They are commonly used in water treatment, chemical processing, power generation, manufacturing and industrial circulation water systems.

Our Advantages

At Henan Top Environmental Protection Equipment, we do more than just manufacture filter elements and housings; we achieve large-scale production through consistent, precision craftsmanship. Our integrated facility combines rolling, slitting, welding, and fully automated assembly lines, enabling high-volume output while maintaining exceptional product consistency. This translates to faster delivery times, lower overall costs, and a reliable supply chain—ensuring your business operations run smoothly, wherever you are located.

Our expert R&D team works side-by-side with you to design bespoke solutions—from material selection and dimensional specs to extreme-condition performance. Thanks to our agile development workflow, we can move from concept to working prototype in days. That means less downtime, quicker project turnarounds, and a filtration system that fits your process like a glove.

Backed by CE and ISO certifications, every batch undergoes strict traceability and rigorous inspection by seasoned professionals, ensuring each filter delivers consistent, high-stakes performance you can trust. Our growing portfolio of R&D patents isn’t just a badge of honor—it’s proof of our relentless drive to push metallic filtration technology forward, giving you a competitive edge through innovation that matters.

From North America to Europe and the Middle East, we’ve spent over fifteen years building lasting partnerships across the globe. Our dedicated sales and after-sales teams don’t just respond—they anticipate, offering proactive technical guidance, clear communication, and responsive support at every stage. When you choose us, you’re not just buying a filter; you’re gaining a strategic partner committed to delivering sustainable, cost-effective, and cutting-edge solutions that elevate your entire operation.

Company Description

Henan Top Environmental Protection Equipment specializes in advanced filter cartridges and housings, serving over 100 global industrial markets. Our integrated factory features rolling, slitting, welding, and automated assembly lines, enabling high-efficiency production and consistent product quality at scale.

Rigorous quality assurance is upheld through CE and ISO certifications, batch traceability, and experienced inspectors, ensuring reliable, high-performance filters. Our intellectual property portfolio, including multiple R&D patents, demonstrates technological leadership and ongoing innovation in metallic filtration solutions. Our professional R&D team develops fully customized filtration solutions tailored to client specifications—including materials, dimensions, and operating environments.

Dedicated sales and after-sales teams provide technical guidance, timely communication, and seamless global support to ensure customer satisfaction. With over fifteen years of export experience, we deliver competitive, innovative, and sustainable filtration solutions to markets across North America, Europe, and the Middle East
