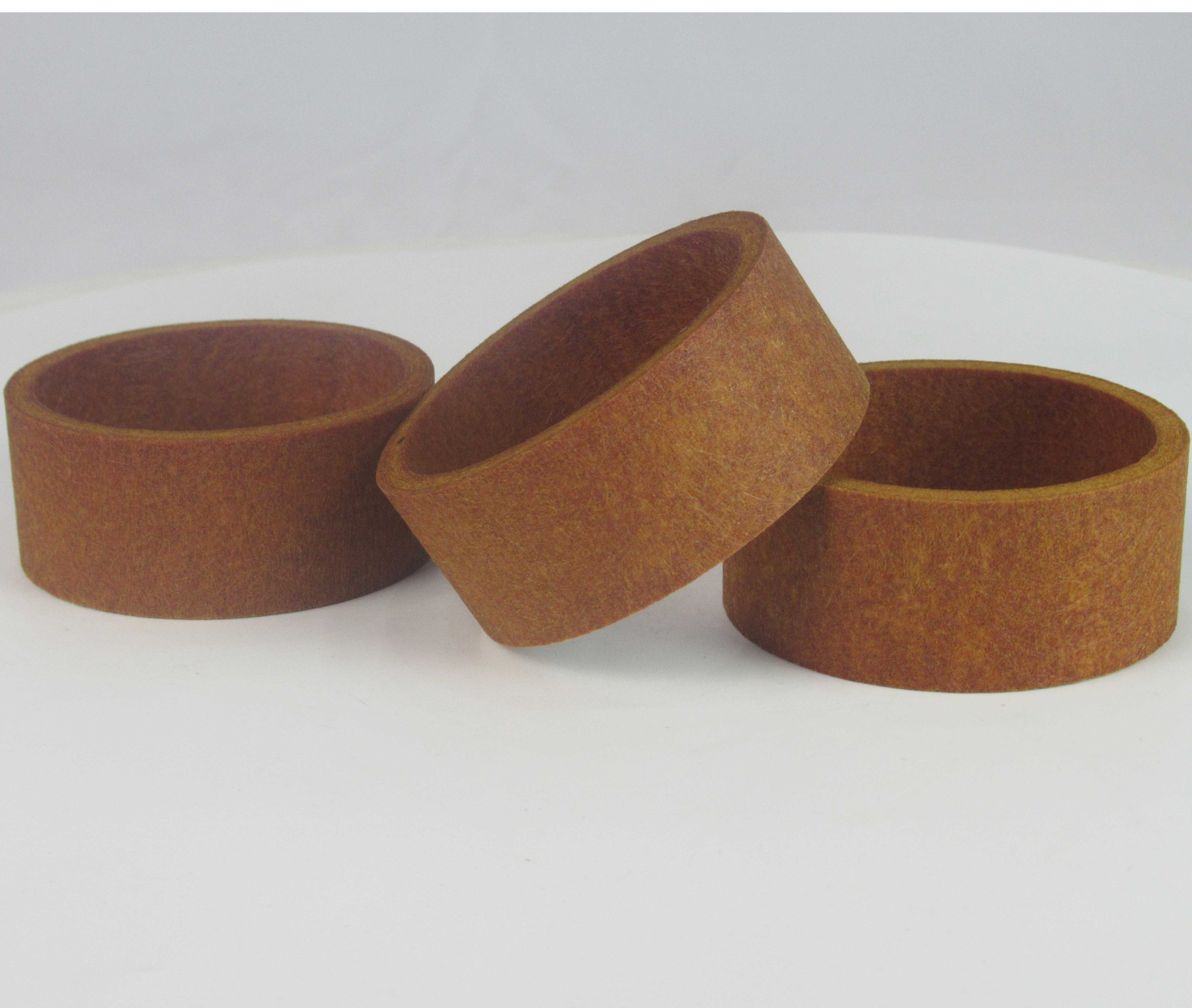

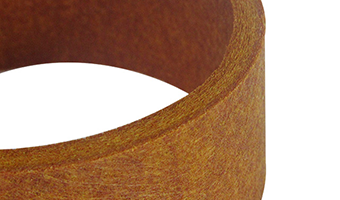

0.5μm Fiber Glass Sintered Filter 61*70*30

Share:
Product Description
Glass fiber filter element is a new type of liquid and air purification filter element made by advanced technology with composite glass fiber membrane as filter medium. Composite glass fiber filter film is in a traditional superfine glass fiber membrane complex with polypropylene fiber on both sides of the membrane, keep high void fraction of super fine glass fiber membrane, large flux, large amount of river closure, as well as good heat resistance and corrosion resistance, overcome the low glass fiber membrane strength, easy breakage under pressure, appear fall off faults, is a kind of excellent performance, widely used new type of filter element.
Features
The glass fiber sintered filter element is a high-precision glass fiber sintered filter tube.It is suitable for high temperature, high humidity, high viscosity dust industry or industrial dust purification with acid and alkaline, corrosive chemical gas and other occasions of bad working conditions.

Operating temperature 200℃
Filtration precision 0.01-100μm
Size range Φ10-800mm, H10-2000mm
Application gas-liquid
Performance acid resistance, alkali resistance, high temperature resistance, waterproof

Advantages
01
High filtration efficiency: the fine dust of 0.1μm and above can reach more than 95% filtration efficiency, which can achieve nearly zero emission.
02
Low operating resistance: the glass fiber sintered filter element itself has the characteristics of non-sticky dust, hydrophobic and stable chemical properties, so the dust stripping performance is very good.
03
The long-term use temperature is 260℃, the short-term and instantaneous temperature can reach 300℃, and the heat shrinkage rate is less than 0.5%.
04
Good thermal stability: the thermal shrinkage rate of 300℃ is less than 0.5%, which determines the safety of its use at high temperature.



Application
The glass fiber sintered filter element has a wide range of uses, mainly used in the filtration of automobile engines, natural gas, coal gas and other gases, and the filtration of compressed gases such as CNG LPG and LNG. It is used in industries such as automobiles, electronic components, pneumatic components, chemicals, and testing instruments.

After the glass fiber sintered filter element is processed, the gas residual oil content is 0.01mg/m3, and the efficiency is 99.99999%. In recent years, due to the increasingly serious environmental problems, a large number of testing equipment have emerged. The most commonly used filter element for testing instruments is the glass fiber sintered filter element because of its simple structure, high temperature resistance, high precision, easy replacement and installation, and low cost. So it is widely used in testing instruments.

The glass fiber sintered filter element can be directly matched without changing the shell, and the glass fiber sintered filter element can be directly replaced with the imported similar products.

The glass fiber sintered filter element has a complete range of diameters from 10mm to 800mm and height from 10mm to 2000mm, which can be adjusted in any specification and can be customized according to customer needs. Product filtering precision range: 0.01um-100um.
