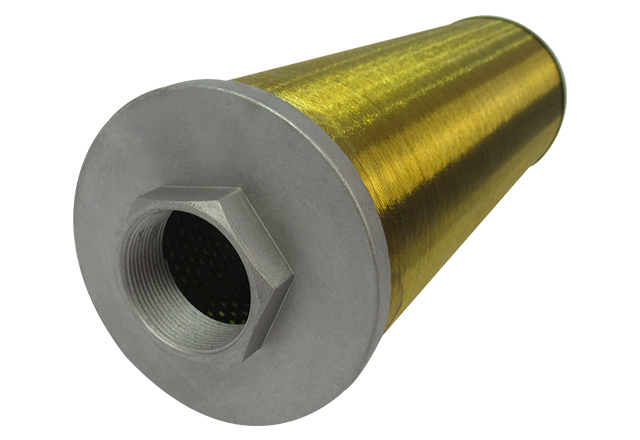

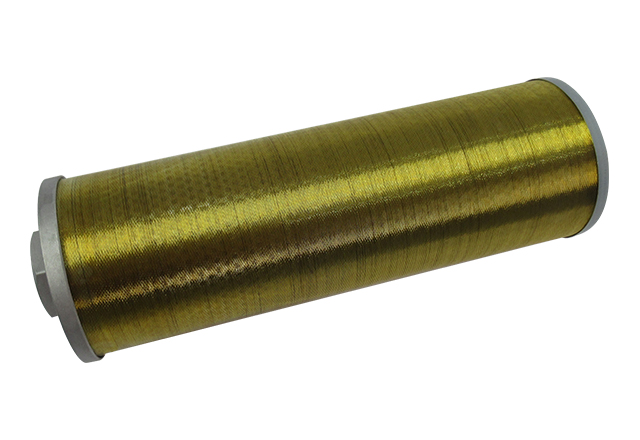

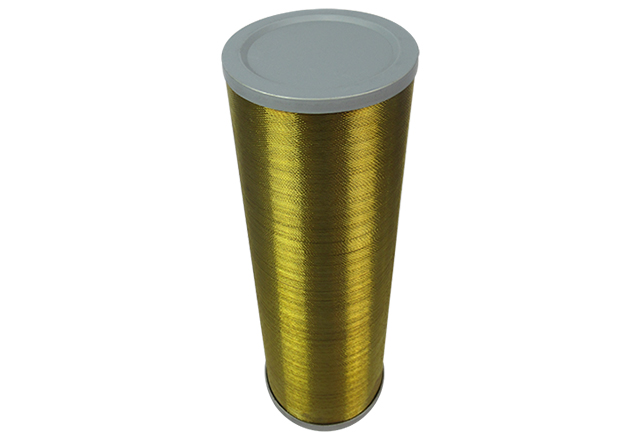

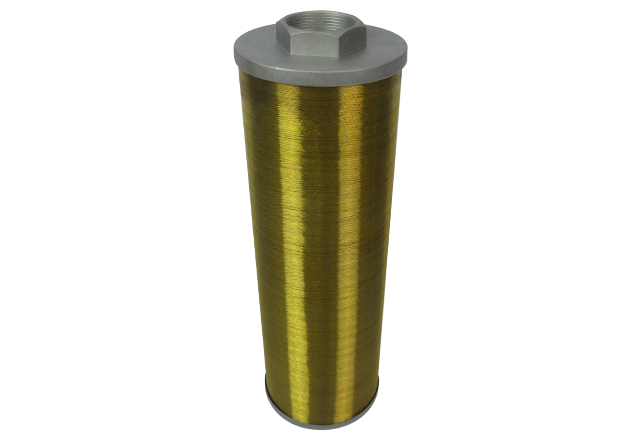

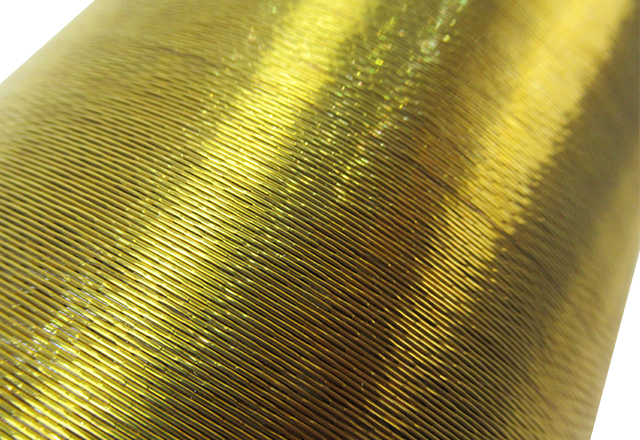

Filter manufacturer direct Replacement leemin Hydraulic suction notched wedge wire oil filter XU-160x100-J

Replace Leemn wedge wire XU-160x100-J

Connection:

Thread, Flange

Working pressure:

0.6MPa

Flow:

16-1000L/min

Product Description

Performance and Use

The filters are rough filter is usually installed at the suction port of the pump to protect the pump to avoid inhalation of
larger mechanical impurities. The filter structure is simple, through the oil capacity, small resistance.

Technical Parameters
Working Medium: general hydraulic oil, phosphate hydraulic oil, emulsion, water - glycol
Flow rate: 16-1000L/min
Filtration Accuracy: 80-180μm
Working Pressure: 0.6MPA
Connection: Thread, Flange
WU: Wire mesh filter
XU: Notched wire filter

For more models, please contact us

Production Process

Check manufacturing drawing---Prepare raw material --- Pleated wave ---Opposite joint---Assembly---Inspection---Test --Packing---Transport and shipping

Advantages

Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance.

Good corrosion resistance, heat resistance, pressure resistance and wear resistance;

Filter hole uniform, accurate filtration accuracy;

Filter is suitable for all kinds of hydraulic environment.

Model

Model	Dia (mm)	Flow Rate (L/min)	InitialΔp(Mpa)	By-pass valve setting(Mpa)	Connection
XU-16×*-J	12	16	≤0.01	0.02	Thread
XU-25×*-J	15	25
XU-40×*-J	20	40
XU-63×*-J	25	63
XU-100×*-J	32	100
XU-160×*-J	40	160
XU-250×*F-J	50	250			Flange
XU-400×*F-J	65	400
XU-630×*F-J	80	630
