Filter manufacturer direct Replacement leemin hydraulic suction oil filter WF-16C WF-16DL

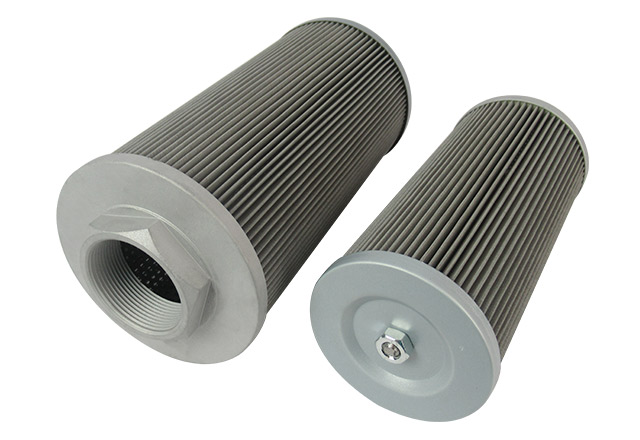

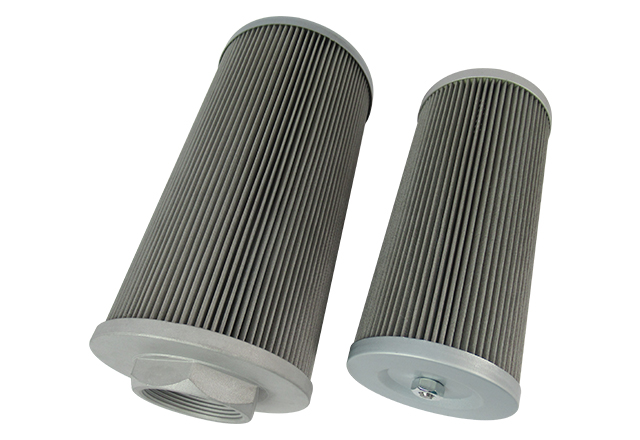

Leemn suction filter WF-16C WF-16DL

Thread:

G 2

Size:

99*232 mm 130*270mm

Filtration area:

2140/3590 cm²

Product Description

Direct Interchange for Leemn WF-16C WF-16DL. Guaranteed to be Compatible with OEM product.

Place on the oil suction side of the pump to prevent sundries from entering the system and keep the pump and system clean.Prolong the service life of the pump and system and reduce the failure caused by continuous operation.

All products are guaranteed to be free from manufacturing defects and meet or exceed factory specifications in terms of fit,form and functionality.

For more models, please contact us

Production Process

Check manufacturing drawing---Prepare raw material --- Pleated wave ---Opposite joint---Assembly---Inspection---Test --Packing---Transport and shipping

Advantages

Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance.

Good corrosion resistance, heat resistance, pressure resistance and wear resistance;

Filter hole uniform, accurate filtration accuracy;

Filter is suitable for all kinds of hydraulic environment.

Technical Specification

Model	Thread	OD	Height	Filtration area(c㎡)
WF-3A	G 3/8	50	85	282
WF-4A	G 1/2	50	85	282
WF-4B	G 1/2	70	95	530
WF-6B	G 3/4		95	530
WF-6BL	G 3/4		145	832
WF-8B	G 1		145	832
WF-10C	G 1 1/4	99	142	1206
WF-10CL	G 1 1/4		232	2140
WF-12C	G 1 1/2		142	1206
WF-12CL	G 1 1/2		232	2140
WF-16C	G2	130	232	2140
WF-12D	G1 1/2		170	2015
WF-16D	G2		170	2015
WF-16DL	G2		270	3590
WF-20D	G 2 1/2		270	3590
WF-24D	G 3		270	3590
WF-24DL	G 3		330	4320
