Filter manufacturer direct Replacement leemin hydraulic suction oil filter mf-06

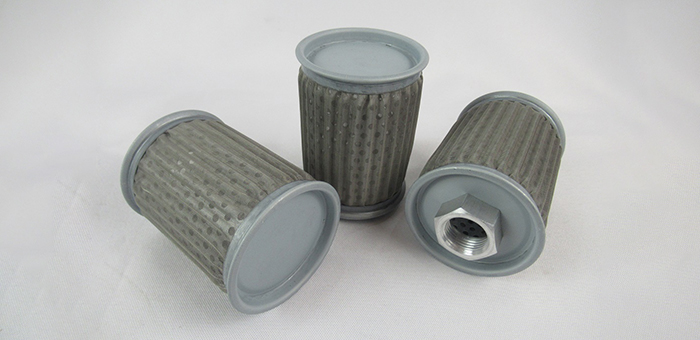

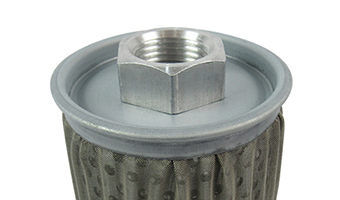

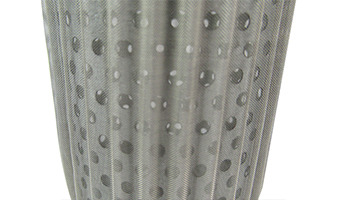

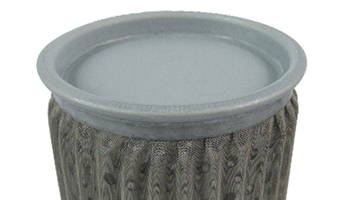

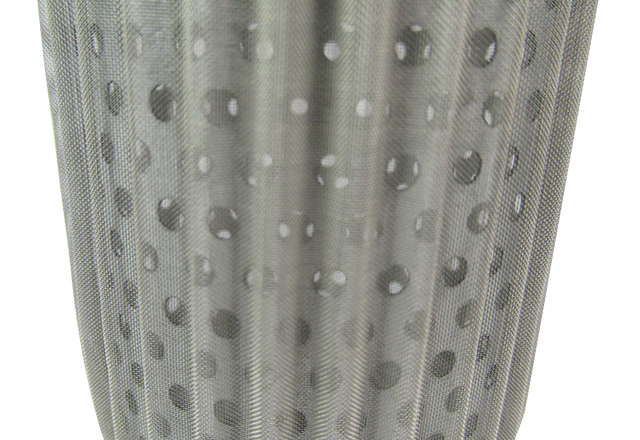

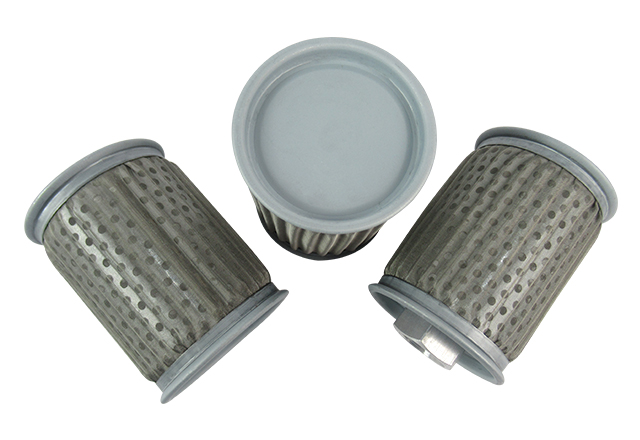

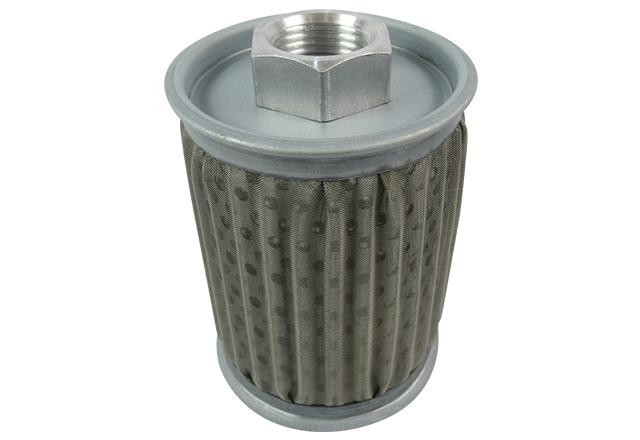

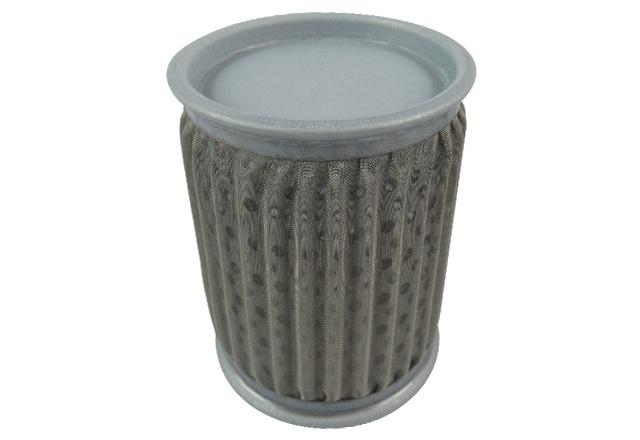

Replacement Leemn suction filter MF-06

Screw size:

3/4''

Size:

137*58mm

Flow rate:

55L/min

Product Description

Direct Interchange for Leemn MF-06. Guaranteed to be Compatible with OEM product.

Place on the oil suction side of the pump to prevent sundries from entering the system and keep the pump and system clean.Prolong the service life of the pump and system and reduce the failure caused by continuous operation.

All products are guaranteed to be free from manufacturing defects and meet or exceed factory specifications in terms of fit,form and functionality.

For more models, please contact us

Production Process

Check manufacturing drawing---Prepare raw material --- Pleated wave ---Opposite joint---Assembly---Inspection---Test --Packing---Transport and shipping

Advantages

Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance.

Good corrosion resistance, heat resistance, pressure resistance and wear resistance;

Filter hole uniform, accurate filtration accuracy;

Filter is suitable for all kinds of hydraulic environment.

Technical Specification

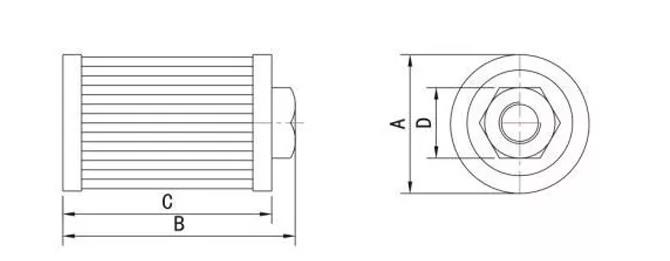

Model number	Screw size	A	B	C	D	Flow Rate	Filtration unit	Weight(kg)
Model	PT	mm	mm	mm	mm	Flow(L/min)	mesh	0.09
MF-02	1/4‘’	54	92	86	21	20	100	0.09
MF-03	3/8‘’	54	92	86	21	25		0.09
MF-04	1/2‘’	58	92	86	27	30		0.09
MF-06	3/4‘’	58	137	124	34	55		0.14
MF-08	1‘’	58	170	155	42	90		0.16
MF-10	1-1/4"	71	186	170	54	130		0.18
MF-12	1-1/2‘’	85	196	182	65	200		0.25
MF-16	2‘’	103	215	202	75	280		0.37
MF-20	2-1/2‘’	158	270/370	250/350	109	700		0.97-1.14
MF-24	3"	158	270/370	250/350	109	800		1.0-1.2
MF-32	4‘’	208	379	356	142	1000		1.58
