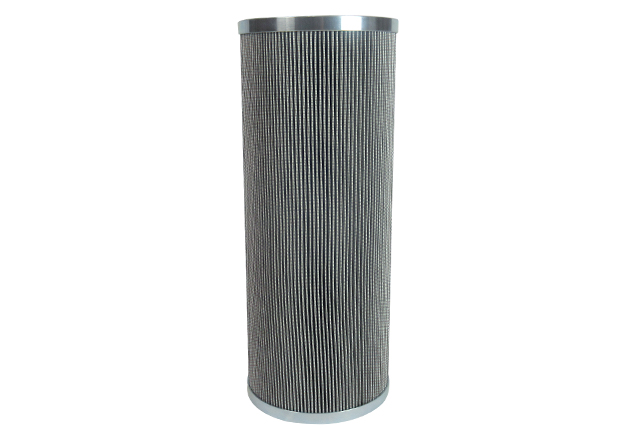

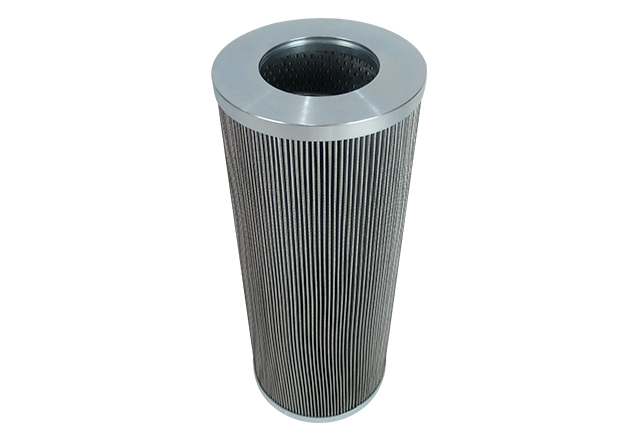

Equivalent INTERNORMEN Filter Element 338416

Technical Parameters

Part Number	INTERNORMEN 338416	Product Type	Hydraulic Oil FIlter Replacement Part
Micron Rating	10~200μm can be customized	Filter Media	Fiberglass with Protective Net
End Cover	Carbon Steel	Skeleton	Carbon Steel Punch Plate
Working Temperature	-30℃ ~ 120℃	Sealing Ring	Nitrile

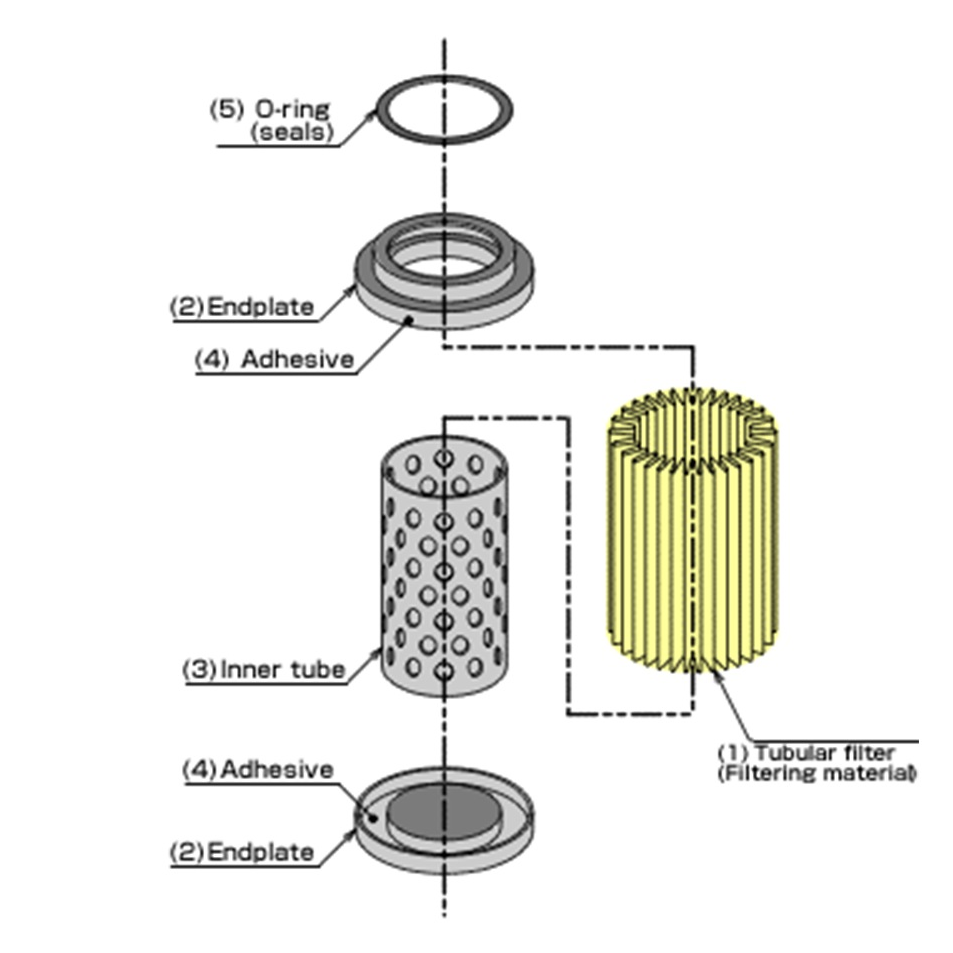

Filter Structure

A hydraulic oil filter element is composed of several essential parts, each designed to ensure stable performance during operation. Typically includes the filtration media, end caps, inner support frame, outer protective frame, and sealing ring.

► Filtration Media

Filter media is the core part of a hydraulic filter element, it removes contaminants, traps particles, and blocks impurities from entering the hydraulic circuit. Different materials and filtration grades are selected based on fluid type, working conditions, and fluid type to ensure optimal filtration efficiency.

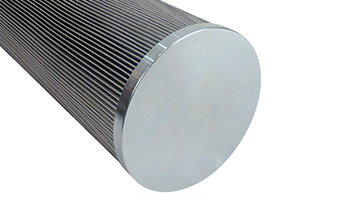

► End Caps

The end caps close off both ends of the filter media and internal flow paths, to prevent oil or air leakage that could lead to secondary contamination. The end cover can also reinforce the structure of the filter element, keeping the filter media secure under continuous high pressure and flow.

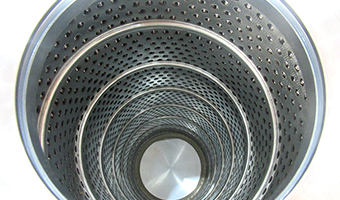

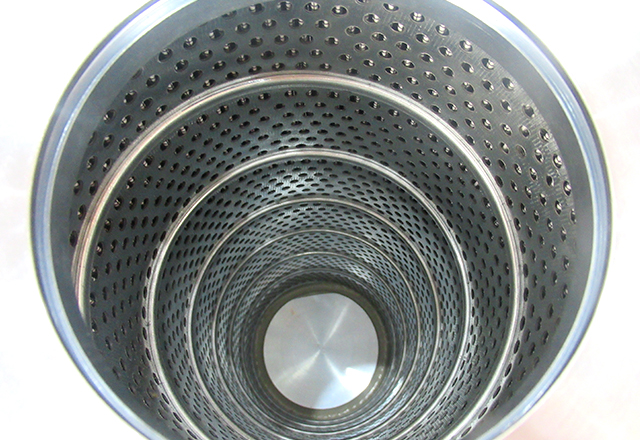

► Inner Support Frame

The inner frame is built with a thicker, stronger structure because it is the main support frame. It is often customized according to system pressure requirements, helping
reduce deformation of the media, handle pressure differentials, and keep the filter media aligned during use.

► Inner Support Frame

With lighter thickness and wider openings, the outer frame protects the element from external pressure or impact. It adds stability and helps maintain the filter’s
performance over long-term operation.

► Sealing Ring

The sealing ring is located at the interface between the filter element and the hydraulic equipment to ensures a tight fit. It's function is to prevent loosening and oil
leakage, allowing the system to maintain consistent and reliable flow.

   we can provide OEM/ODM service, contact us to get the price

Customized Service

Henan Top Environmental Equipment is a seasoned industrial filter manufacturer with strong expertise in producing customized filter cartridges for diverse applications. With years of hands-on experience, we know that different systems operate under unique conditions. Our engineering team evaluates factors such as filtration precision, working pressure, fluid properties, temperature, and installation dimensions to design filter elements that truly fit your equipment.

Whether you need specific filter media, reinforced cores, or customized end-cap designs, we offer flexible options to help your system run smoothly and last longer. Here are some of the filter parts and configurations we can customize to fit your needs.




Related Part Number

Most of the brands and part numbers that we can supply, such as HYDAC, PAEKER, PAL, LEEMIN, TAISEI, MAHLE

01.E.30.3VG.HR.E.P	01.E.30.6VG.30.E.P	01.E.30.25G.30.E.P	01.E.60.3VG.HR.E.P	01.E.60.12VG.30.E.P	01.E.90.3VG.HR.E.P	01.E.90.25G.HR.E.P
01.E.120.25VG.10.E.P	01.E.150.3VG.10.E.P	01.E.150.25G.10.E.P	01.E.170.6VG.HR.E.P	01.E.170.25G.10.E.P	01.E.240.6VG.HR.E.P	01.E.240.50G.HR.E.P
01.E.240.25VG.10.E.P	01.E.320.10VG.16.S.P	01.E.360.3VG.HR.E.P	01.E.360.6VG.HR.E.P	01.E.360.12VG.10.E.P	01.E.360.25VG.10.E.P	01.E.450.3VG.HR.E.P
01.E.450.6VG.HR.E.P	01.E.450.12VG.10.E.P	01.E.450.25VG.10.E.P	01.E.660.3VG.HR.E.P	01.E.660.6VG.HR.E.P	01.E.660.12VG.10.E.P	01.E.660.25VG.10.E.P
01.E.900.3VG.HR.E.P	01.E.900.6VG.HR.E.P	01.E.900.12VG.10.E.P	01.E.900.25VG.10.E.P	01.E.1200.25VG.16.S.P	01.NL.250.10VG.30.E.P	01.NL.250.25G.30.E.P
01.NL.630.25VG.10.E.P	01.NR.1000.4G.10	01.NR.1000.6VG.10.B.P	01.NR.1000.3VG.10.B.P	1.NR.1000.16VG.10.B.P	300104	300341
300689	304535	303055	303123	306604	306471	306442
306443	306444	306201	319435	312065	312424	312684
313679	312389	323058	322642	328370	332776	312525

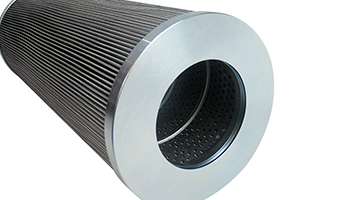

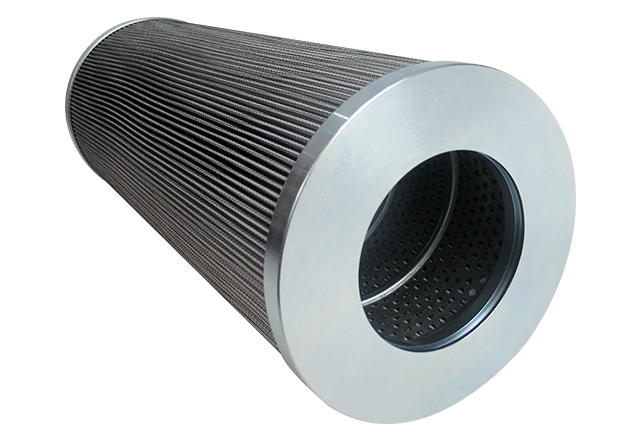

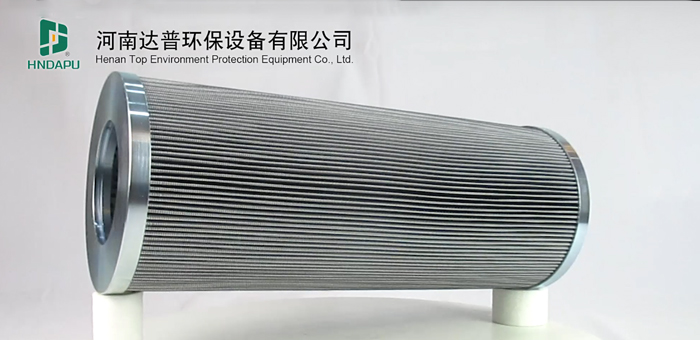

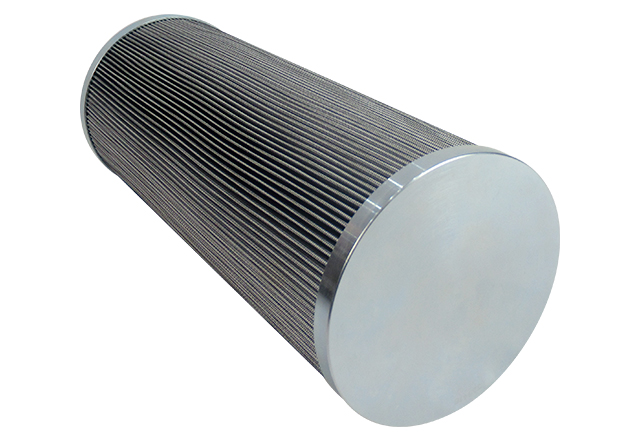

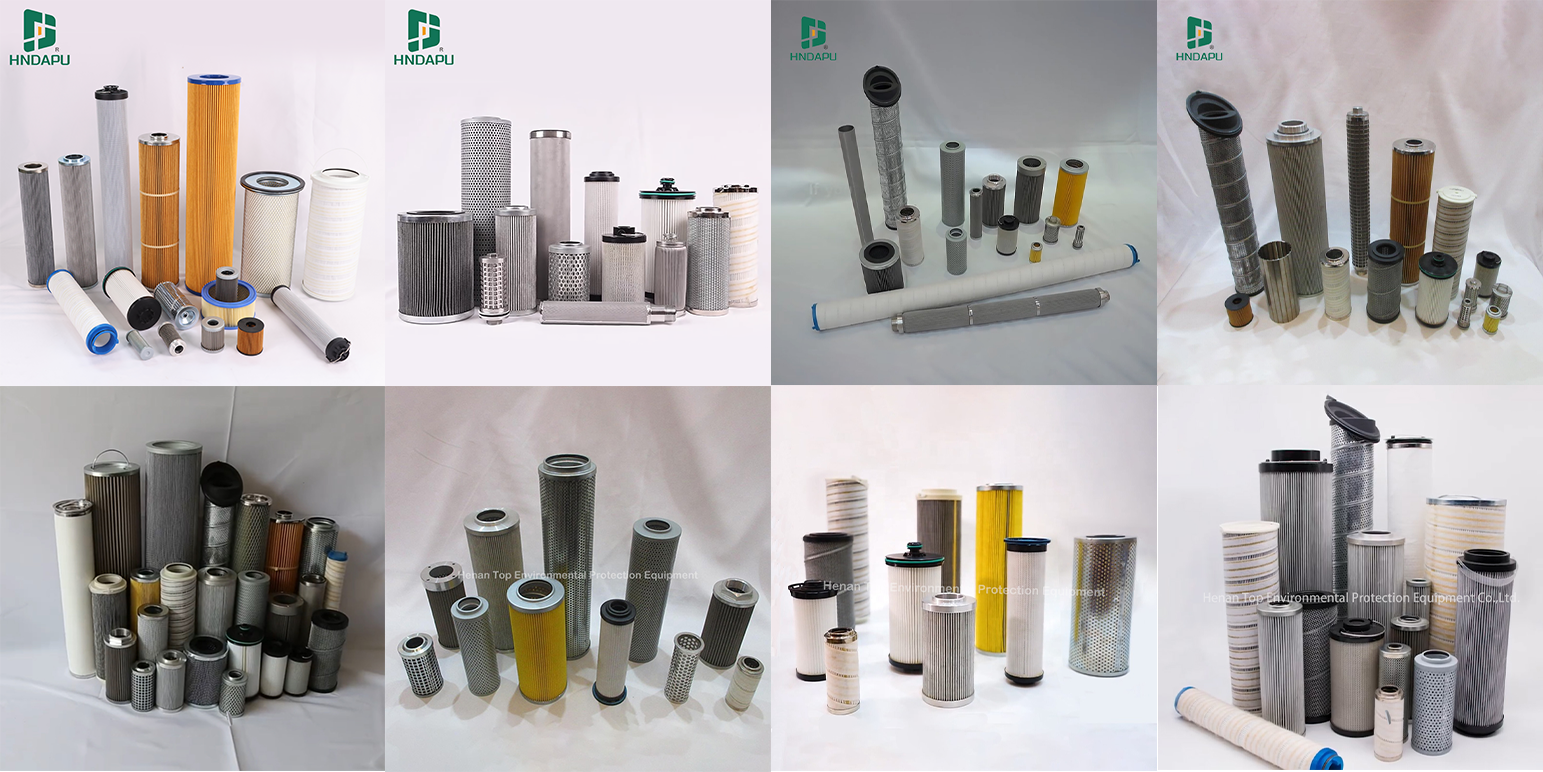

Product Pictures

Our Advantages

01

Our factory spans over 26,000 square meters and is equipped to handle full-scale filter manufacturing. As a genuine direct producer, we manage every step internally—from choosing raw materials to assembling and testing the final filter elements. This hands-on control, backed by years of production experience, allows us to maintain strict quality standards and deliver reliable, consistent performance. With complete production lines and a skilled technical team, we can handle both regular batch orders and urgent or highly customized filtration projects efficiently.

02

Our engineering team is made up of filtration specialists with years of hands-on industry experience. They understand how different filter media behave in real working conditions, what each filtration rating requires, and how equipment demands vary across applications. When a project calls for non-standard dimensions, upgraded performance, or operation in tough environments, our engineers can create a tailored design and offer practical technical support to make sure you receive the most suitable filtration solution.

03

We have years of experience handling global trade, backed by an export team that understands the purchasing habits, logistics requirements, and documentation standards of different markets. Our export process is structured and efficient, making communication clear and keeping you updated at every stage—from initial inquiry to final shipment. Whether you need help arranging freight, customizing packaging, or coordinating after-sales support, we work to make the entire experience smooth, reliable, and worry-free for our customers.

04

Our factory is certified with internationally recognized ISO and CE standards, which reflects the reliability and consistency behind every product we make. Each filter element is inspected carefully before shipment — starting with raw material checks and followed by performance testing and final visual examination. With these strict quality procedures in place, our filters deliver stable, dependable performance even when operating in demanding industrial environments.

Manufacturer & Supplier





Henan Top Environmental Protection Equipment focuses on developing and producing high-quality filtration products, supported by advanced manufacturing equipment, experienced engineers, and a well-established production management system. We provide both standard and fully customized filtration solutions to meet the needs of different industries and working conditions. Based on customer requirements, we select suitable raw materials, match the appropriate filter media, and offer full customization options — including special sizes, colors, packaging, labeling, and branding. With strong R&D capability and efficient production scheduling, we are able to complete new product development and trial runs in a short timeframe, helping customers shorten lead times and speed up market entry.

Our company holds ISO and CE certifications and has obtained several patents related to filtration technology, reflecting our long-term commitment to innovation and quality control. With more than 15 years of international trade experience, we have established a broad distribution network covering over 100 countries and regions, including North America, Eastern Europe, the Middle East, and Southeast Asia. Over the years, we’ve built stable, long-term partnerships by consistently delivering reliable products and responsive service. Guided by the principles of responsibility, professionalism, and integrity, we continue to grow our global presence and aim to be a trusted supplier for customers seeking durable, high-performance filtration solutions.


Factory Show

Application field

Power plant

In power plants, oil filter elements are mainly used in turbine lubrication systems, hydraulic control units, and gearboxes. They help remove fine particles and moisture from lubricating oil, ensuring stable turbine operation, reducing wear, and preventing unplanned shutdowns.

Steel plant

Steel plants operate heavy hydraulic equipment such as rolling mills, continuous casting machines, and high-pressure systems. Oil filter elements keep the hydraulic oil clean, prevent valve blockage, protect pumps and cylinders, and maintain stable pressure during long and intensive production cycles.

Petrochemical

In petrochemical processes, oil filter elements are used in lubrication systems, compressors, pumps, and hydraulic power units. They help filter out solid contaminants, oxidation residues, and sludge, ensuring equipment runs safely in high-temperature and corrosive environments.

Electronic industry

Electronic manufacturing equipment requires high-precision and low-contamination hydraulic and lubrication systems. Oil filter elements maintain strict oil cleanliness levels to protect precision actuators, coating systems, and cleanroom machinery, reducing micro-contamination that could affect product quality.

Wind power system

In wind turbines, oil filter elements are essential for gearbox lubrication, hydraulic pitch control, and cooling systems. They remove wear particles generated during long-term operation, maintain oil stability under temperature variations, and extend the life of key components such as gears and bearings.
