Replacement hydac N5AM002 from China Manufacturer

Product Description

This series of filter elements is a replacement product of HYDC filter elements, which can completely replace the HYDC filter elements in terms of function and filtering effect.
HYDC filter element test standard:
* Filter burst resistance verification according to ISO 2941
* Filter element structural integrity according to ISO 2943
* Filter element compatibility verification according to ISO 2943
* Filter filter characteristics according to ISO 4572
* Filter pressure difference characteristics according to ISO 3968
* Flow rate-differential pressure characteristic test according to ISO 3968

Technical Parameters

Filter media: general hydraulic oil, phosphate grease hydraulic oil, emulsified liquid, water-hexanediol
Filtration accuracy: from 1, 3, 6, 12, 25...μm
Filtration ratio: X≧100
Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
Working temperature: -30℃～+100℃

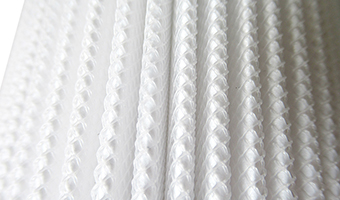

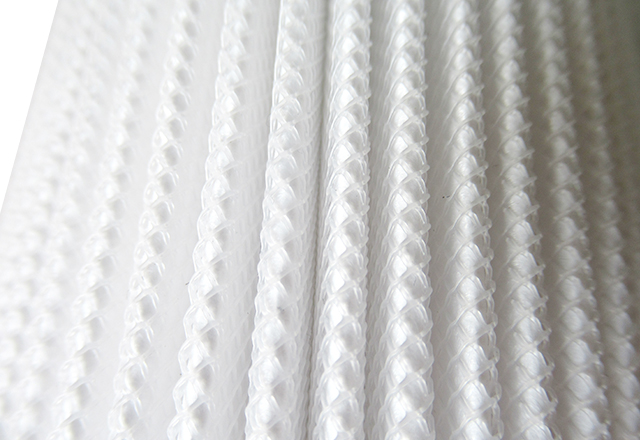

Filter material: high-quality glass fiber filter material
Sealing material: fluorine rubber ring, nitrile rubber
Scope of application: It can be used for pressure oil filtration of hydraulic and lubrication systems to filter out pollutants in the system and ensure the normal operation of the system.

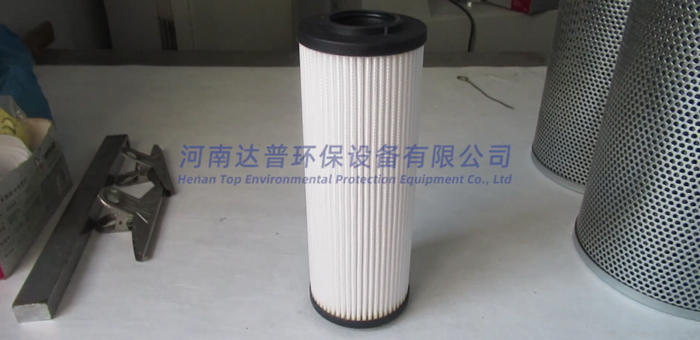

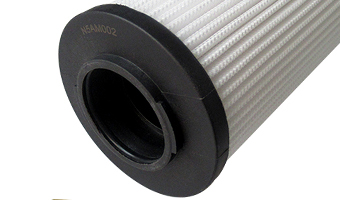

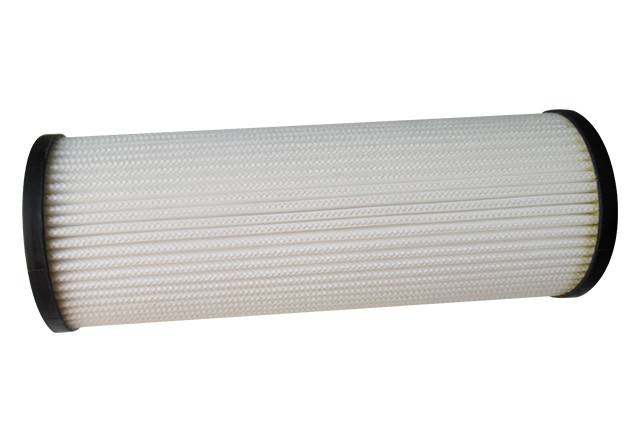

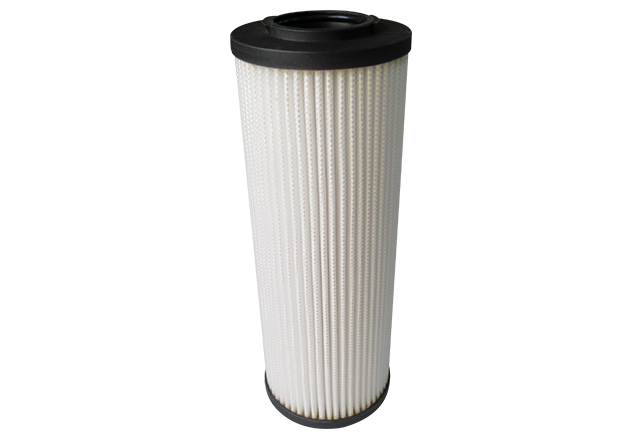

Product name	Replacement oil filter N5AM002

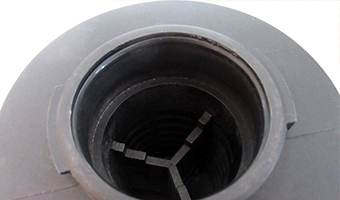

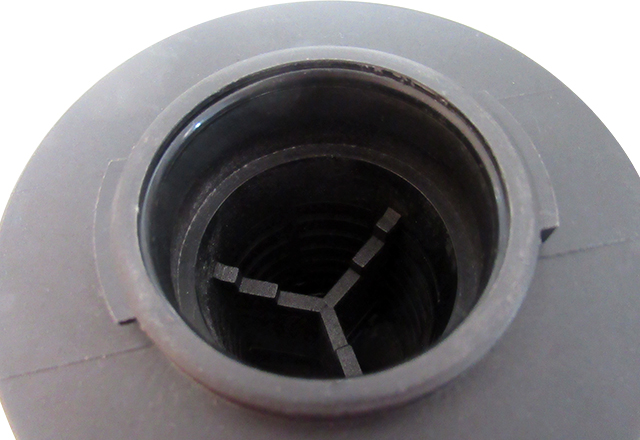

End cover/Inner skeleton	Plastic
Size	OD 95mm H 255mm
Micron Rating	2 micorn

Advantages

Good filtration performance, 2-200um filter particle size can play a uniform surface filtration performance.

Good corrosion resistance, heat resistance, pressure resistance and wear resistance;

Filter hole uniform, accurate filtration accuracy;

Filter is suitable for all kinds of hydraulic environment;

MODEL:

0030D003ON 0030D005ON 0030D010ON 0030D020ON0030D020P 0030D020W
0060D003ON 0060D005ON 0060D010ON 0060D020ON 0060D020P 0060D020W
0110D003ON 0110D005ON 0110D010ON 0110D020ON 0110D020P 0110D020W
0140D003ON 0140D005ON 0140D010ON 0140D020ON 0140D020P 0140D020W
0160D003ON 0160D005ON 0160D010ON 0160D020ON 0160D020P 0160D020W

For more model,please contact us.
