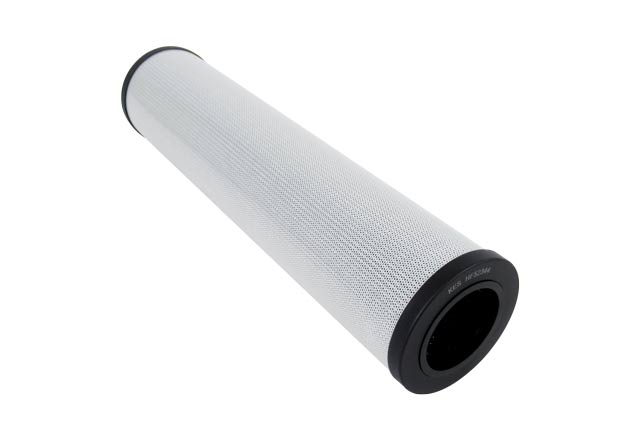

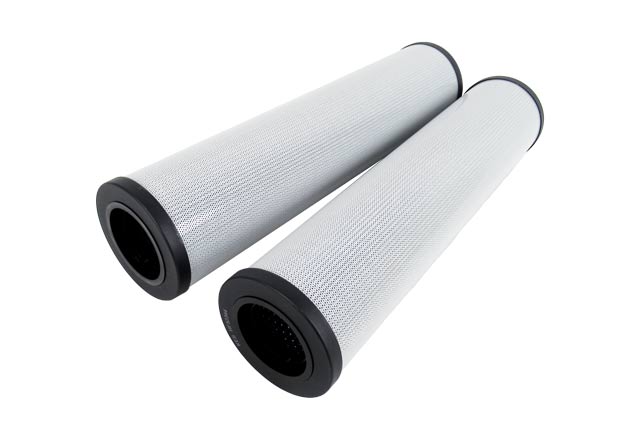

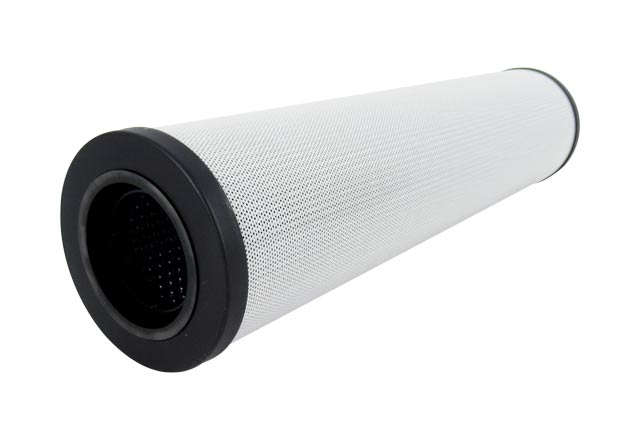

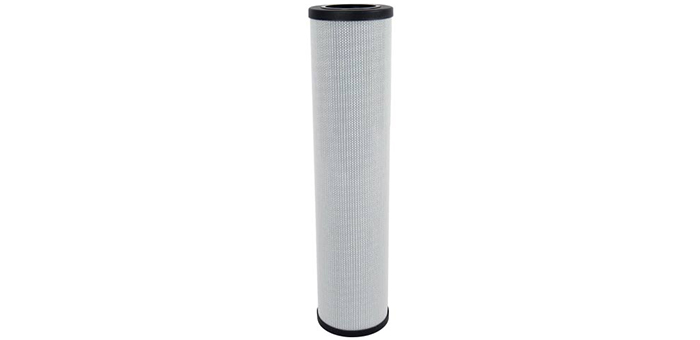

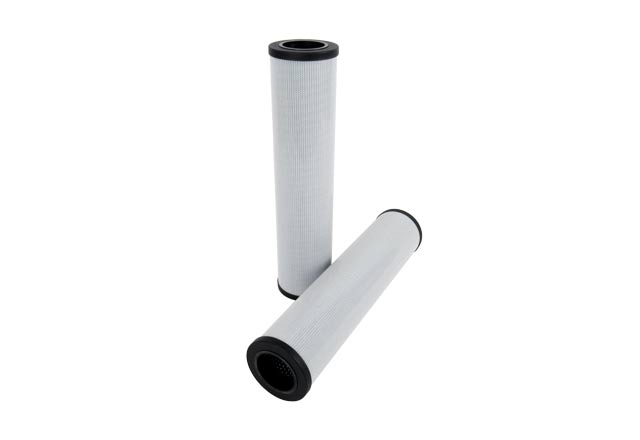

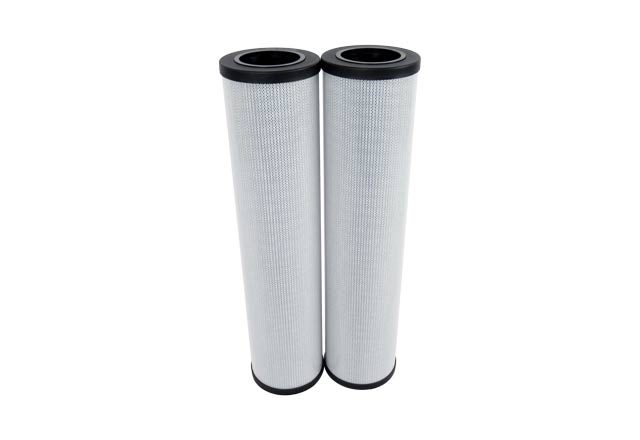

HIFI HF52344 Replacement Hydraulic Return Filter

Product Description

The TOPEP HF52344 replacement hydraulic filter is designed as an aftermarket alternative to HIFI FILTER SH 52344, a hydraulic return line filter used in mobile and industrial hydraulic applications. The filter is designed to help remove particulate contamination from hydraulic oil and maintain cleaner fluid circulation within hydraulic systems.

The HIFI SH 52344 is identified as an in-tank and return line filter in HIFI FILTER application data. It is used on a range of heavy-duty equipment, including selected DEMAG, EPIROC, TEREX and VERVAET machines.

TOPEP provides aftermarket replacement hydraulic filters for customers who require a cost-effective alternative to branded filter elements. Customers can provide the original part number, filter sample, drawing, dimensions or product photographs for replacement verification.

Specifications

Product Type	Hydraulic Return Filter
Replacement Model	HF52344
Filter Application	Hydraulic Return Line
Filter Location	In-Tank / Return Line
Outer Diameter	Approx. 118 mm
Inner Diameter	Approx. 57.3 mm
Length	Approx. 498 mm
EPIROC Reference	6060.0166.82
SF Filter Reference	HY 10470
Atlas Copco Reference	8231.0464.10
Filter Type	Aftermarket Replacement
Customization	Available

Product Features

1. Efficient Hydraulic Filtration

HF52344 is designed for hydraulic return line applications where continuous contamination control is required. The filter helps capture particulate contaminants from hydraulic oil before the fluid returns to the hydraulic reservoir, supporting cleaner oil circulation and reliable system operation.

2. Designed for Return Line Applications

The HF52344 replacement filter is designed for hydraulic return filtration and can be used in systems where hydraulic oil needs to be filtered before returning to the tank. Proper return filtration helps reduce contamination within the hydraulic circuit and supports the service life of hydraulic components.

3. Replacement for HIFI SH 52344

This product is manufactured as an aftermarket replacement for HIFI FILTER SH 52344. It provides an alternative solution for customers who need to replace the original branded filter while maintaining the required installation dimensions and filtration function.

4. Wide Equipment Compatibility

HIFI FILTER application information associates SH 52344 with equipment from DEMAG, EPIROC, TEREX and VERVAET. Applications include EPIROC FlexiROC D series and TEREX CC series equipment.

5. Multiple Cross-Reference Options

The filter can also be identified through several cross-reference numbers, including EPIROC 6060.0166.82, SF HY 10470 and Atlas Copco 8231.0464.10. Cross-reference numbers can help distributors and maintenance companies locate a suitable replacement.

6. Cost-Effective Aftermarket Solution

TOPEP provides aftermarket replacement filters for customers looking for an alternative to original branded filter elements. The replacement solution is suitable for equipment maintenance, distributor supply and regular filter replacement programs.

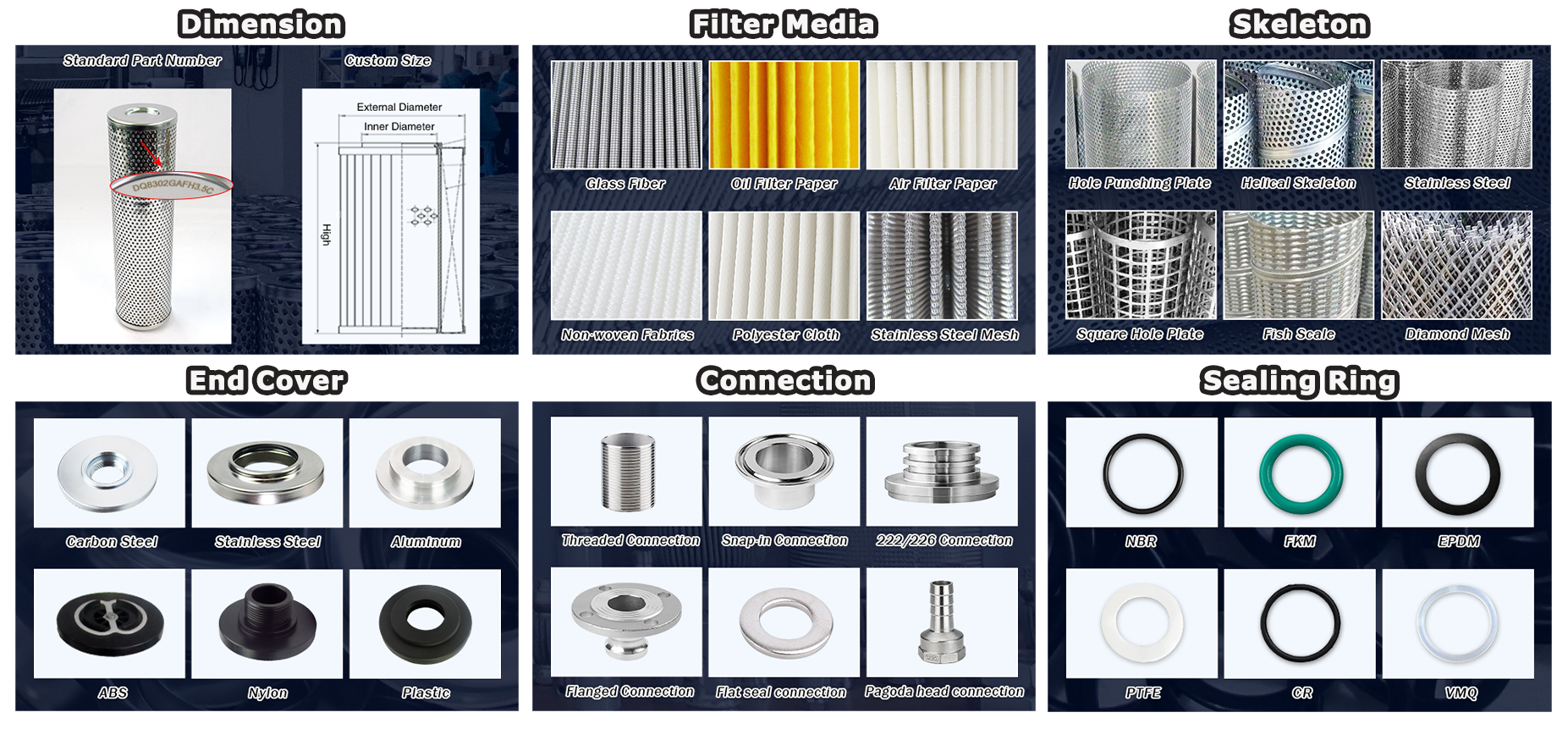

Customizable Options

Not every hydraulic filtration application has the same requirements. TOPEP provides customized filter solutions based on your equipment, operating conditions and filtration requirements. You can customize the filter size, connection, filter media and shape to match your original filter or specific application.

Whether you need a replacement for an existing branded filter or a new filter for a customized hydraulic system, our technical team can evaluate your requirements and provide a suitable filtration solution. Send us your original filter sample, drawing, dimensions or product photos, and we can help confirm the structure and develop the required filter.

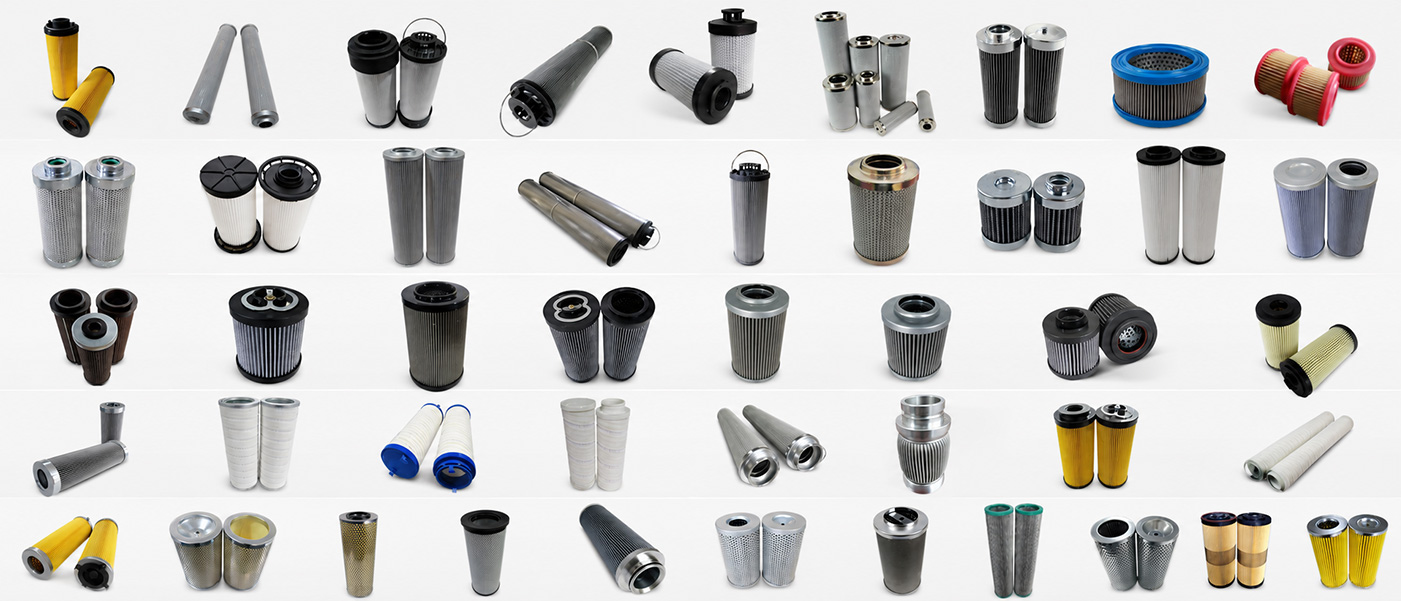

Other Filtration Products

TOPEP provides aftermarket replacement filter elements for a wide range of internationally recognized filtration brands. Our replacement products are developed according to original part numbers, dimensions, filter structures and application requirements, helping customers source cost-effective alternatives for routine maintenance and filter replacement.

Whether you are replacing a single filter element or sourcing multiple models for regular maintenance, our team can check the original part number and provide a suitable aftermarket replacement. Customers can send us the brand name, original part number, product photo, dimensions or sample, and we can help identify the corresponding replacement solution.

With more than 20 years of filtration manufacturing experience, TOPEP focuses on consistent dimensions, reliable filtration performance and stable production quality. We also support customized packaging, labels and logos for distributors, dealers and long-term replacement filter programs.

FAQS

Q1: Can you manufacture a replacement for HIFI SH 52344?
Yes. TOPEP can provide an aftermarket replacement based on the original part number, dimensions, drawing, sample or product photographs.

Q2: Can you manufacture other HIFI replacement filters?
Yes. We supply replacement filter elements for multiple HIFI FILTER models and can also support replacement filters for other international brands.

Q3: How can I confirm the correct replacement?
Please send the original filter part number, equipment brand and model, filter dimensions or clear photographs. We recommend confirming the filter information before placing an order.

Our Advantages

Our company operates a real, fully equipped factory covering over 26,000 square meters. As a direct manufacturer, we specialize in producing filters and have accumulated many years of hands-on experience. Every step—from selecting raw materials to final assembly—is carried out under strict quality control. With complete production lines and skilled technicians, we can manage routine orders as well as urgent or custom requirements with confidence and efficiency.

Our engineering team is made up of professionals who have been deeply involved in the filtration field for many years. They understand the properties of different filter media, the requirements for various filtration accuracies, and the operating conditions across a wide range of industries. Whether your project calls for unusual dimensions, higher performance, or a solution that can withstand tough working environments, our engineers can offer tailored designs and practical guidance to help you get the results you need.

Our factory has passed internationally recognized ISO and CE certifications, which further demonstrates the reliability of our product quality. Each filter element is carefully inspected before shipment — from raw material verification to performance testing and visual checks. With these strict quality controls in place, customers can count on our filters to deliver stable and consistent performance even in demanding industrial conditions.

We have years of experience in international trade and a dedicated export team that understands the purchasing habits, logistics procedures, and documentation requirements of different markets. Our export process is well-established, allowing us to provide clear communication and timely updates from the initial inquiry to the final shipment. From arranging transportation to customizing packaging and handling after-sales service, we aim to make every step smooth and reliable for our customers.
