Stainless Steel Filter Element 6.2*59mm Metal Filter Cartridge

Product Description

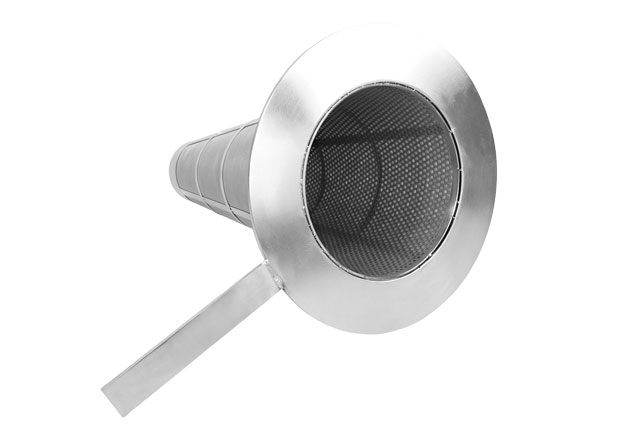

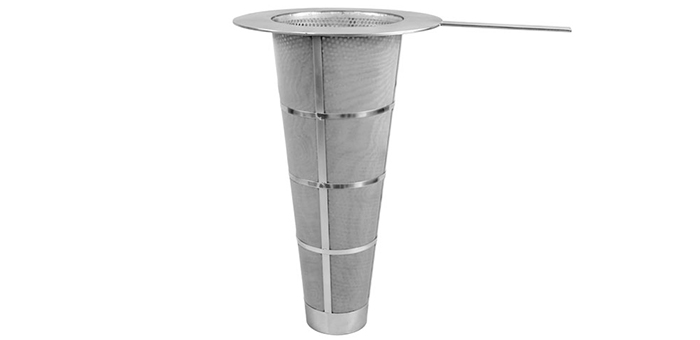

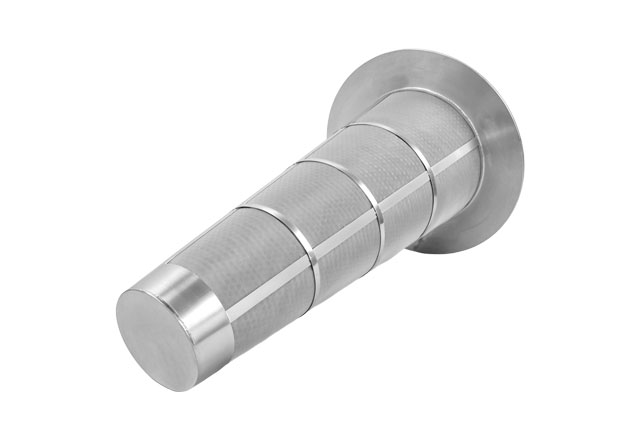

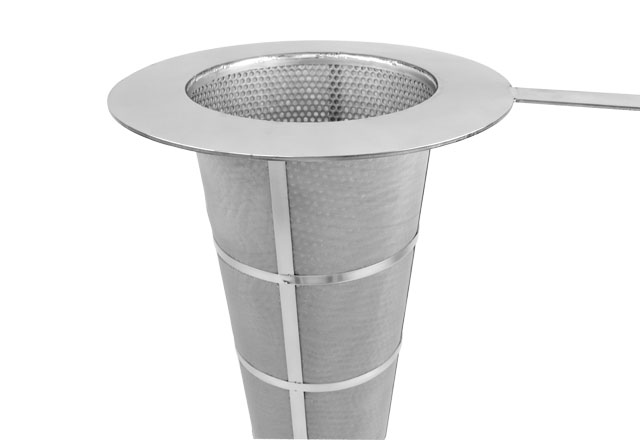

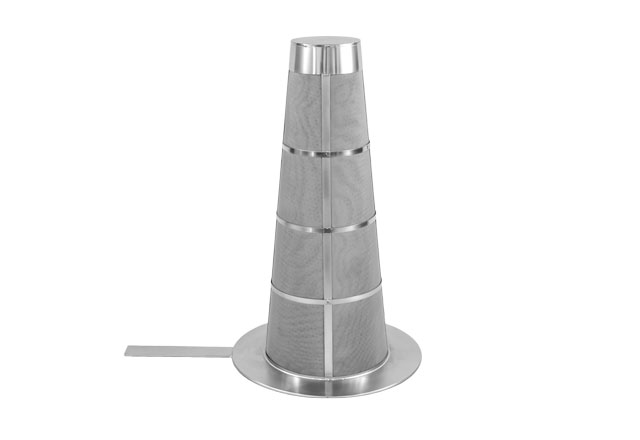

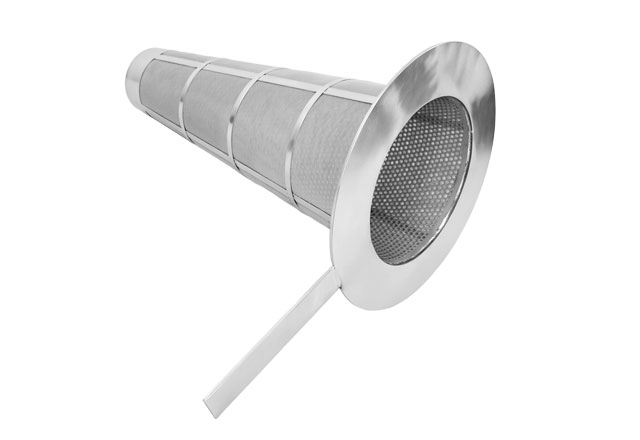

The stainless steel basket filter element is a durable and reusable filtration component designed for industrial liquid filtration systems. Made from high-quality 304 stainless steel, this conical filter basket provides excellent mechanical strength, corrosion resistance, and long service life under demanding operating conditions.

With a tapered basket structure and large filtration area, this filter element allows efficient flow while capturing solid particles and impurities from liquids. The open basket design makes cleaning and maintenance easier, helping reduce replacement frequency and operating costs.

This model features a customized conical structure with an outer diameter of 380×180mm and height of 620mm, making it suitable for large-capacity filtration equipment requiring reliable particle separation.

Technical Parameters

Product Name	Stainless Steel Basket Filter Element
Material	304 Stainless Steel
Shape	Conical Basket Filter
Outer Diameter	380×180 mm
Height	620 mm
Filter Type	Basket Strainer Element
Structure	Stainless Steel Mesh Construction
Reusable	Yes
Filtration Rating	Customized
Application	Liquid Filtration

Product Features

1. Durable 304 Stainless Steel Construction: Manufactured from premium 304 stainless steel, the filter basket offers excellent corrosion resistance and mechanical stability. It can withstand continuous operation in various industrial liquid filtration environments.

2. Conical Basket Design: The tapered structure provides a larger effective filtration area compared with traditional flat filter designs. The cone shape improves liquid flow distribution and supports efficient particle collection.

3. High Flow Filtration Performance: The stainless steel basket structure maintains stable flow capacity while effectively removing contaminants, suspended solids, and impurities from process liquids.

4. Reusable and Easy Maintenance: Unlike disposable filter elements, stainless steel basket filters can be cleaned and reused. Regular cleaning helps extend service life and reduces maintenance costs.

5. Custom Manufacturing Available: TOPEP provides customized basket filter solutions including dimensions, filtration accuracy, mesh type, connection design, and material options.

Comparison: Stainless Steel Filter Element vs. Glass Fiber Filter Element

When reliability matters, stainless steel delivers. Unlike fragile alternatives, our stainless steel filter elements offer superior strength with zero particle shedding – so your process stays pure and safe. They withstand harsh chemicals, extreme heat, and high pressure without breaking down. You get stable, precision filtration and consistent flow over the long haul. Fewer replacements, less downtime, and lower maintenance mean real savings. Plus, they're reusable and environmentally responsible. From food and pharma to chemical engineering, stainless steel handles the toughest, most hygienic applications with ease.

Feature	Stainless Steel (304/316)	Glass Fiber
Material	High-grade 304/316 stainless steel	Glass fiber
Corrosion Resistance	Excellent (resists acids, alkalis, chemicals)	Limited (easily corroded by chemicals)
High Temperature Resistance	Excellent (withstands high temperatures)	Limited (deforms or fails under high heat)
Pressure Resistance	Excellent (high burst strength)	Poor (easily damaged under pressure)
Filtration Accuracy	High (precision woven mesh or pleated design, controllable micron rating)	Moderately high (but degrades over time)
Fragility / Mechanical Strength	Tough, impact-resistant, not easily damaged	Brittle, fragile, easily broken
Long-Term Cost Efficiency	Higher initial cost but long service life → lower total cost	Low initial cost but frequent replacement → higher total cost

Stainless steel filter elements outperform glass fiber in durability, temperature/pressure resistance, reusability, and long-term cost. While glass fiber has a lower upfront cost, its fragility, non‑renewable nature, and frequent replacement make it inferior in overall performance. Stainless steel is the ideal choice for high-purity, high-reliability industries.

FAQ

Q1: What does 100 mesh mean for a stainless steel filter?
A: 100 mesh refers to the mesh specification of the filter layer. The actual particle retention capability is also affected by wire diameter, opening size, particle shape, and the properties of the filtered fluid.

Q2: Why does the filter use a perforated inner support tube?
A: The inner perforated tube provides mechanical support for the mesh layer. It helps prevent the filter media from collapsing or deforming under fluid pressure while maintaining an open flow path.

Q3: Can the male thread be changed to another connection?
A: Yes. Thread specifications and other connection designs can be customized according to the customer's existing equipment.

Q4: Is this filter suitable for liquid filtration?
A: Yes. It can be used for various industrial liquid filtration applications. The final filter specification should be selected according to the fluid, flow rate, particle characteristics, pressure, and temperature.

Q5: Can the stainless steel mesh filter be cleaned?
A: Yes. Stainless steel mesh is suitable for cleaning and reuse under appropriate conditions. The recommended cleaning method depends on the contaminants collected on the filter surface.

Q6: Can you manufacture a replacement based on a sample?
A: Yes. We can manufacture replacement stainless steel filter elements based on samples, drawings, dimensions, thread specifications, or other technical requirements.

Q7: What information is needed for a customized filter?
A: Please provide the overall dimensions, mesh rating, connection type and size, material, fluid type, working temperature, working pressure, and flow requirements whenever available.

Advantages

The End of Disposable Filtration: Reusable Stainless Steel Core for Unmatched Hydraulic System Longevity and Operational Cost Reduction.Superior Metallurgy and Precision Welding: 304 Stainless Steel Construction Guarantees Corrosion Resistance and Immunity to Structural Collapse. Engineered for Seamless Integration and Leak-Free Sealing Across Global OEM Standards. Washable and Sustainable Design: Reducing Hazardous Waste Streams While Maintaining Peak Filtration Efficiency.

In terms of technology and craftsmanship, we feature leading manufacturing processes and precision engineering: Laser Welding and Precision Pleating — Enhancing the filter element's pressure resistance and filtration accuracy. High Quality Stainless Steel Materials — Offering corrosion resistance, high-temperature durability, and a long service life. Rigorous Testing — Including pressure resistance tests, service life tests, and filtration accuracy verification.

20+ Years as a Direct Filter Manufacturer: TOPEP integrates advanced production lines, senior engineering expertise, and a complete quality management system to deliver reliable hydraulic and industrial filters. From prototyping to bulk orders, we ensure consistent performance, ISO-tested materials, and responsive after-sales support. Choose TOPEP for cost-effective filtration solutions you can trust.

In terms of maintenance and usage, this filter element is easy to clean, offers a long service life, and requires minimal maintenance. Ease of Cleaning — Detachable for cleaning and suitable for repeated reuse. Precautions — Avoid scratching the filter element with sharp objects; periodically inspect the pores for clogging. Economic Benefits — Compared to traditional paper filter elements, it offers a longer service life and lower overall costs.
