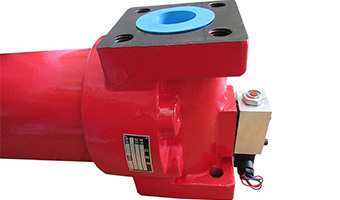

The filter is installed in the pressure pipe of the hydraulic system to filter the mechanical impurities mixed with the hydraulic oil and the chemical changes of the hydraulic oil itself produced by the gelatine, leeching quality, carbon slag quality, so as to prevent the spool stuck, throttle hole gap and damping hole plugging and hydraulic components too fast wear and other faults.The filter has good filtering effect and high precision, but it is difficult to clean after blocking, so the filter element must be replaced.
Working pressure (Max): 32MPa
Nominal flow: 10-800L/min
Filtration accuracy: 1-30μm
Nominal diameter: 15-55mm
Connection mode: threaded flange plate type
high filtration accuracy, according to customer needs to configure the fine degree of the filter screen.
the working principle is simple, the structure is not complex, easy to install, disassemble and maintenance.
Less wearing parts, no consumables, low cost of operation and maintenance, simple operation and management.
Stabilize the production process, protect instruments and mechanical equipment, and maintain the safety and stability of production.
