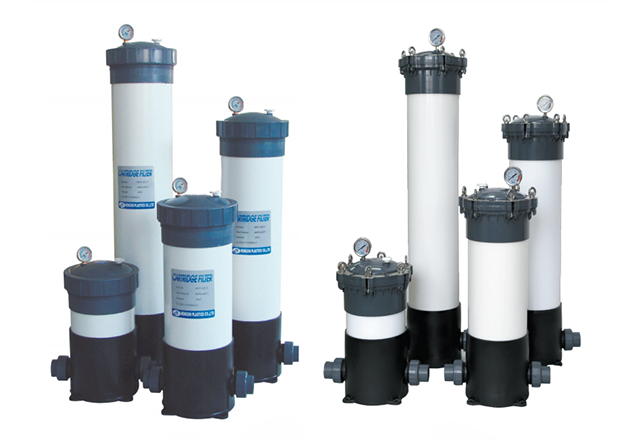

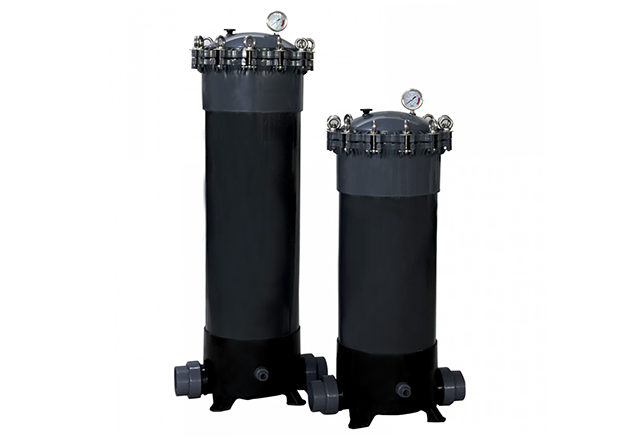

UPVC Filter Housing with PP Filter Cartridge

Product Description

UPVC filter is a new generation of filter developed after comprehensive consideration of the advantages and disadvantages of current industrial and civil water treatment filter equipment, process improvement and material optimization. Compared with the old generation of filters, it has the characteristics of low price, high precision, strong corrosion resistance and reliable performance. Widely used in food, cosmetics, chemical, medical, textile and other fields

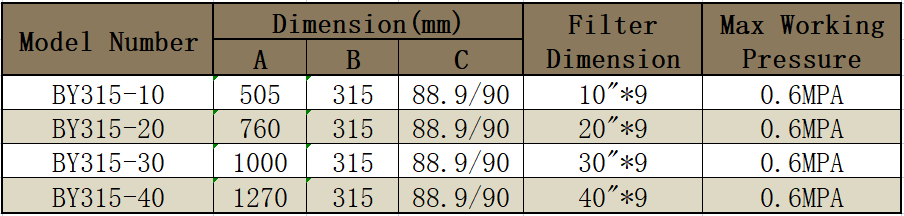

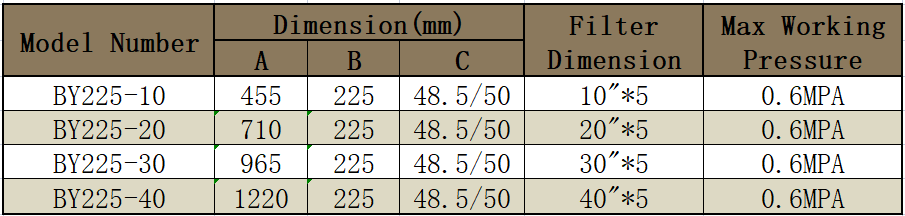

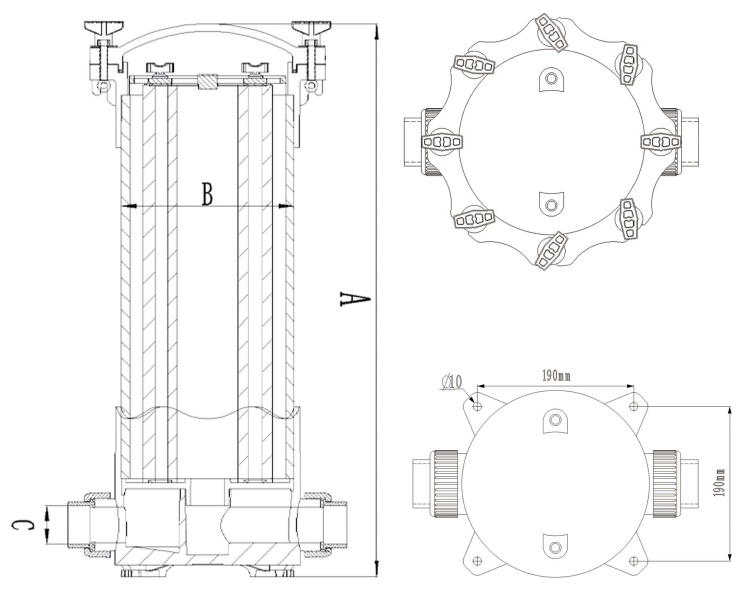

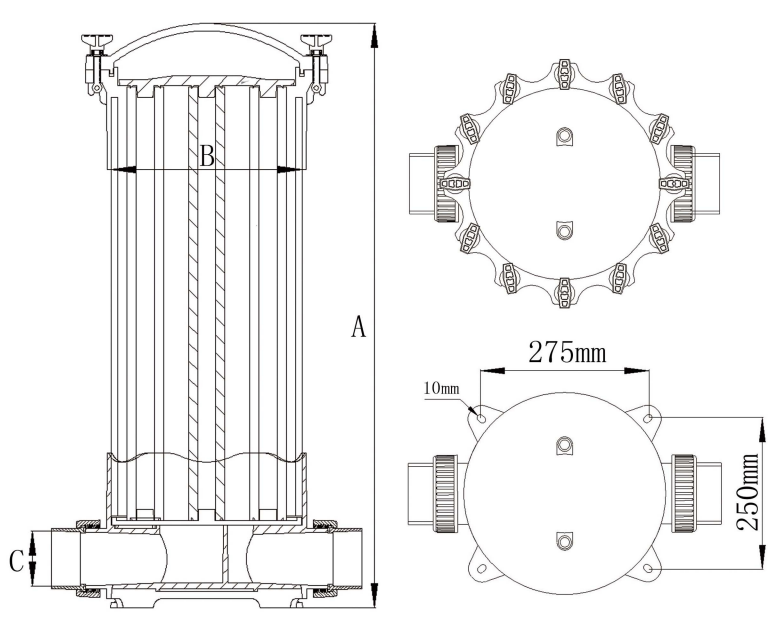

Technical Parameters

Features

UPVC precision filter has strong corrosion resistance and can be used in areas where stainless steel and carbon steel cannot enter, such as food chemical, industrial acid and alkali salt solution, cooling tower circulation filtration, ultrafiltration membrane water inlet

The filter water distribution adopts the filter bottom center to evenly distribute water to the surrounding area, and the filter element has low impact resistance; the top is equipped with an exhaust valve to facilitate the discharge of air in the filter

The maximum operating temperature: 45℃, the thread size of the exhaust valve and pressure gauge installation hole reserved on the top cover is: G1/4", and a metric pressure gauge needs to be ordered with an adapter

There is a PP cotton filter element positioning inside the filter, and the filter element does not need to be adjusted on the upper cover (avoiding the traditional installation method). The bottom plate and the top pressure plate adopt an integrated design, and the installation and tightening of the filter element are convenient and fast.

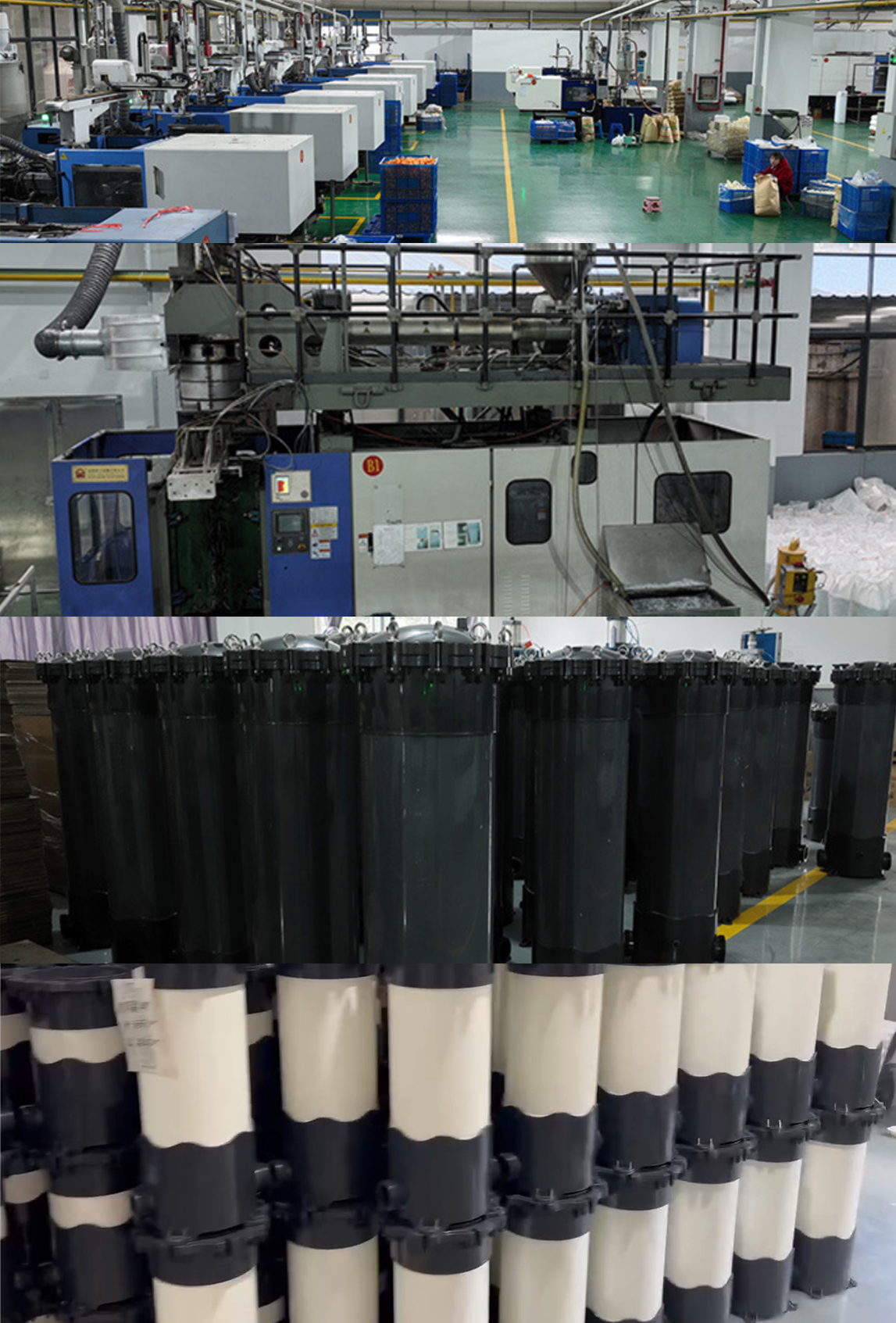

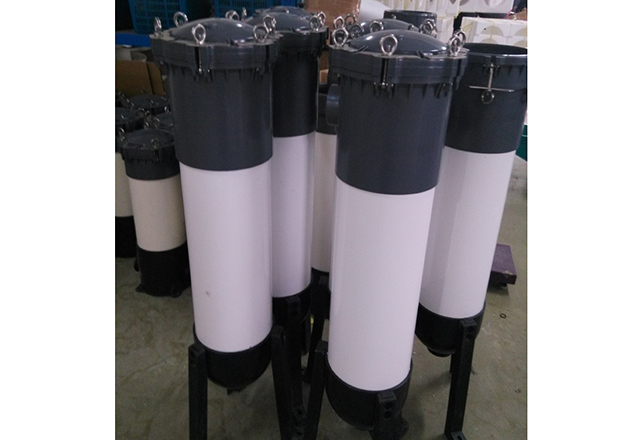

Factory Show
