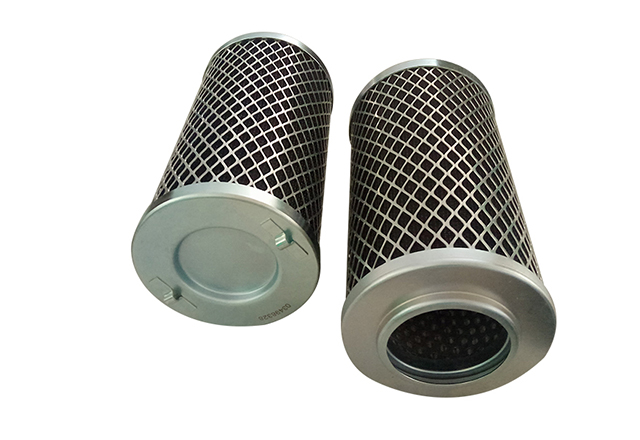

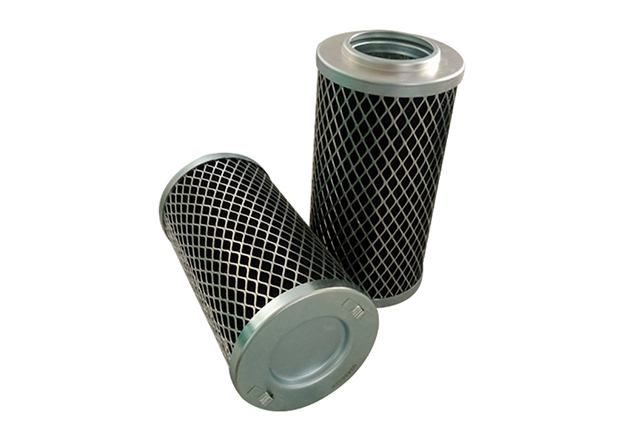

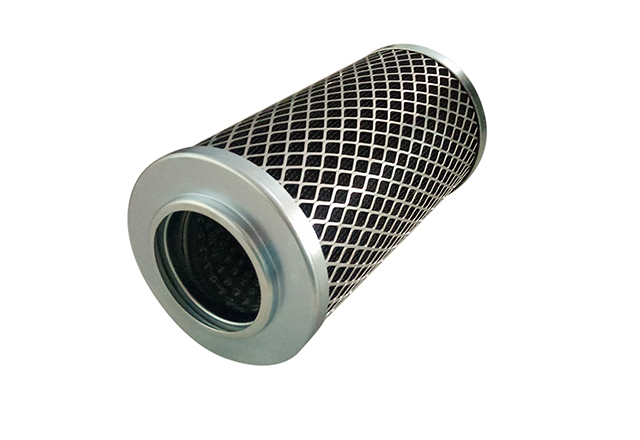

Oil and gas Separation Filter from China Manufacturer

Oil Separator for air compressor

Media material:

plastic mesh and glass fiber

Accuracy:

10 micron

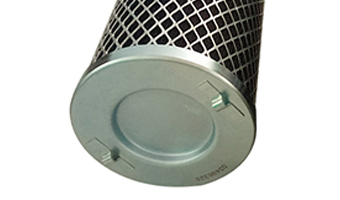

End caps:

carbon steel

Product Description

The oil and gas separation filter is a device that separates the gas in the lubricating oil to ensure that the lubrication system can work normally.

Application: petrochemical, metallurgy, aviation electronics, electric power, pharmaceutical, environmental protection, atomic energy, nuclear industry, natural gas, refractory, fire fighting equipment and other fields of solid-liquid gas-solid gas-liquid separation and purification

Working principle:

The air compressed from the main compressor head entrains oil droplets of different sizes. Large oil droplets are easily separated through the oil and gas separation tank body, while small oil droplets must pass through the micron level of the oil and gas separation filter element. The correct selection of glass fiber diameter and thickness is an important factor to ensure the filtering effect. After the oil mist is intercepted, diffused and polymerized by the filter material, small oil droplets quickly aggregate into large oil droplets. Under the action of the filter layer, the oil settles at the bottom of the filter element. The oil passes through the oil return pipe inlet at the bottom of the filter element and continuously returns to the lubrication system, so that the compressor discharges relatively pure and high-quality compressed air.

Applications

Aviation fuel, gasoline, kerosene, diesel

Liquefied petroleum gas, stone tar, benzene, toluene, cumene, polypropylene, cumene, etc

Turbine oils and other low viscosity hydraulic fluids, lubricating oils

Cycloethane, isopropanol, cycloethanol, cycloacetophenone and other hydrocarbon compounds

Parameter

Oil content of gas after separation: 3PPM W/W

Initial differential pressure: 0.02mpa

Replacement pressure difference: 0.7mpa

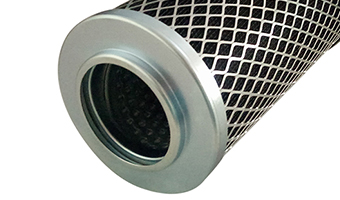

End cover	Carbon steel

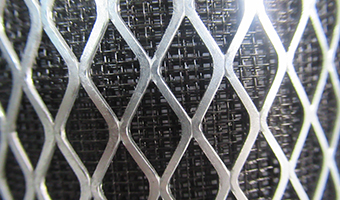

Outer frame	Diamond mesh
Inner frame	Carbon steel
Seal	Fluorine rubber gasket
