TOPEP Supply Equivalent PFF55363B Oil Filter

Product Description

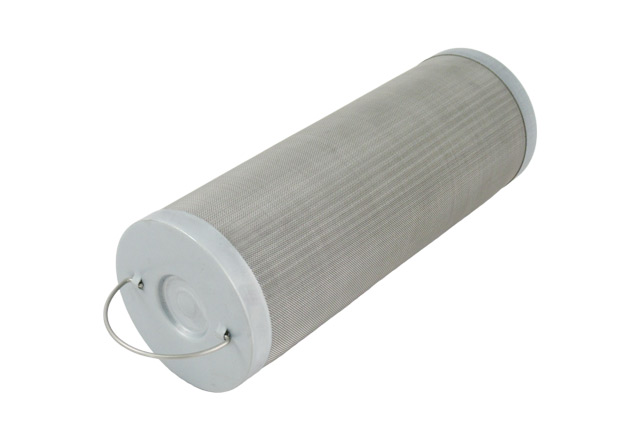

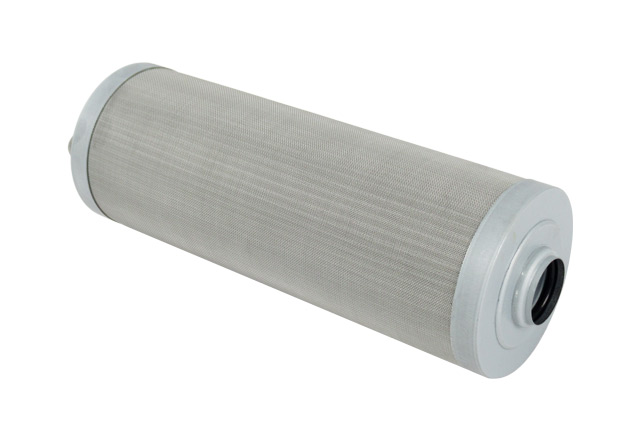

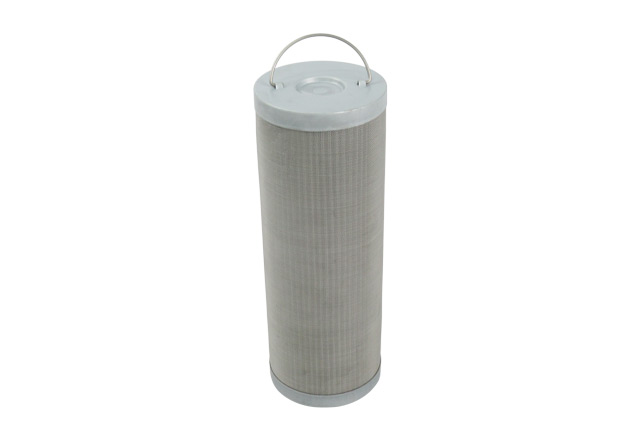

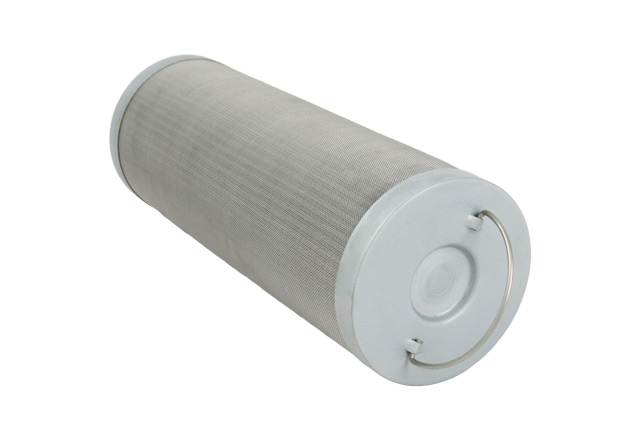

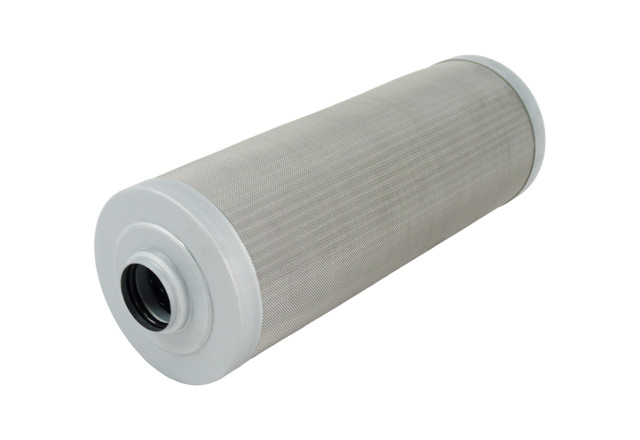

The PFF55363B filter element is constructed with carbon steel end caps and a stainless steel wire mesh filtration medium. The entire structure is designed as an all-metal reusable filtration element, suitable for high-temperature, high-pressure, and corrosive working conditions.

The filtration layer adopts precision-woven stainless steel mesh, which provides stable filtration performance and excellent mechanical strength. The stainless steel mesh structure allows for surface filtration with high dirt-holding capacity and enables repeated cleaning and regeneration through backwashing or ultrasonic cleaning.

The carbon steel end caps ensure strong structural integrity and reliable sealing performance under demanding industrial conditions. This all-metal design eliminates fiber shedding risk, making it ideal for applications requiring high cleanliness and long service life.

Technical Parameters

Item	Specification
Model Number	C6004L16587
Filter Type	Stainless Steel Wire Mesh Filter Element
End Caps Material	Stainless Steel (SS304 / SS316 optional)
Filter Media	Stainless Steel Woven Wire Mesh
Filtration Type	Surface Filtration
Filtration Precision	1–200 μm (customizable)
Working Pressure	≤ 10–25 bar (depending on structure)
Working Temperature	-20°C to 300°C (stainless steel full metal structure)
Flow Direction	Outside-in / Inside-out (optional design)
Corrosion Resistance	Excellent (suitable for chemical and oil media)
Application Media	Hydraulic oil, lubricating oil, water, gas, chemical fluids
Customization	Available (size, micron rating, structure)
Service Life	Long-term reusable under proper maintenance

Filter Structure

A hydraulic oil filter element typically consists of end covers, sealing rings, an inner skeleton, an outer skeleton, and filter media.

►End Cover--Be used to seal both ends of the filter media and the filter element channels, to prevent the secondary pollution caused by gas or liquid leakage, and to support the filter media to ensure the normal operation of the oil filter element.

►Sealing Ring--Located at the connection between the filter element and the machine, to prevent the filter element from loosening or oil leakage, ensuring the oil circulation in the hydraulic system is normal.

►Inner Skeleton--Serves as a support frame, with high thickness. It is typically custom-made according to working pressure to reduce the resistance caused by uneven distribution of the filter media, withstand pressure differentials, and ensure the verticality of the filter media.

►Outer Skeleton--Serves as a protective frame, with a lower thickness and larger pore size. It is used to prevent the filter element deformation caused by external pressure and impacts, and to provide additional support for the filter element.

►Filter Media--The core component of a filter cartridge, used to filter impurities, separate substances, and adsorb pollutants. Various materials and specifications are available according to different filter media and the operating environment.

Customized Service

Henan Top Environmental Equipment as a industrial filter supplier, has extensive experience in customized filter cartridges. We have professional
technical team to design the most suitable filters depend on your using condition. Here are some filter parts that we can custom.

Economical Aftermarket Choice without Compromise: Get OEM-level protection at a fraction of the cost. This filter delivers superior filtration, ensuring safety, reliability, and peace of mind for your engines. Protects Critical Components and Reduces Costs: By keeping lubricating oil clean, this filter extends engine life, reduces maintenance frequency, and prevents costly repairs. It’s the ideal solution for fleet operators, industrial facilities, and aviation maintenance teams looking for dependable, high-quality filtration. This filter element fits the corresponding vehicle and industrial lubrication systems perfectly, effectively intercepting impurities, dust, and metal debris in lubricating oil to maintain oil cleanliness, reduce component wear, and keep the whole system running stably. We can provide a stable supply for both individual replacement needs and large batch orders. If you have any questions about product specifications or need a quote, feel free to contact us anytime.

Advantages

Henan Top Environmental Protection Equipment operates a modern industrial facility covering 26,000 square meters, equipped with advanced production infrastructure for filtration and separation solutions. Our manufacturing base integrates fully automated production lines, including rolling, slitting, precision welding, and assembly systems. This strong production capacity enables stable, high-volume output while maintaining consistent product quality for global supply chains.

We focus on precision engineering of filter cartridges and hydraulic filter housings using advanced manufacturing technologies and high-performance materials. The company operates under strictly controlled ISO 9001 quality management systems and holds CE certification, ensuring that all products meet international safety and performance standards. Continuous investment in R&D and production technology allows us to deliver reliable and high-efficiency filtration solutions.

With over 20 years of export experience, we have developed strong expertise in international trade operations and global market service. Our products are exported to more than 100 countries across North America, Europe, the Middle East, and Southeast Asia. We are well-versed in handling diverse customer requirements, regulatory standards, and logistics coordination, ensuring smooth and efficient global delivery.

We implement a strict and fully integrated quality control system throughout the entire production lifecycle. From raw material inspection to final performance testing, every stage is carefully monitored to ensure product reliability and consistency. Our dedicated QC team uses precision testing equipment to guarantee stable performance and reduce defect rates, ensuring every shipment meets stringent quality requirements and customer expectations.

Our Factory

Henan Top Environmental Protection Equipment operates advanced manufacturing facilities for industrial filtration and separation solutions. We specialize in the precision engineering of filter cartridges and robust hydraulic filter housings for global markets. Our facility integrates fully automated production lines, including rolling, slitting, and high-precision welding equipment.

This automation guarantees consistent quality control and high-volume output for demanding international supply chains. We maintain rigorous CE and ISO 9001 certified management systems throughout our entire production lifecycle. A dedicated team of highly educated R&D engineers delivers custom technical support and system optimization. Our engineering unit excels in customizing raw materials to match specific pressure and fluid compatibility requirements. We provide extensive tailored services covering dimension modification, logo printing, packaging, and color matching.

A strict quality control team utilizes precision testing to ensure zero-defect shipments on every order. We hold multiple proprietary R&D patents related to filtration media technology and structural canister design. Our dedicated sales and after-sales teams provide seamless service guarantees and responsive logistical coordination. With over fifteen years of dedicated export expertise, we navigate complex international trade compliance flawlessly.

Our products currently reach more than one hundred countries across North America and Eastern European markets. We maintain strong, reliable distribution channels throughout the Middle East and Southeast Asian industrial sectors. The company adheres to core principles of responsibility, professional integrity, and transparent client communication. We consistently deliver high-value filtration alternatives that match or exceed original equipment performance specifications. Our mission focuses on reducing the total cost of ownership through durable construction and extended service intervals. We welcome the opportunity to engineer filtration solutions precisely aligned with your specific application requirements.

FAQ

Q1.How often should the oil filter be replaced?

A1:Replace the filter every 3–6 months or according to the equipment manufacturer’s recommendation. High-contaminant environments may require more frequent replacements.

Q2.Can the oil filter be reused?

A2:Yes, our stainless steel and high-quality synthetic filters can be cleaned and reused, extending their lifespan and reducing costs. Follow proper cleaning instructions to maintain filtration performance.
