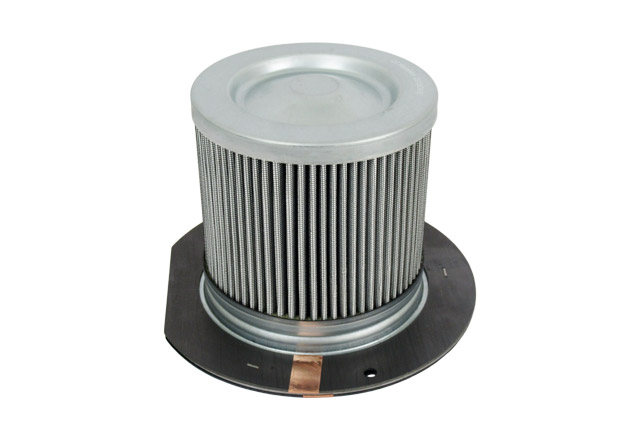

Alternative Air Compressor Oil Gas Separation Filter ZS1087415

Technical Parameters

Item	Specification
Product Name	Air Compressor Oil Separator Filter Element
Filter Type	Oil Separator / Oil Mist Separator
Application	Screw Air Compressor System
Filtration Object	Oil Mist, Dust, and Impurities
Filtration Accuracy	0.1μm – 3μm
Filtration Efficiency	99.9%
Residual Oil Content	≤3ppm
Filter Media	High Efficiency Fiberglass
Support Layer	Carbon Steel Perforated Plate / Stainless Steel Mesh
End Cap Material	Galvanized Steel
Seal Material	NBR / Fluororubber
Working Pressure	0.6 – 1.6 MPa
Operating Temperature	-10°C to +120°C
Initial Pressure Drop	≤0.02 MPa
Service Life	3000–6000 Hours
Structure Type	Pleated Cylindrical Structure
Installation Method	Flange Type
Compressor Type	Rotary Screw Air Compressor
OEM Service	Available
Customization	Size, Material, and Efficiency Customizable

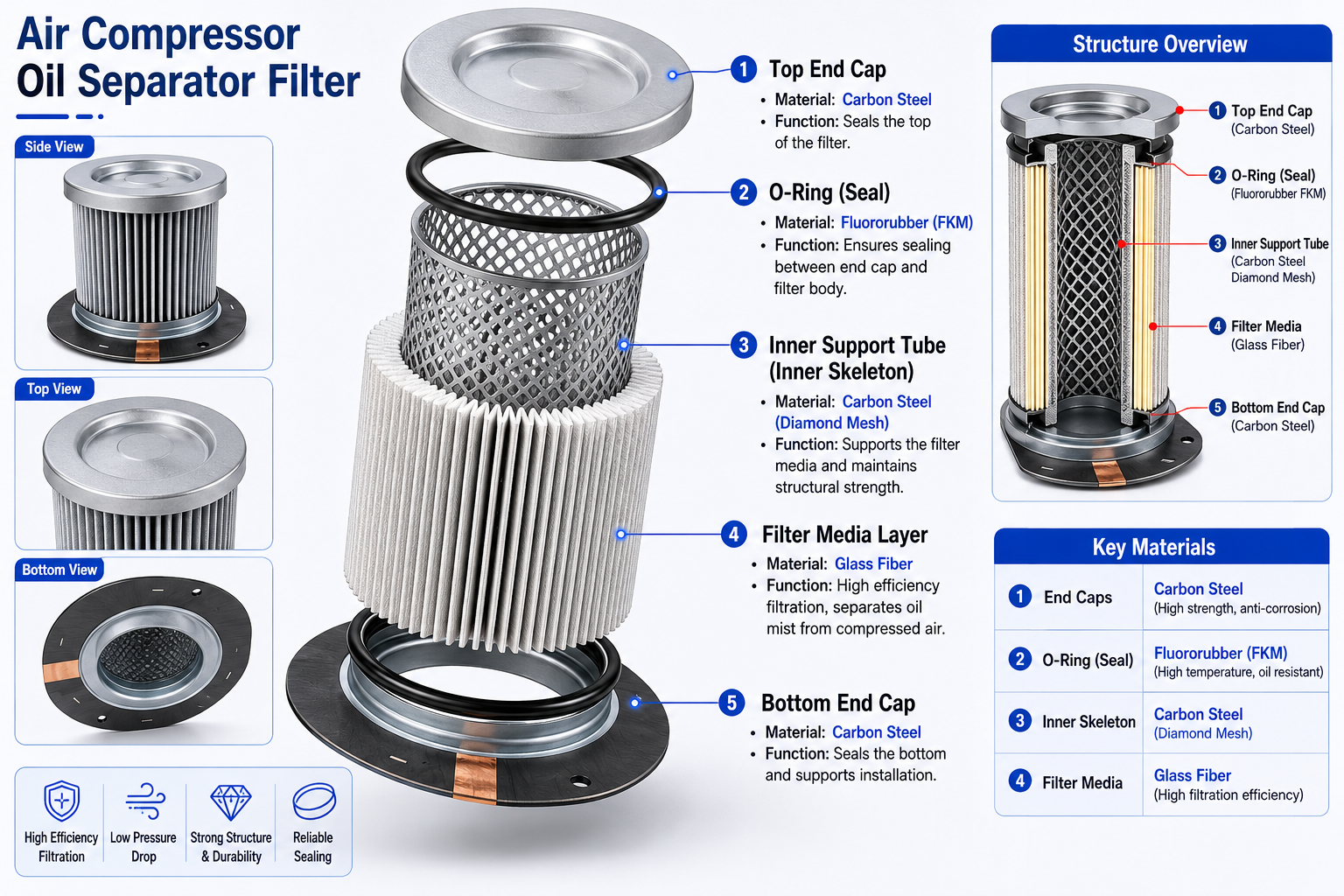

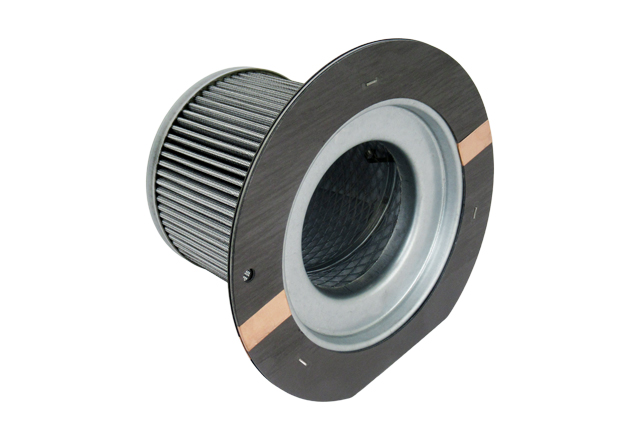

Product Structure

 The oil separator filter element is constructed with multi-layer fiberglass media, reinforced metal support structure, conductive anti-static components, and high-quality sealing materials to ensure efficient oil-air separation, low pressure loss, and long-term stable operation in industrial air compressor systems.






Product Features



1. ►  High Filtration Efficiency

•
• Advanced fiberglass media effectively separates oil mist and contaminants from compressed air.
•

1. ►  Low Oil Carryover

•
• Residual oil content can be controlled at a very low level to ensure cleaner compressed air output.
•

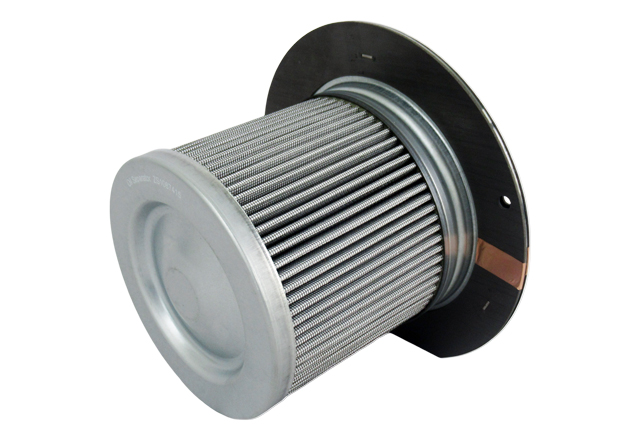

1. ►  Durable Structure

•
• Reinforced support mesh and high-strength metal end caps provide excellent pressure resistance and operational stability.
•

1. ►  Energy Saving Design

•
• Low-pressure drop design helps reduce energy consumption and improve compressor efficiency.
•

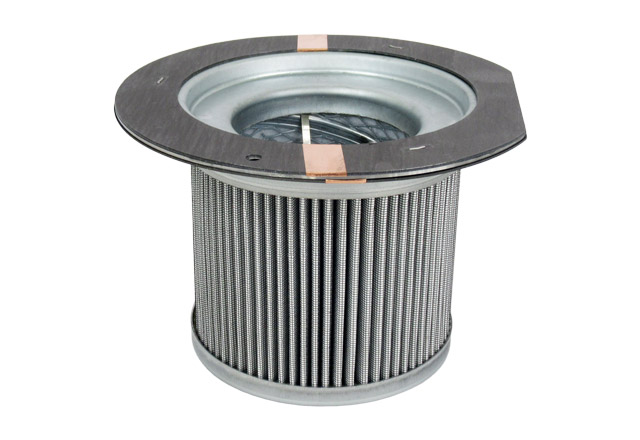

1. ►  Reinforced Inner Support Core

•
• The inner perforated metal core enhances structural strength and prevents collapse under high-pressure operation.
•

1. ►   Protective Outer Mesh

•
• The external protective layer improves pressure resistance and protects the filter media from mechanical damage.
•

1. ►   High-Strength Metal End Caps

•
• Durable galvanized steel end caps ensure stable assembly and long service life.
•

1. ►  High Quality Sealing Gasket

•
• NBR or Viton sealing materials provide excellent airtight performance and prevent leakage.
•

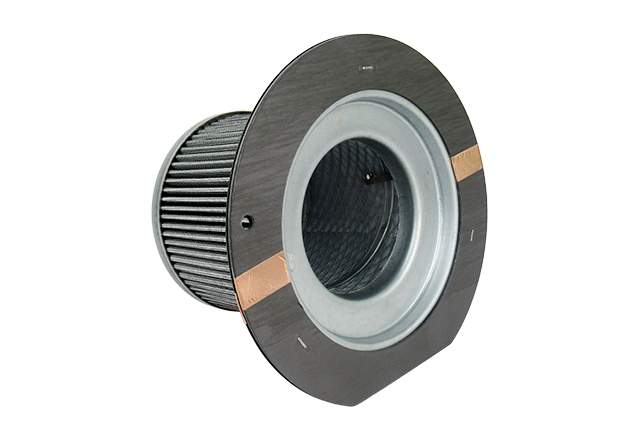

1. ►  Conductive Copper Strip Design

•
• Integrated conductive strips help eliminate static electricity and improve operational safety.
•

1. ►  Long Service Life

•
• Large dirt holding capacity extends maintenance intervals and reduces replacement frequency.
•

1. ►  OEM & Custom Service

•
• Custom dimensions, filtration accuracy, and structure are available according to customer requirements.

If you have any needs, please send us the part number or size.

Working Principle

Working Principle of Air Compressor Oil Separator Filter

The oil separator filter is designed to separate oil mist from compressed air in screw air compressors.

The compressed air mixed with lubricating oil enters the separator tank first, where large oil droplets are removed by gravity. The remaining fine oil mist then passes through the glass fiber filter media inside the oil separator element.

Through interception, diffusion, and coalescence, tiny oil particles combine into larger droplets, which flow back to the lubrication system through the oil return line. Finally, clean compressed air with low residual oil content is discharged from the compressor system.

Main functions:

• ♦ Oil mist separation
•
• ♦ Oil recovery
•
• ♦ Air purification
•
• ♦ Reducing oil consumption
•
• ♦ Protecting downstream equipment
